Prizm Cooling Matrix
One Of A Kind
Unique Design – It’s Unparalleled!

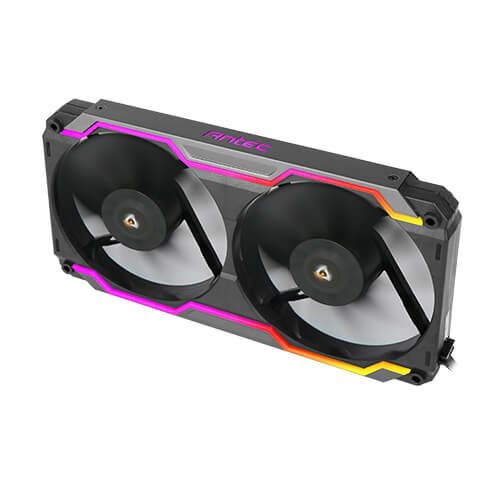

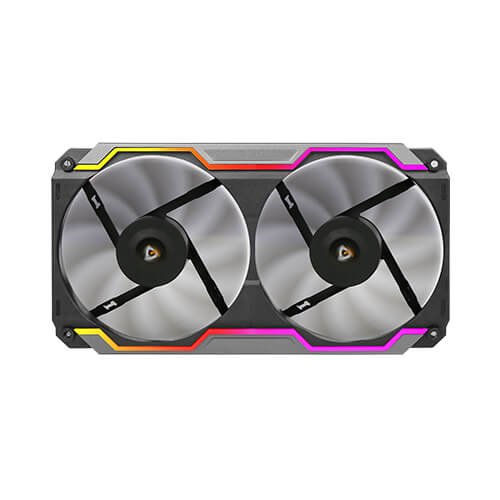

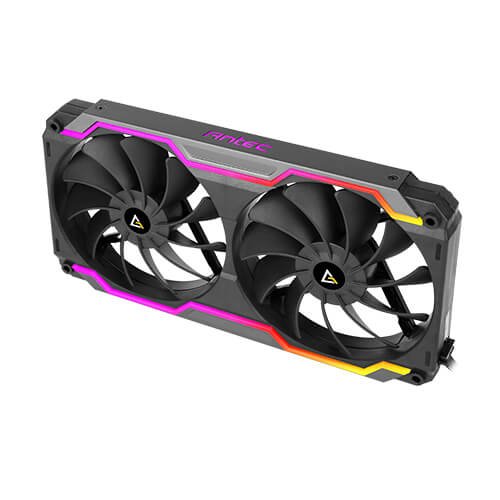

Prizm Cooling Matrix is the first of its kind in the performance PC market. Unlike conventional case fans, Prizm Cooling Matrix is a completely innovative, single bracket dual-fan housing assembly with two 120 mm fans connected simultaneously.
ARGB Control
Fan Box
Fan Box
Up to 16.8 million colors and coordinate your own custom schemes for endless variety.
240 mm Radiator Compatibility
– Double Cooling Icewind
SPECIFICATIONS
| Model Name | Prizm Cooling Matrix |
| Fan Type | PWM Fan |
| Dimensions (mm) | 240 x 130 x 26mm |
| Bearing Type | Hydraulic |
| LED Type | ARGB |
| Fan Speed (RPM) | 500 mini./1000/1800 max. |
| Airflow (CFM) | 21.7 mini./43.53/77.2 max. |
| Air Pressure (mmH2O) | 0.15 mini./0.6/1.83 max. |
| Fan Noise Level (dBA) | under 15.6/18.1/32.9 max. |
| Lifespan | 45000 hours |
| Connector | Fan: 4 pin ; ARGB: 3 pin |
| Rated Voltage | FAN: DC12V ; LED: DC5V |
| Operating Voltage | FAN: DC7~13.8V; LED: DC4.5-5.3V |
| Rated Current (A) | FAN: 0.45A ; LED: 0.55A |
| Fan Control Box | ARGB port x 5, PWM fan port x 5, SATA, Mode, External LED CTRL, M/B Sync, LED Speed |
| Net Weight | 0.35 Kgs |
| Gross Weight | 0.6 Kgs |
| Warranty | 2 years |
| UPC# | 0-761345-77518-2 |
| Package Size | 295 x 170 x 75 mm (DWH) |
