Description
Colorful H310M-E V21 Motherboard with Dual DDR4 Memory Slots Support Intel LGA1151 Coffee Lake-S Series Processors
Colorful H310M-E V21 Motherboard
Colorful H310M-E V21 Motherboard
About this item
- Support Intel LGA1151 coffee, lake-s series processors, providing excellent performance.
- Equipped with 2 DIMM slots, support dual Channel DDR4 2133/2400/2666MHz memory.
- Equipped with 4*sata3.0 ports, provide a 6Gbps transmission rate.
- A Hi-fi 6-channel sound card can restore the essence of sound, bring an outstanding immersive gaming experience.
- Adopt high performance RTL8111F 1000M LAN chip to provide fast transmission speed for online games and file transfer.
Specification
| Motherboard Series | Intel chipset, COLORFUL series |
| Chipset | Intel H310 |
| Processor | support Intel LGA1151 Coffee Lake-S processors |
| Memory | 2 DIMM slots， support dual-channel DDR4 2133/2400/2666MHz memory |
| Graphics Support | 1*PCI Express3.0X16 slot |
| SATA Ports | 4*SATA3.0 6Gb/s ports |

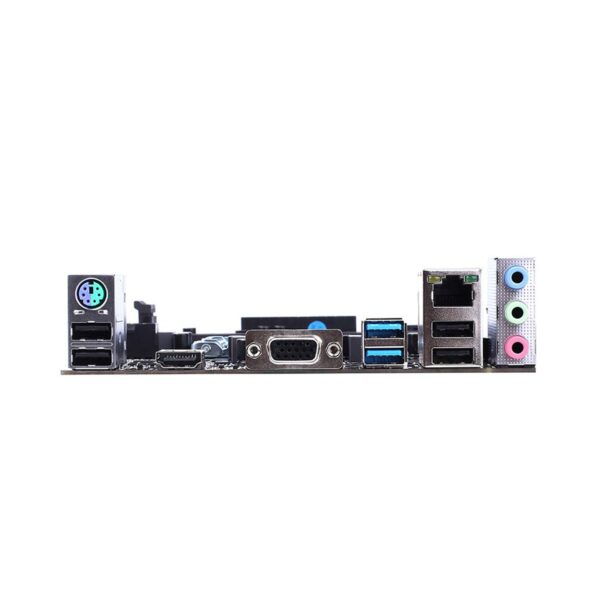

| Board I/O | 1*PS2 port，1*VGA port,1*HDMI port,1*RJ45 lan，3*audio ports,6*USB2.0 and 4*USB3.0(including headers) |
| Expansion Slots | 1*PCI Express 2.0×1 slot |
| BIOS | 64M UEFI |
| Power Management | support 65W processors |
| Hardware Monitor | CPU Fan speed Controlled，SYSTEM Fan speed Monitoring,CPU Temperature Monitoring，System Temperature Monitoring，and Voltage monitoring |
| LAN | RTL8111F,1000M LAN，Provides 10/100/1000Mb Ethernet |
| Audio | ALC662 6-channel audio chipset |
| Configuration | 170 x 221 mm mATX |
Technical Details
Motherboard Series: Intel series
Chipset: Intel H310
Processor: Support Intel LGA1151 Coffee Lake-S processors
Memory: 2 DIMM slots, support dual-channel DDR4 2133/2400/2666MHz memory
Graphics Support: 1*PCI Express3.0X16 slot
SATA Ports: 4*SATA3.0 6Gb/s ports
Board I/O: 1*PS2 port, 1*VGA port, 1*HDMI port, 1*RJ45 LAN，3*audio ports, 6*USB2.0 and 4*USB3.0(including headers)
Expansion Slots: 1*PCI Express 3.0×16 slot, 1*PCI Express x1 slot
BIOS: 64M UEFI
Power Management: Support 65W processors
Hardware Monitor: CPU fan speed controlled, SYSTEM fan speed monitoring, CPU temperature monitoring, system temperature monitoring, and voltage monitoring
LAN: RTL8111F, 1000M LAN, provides 10/100/1000Mb Ethernet
Audio: ALC662 6-channel audio chipset
Configuration: 170*221mm mATX
Packing list:
1 * Motherboard
2 * SATA cables
1 * I/O baffle
1 * Drive CD
1 * User manual
