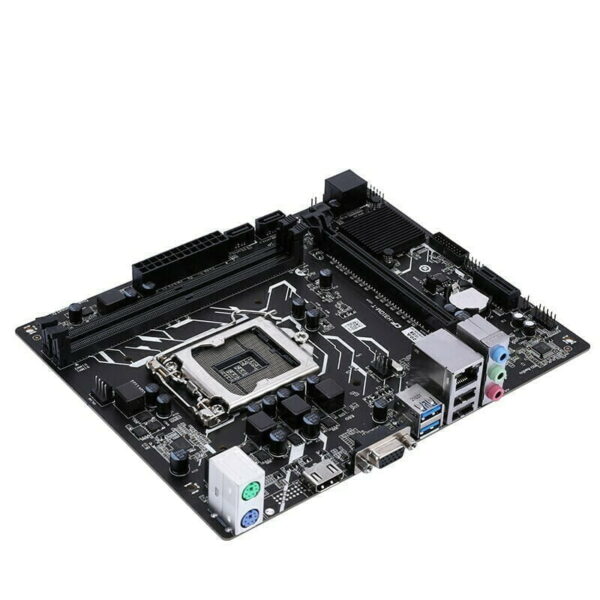

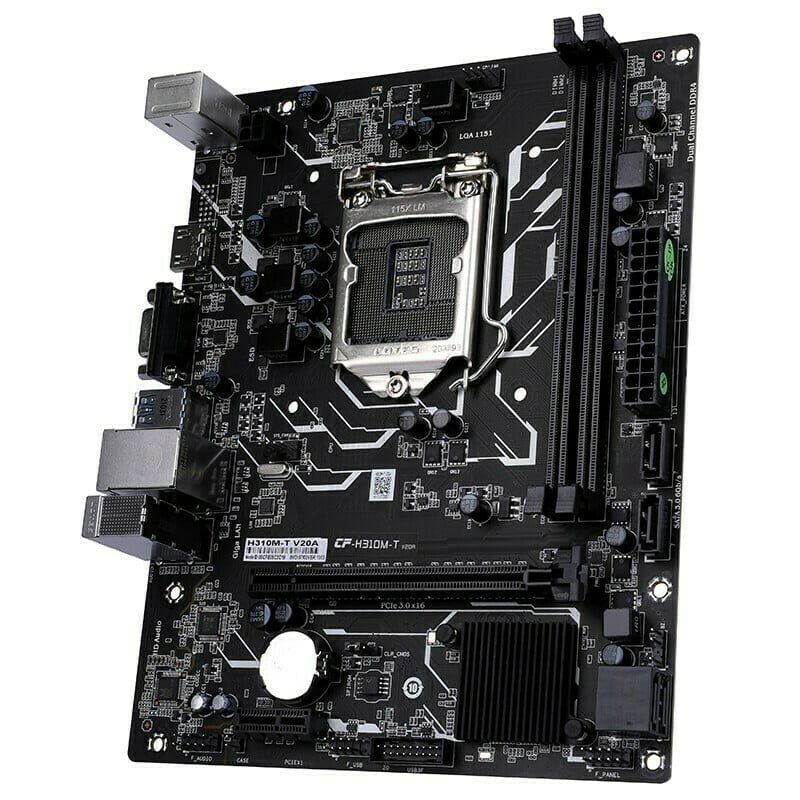

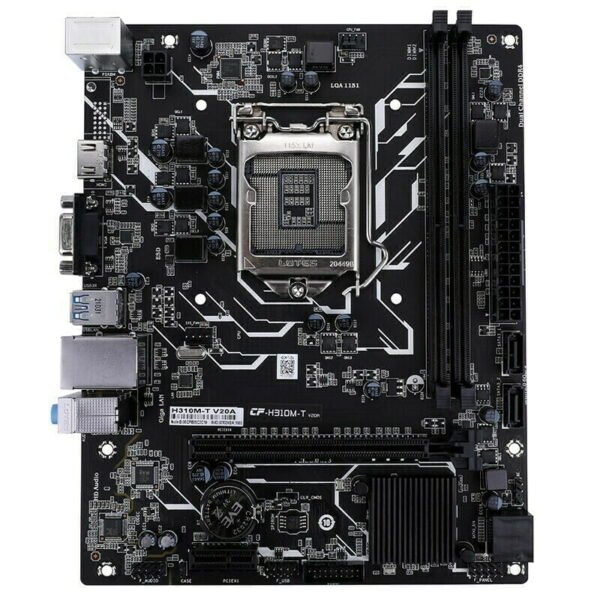

Colorful H310M-T V20A Motherboard
Specification
| Motherboard Series |
Intel chipset, COLORFUL series |
| Chipset |
Intel H310 |
| Processor |
support Intel LGA1151 Coffee Lake-S processors |
| Memory |
2 DIMM slots， support dual-channel DDR4 2133/2400/2666MHz memory |
| Graphics Support |
1*PCI Express3.0X16 slot |
| SATA Ports |
4*SATA3.0 6Gb/s ports |

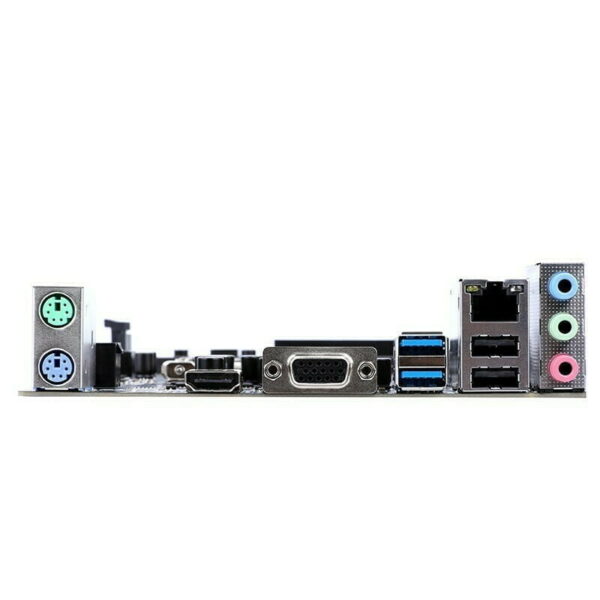

| Board I/O |
2*PS2 ports，1*VGA port,1*HDMI port,1*RJ45 lan，3*audio ports,4*USB2.0 and 4*USB3.0(including headers) |
| Expansion Slots |
1*PCI Express2.0X1 slot |
| BIOS |
64M UEFI |
| Hardware Monitor |
CPU Fan speed Controlled， SYSTEM Fan Speed Monitoring, CPU Temperature Monitoring, System Temperature Monitoring,and Voltage monitoring |
| LAN |
100M LAN，Provides 10/100Mb Ethernet |
| Audio |
6-Channel High Definition audio CODEC |
| Configuration |
215 x 170 mm mATX
|
| Other Features |
Support ACPI S3/S4/S5;Support phone call startup, timing boot, network S5 wake-up
|
