Description

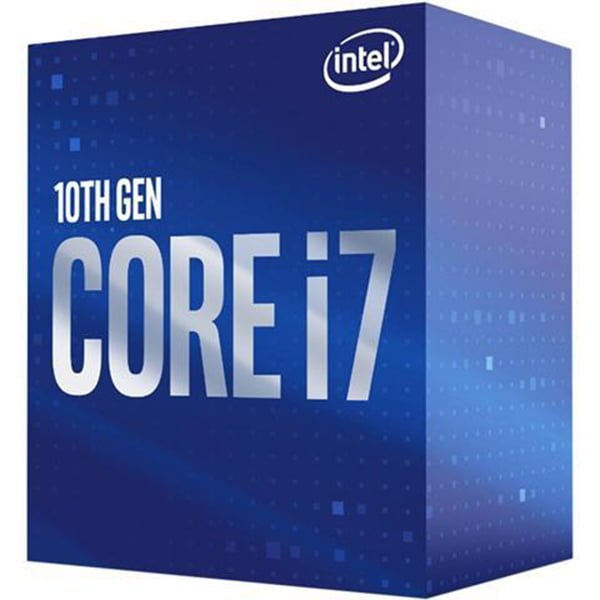

Intel Core i7 10700 Processor
16M Cache, up to 4.80 GHz
Essentials
| Product Collection | 10th Generation Intel® Core™ i7 Processors |
| Code Name | Products formerly Comet Lake |
| Vertical Segment | Desktop |
| Processor Number | i7-10700 |
| Lithography | 14 nm |
| Use Conditions | PC/Client/Tablet |
Performance Specifications
| # of Cores | 8 |
| # of Threads | 16 |
| Processor Base Frequency | 2.90 GHz |
| Max Turbo Frequency | 4.80 GHz |
| Cache | 16 MB Intel® Smart Cache |
| Bus Speed | 8 GT/s |
| Intel® Turbo Boost Max Technology 3.0 Frequency ‡ | 4.80 GHz |
| Intel® Turbo Boost Technology 2.0 Frequency‡ | 4.70 GHz |
| TDP | 65 W |
Memory Specifications
| Max Memory Size (dependent on memory type) | 128 GB |
| Memory Types | DDR4-2933 |
| Max # of Memory Channels | 2 |
| Max Memory Bandwidth | 45.8 GB/s |
| ECC Memory Supported ‡ | No |
Processor Graphics
| Processor Graphics ‡ | Intel® UHD Graphics 630 |
| Graphics Base Frequency | 350 MHz |
| Graphics Max Dynamic Frequency | 1.20 GHz |
| Graphics Video Max Memory | 64 GB |
| 4K Support | Yes, at 60Hz |
| Max Resolution (HDMI 1.4)‡ | 4096×2160@30Hz |
| Max Resolution (DP)‡ | 4096×2304@60Hz |
| Max Resolution (eDP – Integrated Flat Panel)‡ | 4096×2304@60Hz |
| DirectX* Support | 12 |
| OpenGL* Support | 4.5 |
| Intel® Quick Sync Video | Yes |
| Intel® InTru™ 3D Technology | Yes |
| Intel® Clear Video HD Technology | Yes |
| Intel® Clear Video Technology | Yes |
| # of Displays Supported ‡ | 3 |
| Device ID | 0x9BC5 |
Expansion Options
| Scalability | 1S Only |
| PCI Express Revision | 3 |
| PCI Express Configurations ‡ | Up to 1×16, 2×8, 1×8+2×4 |
| Max # of PCI Express Lanes | 16 |
Package Specifications
| Sockets Supported | FCLGA1200 |
| Max CPU Configuration | 1 |
| Thermal Solution Specification | PCG 2015C |
| TJUNCTION | 100°C |
| Package Size | 37.5mm x 37.5mm |
Advanced Technologies
| Intel® Optane™ Memory Supported ‡ | Yes |
| Intel® Thermal Velocity Boost | No |
| Intel® Turbo Boost Max Technology 3.0 ‡ | Yes |
| Intel® Turbo Boost Technology ‡ | 2 |
| Intel vPro® Platform Eligibility ‡ | Yes |
| Intel® Hyper-Threading Technology ‡ | Yes |
| Intel® Virtualization Technology (VT-x) ‡ | Yes |
| Intel® Virtualization Technology for Directed I/O (VT-d) ‡ | Yes |
| Intel® VT-x with Extended Page Tables (EPT) ‡ | Yes |
| Intel® Transactional Synchronization Extensions | No |
| Intel® 64 ‡ | Yes |
| Instruction Set | 64-bit |
| Instruction Set Extensions | Intel® SSE4.1, Intel® SSE4.2, Intel® AVX2 |
| Idle States | Yes |
| Enhanced Intel SpeedStep® Technology | Yes |
| Thermal Monitoring Technologies | Yes |
| Intel® Identity Protection Technology ‡ | Yes |
| Intel® Stable Image Platform Program (SIPP) | Yes |
Security & Reliability
| Intel® AES New Instructions | Yes |
| Secure Key | Yes |
| Intel® Software Guard Extensions (Intel® SGX) | Yes with Intel® ME |
| Intel® OS Guard | Yes |
| Intel® Trusted Execution Technology ‡ | Yes |
| Execute Disable Bit ‡ | Yes |
| Intel® Boot Guard | Yes |
