Cooler Master V1200 PLATINUM PSU
REAL POWER, REAL CONTROL
The MasterWatt Maker series is quite simply the highest caliber of power supply unit you can buy. It’s all aluminum construction, 80 PLUS Titanium efficiency rating, exclusive high capacity cable connector design, silent 135mm LDB fan, and seven year warranty make it a PSU that’s simply beyond comparison with most other products available to the public today. In this updated version, the MasterWatt Maker Plus now offers the full functionality of the MasterPlus+ software. You can now monitor and manage your PSU’s operations in real time, allowing a level of control that takes every aspect of building and maintaining your rig to new heights.
BRAINS AND BRAWN
The MasterWatt Maker Plus is the most powerful PSU Cooler Master has ever made. The all aluminum frame is built tough while maintaining a high level of aesthetic value. Internally, this unit is a power house capable of doing things that can’t even be imagined with many other models. But it’s more than just a strong PSU. It’s also a smart one. This is Cooler Master’s first digital power supply unit. It was made with the intention of giving users as much control as possible in the management of their PSU and their system in general. To do this, a digital processor was built right into the platform.
THE POWER IS YOURS
The MasterPlus+ software is Cooler Master’s newest innovation for system management. This software provides users the ability to monitor just about every aspect of the MasterWatt Maker’s operations in real time. Temperature, fanspeed, system load, and so much more. And you don’t just have the ability to see what’s going on. You can control it. Change operational settings for whatever your needs are whenever you want. The MasterPlus+ software puts the power directly into your hands. And with direct compatibility with overlay.live you can stream your PSU telemetry data in real time as well.
THE STRONG SILENT TYPE

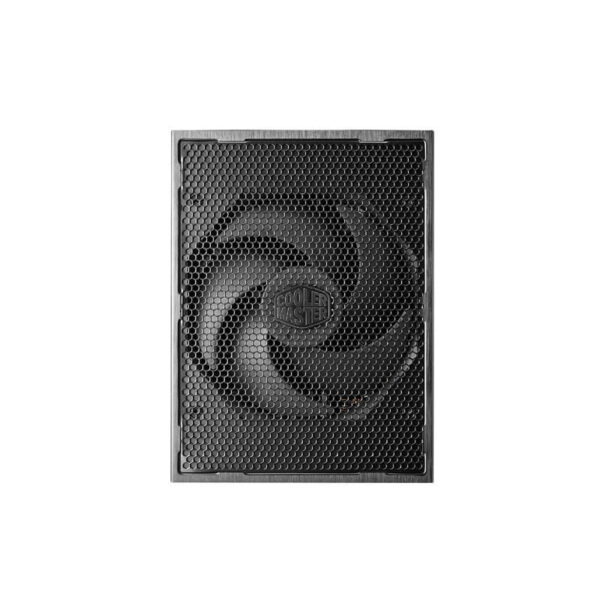

The MasterWatt Maker series uses Cooler Master’s premium Silencio FP 135mm LDB fan to keep cool. This fan offers excellent cooling with minimal noise. And with the newly added MasterPlus+ software, you can tell the PSU exactly what speeds to run the fan at based on load and monitor the unit’s temperature in real time. But with the size, construction, materials, and extremely high efficiency of this power supply unit, you may never need to use your fan at all.
BUILD BETTER

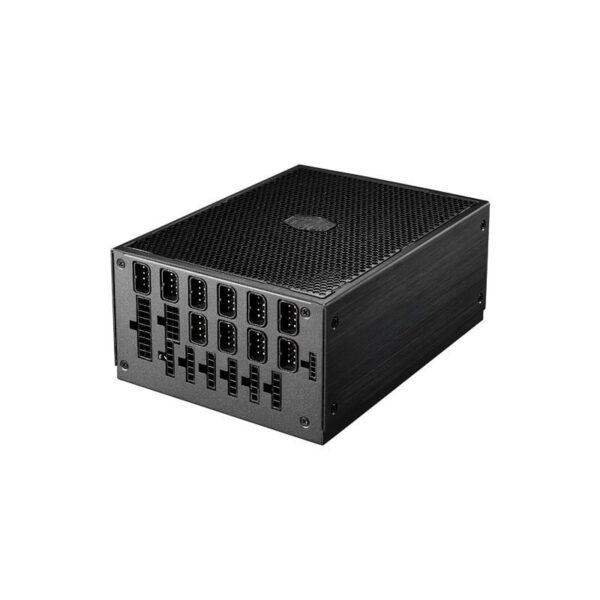

With fully modular cabling you can build the absolute best version of your PC. The least clutter, the highest aesthetic value, the best airflow, and the best overall performance is only possible with a fully modular PSU. But the MasterWatt Maker series takes full-modular cables to the next level. The cables aren’t just fully modular in this series. They’re specially constructed unlike any other unit available on the market. These special connectors create surface contact efficient enough to carry 1.5x the current of normal connectors for better overall efficiency and output stability.
ULTIMATE POWER
An 80 PLUS Titanium power supply unit is quite literally the best efficiency rating money can buy on the market today. While efficiency is certainly not the only spec worth considering when choosing a PSU, it’s definitely an important one. Especially when running intensive operations that require large amounts of power for long periods of time. If you want to keep that electric bill down, the MasterWatt Maker’s Titanium grade efficiency is the best option for your next high wattage setup.
PLAY THE LONG GAME
The MasterWatt Maker series offers the highest of high-end power supply units. There are simply no better options if you want the best quality money can buy. And while you might not need this level of quality and performance for your system, it also gives you the promise of long term usability. This PSU wasn’t just built to perform. It was also built to last. You can trust that you’ll be using this power supply for many years to come and we’re willing to back up that claim by offering a 7-Year warranty with any model in the MasterWatt Maker series.
SPECIFICATION
MODULAR | Full Modular |
POWER | 1500 Watts |
ATX VERSION | ATX 12V, fully modular |
PFC | Active PFC (>0.95 typical) |
INPUT VOLTAGE | 100-240V |
INPUT CURRENT | 15-7.5A |
INPUT FREQUENCY | 47-63Hz |
DIMENSIONS (L X W X H) | 200 x 150 x 86 mm |
FAN SIZE | 135mm Silencio FP Fan |
POWER GOOD SIGNAL | 100-500ms |
HOLD UP TIME | 16ms |
EFFICIENCY | 90-94% |
MTBF | 100,000 Hours |
PROTECTIONS | OPP, OVP, OCP, SCP, OTP |
REGULATORY | TUV, CE, FCC, BSMI, EAC, RCM, CCC, KC |
MB 20+4 PIN CONNECTORS | 1 |
CPU 12V 4+4 PIN CONNECTORS | 2 |
PCI-E 6+2 PIN CONNECTORS | 12 |
SATA CONNECTORS | 20 |
PERIPHERAL 4-PIN CONNECTORS | 12 |
FDD CABLE 4-PIN CONNECTORS | 1 |
SERIE | MasterWatt Maker Series |
PRODUCT NAME | MasterWatt Maker 1500 Plus |
WATTAGE | Above 750W |
80 PLUS | Titanium |
