MSI H310M PRO-M2 Motherboard

MSI H310M PRO-M2 Motherboard

Power, Performance & Affordability Combined

Searching for the perfect motherboard that balances reliable computing performance with exceptional value? Look no further than the MSI H310M PRO-M2 – a powerful, feature-rich, and durable solution tailored for 8th and 9th Gen Intel processors. Whether you’re building a home office PC, budget-friendly workstation, or a starter gaming rig, this motherboard offers top-notch stability, efficient thermal design, and comprehensive compatibility.

Offered exclusively at ThinkPC.in, this board delivers maximum value without compromising on quality – making it one of the most trusted choices among tech enthusiasts and first-time PC builders alike.

Why Choose MSI H310M PRO-M2 Motherboard?

Here’s why this compact Micro-ATX board is a top-rated choice for value-seekers:

  • ✅ Supports Intel 8th/9th Gen Processors

  • ✅ M.2 Slot for High-Speed NVMe SSD

  • ✅ DDR4 RAM Support up to 32GB

  • ✅ Military-Grade Components

  • ✅ USB 3.1 Gen1 Support

  • ✅ Core Boost & Audio Boost Technologies

  • ✅ Compact Micro-ATX Form Factor

  • ✅ Steel Armor PCI-E Slot for GPU Stability

Know Your Board Inside Out
MSI H310M PRO-M2 Motherboard

Feature Specification
CPU Socket LGA 1151
Chipset Intel H310
Memory Support 2 x DDR4 DIMM, up to 32GB, up to 2666 MHz
Graphics Output 1 x HDMI, 1 x DVI-D
Expansion Slots 1 x PCI-E 3.0 x16, 2 x PCI-E x1
Storage Options 4 x SATA III, 1 x M.2 (NVMe, 32Gb/s)
USB Ports USB 3.1 Gen1, USB 2.0
Audio 7.1 Channel High Definition Audio
LAN Realtek® Gigabit LAN
Form Factor Micro-ATX (mATX)
Dimensions 9.6 in. x 8.1 in. (24.4 cm x 20.6 cm)



Processor

Supports 9th / 8th Gen Intel® Core™ / Pentium® Gold / Celeron® processors for LGA 1151 socket

See supported processors

Chipset

Intel® H310 Chipset

Memory

  • 2 x DDR4 memory slots, support up to 32GB
  • Supports DDR4 2666/ 2400/ 2133 MHz
  • Dual channel memory architecture
  • Supports non-ECC, un-buffered memory
  • Supports Intel® Extreme Memory Profile (XMP)

See supported memory

Slots

  • 1 x PCIe 3.0 x16 slot
  • 2 x PCIe 2.0 x1 slots

Onboard Graphics

  • 1x VGA port, supports a maximum resolution of 2048×1536@50Hz, 2048×1280@60Hz, 1920×1200@60Hz1
  • 1x DVI-D port, supports a maximum resolution of 1920×1200@60Hz1
  • 1x HDMI™ port 1.4, supports a maximum resolution of 4096×2160@30Hz1

*No Display support when using the Processor model with suffix “F”

  1. Supports up to 2 displays simultaneously

Storage

Intel® H310 Chipset

  • 4 x SATA 6Gb/s ports
  • 1 x M.2 slot (Key M)
    • Support up to PCIe 2.0 x4 and SATA 6Gb/s
    • Supports 2242/ 2260 /2280 storage devices

USB

Intel® H310 Chipset

  • 4 x USB 3.1 Gen1 (SuperSpeed USB) ports (2 Type-A ports on the back panel, 2 ports available through the internal USB connectors)
  • 6 x USB 2.0 (High-speed USB) ports (4 Type-A ports on the back panel, 2 ports available through the internal USB connectors)

Audio

Realtek® ALC887 Codec

  • 7.1-Channel High Definition Audio

LAN

  • 1 x Intel I219-V Gigabit LAN controller

Internal connectors

  • 1 x 24-pin ATX main power connector
  • 1 x 8-pin ATX 12V power connector
  • 4 x SATA 6Gb/s connectors
  • 1 x USB 3.1 Gen1 connector (supports additional 2 USB 3.1 Gen1 ports)
  • 1 x USB 2.0 connector (supports additional 2 USB 2.0 ports)
  • 1 x 4-pin CPU fan connector
  • 1 x 4-pin system fan connector
  • 1 x Front panel audio connector
  • 1 x Serial port connector
  • 2 x Front panel connectors
  • 1 x TPM module connector
  • 1 x Chassis Intrusion connector
  • 1 x Clear CMOS jumper

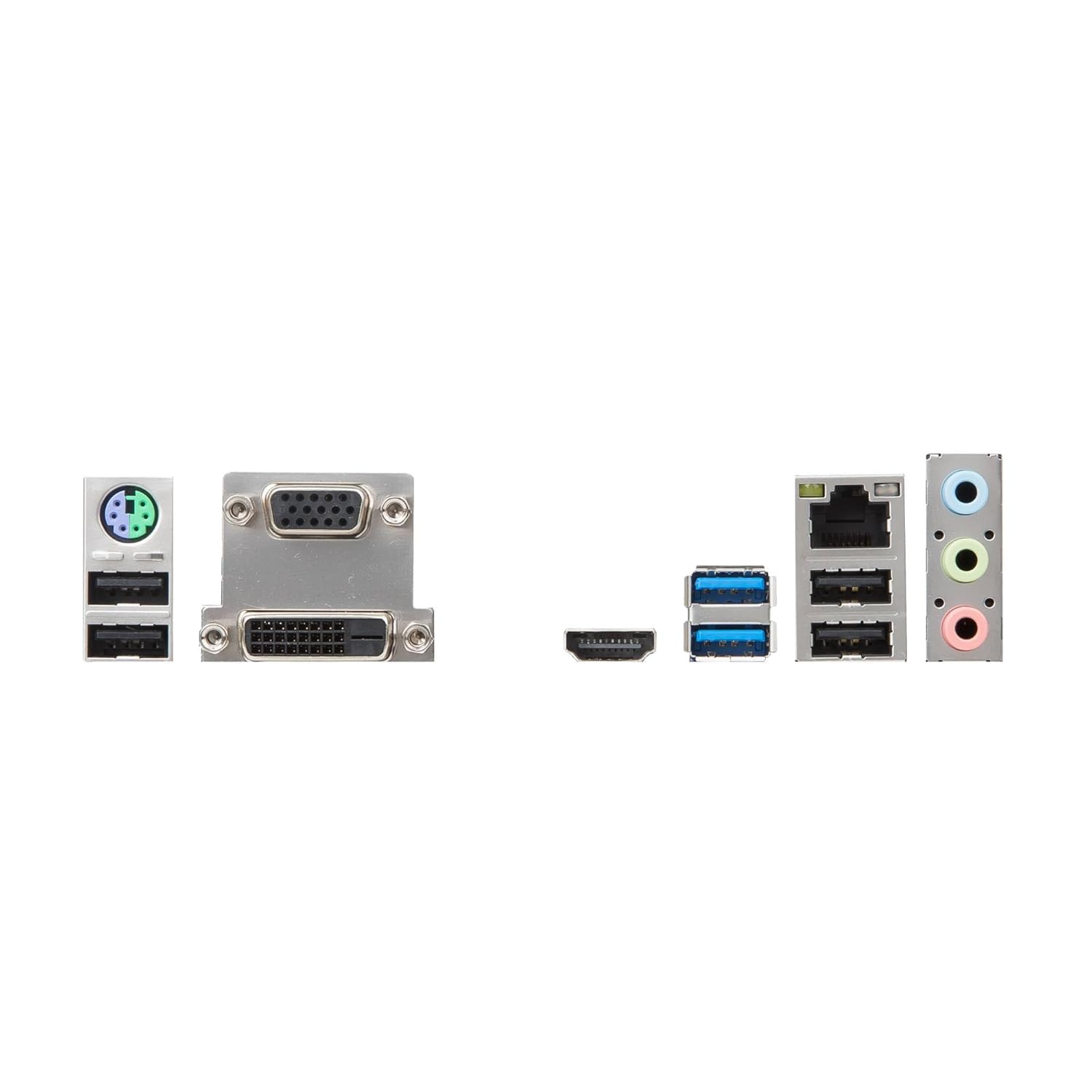

Back panel ports

  1. PS/2 Combo Port
  2. VGA Port
  3. HDMI™ Port
  4. USB 3.1 Gen1
  5. LAN Port
  6. HD Audio Connectors
  7. USB 2.0 Port
  8. DVI-D Port
  9. USB 2.0 Port
MSI H310M PRO-M2 back panel ports

Dimensions

  • 9.1 in. x 7.3 in. (23.0 cm x 18.5 cm)
  • m-ATX Form Factor

Mounting

6 mounting holes

Operating System

Support for Windows® 10 64-bit



Performance That Speaks for Itself

The MSI H310M PRO-M2 is equipped with Core Boost technology that ensures reliable and consistent power delivery to the CPU. This means faster performance, lower latency, and improved multitasking. Whether you’re editing documents, watching high-definition videos, or multitasking between apps, this board keeps your system running at optimal efficiency.

Pair it with a fast SSD via the M.2 slot, and you’ll notice dramatic improvements in boot time, file transfers, and app responsiveness.

Power Features Designed for Reliability

  • Military Class 4 Components: Built with high-quality capacitors and components that deliver unbeatable durability.

  • EZ Debug LED: Instantly troubleshoot system startup issues with onboard LED indicators.

  • Steel Armor PCI-E Slot: Protects your GPU from bending and ensures better signal stability during intense gaming or heavy loads.

Connectivity That Keeps You Ahead

  • USB 3.1 Gen1 ensures blazing-fast file transfers and peripheral connectivity.

  • Gigabit LAN offers stable, lag-free networking ideal for online work or multiplayer gaming.

  • HDMI & DVI Outputs ensure compatibility with a wide range of modern monitors and TVs.

No more compromise between functionality and affordability. The MSI H310M PRO-M2 brings powerful connectivity in a compact footprint.

Immersive Audio Boost – Clearer Sound, Enhanced Entertainment

The integrated Audio Boost feature provides crystal-clear audio output. Whether you’re enjoying music, streaming videos, or gaming, the H310M PRO-M2 delivers enhanced sound clarity with minimal distortion.

It intelligently separates audio layers, resulting in immersive experiences across headphones and speaker setups alike.

Perfect for Multiple Use Cases

🔧 Home & Office PC Builds: With its simple layout, stable power delivery, and wide compatibility, this board is a go-to for budget-conscious users.

🎮 Entry-Level Gaming: Pair with a discrete GPU for a capable starter gaming system.

💼 Business Workstations: Stability, fast data access (via M.2), and Intel platform support make this an excellent choice for productivity machines.

Easy PC Building with User-Friendly Features

New to PC building? No problem! MSI includes several smart DIY features to make setup a breeze:

  • User-friendly BIOS interface

  • Secure BIOS Flash

  • Compatibility checklists

  • Board layout optimized for airflow and cable management

Whether you’re a beginner or a seasoned pro, building with the H310M PRO-M2 is smooth, quick, and hassle-free.

Why Buy from ThinkPC.in?

💎 Trusted Indian Ecommerce Brand
🚚 Fast Nationwide Delivery
🛠️ Expert Support & Warranty Assistance
💰 Exclusive Online Deals & Discounts
🧾 100% Genuine & Certified Products

ThinkPC.in is your go-to destination for authentic MSI products and PC components in India. Our direct partnerships and prompt service ensure you get value, peace of mind, and performance in every purchase.

Compatible Components You Can Buy Together

To build a powerful and compatible system, pair the MSI H310M PRO-M2 with:

  • 💽 Intel Core i5-9400F Processor

  • 🔧 Corsair Vengeance 8GB DDR4 RAM

  • ⚡ WD Blue NVMe M.2 SSD (500GB)

  • 🎮 Zotac GTX 1650 Graphics Card

  • 🔌 Cooler Master 550W PSU

  • 🖥️ Ant Esports ICE-200TG Cabinet

Check these components on ThinkPC.in for bundle discounts!

Is MSI H310M PRO-M2 Motherboard Worth It?

Absolutely! The MSI H310M PRO-M2 is a value-packed motherboard that delivers rock-solid performance, durable design, and seamless compatibility for everyday computing. Whether you’re working from home, gaming casually, or building a starter PC for students or professionals, this board ticks all the right boxes.

With ThinkPC.in’s unbeatable prices, genuine product guarantee, and lightning-fast shipping, this is the smartest buy for those who want high-performance computing without breaking the bank.

Order Now from ThinkPC.in – Power Your PC Build with Confidence!

✅ 100% Genuine MSI Product
✅ Best Price in India
✅ Expert Pre-Sales Guidance
✅ Easy Returns & Replacement
✅ Lightning-Fast Shipping

📦 Don’t wait! Get your MSI H310M PRO-M2 Motherboard

today and experience high-speed performance with peace of mind.

MSI H310M PRO-M2 Motherboard

FAQs – Everything You Need to Know

Q. Does this motherboard support 9th Gen Intel processors?
A. Yes, it supports both 8th and 9th Gen Intel Core processors on the LGA 1151 socket.

Q. Can I use an NVMe SSD with this motherboard?
A. Absolutely! It features an M.2 slot with support for NVMe SSDs up to 32Gb/s.

Q. What RAM does it support?
A. The board supports up to 32GB of DDR4 RAM at speeds up to 2666 MHz.

Q. Is BIOS update required for 9th Gen Intel CPUs?
A. Most newer boards come with updated BIOS, but you can verify or flash the latest from MSI’s support page.

Q. Can I connect multiple monitors to it?
A. Yes! It supports multiple displays via HDMI and DVI-D outputs.

Ready to Build or Upgrade?

If you’re serious about building a cost-effective, powerful, and durable system, the MSI H310M PRO-M2 Motherboard is your ideal companion. Shop confidently at ThinkPC.in, where quality meets affordability.
