Sale!

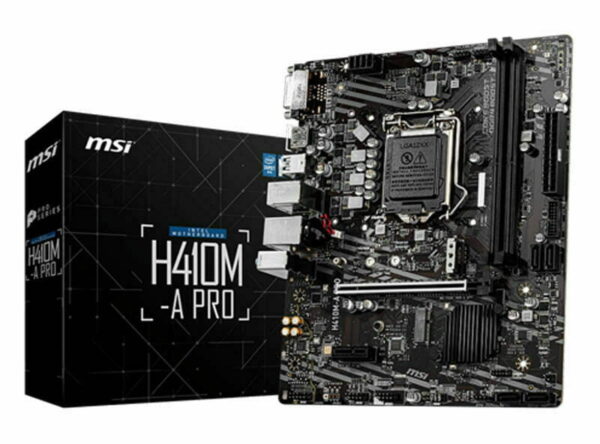

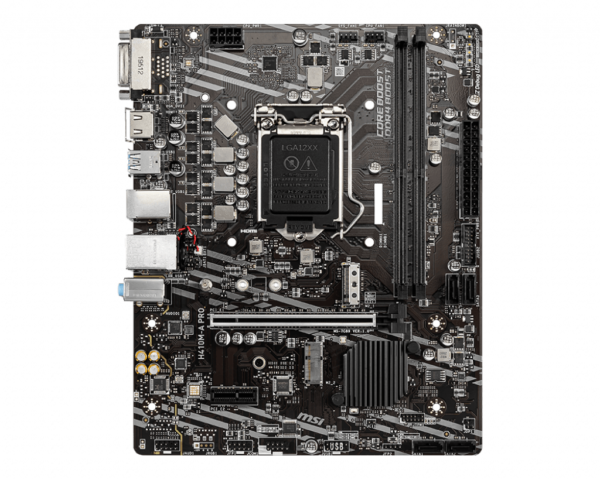

MSI H410M A Pro Intel Motherboard

5,151.00 (In. GST)

+ Free Shipping
  • MSI H410M A Pro Supports 10th Gen Intel® Coreâ„¢ / Pentium® Celeron® processors for LGA 1200 socket
  • Supports DDR4 Memory, up to 2933(Max) MHz
  • Core Boost: With premium layout and digital power design to support more cores and provide better performance.
  • DDR4 Boost: Advanced technology to deliver pure data signals for the best performance and stability.
  • Turbo M.2: Running at PCI-E Gen3 x4 maximizes performance for NVMe based SSDs
  • Audio Boost: Reward your ears with studio grade sound quality
  • Steel Armor: Protecting VGA cards against bending and EMI for better performance, stability and strength.

Out of stock

Guaranteed Safe Checkout
Compare

MSI H410M A Pro

INTEL MOTHERBOARD

msi h410m a pro

MSI H410M A Pro intel motherboard

MSI H410M A Pro connectivity



PROCESSOR

MSI H410M A Pro

Supports 10th Gen Intel® Core™ and Pentium® Gold / Celeron® processors for LGA 1200 socket1 2

  1. Please go to www.intel.com for more compatibility information.
  2. Onboard graphics output are disabled when using F SKU processors.

See supported processors

CHIPSET

Intel® H410 Chipset

MEMORY

  • 2x DDR4 memory slots, support up to 64GB1
  • Intel® Coreâ„¢ i7/ i9
    • Supports up to DDR4 2933 MHz
  • Intel® Coreâ„¢ i5 and below
    • Supports up to DDR4 2666 MHz
  • Supports Dual-Channel mode
  • Supports non-ECC, un-buffered memory
  • Supports Intel® Extreme Memory Profile (XMP)
  1. Please refer www.msi.com for more information on compatible memory.

See supported memory

EXPANSION SLOT

  • 1x PCIe 3.0 x16 slot (From CPU)
  • 1x PCIe 3.0 x1 slot (From PCH)
  • 1x M.2 slot with E key for WiFi module only

ONBOARD GRAPHICS

  • 1x DVI-D port, supports a maximum resolution of 1920×1200 @60Hz
  • 1x HDMIâ„¢ 1.4 port, supports a maximum resolution of 4096×2160 @30Hz
  1. Maximum shared memory is 1GB

STORAGE

Intel® H410 Chipset

  • 4x SATA 6Gb/s ports

1x M.2 slot (Key M)

  • M2_1 supports up to PCIe 3.0 x4 and SATA 6Gb/s, 2242/ 2260/ 2280 storage devices

USB

Intel® H410 Chipset

  • 4x USB 3.2 Gen 1 5Gbps ports (2 Type-A ports on the back panel, 2 ports available through the internal USB 3.2 Gen 1 5Gbps connector)
  • 6x USB 2.0 ports (4 Type-A ports on the back panel, 2 ports available through the internal USB 2.0 connector)

MSI H410M A Pro

AUDIO

Realtek® ALC892/ALC897 Codec

  • 7.1-Channel High Definition Audio

LAN

  • 1x Intel® I219V Gigabit LAN controller



INTERNAL CONNECTORS

MSI H410M A Pro Intel Motherboard

  • 1x 24-pin ATX main power connector
  • 1x 8-pin ATX 12V power connector
  • 4x SATA 6Gb/s connectors
  • 1x USB 2.0 connector (supports additional 2 USB 2.0 ports)
  • 1x USB 3.2 Gen1 5Gbps connector (supports additional 2 USB 3.2 Gen1 5Gbps ports)
  • 1x 4-pin CPU fan connector
  • 1x 4-pin system fan connector
  • 1x Front panel audio connector
  • 2x Front panel connectors
  • 1x Serial port connector
  • 1x TPM module connector
  • 1x Chassis Intrusion connector
  • 1x Clear CMOS jumper
  • 4x EZ Debug LED

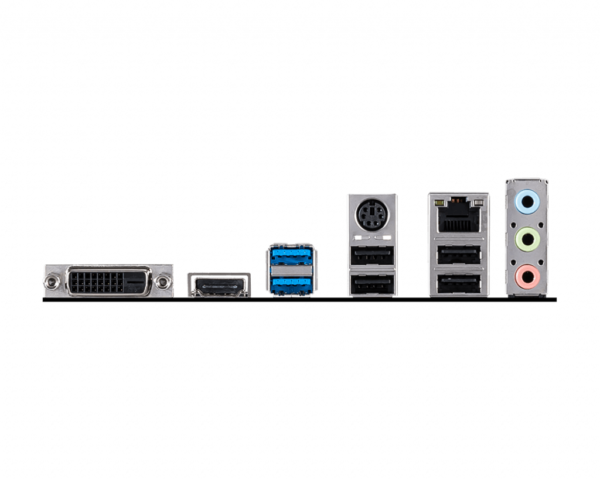

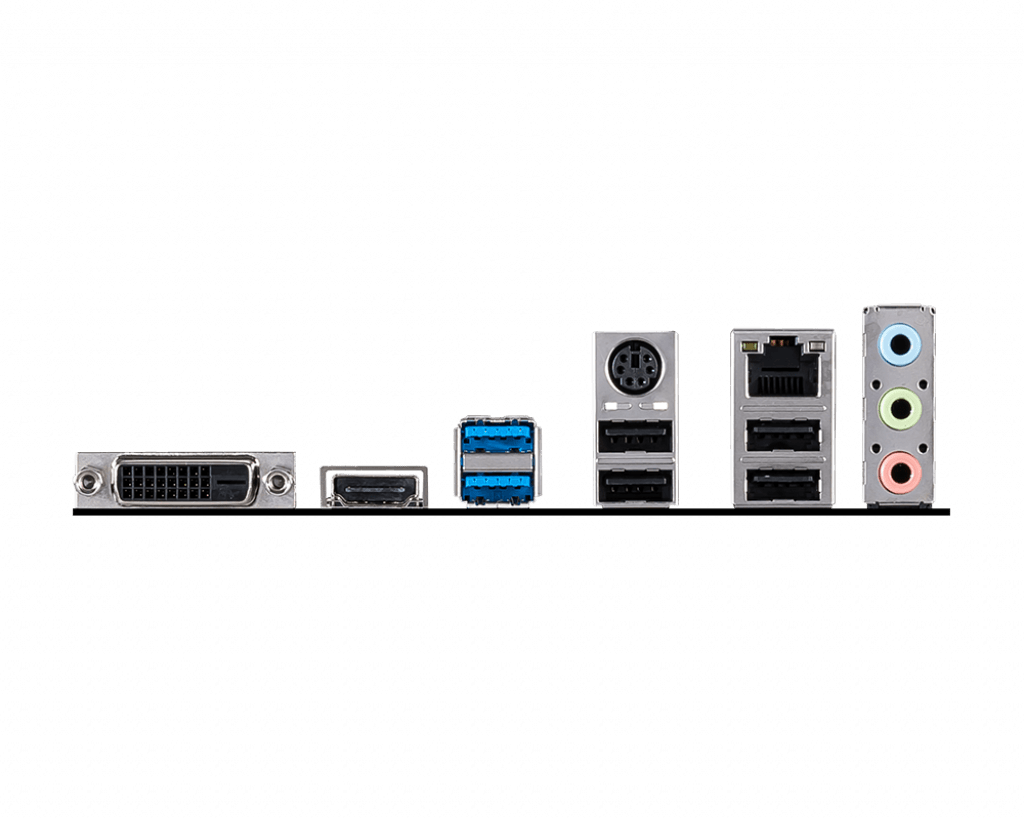

BACK PANEL PORTS

  1. Keyboard / Mouse
  2. LAN
  3. DVI-D
  4. HDMI
  5. USB 3.2 Gen 1 5Gbps Type-A
  6. USB 2.0
  7. USB 2.0
  8. Audio Connectors

src=”https://storage-asset.msi.com/global/picture/images/mb/IO/msi-h410m-a_pro-io.png” alt=”MSI Z490-A PRO back panel ports” />

MSI H410M A Pro

DIMENSIONS

  • Mirco-ATX Form Factor
  • 9.3 in. x 7.5 in. (23.6 cm x 19.0 cm)

MOUNTING

6 mounting holes

OPERATING SYSTEM

Support for Windows® 10 64-bit
