Description

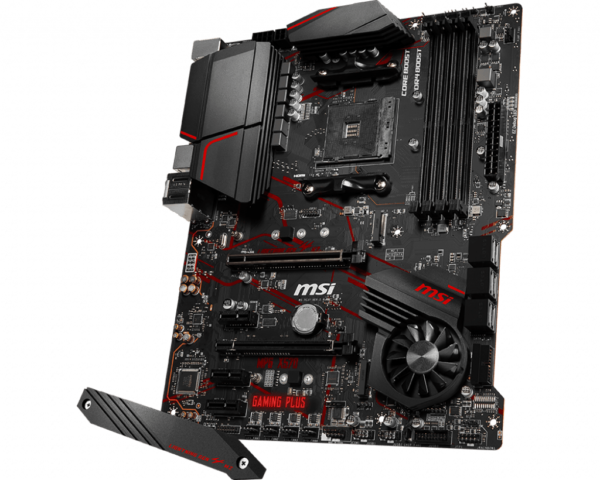

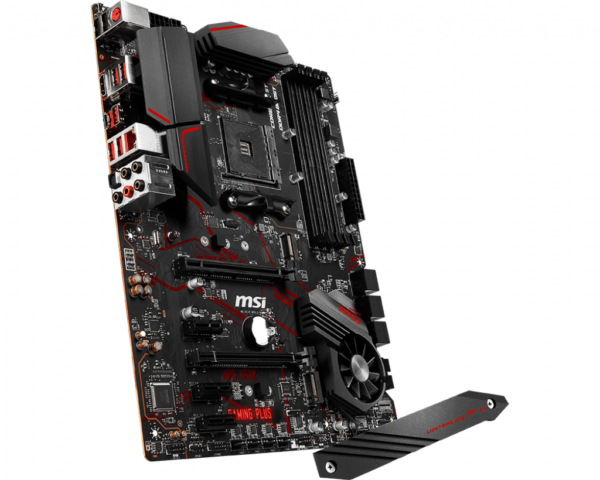

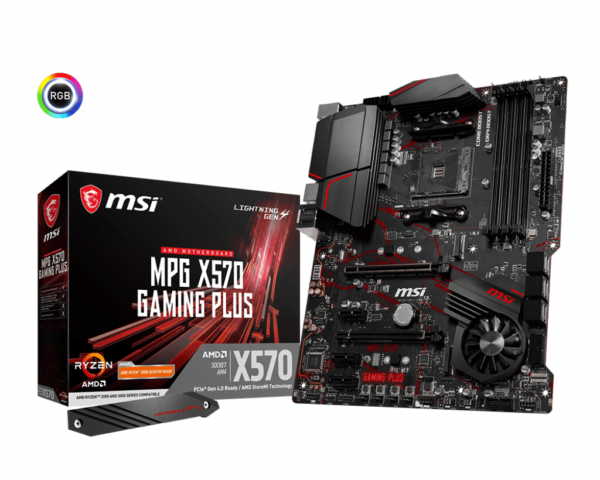

MSI MPG X570 Gaming Plus AMD Motherboard
Satisfying gamers with what they really need, MPG X570 GAMING PLUS is equipped with Extended Heatsink Design, Frozr Heatsink Design, Core boost, Lightning Gen4 M.2, M.2 Shield Frozr accessory, Turbo USB, and MSI’s latest Dragon Center
MSI MPG X570 Gaming Plus AMD Motherboard
- Supports 2nd and 3rd Gen AMD Ryzen™ / Ryzen™ with Radeon™ Vega Graphics and 2nd Gen AMD Ryzen™ with Radeon™ Graphics Desktop Processors for Socket AM4
- Supports DDR4 Memory, up to 4400+(OC) MHz
- Lightning Fast Game experience: PCIe 4.0, Lightning Gen4 x4 M.2 with M.2 Shield Frozr accessory, StoreMI, AMD Turbo USB 3.2 GEN2
- Frozr Heatsink Design: Designed with the patented fan and double ball bearings to provide the best performance for enthusiast gamers and prosumers.
- Set Core Power Free: Extended Heatsink Design, Core Boost, Digital PWM IC, 8+4 pin CPU power connector, Game Boost, DDR4 Boost
- MYSTIC LIGHT: 16.8 million colors / 29 effects controlled in one click. MYSTIC LIGHT EXTENSION supports both RGB and RAINBOW LED strips.
- AUDIO BOOST 4: Reward your ears with the studio-grade sound quality for the most immersive gaming experience
- Dragon Center: A brand new software that integrates all MSI tools like GAME MODE, VOICE BOOST, and LIVE UPDATE with the user-friendly user interface.
PROCESSOR
Supports 2nd and 3rd Gen AMD Ryzen™ / Ryzen™ with Radeon™ Vega Graphics and 2nd Gen AMD Ryzen™ with Radeon™ Graphics Desktop Processors for Socket AM4
CHIPSET
AMD® X570 Chipset
MEMORY
- 4x DDR4 memory slots, support up to 128GB
- 3rd Gen AMD Ryzen™ Processors support DDR4 1866/ 2133/ 2400/ 2667/ 2800/ 2933/ 3000/ 3066/ 3200 Mhz by JEDEC, and 2667/ 2800 /2933 /3000 /3066 /3200 /3466 /3600/ 3733 /3866 /4000 /4133 /4266 /4400 Mhz by A-XMP OC MODE
- 2nd Gen AMD Ryzen™ Processors, 1st and 2nd Gen AMD Ryzen™ with Radeon™ Vega Graphics Processors support DDR4 1866/ 2133/ 2400/ 2667/ 2800/ 2933/ 3000/ 3066/ 3200 Mhz by JEDEC, and 2667 /2800 / 2933 /3000 /3066 /3200 /3466 Mhz by A-XMP OC MODE
- Dual-channel memory architecture
- Supports non-ECC UDIMM memory
- Supports ECC UDIMM memory (non-ECC mode)
- Supports un-buffered memory
- Please refer to www.msi.com for more information on compatible memory.
MSI MPG X570 Gaming Plus AMD Motherboard
EXPANSION SLOTS
- 1x PCIe 4.0/3.0 x16 slot (PCI_E1)
- 3rd Gen AMD Ryzen™ support PCIe 4.0 x16 mode
- 2nd Gen AMD Ryzen™ support PCIe 3.0×16 mode
- Ryzen™ with Radeon™ Vega Graphics and 2nd Gen AMD Ryzen™ with Radeon™ Graphics support PCIe 3.0 x8 mode
- 1x PCIe 4.0/ 3.0 x16 slot (PCI_E3, supports x4 mode)
- 3x PCIe 3.0 x1 slots1
- PCI_E2 will be unavailable when installing the PCIe card in the PCI_E4 slot.
- The speeds may vary for different devices
ONBOARD GRAPHICS
- 1x HDMI 1.4 port, supports a maximum resolution of 4096×2160 @24Hz1
- Only support when using Ryzen™ with Radeon™ Vega Graphics and 2nd Gen AMD Ryzen™ with Radeon™ Graphics Processors
- Maximum shared memory of 2048 MB
MULTI-GPU
- Supports 2-Way AMD® CrossFire™ Technology
STORAGE
AMD® X570 Chipset
- 4x SATA 6Gb/s ports(SATA3-SATA6)
- 2x M.2 slots (Key M)
- M2_1 slot(from AMD® Processor)
– Supports PCIe 4.0 x4 (3rd Gen AMD Ryzen™)
– Supports PCIe 3.0 x4 (2nd Gen AMD Ryzen™/ Ryzen™ with Radeon™ Vega Graphics and 2nd Gen AMD Ryzen™ with Radeon™ Graphics)
– Supports 2242/ 2260/ 2280/ 22110 storage devices - M2_2 slot (from AMD® X570 Chipset)
– Supports PCIe 3.0 x4 and SATA 6Gb/s
– Supports 2242/ 2260/ 2280 storage devices
- M2_1 slot(from AMD® Processor)
ASMedia ASM1061
- 2x SATA 6Gb/s ports (SATA1, SATA2)
RAID
AMD® X570 Chipset
- Supports RAID 0, RAID 1 and RAID 10
USB
AMD® X570 Chipset
- 6x USB 3.2 Gen 1 (SuperSpeed USB) ports (2 Type-A ports on the back panel, 4 ports available through the internal USB 3.2 Gen 1 connectors)
- 6x USB 2.0 (High-speed USB) ports (2 Type-A ports on the back panel, 4 ports available through the internal USB 2.0 connectors)
AMD® Processor
- 2x USB 3.2 Gen 2 (3rd Gen AMD Ryzen™) or USB 3.2 Gen1 (2nd Gen AMD Ryzen™/ Ryzen™ with Radeon™ Vega Graphics and 2nd Gen AMD Ryzen™ with Radeon™ Graphics) ports (1x Type-A & 1x Type-C) on the back panel
- 2x USB 3.2 Gen1 (SuperSpeed USB) Type-A ports on the back panel
AUDIO
Realtek® ALC1220 Codec
- 7.1-Channel High Definition Audio
- Supports Optical S/PDIF output
LAN
- 1x Realtek® 8111H Gigabit LAN Controller
MSI MPG X570 Gaming Plus AMD Motherboard
INTERNAL CONNECTORS
- 1x 24-pin ATX main power connector
- 1x 8-pin ATX 12V power connector
- 1x 4-pin ATX 12V power connector
- 6x SATA 6Gb/s connectors
- 2x USB 2.0 connectors (supports additional 4 USB 2.0 ports)
- 2x USB 3.2 Gen1 connectors (supports additional 4 USB 3.2 Gen1 ports)
- 1x 4-pin CPU fan connector
- 1x 4-pin water-pump connector
- 4x 4-pin system fan connectors
- 1x Front panel audio connector
- 2x System panel connectors
- 1x TPM module connector
- 1x Serial port connector
- 1x Clear CMOS jumper
- 1x Chassis Intrusion connector
- 2x 4-pin RGB LED connectors
- 2x 3-pin RAINBOW LED connectors
- 4x EZ Debug LEDs
BACK PANEL PORTS
- Keyboard / Mouse
- USB 3.2 Gen1 Type-A
- LAN
- Audio Connectors
- Flash BIOS Button
- USB 2.0
- HDMI
- USB 3.2 Gen2 Type-A + C
- USB 3.2 Gen1 Type-A
- Optical S/PDIF out
DIMENSIONS
- 12 in. x 9.6 in. (30.4 cm x 24.3 cm)
- ATX Form Factor
MOUNTING
9 mounting holes
OPERATING SYSTEM
- Support for Windows® 10 64-bit
BOX CONTENT
MSI MPG X570 Gaming Plus AMD Motherboard
