MSI TRX40-A PRO

₹22,031.00 (In. GST)

Out of stock

Add to wishlist
Compare
SKU: NG00004 Categories: , ,

Description

GAME IN STYLE

The MPG series brings out the best in gamers by allowing full expression in color with advanced RGB lighting control and synchronization. Experiment on another level of personalization with a front LED strip that provides convenient in-game and real time notifications. With the MPG series, transform your equipment into the center of attention and top leaderboards in style.

  • Supports 10th Gen Intel® Core™ / Pentium® Celeron® processors for LGA 1200 socket
  • Supports DDR4 Memory, up to 4800(OC) MHz
  • Ready 4 the Future: Support Lightning Gen 4 Solution for the future
  • Enhanced Power Design: 12+1+1 Duet Rail Power System, 8+4 pin CPU power connectors, Core Boost, DDR4 Boost
  • Premium Thermal Solution: Aluminum Cover with Extended Heatsink Design and M.2 Shield Frozr are built for high performance system and non-stop gaming experience
  • 2.5G LAN with LAN Manager and Intel Wi-Fi 6 AX Solution: Upgraded network solution for professional and multimedia use. Delivers a secure, stable and fast network connection
  • MYSTIC LIGHT: 16.8 million colors / 29 effects controlled in one click. MYSTIC LIGHT EXTENSION supports both RGB and RAINBOW LED strip
  • Pre-installed I/O Shielding: Better EMI protection and more convenience for installation
  • Audio Boost: Reward your ears with studio grade sound quality

PROCESSOR

Supports 10th Gen Intel® Core™ and Pentium® Gold / Celeron® processors for LGA1200 socket 1 2

  1. Please go to intel.com for compatibility information.
  2. Onboard graphics output are disabled when using the F SKU processors.

See supported processors

CHIPSET

Intel® Z490 Chipset

MEMORY

  • 4x DDR4 memory slots, support up to 128GB1
  • Supports 1R 2133/2666/2933 MHz*
    • 1DPC 1R Max speed up to 4800+ MHz
    • 1DPC 2R Max speed up to 4266+ MHz
    • 2DPC 1R Max speed up to 4400+ MHz
    • 2DPC 2R Max speed up to 4000+ MHz
  • Supports Dual-Channel mode
  • Supports non-ECC, un-buffered memory
  • Supports Intel® Extreme Memory Profile (XMP)
  1. Please refer www.msi.com for more information on compatible memory

See supported memory

EXPANSION SLOTS

  • 2x PCIe 3.0 x16 slots*, support x16/ x0 or x8/ x8 mode
  • 2x PCIe 3.0 x1 slots

ONBOARD GRAPHICS

  • 1x HDMI port, supports a maximum resolution of 4096×2160 @30Hz
  • 1x DisplayPort, supports a maximum resolution of 4096×2304 @60Hz
  • Maximum shared memory is 1GB

MULTI-GPU

  • Supports 2-Way NVIDIA® SLI™ Technology
  • Supports 2-Way AMD® CrossFire™ Technology

STORAGE

Intel® Z490 Chipset

  • 4x SATA 6Gb/s ports 1
  • 2x M.2 slots (Key M)
    • Supports up to PCIe 3.0 x4 and SATA 6Gb/s
    • M2_1 slot supports 2242/ 2260 /2280/ 22110 storage devices1
    • M2_2 slot supports 2242/ 2260 /2280 storage devices2
    • Intel® Optane™ Memory Ready*** 3
  1. SATA2 will be unavailable when installing M.2 SATA SSD in the M2_1 slot.
  2. Before using Intel® Optane™ memory modules, please ensure that you have updated the drivers and BIOS to the latest version from MSI website.

RAID

Intel® Z490 Chipset

  • Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices
  • Supports RAID 0 and RAID 1 for M.2 PCIe storage devices

USB

Intel® Z490 Chipset

  • 3x USB 3.2 Gen 2 10Gbps ports (1 Type-A port and 1 Type-C port on the back panel, 1 Type-C internal connector)
  • 4x USB 3.2 Gen 1 5Gbps ports (2 Type-A ports on the back panel, 2 ports through the internal USB 3.2 Gen 1 connector) 6x USB 2.0 ports (2 Type-A ports on the back panel, 4 ports through the internal USB 2.0 connectors)

AUDIO

Realtek® ALC1220 Codec

  • 7.1-Channel High Definition Audio
  • Supports S/PDIF output

LAN

  • 1x Realtek® RTL8125B 2.5Gbps LAN controller

WIFI & BLUETOOTH

Intel® AX201

  • Supports 802.11 a/b/g/n/ac/ax, MU-MINO Rx, 2.4GHz-5GHz (160MHz) up to 2.4Gbps
  • WiFi 6 Pre-Certified
  • Supports Bluetooth® 5.1 , FIPS, FISMA
  • The Wireless module is pre-install in the M2 (Key-E) slot
  1. Only support windows 10 64-bit

INTERNAL CONNECTORS

  • 1x 24-pin ATX main power connector
  • 1x 8-pin ATX 12V power connector
  • 1x 4-pin ATX 12V power connector
  • 4x SATA 6Gb/s connectors
  • 2x M.2 slots (M-Key)
  • 1x USB 3.2 Gen 2 10Gbps Type-C port
  • 1x USB 3.2 Gen 1 5Gbps connector (supports additional 2 USB 3.2 Gen 1 5Gbps ports)
  • 2x USB 2.0 connectors (supports additional 4 USB 2.0 ports)
  • 1x 4-pin CPU fan connector
  • 1x 4-pin water-pump fan connector
  • 3x 4-pin system fan connectors
  • 1x Front panel audio connector
  • 2x System panel connectors
  • 1x Chassis Intrusion connector
  • 2x 4-pin RGB LED connector
  • 2x 3-pin RAINBOW LED connectors
  • 1x Serial port connector
  • 1xTPM module connector
  • 1x Clear CMOS jumper

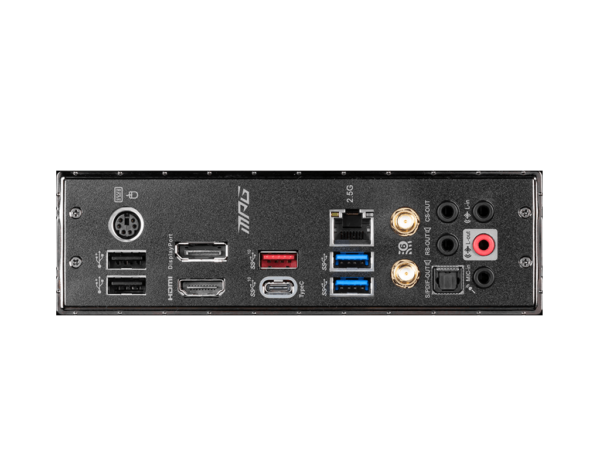

BACK PANEL PORTS

  1. PS/2 Combo Port
  2. DisplayPort
  3. USB 3.2 Gen 2 10Gbps (Type-A)
  4. LAN Port
  5. HD Audio Connectors
  6. USB 2.0
  7. HDMI Port
  8. USB 3.2 Gen 2 10Gbps (Type-C)
  9. USB 3.2 Gen 1 5Gbps (Type-A)
  10. Wi-Fi / Bluetooth
  11. Optical S/PDIF OUT
MEG Z490M edge wifi

DIMENSIONS

  • Micro-ATX Form Factor
  • 9.6 in. x 9.6 in. (24.4 cm x 24.4 cm)

MOUNTING

8 mounting holes

OPERATING SYSTEM

  • Support for Windows® 10 64-bit

BOX CONTENT

MPG Z490M edge wifi

Additional information

Weight1 kg
