Description

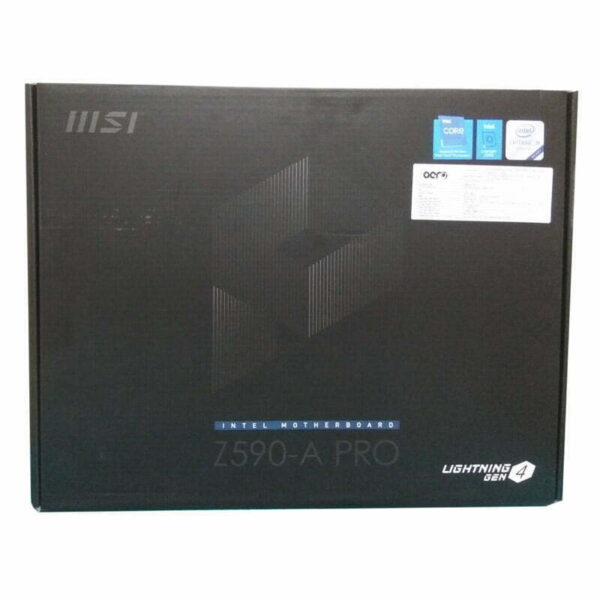

MSI Z590 A PRO Motherboard Intel Chipset
MSI Intel 11th Gen Core Series ATX Motherboard, The Z590-A-PRO Features Intel 2.5 Gigabit Ethernet, Turbo USB, Quality VRM and DDR4 Speeds Upto 5333 MHz.
USER FRIENDLY DESIGN
THERMAL SOLUTION FOR MORE CORES AND HIGHER PERFORMANCE
MSI Z590 A PRO with more cores’ processors, thermal and power design is more important to make sure the temperature keeps lower. MSI extended PWM heatsink with 7W/mK thermal pad ensures even high-end processors to run in full speed with MSI motherboards.
CONNECTIVITY
HIGH-BANDWIDTH AND LOW-LATENCY NETWORK
2.5Gbps LAN provides incredible data transfer speed faster than general Gigabit LAN. This is a premium solution for demanding users.
EXPERIENCE MORE
2 + 2 +1 POWER DESIGN
Unleash and sustain maximum performance with an aggressive VRM design built with a total of 12 digital CPU power phases. Combining 8 + 4 pin power connectors and exclusive Core Boost technology, PRO series motherboard is ready to sustain heavy daily work.
MSI Z590 A PRO
SPECIFICATIONS
| CPU (MAX SUPPORT) | i9 |
| SOCKET | 1200 |
| CHIPSET | Intel® Z590 Chipset |
| DDR4 MEMORY | 5333(OC) / 5200(OC) / 5000(OC)/ 4800(OC)/ 4600(OC)/ 4533(OC)/ 4400(OC)/ 4300(OC)/ 4266(OC)/ 4200(OC)/ 4133(OC)/ 4000(OC)/ 3866(OC)/ 3733(OC)/ 3600(OC)/ 3466(OC)/ 3400(OC)/ 3333(OC)/ 3300(OC)/ 3200(OC)/ 3000(OC)/ 2933(JEDEC)/ 2666(JEDEC)/ 2400(JEDEC)/ 2133(JEDEC) MHz |
| MEMORY CHANNEL | Dual |
| DIMM SLOTS | 4 |
| MAX MEMORY (GB) | 128 |
| PCI-E X16 | 2 |
| PCI-E GEN | Gen4 |
| PCI-E X1 | 2 |
| SATAIII | 6 |
| M.2 SLOT | 3 |
| RAID | 0/1/5/10 |
| TPM (HEADER) | 1 |
| LAN | 1x Intel® I225-V 2.5Gbps LAN |
| USB 3.2 PORTS (FRONT) | 1(Gen 2, Type C), 4(Gen 1, Type A) |
| USB 3.2 PORTS (REAR) | 1(Gen 2×2, Type C), 1(Gen 2, Type A), 2(Gen 1, Type A) |
| USB 2.0 PORTS (FRONT) | 4 |
| USB 2.0 PORTS (REAR) | 4 |
| SERIAL PORTS(FRONT) | 1 |
| AUDIO PORTS (REAR) | Realtek® ALC897 Codec |
| DISPLAYPORT | 1 |
| HDMI | 1 |
| DIRECTX | 12 |
| FORM FACTOR | ATX |
| CROSSFIRE | Y |
| OPERATING SYSTEM | Support for Windows® 10 64-bit |
MSI Z590 A PRO
