Description
Successor to the award-winning NH-C14, the NH-C14S is an elite class top-flow CPU cooler that is extremely efficient, highly compatible and remarkably adjustable.
Thanks to its deeper fin stack and the renowned NF-A14 PWM fan, the single fan NH-C14S provides similar quiet cooling performance to its dual fan predecessor while being even more versatile: With the fan installed on top of the fins, the cooler is compatible with RAM modules of up to 70mm height.
With the fan installed underneath the fins, the total height of the cooler is only 115mm, making it suitable for use in many HTPC cases. At the same time, the new offset layout allows it to clear the top PCIe slot on most µATX and ATX motherboards.
Topped off with the trusted, pro-grade SecuFirm2™ multi-socket mounting system, Noctua’s proven NT-H1 thermal compound and full 6 years manufacturer’s warranty, the NH-C14S is a premium quality top-flow solution for the highest demands.
Cooler Specification
| Socket compatibility | Intel LGA2066, LGA2011-0 & LGA2011-3 (Square ILM), LGA1200, LGA1156, LGA1155, LGA1151, LGA1150 & AMD AM2, AM2+, AM3, AM3+, FM1, FM2, FM2+ (backplate required), AM4 (included since 2019, older coolers require NM-AM4) |
| Height (without fan) | 115 mm |
| Width (without fan) | 140 mm |
| Depth (without fan) | 163 mm |
| Height (with fan) | 115 / 142 mm |
| Width (with fan) | 140 mm |
| Depth (with fan) | 163 mm |
| Weight (with fan) | 1015 g |
| Material | Copper (base and heat-pipes), aluminium (cooling fins), soldered joints & nickel plating |
| NSPR | 119 |
| Max. TDP | see NSPR |
| Fan compatibility | 140x140x25mm (with square frame) |

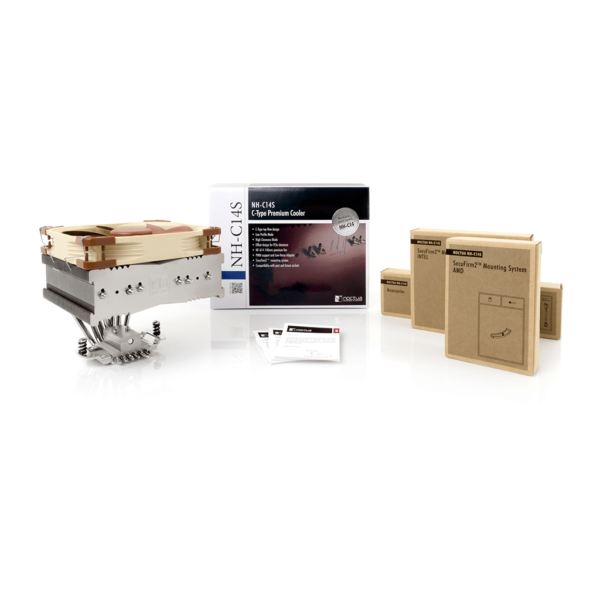

| Scope of delivery |
|
| Warranty | 6 Years |
FAN Specification
| Model | 1x Noctua NF-A14 PWM |
| Bearing | SSO2 |
| Max. rotational speed (+/- 10%) | 1500 RPM |
| Max. rotational speed with L.N.A. (+/- 10%) | 1200 RPM |
| Min. rotational speed (PWM, +/-20%) | 300 RPM |
| Max. airflow | 140,2 m³/h |
| Max. airflow with L.N.A. | 115,5 m³/h |
| Max. acoustical noise | 24,6 dB(A) |
| Max. acoustical noise with L.N.A. | 19,2 dB(A) |
| Input power | 1,56 W |
| Voltage range | 12 V |
| MTTF | > 150.000 h |
