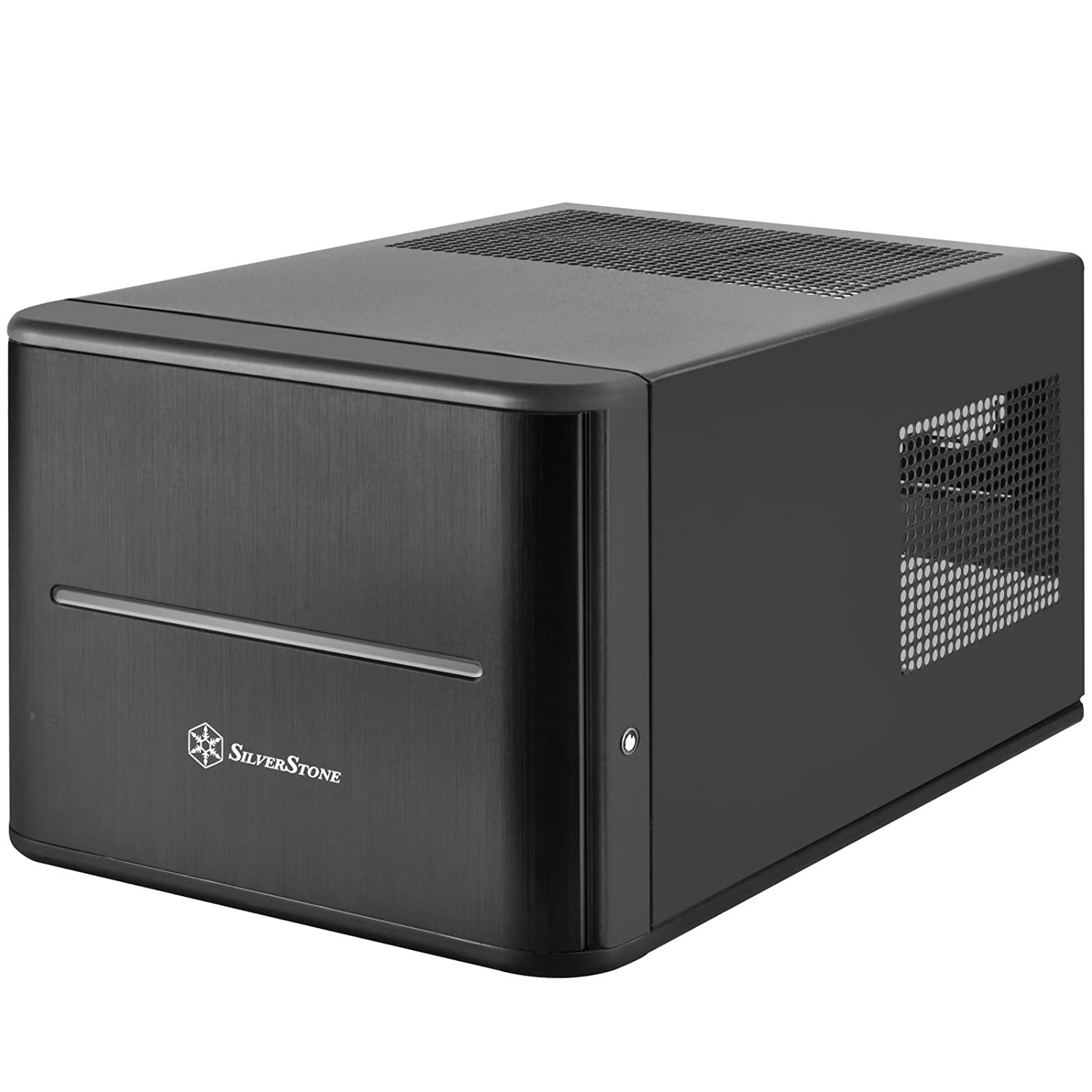

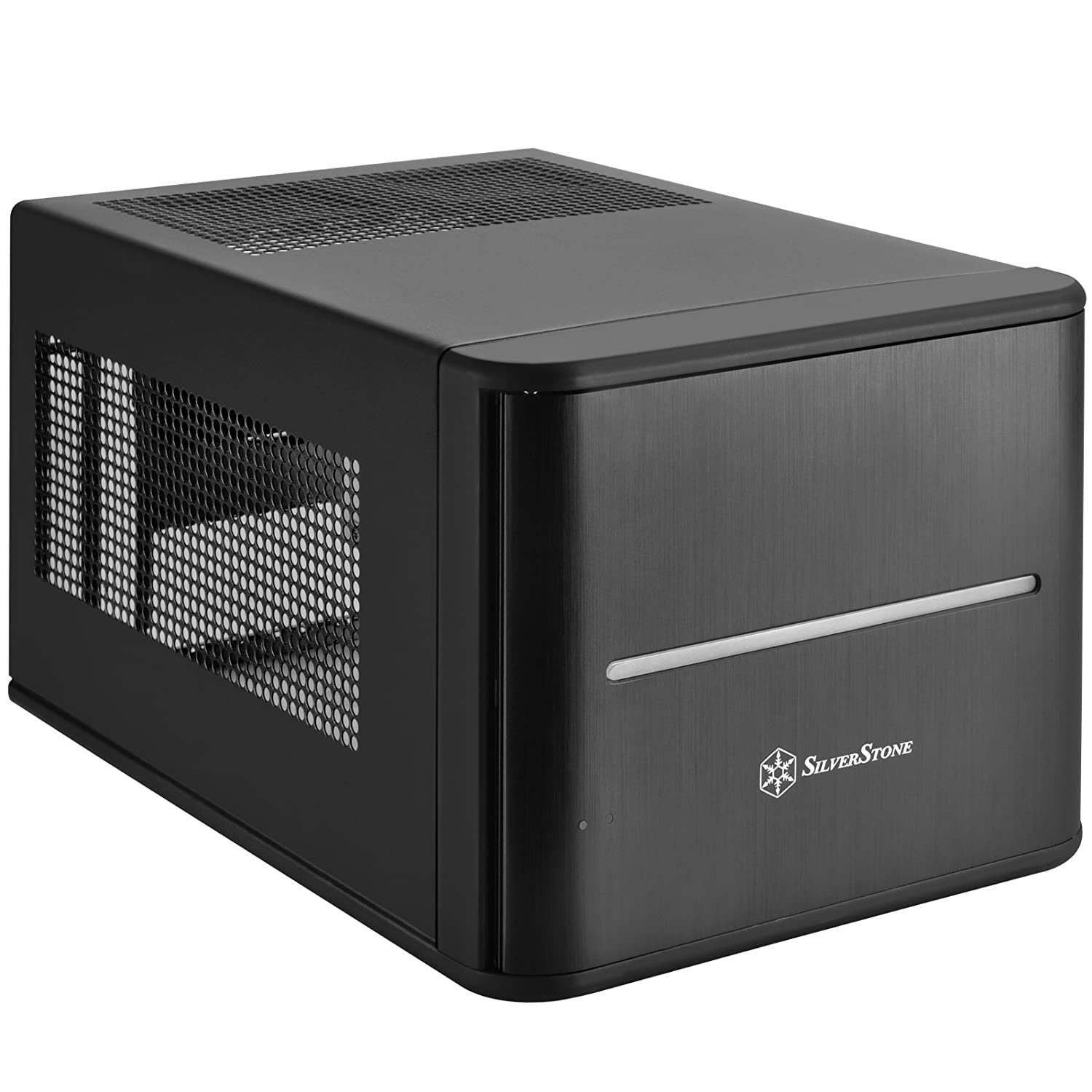

Silverstone mini ITX PC case CS280

1.00 (In. GST)

SilverStone Sst-Cs280 – Case Storage Mini-Itx Computer Case With Door, Black

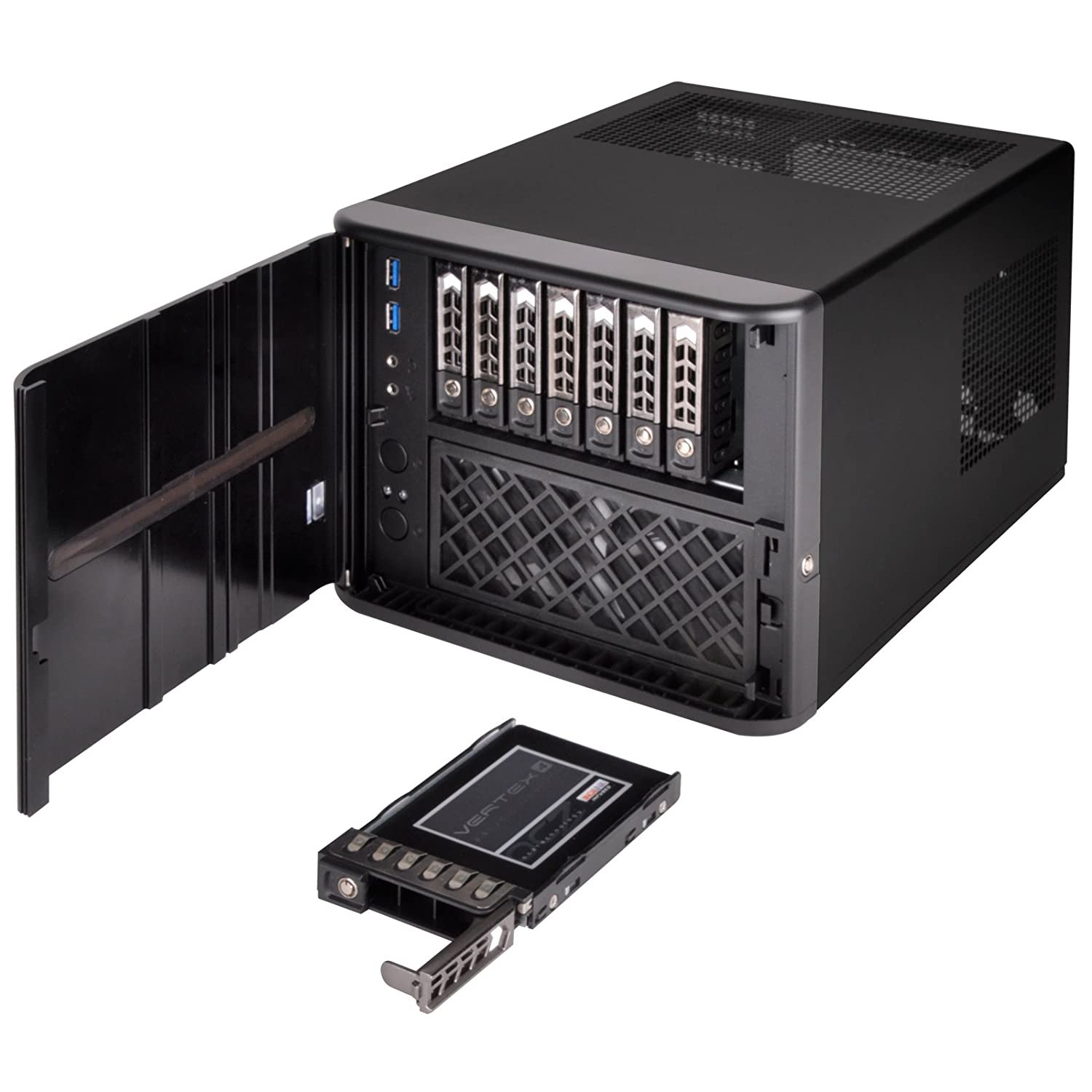

■ Supports 2.5″ hot swap hard drives x 8 with locker

■ Premium aluminum front door with lock

■ Individual metal key lock for each drive for extra security

■ Fully supports SAS/SATA Hot-Swap function

■ Mini-DTX/Mini-ITX motherboard & SFX power supply compatible

Out of stock

SKU: NG00530 Categories: ,



Model No.SST-CS280B (Black)
MaterialAluminum + SECC + Plastic
MotherboardMini-ITX (170mm x 170mm)
Mini-DTX (203mm x 170mm)
Drive bayExternal2.5″ SAS*/SATA hot-swap x 8 (Support up to 15mm)
Internal2.5″ SAS*/SATA x 1 (Support up to 12.5mm)
Cooling systemFront80mm Fan x 2
Expansion slotPCIe slot x 2
HDD backplane8 port x SAS 12 Gbit/s** / SATA 6 Gbit/s
Data transfer rateUp to 12 Gbit/s** or 6 Gbit/s (depend on drive speed)

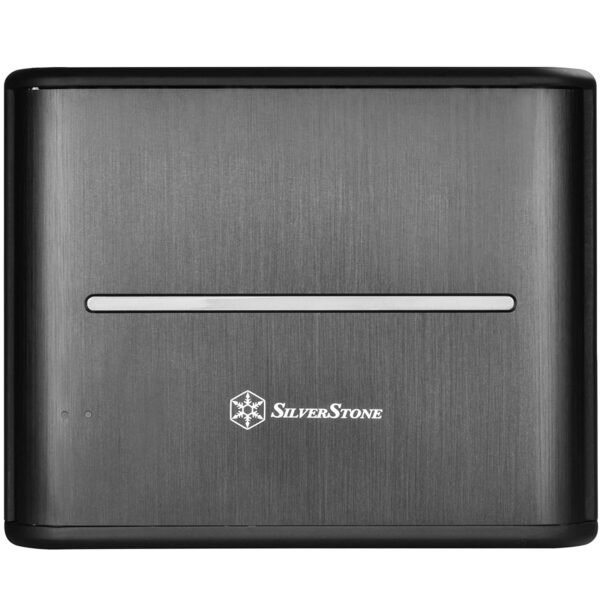

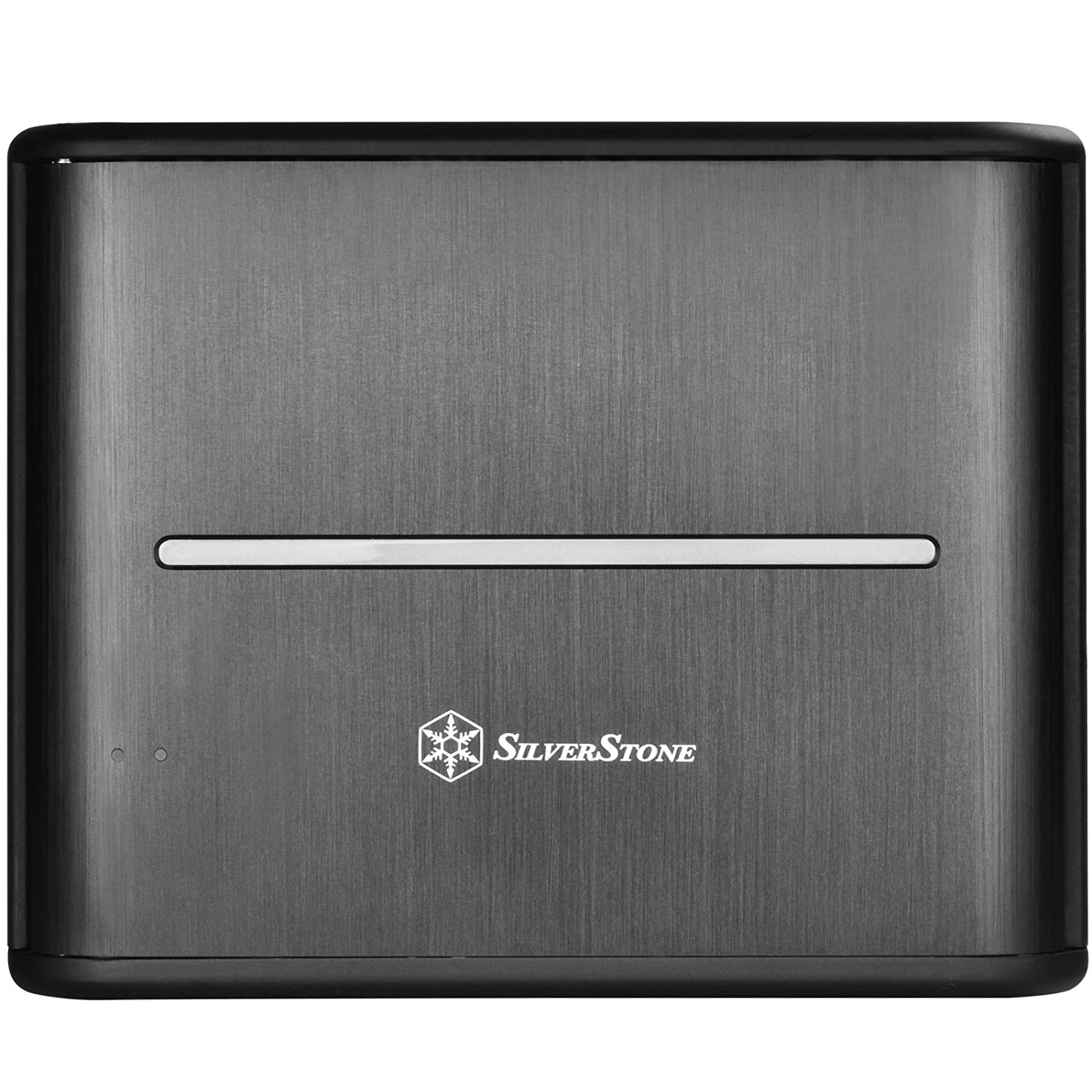

Front doorAluminum material with door lock
Front panel buttonsPower ON/OFF, system reset, USB 3.0 x 2, 3.5mm stereo jack, 3.5mm Mic. Jack
Number of key2
Expansion cardSupport expansion card up to 4.41″ (112mm), width restriction – 4.72″ (120mm)
Support low profile expansion card up to 8.66″ (220mm) , width restriction – 2.39″ (60.75mm)
Limitation of CPU cooler65mm
Limitation of PSUSFX (up to 100mm deep)
Net weight3.3Kg
Dimension221.5mm (W) x 176.7mm (H) x 301mm (D), 11.8 Liters
8.72″ (W) x 6.96″ (H) x 11.85″ (D), 11.8 Liters
* To use SAS drive, you must have motherboard or expansion card with hardware SAS controller.
** Mini-SAS HD (SFF8643) to SATA 7 pin cable and 12 Gbit/s SAS HD card required for 12 Gbit/s performance (i.e. SilverStone CPS05 & ECS05)
