Silverstone mini PC Case GD09

1.00 (In. GST)

SilverStone Technology Grandia Series Aluminum HTPC Computer Case for ATX/SSI-CEB – Black (GD09B)


■ Includes USB Type-C front port (SST-GD09B-C only)

■ Positive air pressure design for excellent cooling/quietness and dust-prevention

■ Supports SSI-CEB, ATX, Micro-ATX motherboards

■ Support SilverStone RA02 rackmount ears

■ Quick access filters included

■ Incredible 358mm depth to fit comfortably inside home theater cabinet

■ Drive cages with multi-purpose mounts eliminate need for adapters

Out of stock

SKU: NG00527 Categories: ,


Silverstone PC Case GD09 C Type


Model No.Type-C version
SST-GD09B-C (black, Type-C port)

USB 3.0 version
SST-GD09B (black)

MaterialPlastic front panel with faux aluminum finish, 0.8mm steel body
Drive bayExternal5.25″ x 1 (compatible with 3.5″ x 1 or 2.5″ x 2)
Internal3.5″ x 2 (one compatible with 2.5″), 2.5″ x1

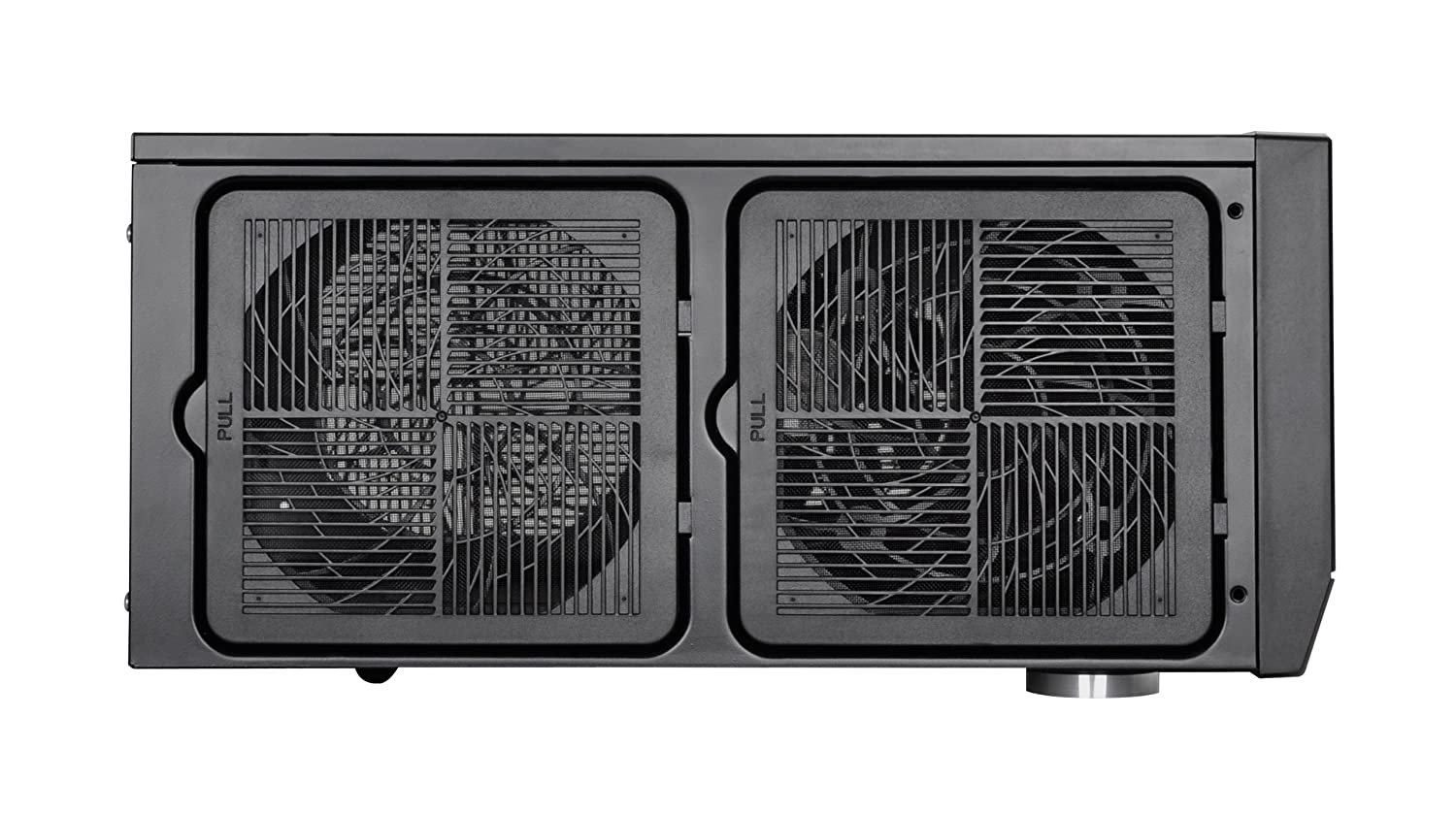

Cooling systemFront
Rear80mm x 2
SideRight:120mm x 2 (120mm x 1 fan included)
Left:120mm x 1 or 80mm x 1
TopExpansion card vent
Expansion slot7+1
Front I/O portSST-GD09B-C: USB Type-C x 1, USB 3.0 x 1, Audio x 1, MIC x 1
SST-GD09B: USB 3.0 x 2, Audio x 1, MIC x 1
Power supplyStandard PS2(ATX)
Expansion cardCompatible up to 12.2″ (309mm) long, width restriction-5.25″ (133mm)
Limitation of CPU cooler138mm*
Limitation of PSU170mm
Net weight4.2kg
Dimension440mm (W) x 170mm (H) x 358mm (D), 26.8 liters
17.32″ (W) x 6.69″ (H) x 14.09″ (D), 26.8 liters
ExtraSupport Kensington lock
* With limitations, please refer to manual for more information.
