GD09

Name: Silverstone mini PC Case GD09
SKU: NG00527
Price: 1.00 INR
Availability: OutOfStock

￭ Includes USB Type-C front port (SST-GD09B-C only)

￭ Positive air pressure design for excellent cooling/quietness and dust-prevention

￭ Supports SSI-CEB, ATX, Micro-ATX motherboards

￭ Support SilverStone RA02 rackmount ears

￭ Quick access filters included

￭ Incredible 358mm depth to fit comfortably inside home theater cabinet

￭ Drive cages with multi-purpose mounts eliminate need for adapters

Out of stock

Compare

Description

Model No.	Type-C version SST-GD09B-C (black, Type-C port) USB 3.0 version SST-GD09B (black)
Material	Plastic front panel with faux aluminum finish, 0.8mm steel body
Motherboard	SSI-CEB, ATX, Micro-ATX
Drive bay	External	5.25″ x 1 (compatible with 3.5″ x 1 or 2.5″ x 2)
		—
	Internal	3.5″ x 2 (one compatible with 2.5″), 2.5″ x1
Cooling system	Front	—
	Rear	80mm x 2

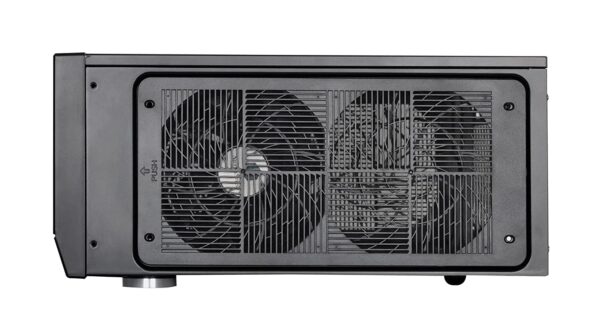

	Side	Right:120mm x 2 (120mm x 1 fan included) Left:120mm x 1 or 80mm x 1
	Top	Expansion card vent
	Bottom	—
	Internal	—
Expansion slot	7+1
Front I/O port	SST-GD09B-C: USB Type-C x 1, USB 3.0 x 1, Audio x 1, MIC x 1 SST-GD09B: USB 3.0 x 2, Audio x 1, MIC x 1
Power supply	Standard PS2(ATX)
Expansion card	Compatible up to 12.2″ (309mm) long, width restriction-5.25″ (133mm)
Limitation of CPU cooler	138mm*
Limitation of PSU	170mm
Net weight	4.2kg
Dimension	440mm (W) x 170mm (H) x 358mm (D), 26.8 liters 17.32″ (W) x 6.69″ (H) x 14.09″ (D), 26.8 liters
Extra	Support Kensington lock
