Description
SPECIFICATION

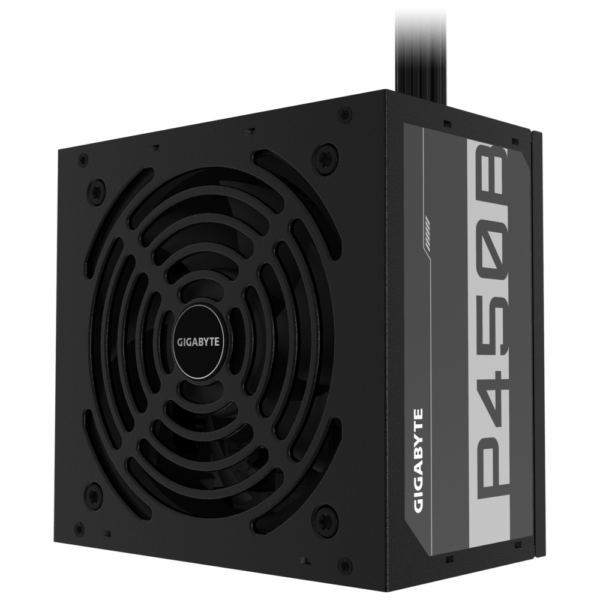

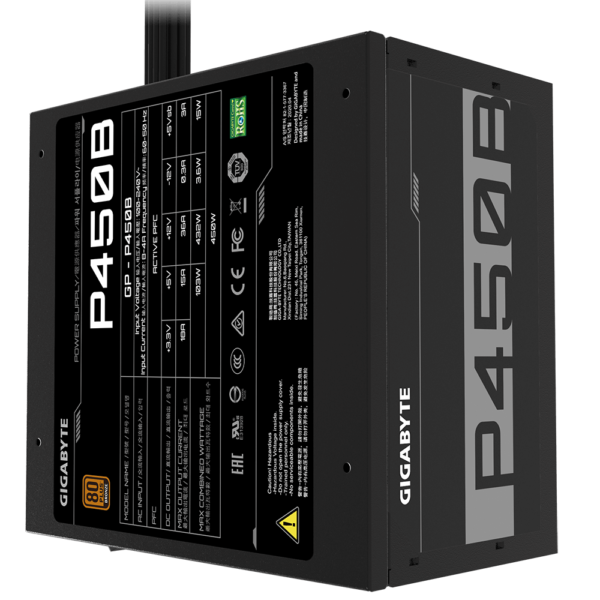

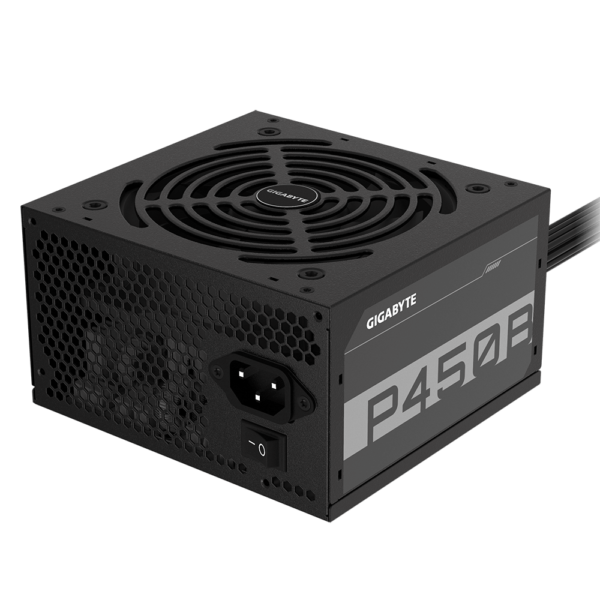

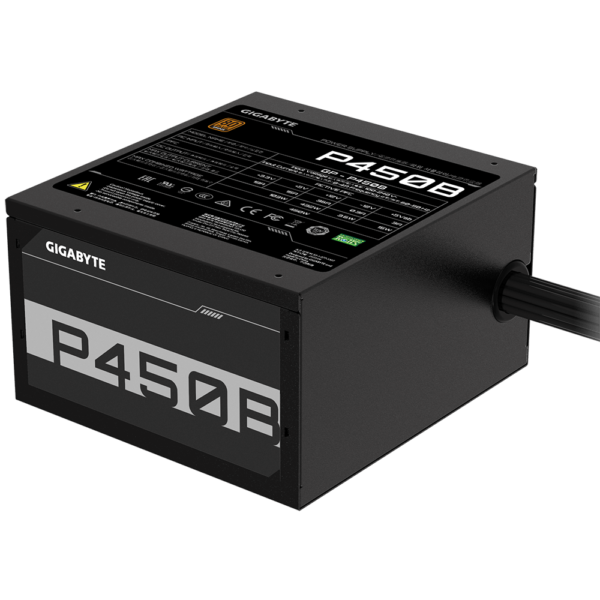

- ModelP450B
- TypeIntel Form Factor ATX 12V v2.31
- PFCActive PFC(>0.9 typical)
- Input Voltage100-240 Vac(full range)
- Input Current8-4 A
- Input Frequency60-50 Hz
- Output Capacity450W
- Dimension150 x 140 x 86 mm

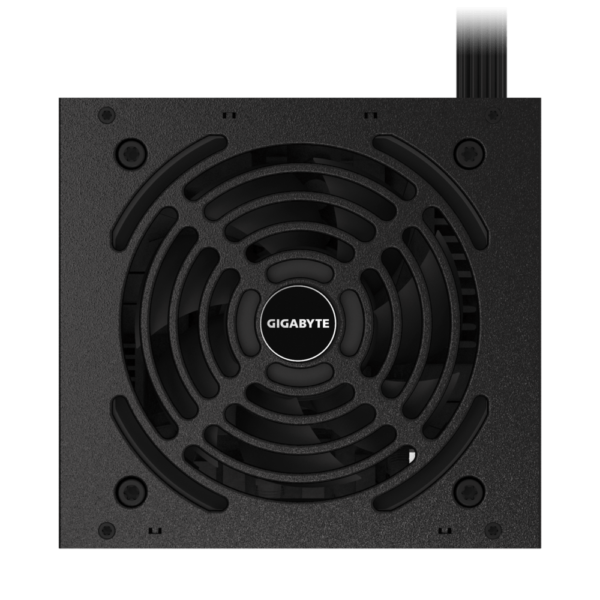

- Fan Type120 mm Hydraulic Bearing (HYB) Fan
- 80 PLUSBronze
- Efficiency85% at typical load
- MTBF>100,000 hours
- ProtectionOVP/OPP/SCP/UVP/OCP/OTP
- Power Good Signal100-500ms
- Hold Up Time>16ms
- Cable TypeFlat, All black
- ConnectorsATX/MB 20+4 Pin x 1 : 550mm*1
CPU/EPS 4+4 Pin x 1 : 600mm*1
PCI-e 6+2 Pin x 2 : 550mm+150mm*1
SATA x 6 : 500mm+120mm+120mm*2
4 Pin Peripheral x 3 + 4-Pin floppy x 1 : 500mm+120mm+120mm+120mm*1
