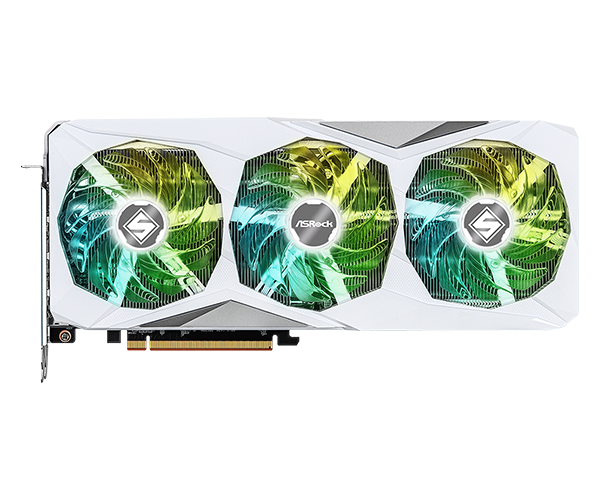

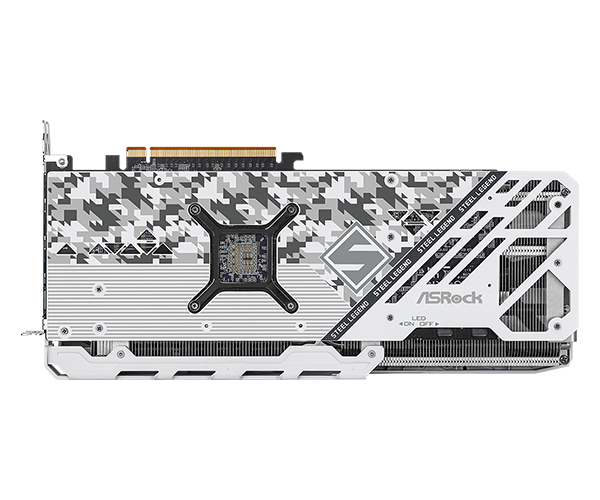

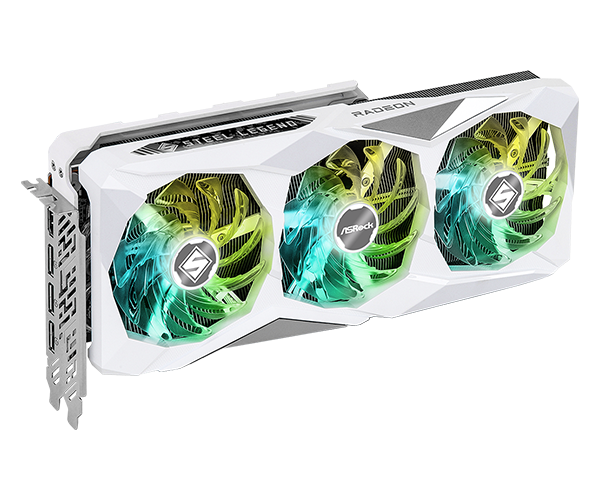

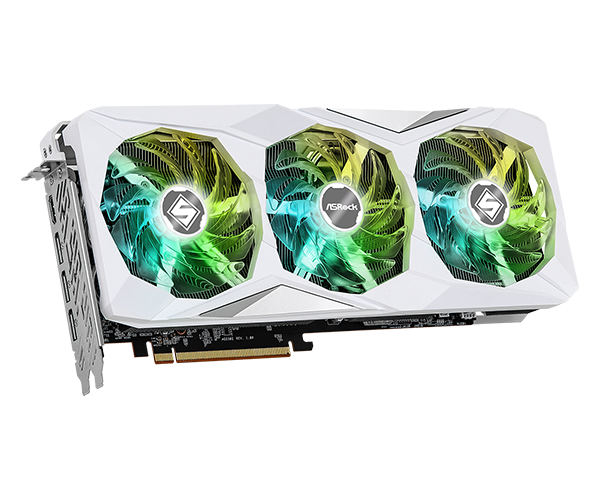

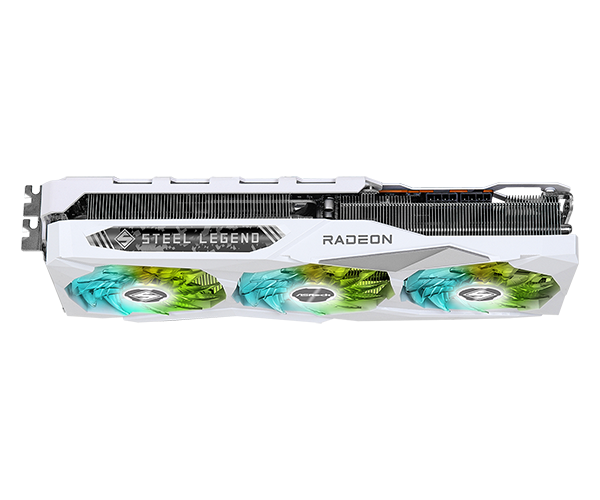

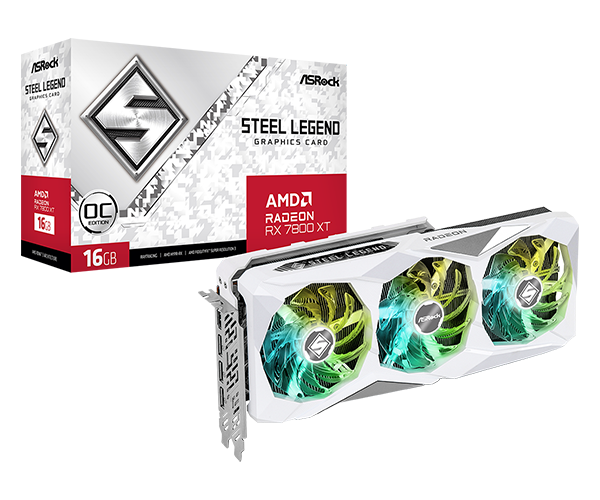

AMD Radeon™ RX 7800 XT Steel Legend 16GB OC

Description

Specification

• Graphics Engine
  – AMD Radeon™ RX 7800 XT
• Bus Standard
  – PCI^® Express 4.0 x16
• DirectX
  – 12 Ultimate
• OpenGL
  – 4.6
• Memory
  – 16GB GDDR6
• Engine Clock
  – Boost Clock*: Up to 2520 MHz
  – Game Clock**: 2213 MHz

  *Boost Clock is the maximum frequency achievable on the GPU running a bursty workload. Boost clock achievability, frequency, and sustainability will vary based on several factors, including but not limited to: thermal conditions and variation in applications and workloads.

  **Game Clock is the expected GPU clock when running typical gaming applications, set to typical TGP (Total Graphics Power). Actual individual game clock results may vary.

• Stream Processors
  – 3840
• Memory Clock
  – 19.5 Gbps
• Memory Interface
  – 256-bit
• Resolution
  – Digital Max Resolution: 7680 x 4320
• Interface
  – 3 x DisplayPort™ 2.1*
  – 1 x HDMI™ 2.1

  *DisplayPort (DP) 2.1 on any one or two ports. DisplayPort (DP) 1.4a on any and up to 3 ports simultaneously.
• HDCP
  – Yes
• Multi-view
  – 4
• Recommended PSU
  – 800W
• Power Connector
  – 2 x 8-pin
• Accessories
  – 1 x Quick Installation Guide
• Dimensions
  – 304 x 131 x 56 mm, 2.8-slot
• Net Weight
  – 1242 g
