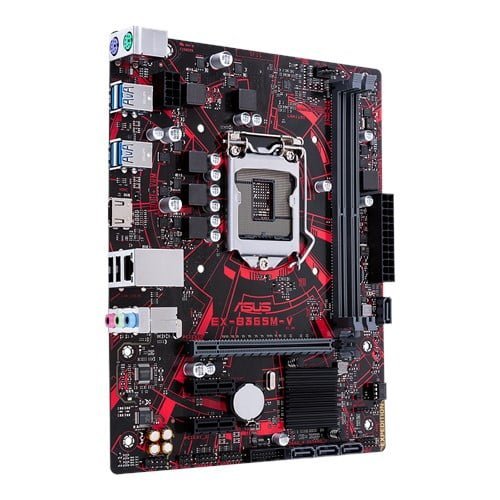

ASUS EX-B365M-V
BUILT FOR NON STOP ACTION
ASUS Expedition: Ready for non-stop battle
ASUS Expedition motherboards are made for non-stop action, engineered with non-stop durability to prevent damage from moisture, corrosion and overvoltages — for immense longevity. We even test them to the limits, with 144 hour of diskless-system tests and extensive checks for compatibility with top games and over 100 gaming peripherals. And for the ultimate audio, Expedition motherboards have Epic gaming audio to provide exhilarating non-stop gaming performance — and the best stability, reliability, and value for you!
NON STOP DURABILITY
Exceptional stability and protection
ASUS Expedition motherboards offer an exclusive package of unbeatable hardware and features to ensure non-stop durability, including a luminous anti-moisture coating, USBGuard protection for 120%-higher overvoltage toleration, and exclusive 5X Protection III for absolute reliability.
SPECIFICATION
- CPU
Intel® Socket 1151 9th / 8th Gen Intel® Core™, Pentium® Gold and Celeron® Processors
Supports Intel® 14 nm CPU
Supports Intel® Turbo Boost Technology 2.0
* The Intel® Turbo Boost Technology 2.0 support depends on the CPU types.
*Supports up to 65W CPUs. For more details, please refer to www.asus.comfor Intel® CPU support list. - Chipset
Intel® B365
- Memory
2 x DIMM, Max. 32GB, DDR4 2666/2400/2133 MHz Non-ECC, Un-buffered Memory
* Refer to www.asus.com for the Memory QVL (Qualified Vendors Lists).
* The maximum memory frequency supported varies by processor - Graphic
Integrated Graphics Processor- Intel® HD Graphics support
VGA output support : HDMI port
– Supports HDMI 1.4b with max. resolution 4096 x 2160 @ 30 Hz - Expansion Slots
1 x PCIe 3.0 x16 (x16 mode)
2 x PCIe 3.0 x1 - Storage
4 x SATA 6Gb/s port(s),
- LAN
Realtek® RTL8111H, 1 x Gigabit LAN Controller(s)
- Audio
Realtek® ALC887 8-Channel High Definition Audio CODEC
* Choose the chassis with HD audio module in front panel to support 8-channel audio output. - USB Ports
Intel® B365 Chipset :
6 x USB 3.1 Gen 1 port(s) (4 at back panel, blue, Type-A, 2 at mid-board)
Intel® B365 Chipset :
6 x USB 2.0 port(s) (2 at back panel, black, 4 at mid-board) - Special Features
ASUS 5X Protection III :
– ASUS SafeSlot Core: Fortified PCIe Slot prevents damage
– ASUS Overvoltage Protection: World-class circuit-protecting power design
– ASUS Stainless-Steel Back I/O: 3X corrosion-resistance for greater durability!
– ASUS DIGI+ VRM: 5 Phase digital power design
– ASUS ESD Guards – Enhanced ESD protection
Non-stop Durability :
– Anti-moisture coating – Outstanding protection against moisture and corrosion
– USBGuard- 120% higher voltage tolerance
Non-stop Gaming :
– Dedicated audio PCB layers: Separate layers for left and right channels to guard the quality of the sensitive audio signals
– Premium Japanese audio capacitors: Provide warm, natural and immersive sound with exceptional clarity and fidelity
Non-stop Challenger :
– ASUS iCafe Labs Certified – Top games and 100+ peripherals tested
ASUS Q-Design :
– ASUS Q-Slot

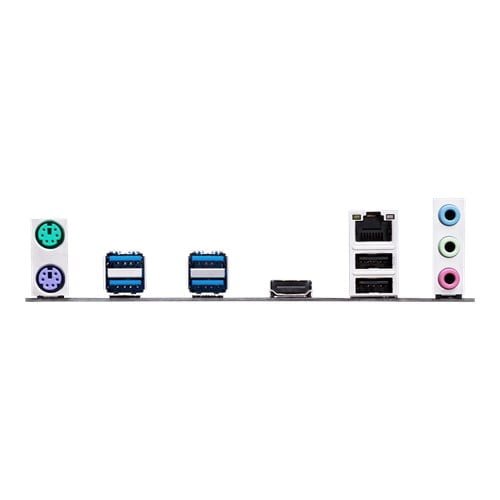

– ASUS Q-DIMM - Back I/O Ports
1 x PS/2 keyboard (purple)
1 x PS/2 mouse (green)
1 x HDMI
1 x LAN (RJ45) port(s)
4 x USB 3.1 Gen 1
2 x USB 2.0
3 x Audio jack(s) - Internal I/O Ports
1 x USB 3.1 Gen 1(up to 5Gbps) connector(s) support(s) additional 2 USB 3.1 Gen 1 port(s) (19-pin)
2 x USB 2.0 connector(s) support(s) additional 4 USB 2.0 port(s)
4 x SATA 6Gb/s connector(s)
1 x CPU Fan connector(s)
1 x Chassis Fan connector(s)
1 x 24-pin EATX Power connector(s)
1 x 8-pin EATX 12V Power connectors
1 x Front panel audio connector(s) (AAFP)
1 x Internal speaker connector(s)
1 x COM Debug header
1 x Clear CMOS jumper(s) - Accessories
User’s manual
I/O Shield
1 x SCD (by region) - BIOS
128 Mb Flash ROM, UEFI AMI BIOS, PnP, SM BIOS 3.1, ACPI 6.1, Multi-language BIOS
- Manageability
WOL, PXE
- Operating System
Windows® 10 64-bit
- Form Factor
mATX Form Factor
22.6 cm x 17.8 cm (8.9 x 7.0 )
