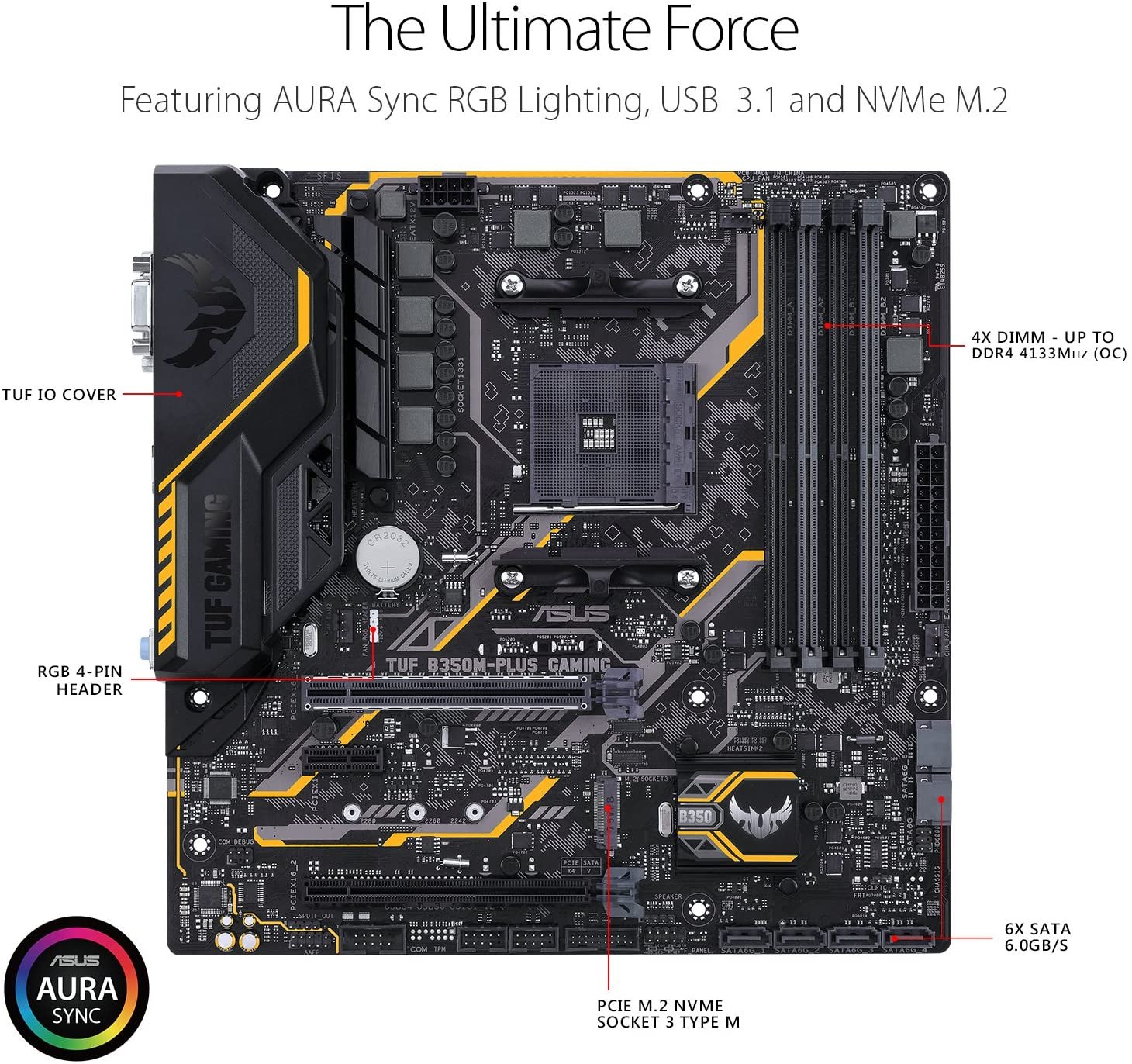

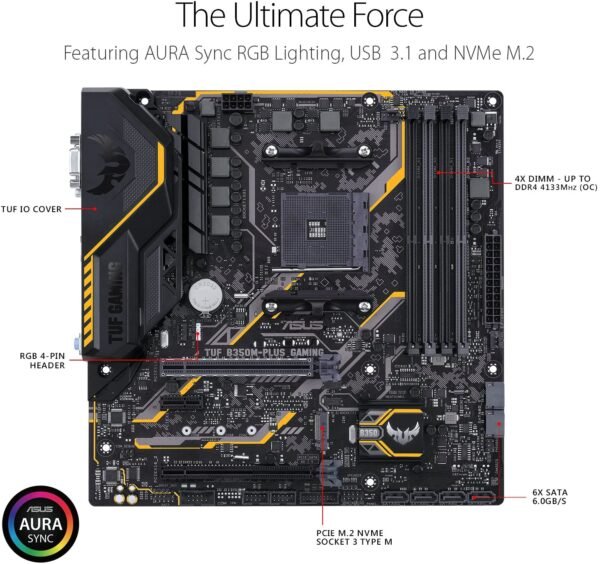

ASUS TUF B350M-PLUS GAMING

Battle Ready For Your Gaming Rig

TUF Gaming motherboards are built to survive and thrive on every battlefield. Infused with military spirit of The Ultimate Force and styled to strike fear into the hearts of every enemy, TUF B350M-Plus Gaming is the perfect foundation for your micro-ATX battle rig: a solid, durable and camouflaged force that’s fit for today’s fights, and with the durability to handle multiple upgrades for the campaigns of tomorrow.

RELIABILITY AND STABILITY

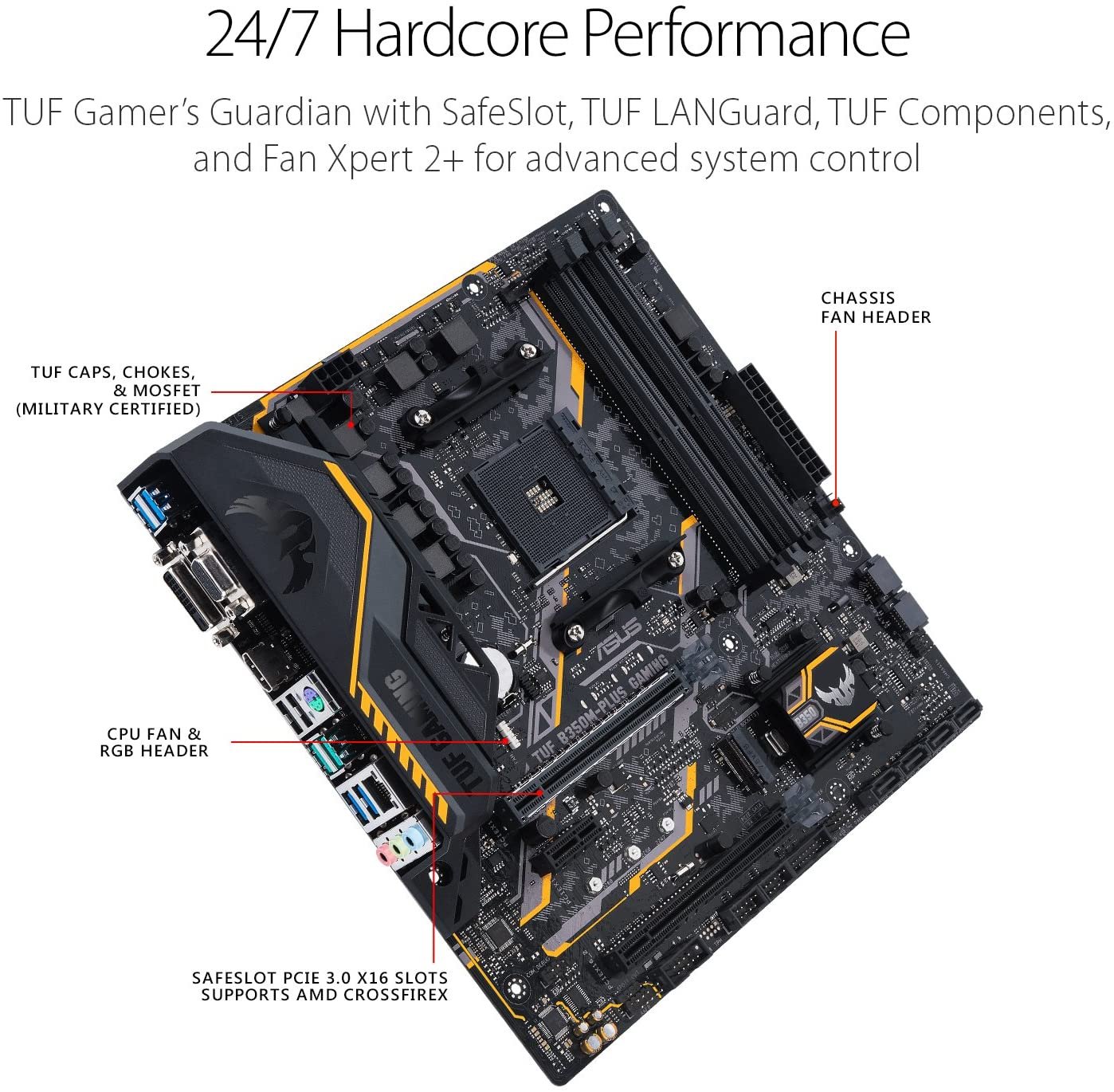

SAFESLOT

Protect your graphics card investment

SafeSlot is the PCIe slot reinvented by ASUS and engineered to provide superior retention and shearing resistance. Manufactured in a single step using a new insert-molding process, SafeSlot integrates fortifying metal for an inherently stronger slot, which is then firmly anchored to the PCB through additional solder points.

SPECIFICATION

• CPU
  AMD AM4 Socket for AMD Ryzen™/7^th Generation A-series/Athlon™ Processors
  Supports CPU up to 8 cores
  * Refer to www.asus.com for CPU support list
• Chipset
  AMD B350
• Memory
  AMD Ryzen™ Processors
  4 x DIMM, Max. 64GB, DDR4 3200(O.C.)/2933(O.C.)/2666/2400/2133 MHz ECC and non-ECC, Un-buffered Memory *¹
  AMD 7th Generation A-series/Athlon™ Processors
  4 x DIMM, Max. 64GB, DDR4 2400/2133 MHz Non-ECC, Un-buffered Memory
  Dual Channel Memory Architecture
  * Hyper DIMM support is subject to the physical characteristics of individual CPUs.
  * Refer to www.asus.com for the Memory QVL (Qualified Vendors Lists).
• Graphic
  Integrated AMD Radeon™ R Series Graphics in the 7th Generation A-Series APU *²
  Multi-VGA output support : HDMI/DVI/RGB ports
  – Supports HDMI 1.4b with max. resolution 4096 x 2160 @ 24 Hz / 2560 x 1600 @ 60 Hz
  – Supports DVI-D with max. resolution 1920 x 1200 @ 60 Hz
  – Supports RGB with max. resolution 1920 x 1200 @ 60 Hz
  Maximum shared memory of 2048 MB
• Multi-GPU Support
  Supports AMD CrossFireX™ Technology
• Expansion Slots
  AMD Ryzen™ Processors
  1 x PCIe 3.0/2.0 x16 (x16 mode)
  AMD 7th Generation A-series/Athlon™ Processors
  1 x PCIe 3.0/2.0 x16 (x8 mode)
  AMD B350 chipset
  1 x PCIe 2.0 x16 (max at x4 mode)
  1 x PCIe 2.0 x1
• Storage
  AMD B350 chipset :
  4 x SATA 6Gb/s port(s), gray,
  Support Raid 0, 1, 10
  AMD Ryzen™/7th Generation A-series/Athlon™ Processors :
  2 x SATA 6Gb/s port(s), gray,
  AMD Ryzen™ Processors :
  1 x M.2 Socket 3, with M key, type 2242/2260/2280 storage devices support (SATA & PCIE 3.0 x 4 mode)*³
  AMD 7th Generation A-series/Athlon™ Processors :
  1 x M.2 Socket 3, with M key, type 2242/2260/2280 storage devices support (SATA & PCIE 3.0 x 4 mode)*⁴
• LAN
  Realtek® RTL8111H, 1 x Gigabit LAN Controller(s)
• Audio
  Realtek® ALC887 8-Channel High Definition Audio CODEC
• USB Ports
  AMD Ryzen™/7th Generation A-series/Athlon™ Processors :
  4 x USB 3.1 Gen 1 port(s) (4 at back panel, blue)
  AMD B350 chipset :
  2 x USB 3.1 Gen 2 port(s) (2 at back panel, teal blue)
  AMD B350 chipset :
  2 x USB 3.1 Gen 1 port(s) (2 at mid-board)
  AMD B350 chipset :
  6 x USB 2.0 port(s) (2 at back panel, black, 4 at mid-board)
• Special Features
  ASUS TUF PROTECTION
  – ASUS SafeSlot: Protect your graphics card Investment
  – ASUS ESD Guard: Enhanced ESD protection
  – ASUS Overvoltage Protection: World-class circuit-protecting power design
  – ASUS Stainless-Steel Back I/O: 3X corrosion-resistance for greater durability!
  – ASUS DIGI+ VRM: 6 Phase digital power design
  ASUS Exclusive Features :
  – AI Suite 3
  – Ai Charger
  – Turbo LAN
  – PC Cleaner
  ASUS Quiet Thermal Solution :
  – Stylish Fanless Design Heat-sink solution & MOS Heatsink
  – ASUS Fan Xpert 2+
  ASUS EZ DIY :
  – ASUS CrashFree BIOS 3
  – ASUS EZ Flash 3
  – ASUS UEFI BIOS EZ Mode
  – Multi-language BIOS
  ASUS Q-Design :
  – ASUS Q-Slot
  – ASUS Q-DIMM
• Operating System Support
  Windows® 10 , 64bit

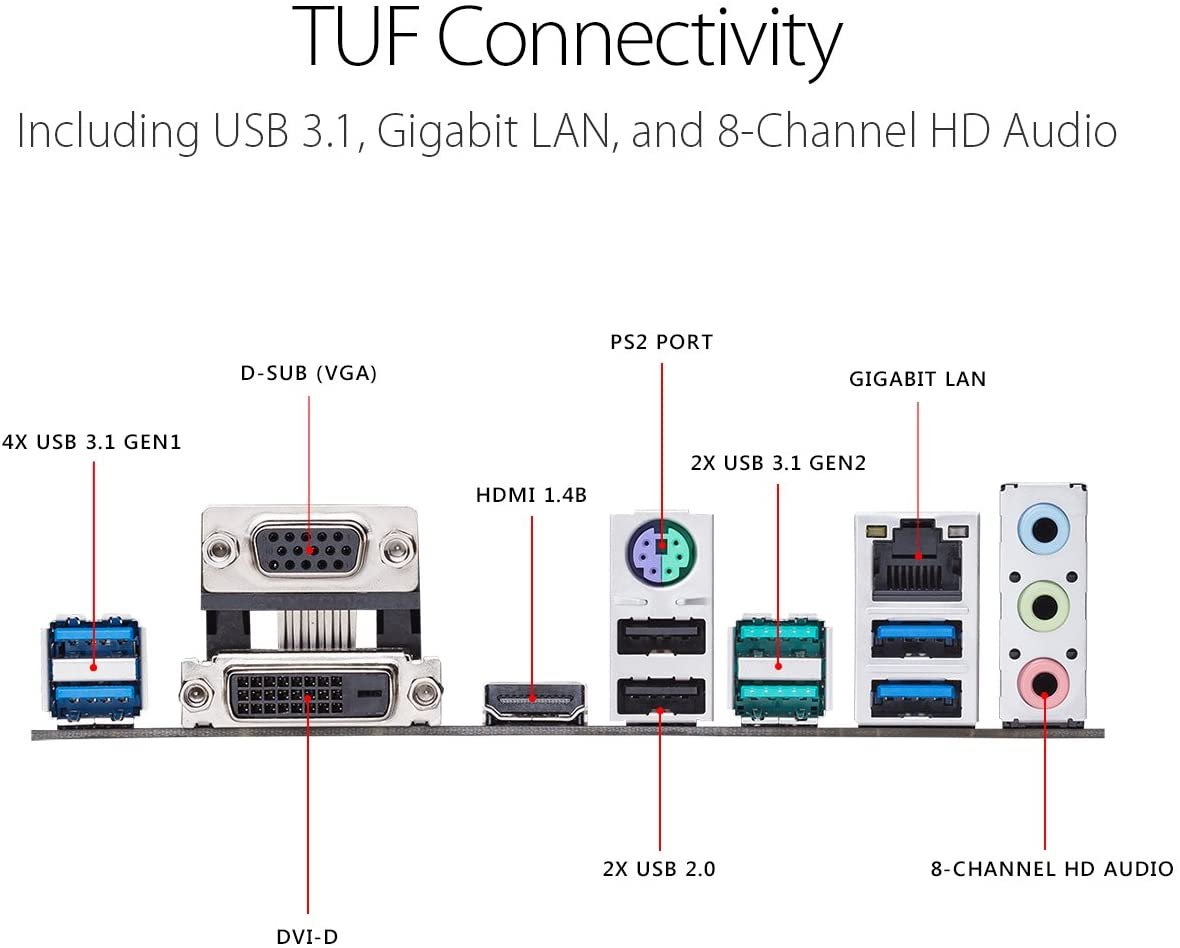

• Back I/O Ports
  1 x PS/2 keyboard/mouse combo port(s)
  1 x DVI-D
  1 x D-Sub
  1 x HDMI
  1 x LAN (RJ45) port(s)
  2 x USB 3.1 Gen 2 (teal blue)
  4 x USB 3.1 Gen 1 (blue)
  2 x USB 2.0
  3 x Audio jack(s)
• Internal I/O Ports
  1 x Fan RGB header
  1 x USB 3.1 Gen 1 connector(s) support(s) additional 2 USB 3.1 Gen 1 port(s) (19-pin)
  2 x USB 2.0 connector(s) support(s) additional 4 USB 2.0 port(s)
  1 x M.2 Socket 3 with M Key, type 2242/2260/2280/22110 storage devices support (SATA mode & PCIE mode)
  1 x COM port(s) connector(s)
  6 x SATA 6Gb/s connector(s)
  1 x CPU Fan connector(s) (1 x 4 -pin)
  2 x Chassis Fan connector(s) (2 x 4 -pin)
  1 x S/PDIF out header(s)
  1 x 24-pin EATX Power connector(s)
  1 x 8-pin ATX 12V Power connector(s)
  1 x Front panel audio connector(s) (AAFP)
  1 x System panel(s)
  1 x Clear CMOS jumper(s)
  1 x Speaker connector

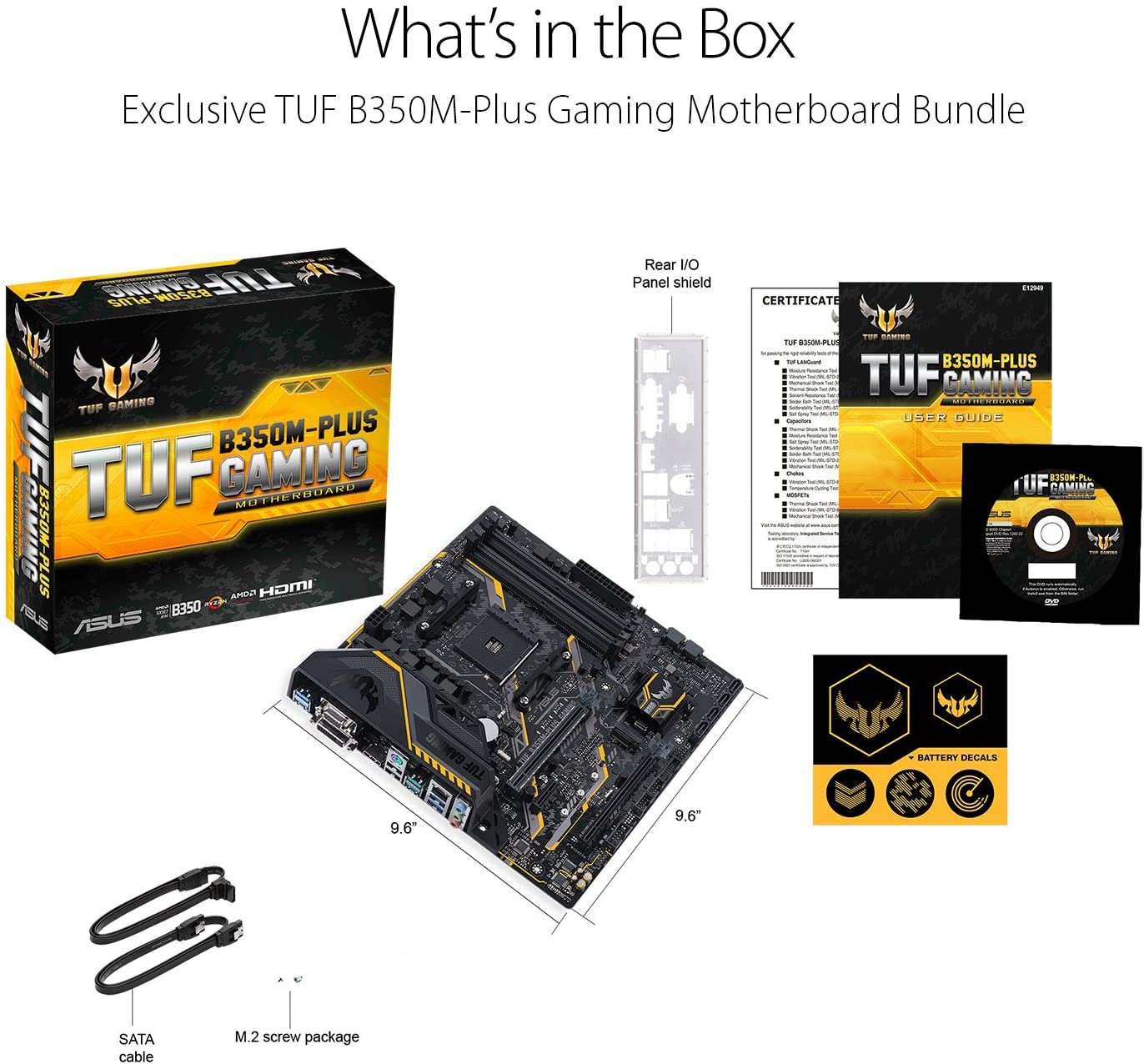

• Accessories
  User’s manual
  I/O Shield
  2 x SATA 6Gb/s cable(s)
  1 x M.2 Screw Package
  1 x Supporting DVD
  1 x TUF Gaming Sticker
  1 x TUF Certification card(s)
• BIOS
  128 Mb Flash ROM, UEFI AMI BIOS, PnP,WfM2.0,SM BIOS 3.0, ACPI 6.1, Multi-language BIOS, ASUS EZ Flash 3, ASUS CrashFree BIOS 3, My Favorites, Last Modified log, F12 PrintScreen, ASUS DRAM SPD (Serial Presence Detect) memory information, F6 Qfan Control
• Operating System
  Windows® 10 64-bit
• Form Factor
  mATX Form Factor
  24.4 cm x 24.4 cm (9.6 x 9.6 )
• Warranty
  TUF Gaming Series 3-year warranty support
• Note
  1*Due to the limitation of AMD Ryzen™ processors, memory frequencies higher than DDR4 2666 MHz are supported only when using one DIMM per channel.
  2*AMD Ryzen™ Processor does not support.
  3*The M.2 Socket shares bandwidth with the SATA6G_5/6 ports, therefore the SATA6G_5/6 ports cannot be used when a SATA/PCIE mode M.2 device is installed.
  4*The M.2 Socket shares bandwidth with the SATA6G_5/6 ports, therefore the SATA6G_5/6 ports cannot be used when a SATA mode M.2 device is installed.
