Description

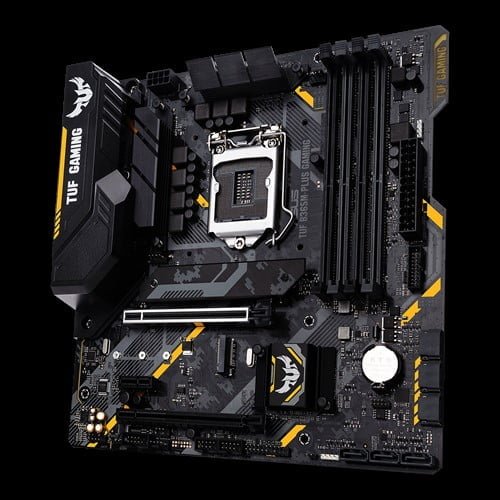

ASUS TUF-B365M-PLUS-GAMING
Arm Your Battlestation
TUF Gaming motherboards are specially designed and tested to survive and thrive in conditions where other boards would struggle. Engineered with highly durable components, these motherboards deliver unwavering stability for gaming sessions that last as long as you demand.
When you build with a TUF Gaming motherboard, you also benefit from the TUF Gaming Alliance — an ASUS collaboration with trusted industry partners that ensures easier building, the best compatibility, and complementary aesthetics from components to case.
Easy PC DIY Experience
TUF Gaming motherboards offer easy and safe DIY builds by leveraging great design, innovative engineering, and strong partnerships with major component manufacturers. The unrivalled combination of military-grade TUF Components, TUF Protection and the TUF Gaming Alliance means that you can rest assured that your gaming rig will go the distance.
TUF gaming alliance
TUF Gaming Alliance is the marque of collaboration between ASUS and major PC-component manufacturers, including trusted brands like Ballistix, Cooler Master, Corsair, G.Skill, In Win and Themaltake. A growing range of compliant parts, from PC chassis and power supplies to CPU coolers and DRAM, guarantee both compatibility and aesthetic harmony. We’re also continually increasing our partnerships, making the TUF Gaming Alliance ever stronger.
- CPUIntel® Socket 1151 9th / 8th Gen Intel® Core™, Pentium® Gold and Celeron® Processors
Supports Intel® 14 nm CPU
Supports Intel® Turbo Boost Technology 2.0
* The Intel® Turbo Boost Technology 2.0 support depends on the CPU types.
* Refer to www.asus.com for CPU support list - ChipsetIntel® B365
- MemoryIntel® B365 Chipset
4 x DIMM, Max. 64GB, DDR4 2666/2400/2133 MHz Non-ECC, Un-buffered Memory
Dual Channel Memory Architecture
Supports Intel® Extreme Memory Profile (XMP)
* Refer to www.asus.com for the Memory QVL (Qualified Vendors Lists).
* The maximum memory frequency supported varies by processor
** DDR4 2666MHz and higher memory modules will run at max. 2666MHz on Intel® 8th Gen. 6-core or higher processors. - GraphicIntegrated Graphics Processor- Intel® HD Graphics support
Multi-VGA output support : HDMI/DVI-D/DisplayPort ports
– Supports HDMI with max. resolution 4096 x 2160 @ 30 Hz
– Supports DVI-D with max. resolution 1920 x 1200 @ 60 Hz
– Supports DisplayPort 1.2 with max. resolution 4096 x 2304 @ 60 Hz
Maximum shared memory of 1024 MB (for iGPU exclusively)
Supports Intel® InTru™ 3D, Quick Sync Video, Clear Video HD Technology, Insider™
Supports up to 3 displays simultaneously - Multi-GPU SupportSupports AMD CrossFireX™ Technology
- Expansion Slots1 x PCIe 3.0 x16 (x16 mode)
1 x PCIe 3.0 x16 (max at x4 mode)
1 x PCIe 3.0/2.0 x1 - StorageIntel® B365 Chipset :
1 x M.2 Socket 3, with M key, type 2242/2260/2280 storage devices support (SATA & PCIE 3.0 x 4 mode)
1 x M.2 Socket 3, with M key, type 2242/2260/2280 storage devices support (PCIE 3.0 x 4 mode)
6 x SATA 6Gb/s port(s), gray
Support Raid 0, 1, 5, 10
Intel® Optane™ Memory Ready - LANIntel® I219V, 1 x Gigabit LAN
TUF LANGuard - AudioRealtek® ALC1200 8-Channel High Definition Audio CODEC
– Supports : Jack-detection, Front Panel Jack-retasking
Audio Feature :
– Audio Shielding: Ensures precision analog/digital separation and greatly reduced multi-lateral interference
– Dedicated audio PCB layers: Separate layers for left and right channels to guard the quality of the sensitive audio signals
– Premium Japanese audio capacitors: Provide warm, natural and immersive sound with exceptional clarity and fidelity
* Choose the chassis with HD audio module in front panel to support 8-channel audio output. - USB PortsIntel® B365 Chipset :
6 x USB 3.1 Gen 1 port(s) (4 at back panel, blue, 2 at mid-board)
Intel® B365 Chipset :
6 x USB 2.0/1.1 port(s) (2 at back panel, , 4 at mid-board) - Special FeaturesASUS TUF PROTECTION
– ASUS ESD Guard: Enhanced ESD protection
– ASUS Overvoltage Protection: World-class circuit-protecting power design
– ASUS Stainless-Steel Back I/O: 3X corrosion-resistance for greater durability!
– ASUS DIGI+ VRM: Precision control for stable power
– ASUS Safe Slot core+: PCIe slot fortified with a stainless-steel brace
ASUS OptiMem：
– Optimem (Improved DDR4 stability)
ASUS EPU :
– EPU
ASUS Exclusive Features :
– AI Suite 3
– Ai Charger
– PC Cleaner
ASUS Quiet Thermal Solution :
– Stylish Fanless Design: PCH Heat-sink & MOS Heat-sink & M.2 Heat-sink solution
– ASUS Fan Xpert 2+
ASUS EZ DIY :
– ASUS CrashFree BIOS 3
– ASUS EZ Flash 3
ASUS Q-Design :
– ASUS Q-Slot
– ASUS Q-DIMM
M.2 Onboard(The latest transfer technologies with up to 32Gb/s data transfer speeds) - Back I/O Ports1 x PS/2 keyboard/mouse combo port(s)
1 x DVI-D
1 x DisplayPort
1 x HDMI
1 x LAN (RJ45) port(s)
4 x USB 3.2 Gen 1 Type-A up to 5Gbps
2 x USB 2.0
1 x 8-channel Audio I/O - Internal I/O Ports1 x Addressable RGB header
1 x Aura RGB Strip Header
1 x USB 3.2 Gen 1(up to 5Gbps) connector(s) support(s) additional 2 USB 3.2 Gen 1 port(s) (19-pin, moss green)
2 x USB 2.0 connector(s) support(s) additional 4 USB 2.0 port(s)
2 x M.2 Socket 3 for M Key, type 2242/2260/2280 devices
1 x COM port(s) connector(s)
6 x SATA 6Gb/s connector(s)
1 x CPU Fan connector(s)
2 x Chassis Fan connector(s)
1 x S/PDIF out header(s)
1 x 24-pin EATX Power connector(s)
1 x 8-pin EATX 12V Power connectors
1 x Front panel audio connector(s) (AAFP)
1 x Clear CMOS jumper(s)
1 x System panel connector - AccessoriesUser’s manual
I/O Shield
2 x SATA 6Gb/s cable(s)
2 x M.2 screws
1 x Supporting DVD
1 x TUF GAMING Sticker
1 x TUF Certification card(s) - BIOS128Mb Flash ROM, UEFI AMI BIOS, PnP, SM BIOS 3.1, ACPI 6.1, Multi-language BIOS, ASUS EZ Flash 3, CrashFree BIOS 3, F3 My Favorites, Last Modified log, F6 Qfan Control, F12 PrintScreen, and ASUS DRAM SPD (Serial
Presence Detect) memory information - Operating SystemWindows® 10 64-bit
- Form FactormATX Form Factor
24.4 cm x 24.1 cm (9.6 x 9.5 ) - Management SolutionWOL by PME, PXE
