Description

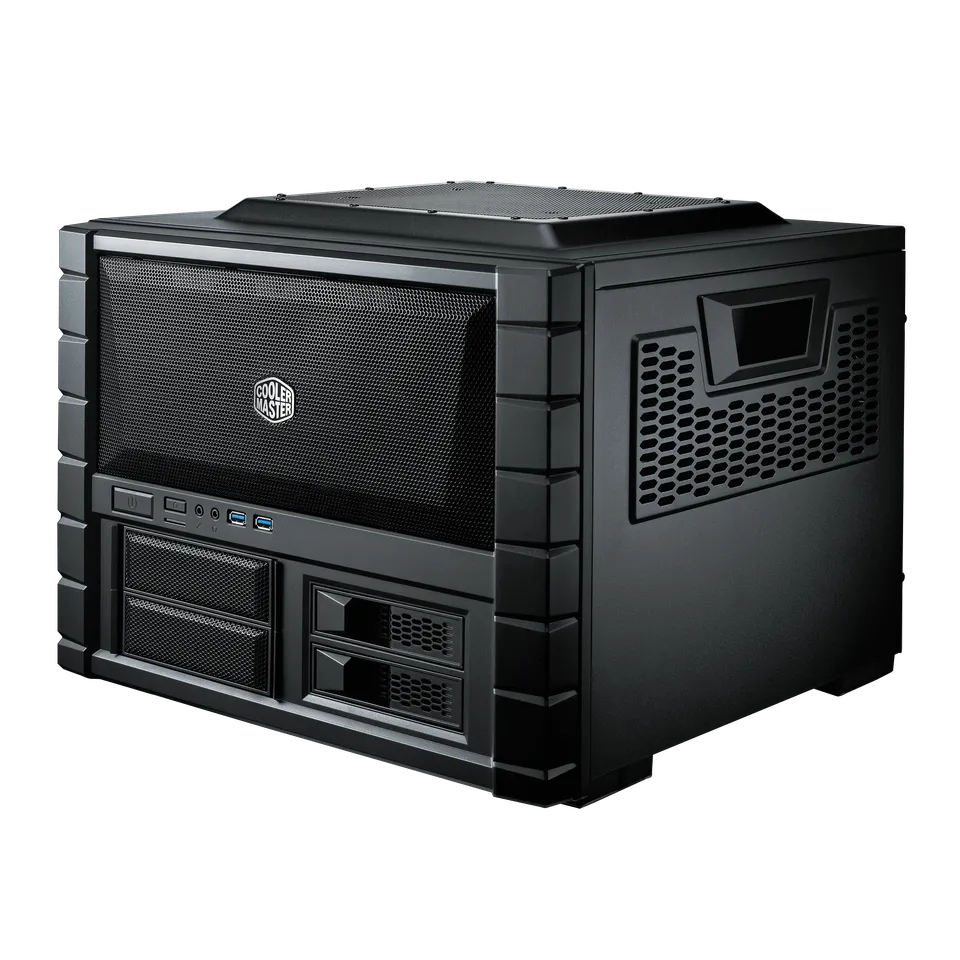

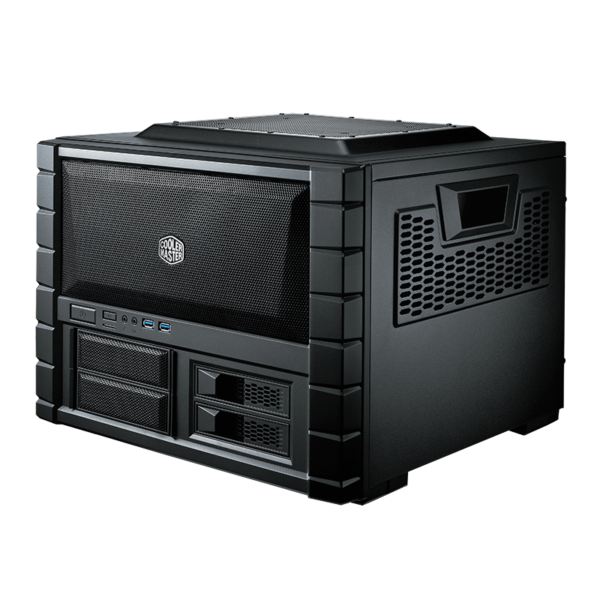

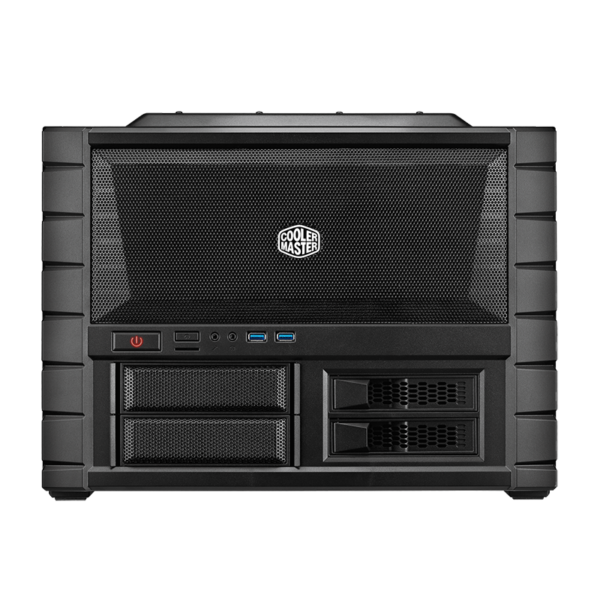

Cooler Master HAF XB EVO Cabinet
HAF XB EVO Cabinet
Quickly and easily transforms into a test bench – ideal for enthusiasts and overclockers
Two durable XtraFlo fans included in the front for powerful airflow; also supports 240mm radiators
Supports tower CPU coolers up to 180mm tall and high-end graphics cards up to 334mm long
Supports up to 4 HDDs or SSDs through removable cages
Motherboard tray can be removed for easier installation or removal of components
Dual USB 3.0 SuperSpeed ports and X-Dock bays in the front for lightning fast plug-n-play I/O
Rigid carry handles for transportation
COOLING
A. Mesh top panel for excellent ventilation
B. Supports 240mm radiators in the front
C. Includes two XtraFlo 120mm fans for high airflow
D. Supports an optional 200mm fan at the top
E. Supports a 120mm fan or 120mm radiators in the rear
F. Supports two optional 80mm fans to exhaust more heat
AIRFLOW
● Top: 200mm fan x 1 (optional)
● Front: 120mm XtraFlo fan x 2, 1200 RPM, 17 dBA (installed), or 140mm fan x 2 (optional)
● Rear: 120mm fan x 1, or 80mm fan x 2 (optional)
TWO CONFIGURATIONS
A. Mesh top panel version (RC-902XB-KKN2)

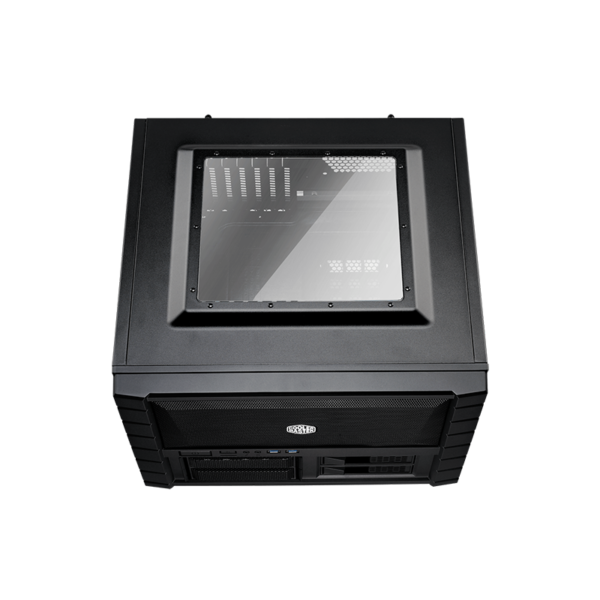

B. Windowed top panel version (RC-902XB-KWN2)
HAF XB EVO Cabinet
Specification
| Model Number | RC-902XB-KKN2 (mesh version), RC-902XB-KWN2 (windowed version) |
| Materials | Steel, Polymer, mesh front bezel |
| Dimensions (L x W x H) | 442 x 330 x 423 mm / 17.4 x 13 x 16.7 inch |
| Weight | 8.2 kg / 18.1 lb |
| Motherboard Support | ATX, Micro ATX, Mini ITX |
| 5.25″ Drive Bays | 2 |
| 3.5″ Drive Bays | 4 |
| 2.5″ Drive Bays | 4 (converted from 3.5″ drive bays) |
| I/O Panel | 2x USB 3.0, Audio In & Out (Supports HD Audio) |
| Expansion Slots | 7 |
| Cooling Support – Top | 1x 200mm Fan (Optional) – for Mesh Version (RC-902XB-KKN2) Only |
| Cooling Support – Front | 2x 120mm XtraFlo Fan (Installed, 1200 RPM, 17 dBA), or 2x 140mm Fan (Optional) |
| Cooling Support – Rear | 1x 120mm Fan or 2x 80mm Fan (Optional) |
| Liquid Cooling Support – Front | 240mm radiator x 1 (optional) (Compatible with the Nepton 280L) |
| Liquid Cooling Support – Rear | 120mm Radiator x 1 (Optional) |
| Power Supply Support | Standard ATX PS2 (The max. length of PSU: 180mm / 7.1 inch) |
| Maximum Compatibility – VGA Card Length | 334mm / 13.1 inch |
| Maximum Compatibility – CPU Cooler Height | 180mm / 7.1 inch |
| Series | HAF Series |
| Legacy | Cases |
Cooler Master HAF XB EVO Cabinet
