Description
Cooler Master MASTERBOX CM694 Desktop PC Case
CURVED MESH
The top and front panel are entirely mesh, featuring the iconic CM690 curve and Cooler Master’s signature rhombus pattern. The fine mesh on the CM694 achieves optimal airflow while also filtering out dust with a single layer.
MODULAR DRIVE CAGES
3 Drive Cages can be individually added, removed, or repositioned to make room for longer graphics cards and/or top & front radiators.
GRAPHICS CARD STABILIZER
Graphics cards installed within the case are reinforced by an arm, ensuring the safe delivery and transportation of systems.
RICH CONNECTIVITY (I/O PANEL)
The dust-proof I/O Panel features rubber shields, 2 x USB 3.0 ports, a USB 3.1 (Gen 2) Type-C port, and a 4 pole headset jack.
COOLING SUPPORT
RADIATORS
Top: 120 / 140 / 240 / 280 / 360mm
(mount fans above bracket for maximum compatibility)
Front: 120* / 140* / 240* / 280** / 360mm*
*remove 2 out of 3 drive cage
**remove 2 out of 3 drive cages & ODD
Rear: 120mm
COOLING SUPPORT
FANS
Top: 120mm x 3 / 140mm x 2
Front: 120mm x 3 / 140mm x 2 (without ODD)
120mm x 2 / 140mm x 2 (with ODD)
Rear: 120mm x 1
MOTHERBOARD SUPPORT
Mini-ITX
Micro-ATX
ATX
E-ATX *
*E-ATX up to 12″ x 10.7″ impacts cable management options

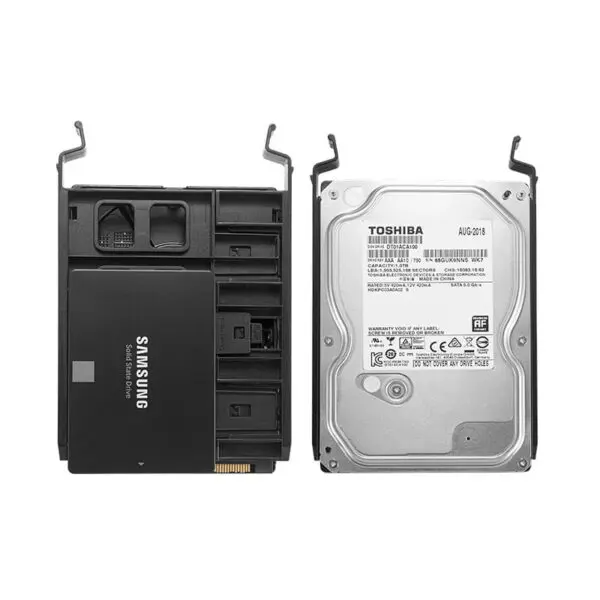

MASSIVE STORAGE SUPPORT
Simultaneous support for 6 x 3.5” HDDs
and 8 x 2.5” SSDs ensure substantial
storage capabilities.
Specification
| MODEL NUMBER | MCB-CM694-KN5N-S00 (Steel), MCB-CM694-KG5N-S00 (TG) |
| SERIES | MasterBox Series |
| SIZE | Mid Tower |
| AVAILABLE COLOR(S) | Black |
| MATERIALS | Steel, Plastic, Tempered Glass, Mesh |
| DIMENSIONS (L X W X H) | Steel: 493mm x 220mm x 506mm (incl. Protrusions), Steel: 482mm x 220mm x 477mm (excl. Protrusions), TG: 493mm x 224mm x 506mm (incl. Protrusions), TG: 482mm x 224mm x 477mm (excl. Protrusions) |
| MOTHERBOARD SUPPORT | Mini ITX, Micro ATX, ATX, E-ATX |
| EXPANSION SLOTS | 7 |
| 5.25″ DRIVE BAYS | 2 |
| 2.5″ / 3.5″ DRIVE BAYS (COMBO) | 6 (3x drive cages) |
| 2.5″ DRIVE BAYS | 8 (2 + 6 combo) |
| I/O PANEL | 2x USB 3.0 Type A, 1x USB 3.1 Type-C, 1x 3.5mm Headset Jack (Audio+Mic) |
| PRE-INSTALLED FANS – FRONT | 2x 120mm Fan (1200 RPM ± 200 RPM, 3 pin connector) |
| PRE-INSTALLED FANS – REAR | 1x 120mm fan (1200 RPM ± 200 RPM, 3 pin connector) |
| FAN SUPPORT – FRONT | 3x 120mm / 2x 140mm (wo/ODD), 2x 120mm / 2x 140mm (w/ODD) |
| FAN SUPPORT – TOP | 3x 120mm, 2x 140mm |
| FAN SUPPORT – REAR | 1x 120mm |
| RADIATOR SUPPORT – FRONT | 120mm*, 140mm*, 240mm*, 280mm**, 360mm** (*remove 2 out of 3 drive cages) (**remove 2 out of 3 drive cages & ODD cage) |
| RADIATOR SUPPORT – TOP | 120mm, 140mm, 240mm, 280mm, 360mm, (mount radiator below the bracket & fans above the bracket for maximum compatibility) |
| RADIATOR SUPPORT – REAR | 120mm |
| CLEARANCE – CPU COOLER | 171mm |
| CLEARANCE – GFX | 410mm/16.1″, 350mm (with stabilizer), 280mm (with stabilizer + drive cage) |
| CLEARANCE – PSU | 276mm, 160mm (drive cage rear position) |
| POWER SUPPLY SUPPORT | Bottom mount, ATX PS2 |
| DUST FILTERS | Top, Front, Bottom |
| CABLE ROUTING | 27-29mm |
| EAN CODE | 4719512087305 (Steel), 4719512087299 (TG) |
| UPC CODE | 884102059759 (Steel), 884102059742 (TG) |
