Description
Cooler Master V850 PSU

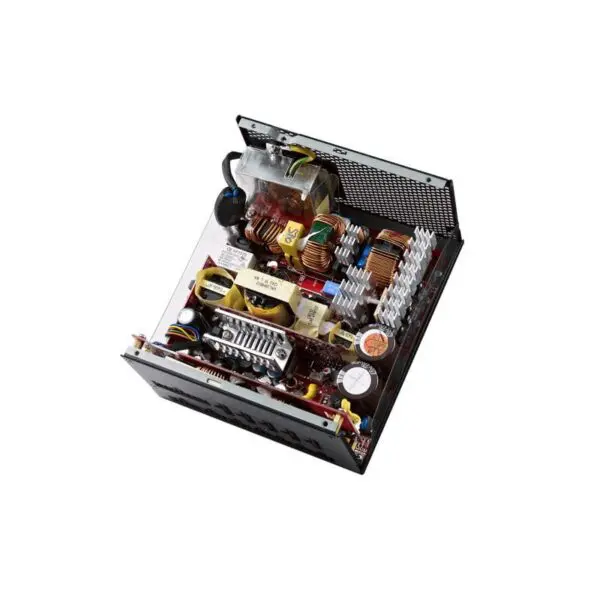

(A) High quality AC socket
(B) Double EMI filter for extremely
clean and stable voltages
(C) Full bgidge with LLC
(D) 100% highest grade
Japanese capactiors
(E) Highly efficient integrated
heatsink desigh
TIGHT VOITAGE REGULATION
135MM FDB FAN DESIGN
CABLE INFO
AC INPUT / DC OUTPUT
SPECIFICATION
| MODULAR | Full Modular |
| MODEL | RS-850-AFBA-G1 |
| PFC | Active PFC (>0.9 typical) |
| ATX VERSION | Intel Form Factor ATX 12V V2.31 |
| DIMENSIONS (L X W X H) | 150 x 170 x 86 mm / 5.9 x 6.7 x 3.4 inch |
| INPUT VOLTAGE | 90-264Vac (Auto Range) |
| INPUT CURRENT | 10-5A |
| INPUT FREQUENCY | 60-50Hz |
| POWER GOOD SIGNAL | 100-500ms |
| HOLD UP TIME | >17ms |
| EFFICIENCY | 90% Typically |
| MTBF | >100,000 Hours |
| PROTECTIONS | OVP, UVP, OPP, OTP, SCP |
| OUTPUT CAPACITY | 850W |
| OPERATING TEMPERATURE | 0-40°C |
| REGULATORY | CE, TUV, TUV-SUDNRTL, FCC, GOST, CCC, BSMI, C-tick, KCC |
| FAN SIZE | Silent FDB 135mm |
| CERTIFICATION | 80 Plus Gold |
| MB 20+4 PIN CONNECTORS | 1 |
| CPU 12V 4+4 PIN CONNECTORS | 2 |
| PCI-E 6+2 PIN CONNECTORS | 6 |
| SATA CONNECTORS | 9 |
| PERIPHERAL 4-PIN CONNECTORS | 4 |
| FDD CABLE 4-PIN CONNECTORS | 1 |
| PRODUCT NAME | V850 |
| WATTAGE | Above 750W |
| 80 PLUS | Gold |
| SERIE | V Gold Series |
