Description

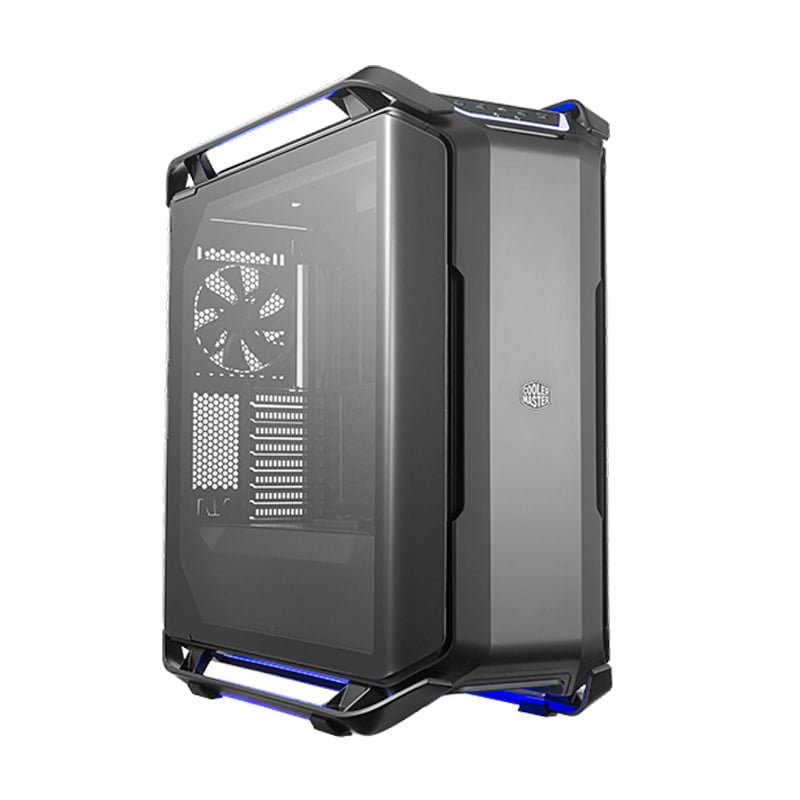

Cooler Master COSMOS C700P BLACK EDITION Desktop PC Case
EXPANDING THE COSMOS

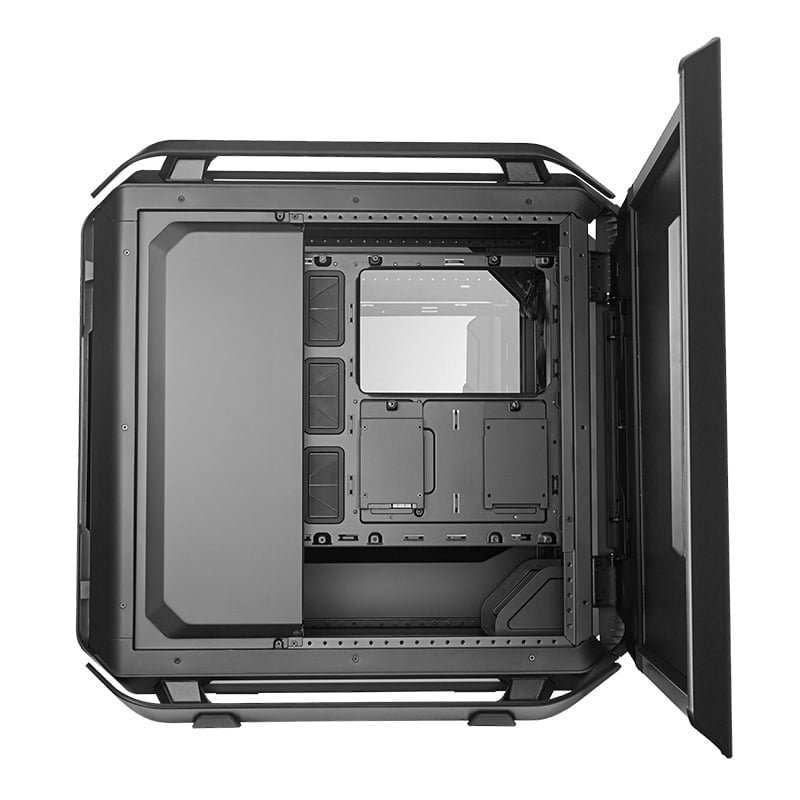

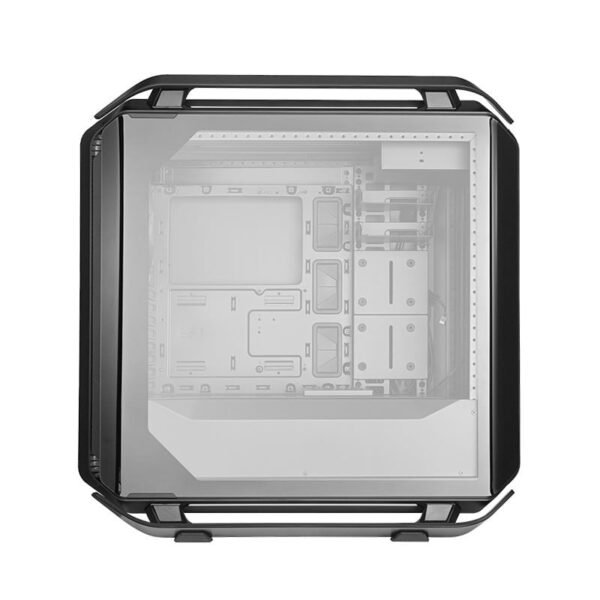

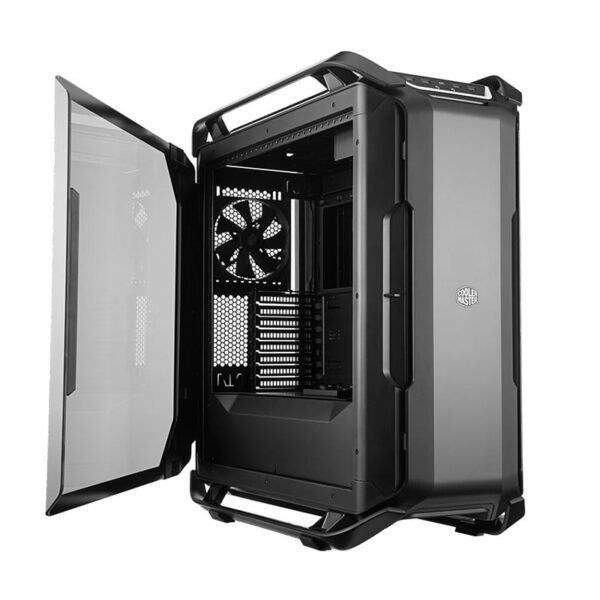

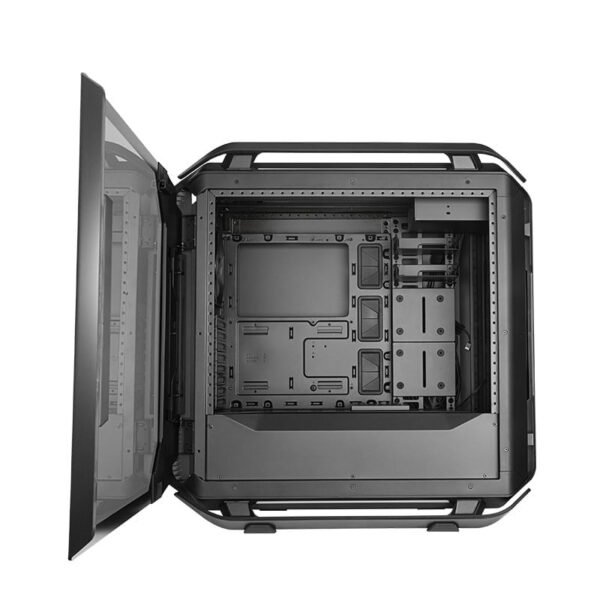

CURVED TEMPERED GLASS SIDE PANEL
A lightly-tinted tempered glass side panel with two curved edges offer a wide view of the system build.
UPGRADED COVER SYSTEM
The PSU Shroud advances in modularity with two independent parts while the cable cover system features 3 separate pieces, each with the capability of mounting storage or a pump for liquid cooling.
FLAT RADIATOR BRACKETS
Flat radiator brackets offer an easier maintenance, mounting, and removal process for liquid cooling with more clearance for push-pull configurations.

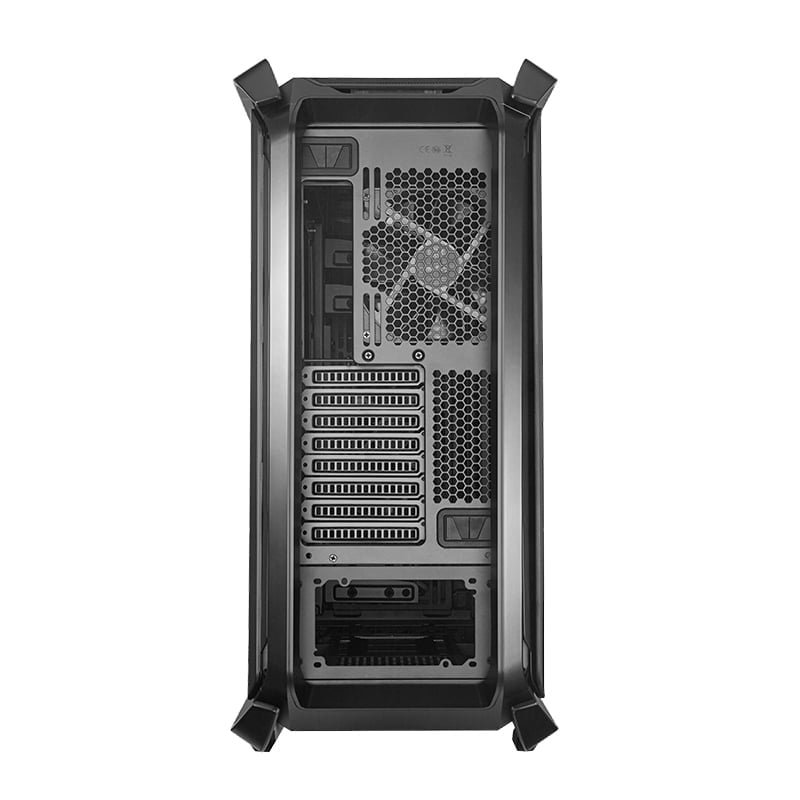

ALTERNATE REAR PANEL
To support exotic layouts with motherboards or graphics card oriented vertically, an alternate panel with rubber grommets is included to allow a pass-through for external cables.
HIGHLY VERSATILE LAYOUT
The unique frame design supports a conventional, chimney, inverse layout, or a fully customized layout. The motherboard tray is also removable for installation outside of the chassis.

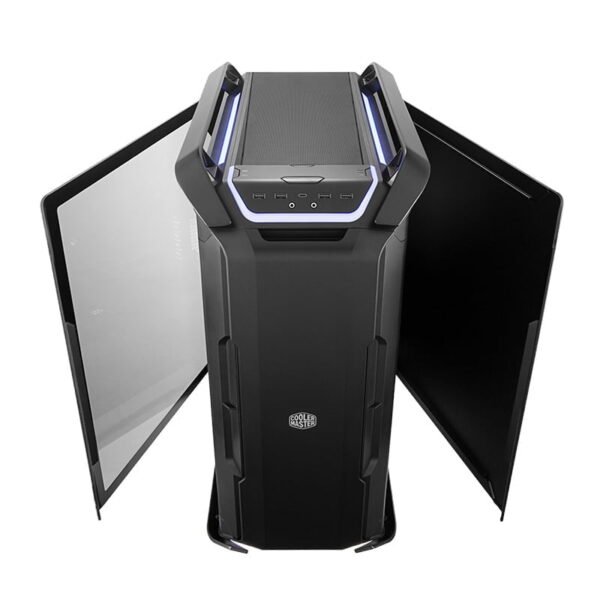

RICH CONNECTIVITY
The advanced I/O panel features a USB 3.1 (Gen 2) Type-C port, four additional USB 3.0 ports, a fan speed control button and an RGB control button.
COOLING SUPPORT
RADIATORS
Top: 120 / 140 / 240 / 280 / 360 / 420mm*
*Remove ODD, maximum thickness clearance 70mm
Front: 120 / 140 / 240 / 280 / 360 / 420mm*
*remove ODD
Rear: 120 / 140mm
Bottom: 120 / 140 / 240mm
COOLING SUPPORT
FANS
Top: 120 / 140mm x 3
Front: 120 / 140mm x 3
Rear: 120 / 140mm x 1
Bottom: 120 / 140mm x 2*
*Requires bracket
MOTHERBOARD SUPPORT
Mini-ITX
Micro-ATX
ATX
E-ATX*
*E-ATX up to 12″ x 10.7″ may impact cable management options.
STORAGE SUPPORT
5.25” ODD X 1
3.5” / 2.5” COMBO X 4
2.5” SSD X 4
Upgradeable to 12x 3.5“ HDD
SPECIFICATION
| MODEL NUMBER | MCC-C700P-KG5N-S00 |
| SERIES | COSMOS Series |
| SIZE | Full Tower |
| AVAILABLE COLOR(S) | Black |
| MATERIALS | Steel, Curved Tempered Glass |
| DIMENSIONS (L X W X H) | 639 x 306 x 651mm |
| WEIGHT | 22.2 kg |
| MOTHERBOARD SUPPORT | E-ATX, ATX, Micro ATX, Mini ITX |
| EXPANSION SLOTS | 8 |
| 5.25″ DRIVE BAYS | 1 |
| 2.5″ / 3.5″ DRIVE BAYS (COMBO) | 4 |
| 2.5″ DRIVE BAYS | 4 |
| I/O PANEL | 4x USB 3.0, 1x USB 3.1 Gen 2 Type-C, 1x 3.5mm Audio Jack, 1x 3.5mm Mic Jack, Fan Speed, RGB Control Buttons |
| PRE-INSTALLED FANS – FRONT | 2x 140mm, 1200RPM |
| PRE-INSTALLED FANS – REAR | 1x 140mm, 1200RPM |
| FAN SUPPORT – FRONT | 3x 120/140mm |
| FAN SUPPORT – TOP | 3x 120/140mm |
| FAN SUPPORT – REAR | 1x 120/140mm |
| FAN SUPPORT – BOTTOM | 2x 120/140mm* |
| RADIATOR SUPPORT – FRONT | 120mm, 140mm, 240mm, 280mm, 360mm, 420mm (requires removal of ODD cage) |
| RADIATOR SUPPORT – TOP | 120mm, 140mm, 240mm, 280mm, 360mm, 420mm (remove ODD, maximum thickness clearance 70mm) |
| RADIATOR SUPPORT – REAR | 120mm, 140mm |
| RADIATOR SUPPORT – BOTTOM | 120mm, 140mm, 240mm |
| CLEARANCE – CPU COOLER | 198mm |
| CLEARANCE – GFX | 320mm (w/ 3.5″ HDD cage), 490mm (w/o 3.5″ HDD cage) |
| POWER SUPPLY SUPPORT | Bottom mount, ATX PS2 |
| DUST FILTERS | Top, Front, Bottom |
| LIGHTING SUPPORT | 1x RGB Connection, RGB Control Board |
| EAN CODE | 4719512085028 |
| UPC CODE | 884102057472 |
