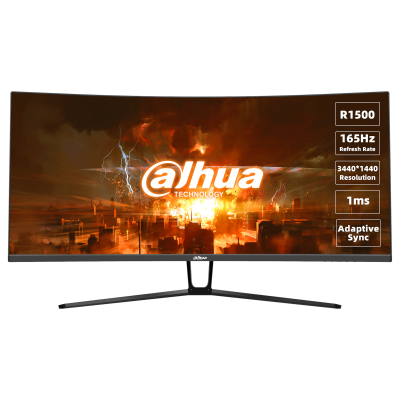

Model

Model

DHI-LM34-E330C

Display

Screen Size

34”

Panel type

VA

Aspect Ratio

21:9

Resolution

3440×1440

Backlight

E-LED

Brightness(Typ)

350nits

Contrast Ratio

3000:1

Color Support

120% sRGB, 85% NTSC, 85% DCI-P3, 85% Adobe RGB

Viewing Angle(H/V)

178°(H)/178°(V)

Response time

MPRT 1ms

Refresh Rate(Max)

165Hz

Signals

Interface

DP1.4×2，HDMI 2.0×2，Audio out×1

General

Power Supply

AC 100-240V~50/60Hz 2.0A

Power Type

Build in power

Consumption (Standard)

TYP. 64W, MAX. 78 W

Consumption (Standby)

<0.5W

Net Weight

7.24kg

Gross Weight

9.67kg

Tilt Angles

-5°±2°/15°±2°

Swivel(angle)

N/A

Pivot(angle/direction)

N/A

Height Adjustment

N/A

VESA

75x75mm

Dimension(W×H×D)

808.65*129.59*363.33mm(without stand)

Package(W×H×D)

907*182*486mm

Work Environment

Temperature

0°~40°(32°F~104°F)

Humidity

10%~85%

Accessory

Standard

DP cable,Power Cable,Stand,Base

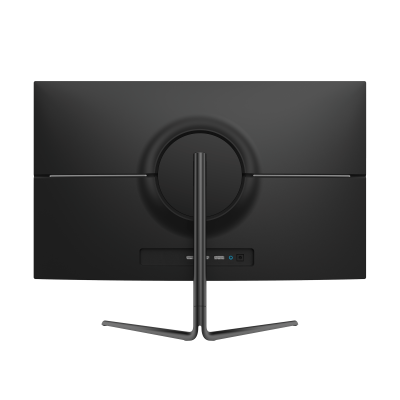

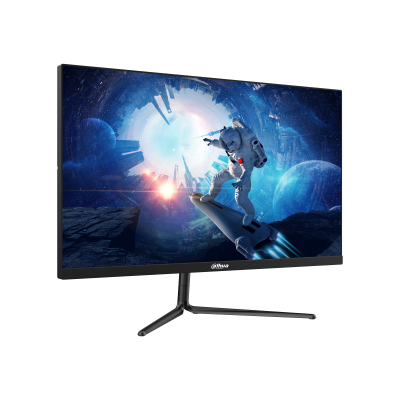

Model

Model

DHI-LM27-E231

Display

Screen Size

27″

Panel type

IPS

Aspect Ratio

16:9

Resolution

1920×1080

Backlight

E-LED

Brightness/Luminance

320nits(typ)

Contrast Ratio

1000:1

Color Support

100% sRGB, 85% NTSC, 90% DCI-P3, 83% Adobe RGB

Viewing Angle(H/V)

178°(H)/178°(V)

Response time

1ms(OD)-Fast IPS

Refresh Rate

165Hz

Signals

Interface

DP1.2×1，HDMI 1.4×2，Audio out×1

General

Power Supply

DC 12V 4A
