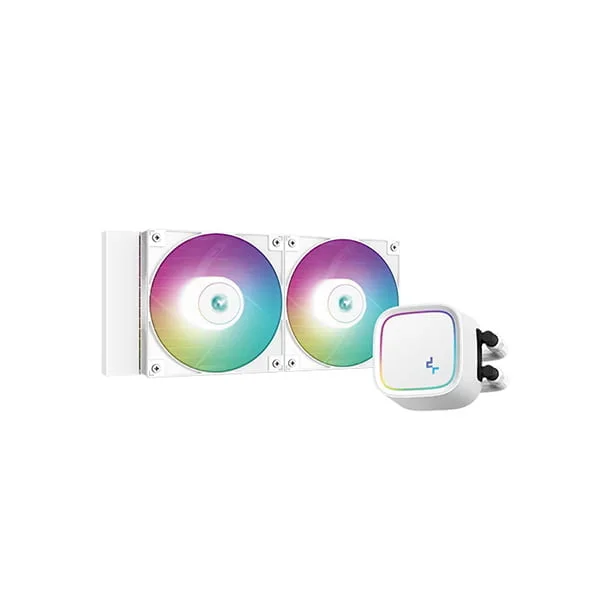

Deepcool LE520 WH AIO Liquid Cooler

6,600.00 (In. GST)

The DeepCool LE520 WH is a white all-in-one liquid cooler that is equipped with new high-performance ARGB fans, thermal paste, and DeepCool’s new liquid cooler series design elements.

                                                                            Application For

       Intel             LGA1700/1200/1151/1150/1155
      AMD              AM5/AM4


2 in stock

SKU: NG0110208 Categories: ,


Deepcool LE520 WH AIO Liquid Cooler



Thanks to an efficient micro-channel water block, a thickened copper cold plate, and new high-performance ARGB fans, the LE520 WH achieves excellent heat dissipation of 220W TDP.


The LE520 WH features a new series pump with rounded corners, a square shape, bright ARGB, and additional durability. The low pump height of 52mm provides excellent compatibility for various ITX cases.


The included high-performance ARGB fans are vibrant, and bright, and support various motherboard synchronizations. The fans provide maximum CFM and static pressure at higher RPMs while maintaining a quiet noise level of below 30dB at lower speeds.


The LE520 WH liquid cooler features DeepCool’s patented Anti-Leak Technology. The internal valve regulates pressure and will purge it when internal pressure exceeds atmospheric pressure, this leads to a longer useful life while reducing the possibility of leaks.

Technical Specification

Net Weight1238 g
Radiator Dimensions282×120×27 mm(L×W×H)
Radiator MaterialAluminum
Tube length410 mm(L×W×H)
Pump Dimensions91×80×52 mm(L×W×H)
Pump Speed2400 RPM±10%
Pump Noise17.8 dB(A)
Pump Connector3-pin
Pump Rated Voltage12 VDC
Pump Rated Current0.2 A
Pump Power Consumption2.4 W
Fan Dimensions                120×120×25 mm(L×W×H)
Fan Speed500~2250RPM±10%
Fan Airflow85.85 CFM
Fan Air Pressure3.27 mmAq
Fan Noise≤32.9 dB(A)
Fan Connector4-pin PWM
Bearing TypeHydro Bearing
Fan Rated Voltage12 VDC
Fan Rated Current0.25 A
Fan Power Consumption3.0 W
LED TypeAddressable RGB LED
LED Connector3-pin(+5V-D-G)
LED Rated Voltage5 VDC
LED Power Consumption2.25 W(PUMP)/ 2.1 W(FAN×2)
