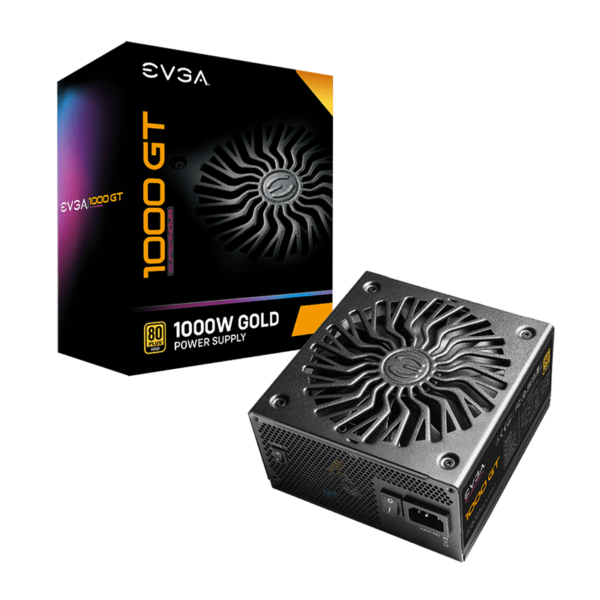

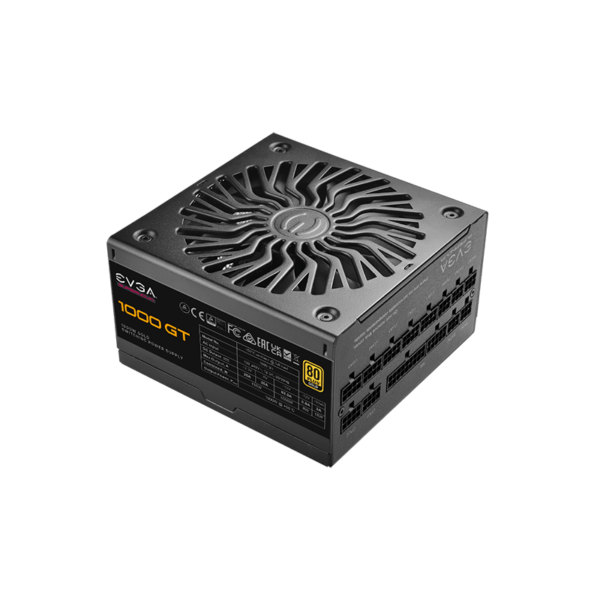

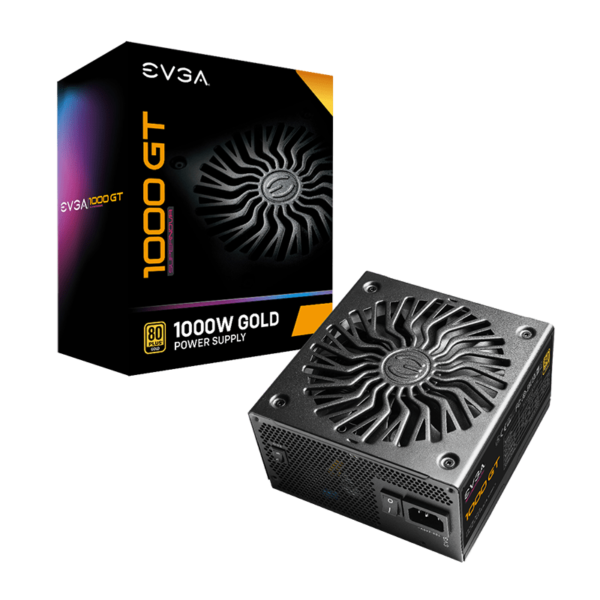

EVGA SuperNOVA 1000 GT, 80 Plus Gold 1000W, Fully Modular, Eco Mode with FDB Fan, 10 Year Warranty

28,999.00 (In. GST)

FEATURES

  • 80 PLUS Gold certified, with 90% (115VAC) / 92% (220VAC~240VAC) efficiency or higher under typical loads
  • 100% Japanese Capacitors ensure long-term reliability
  • Fully Modular to reduce clutter and improve airflow
  • EVGA ECO Intelligent Thermal Control System eliminates fan noise at low to medium loads
  • Heavy-duty protections, including OVP (Over Voltage Protection), UVP (Under Voltage Protection), OCP (Over Current Protection), OPP (Over Power Protection), SCP (Short Circuit Protection), and Dual OTP (Over Temperature Protection)
  • Fluid Dynamic Bearing Fan for ultra-quiet operation and increased lifespan.
  • Unbeatable EVGA 10 Year Warranty and unparalleled EVGA Customer Support

Out of stock

SKU: NG01040 Categories: ,

Description

EVGA SuperNOVA 1000 GT, 80 Plus Gold 1000W, Fully Modular, Eco Mode with FDB Fan, 10 Year Warranty, Includes Power ON Self Tester, Compact 150mm Size, Power Supply 220-GT-1000-X1

EVGA SuperNOVA 1000 GT, 80 Plus Gold 1000W, Fully Modular, Eco Mode with FDB Fan, 10 Year WarrantyEVGA SuperNOVA 1000 GT, 80 Plus Gold 1000W, Fully Modular, Eco Mode with FDB Fan, 10 Year Warranty



Specification

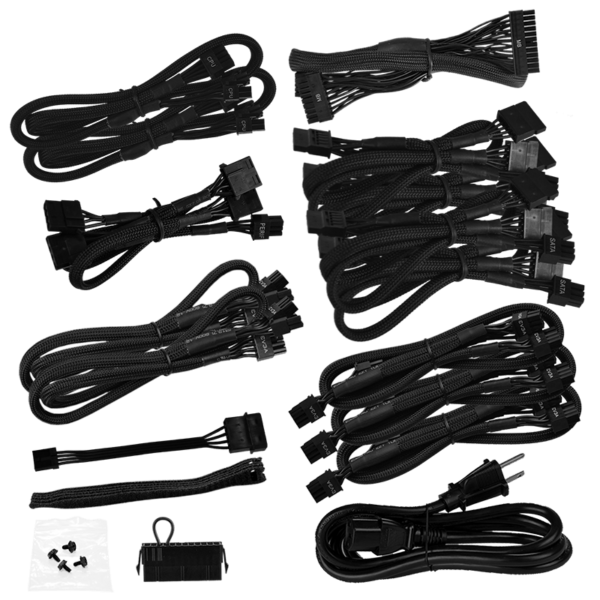

CABLE LENGTH

ATX Cable1x 600mm (m)
EPS Cable2x 700mm (m)
PCIe Cable2x 700mm (m), 3x 700mm, 850mm (m)
SATA Cable4x 550mm, 650mm, 750mm (m)
Four-Pin Peripheral Cable1x 550mm, 650mm, 750mm, 850mm (m)
Floppy Adapter1x Molex to FDD Adapter
AC Power1x 1500mm (m)
Modular Cable TypeFull

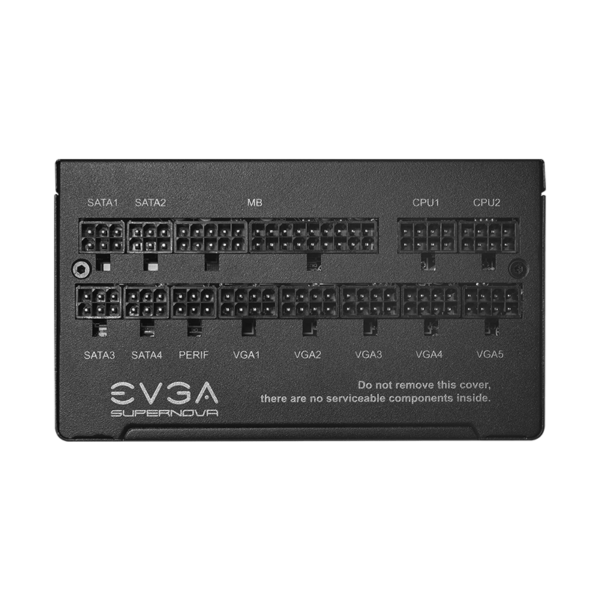

CONNECTOR QUANTITY

24 Pin ATX1x
EPS (CPU)2x 8pin(4+4)
PCIe8x 8pin(6+2)
SATA12x
Four-Pin Peripheral4x
Floppy1x

INPUT

Input Voltage100-240V~
AC Input12-6A
Input Frequency Range60/50Hz
Efficiency90% or Higher Typical

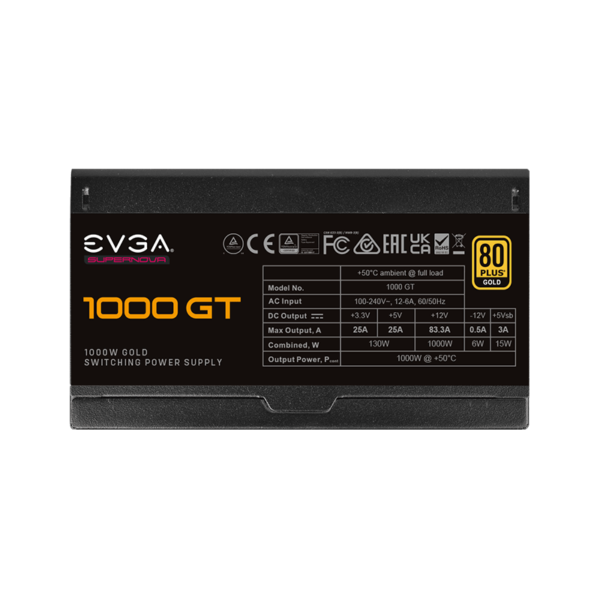

OUTPUT

Rail+3.3V+5V+12V-12V+5Vsb
Max output25A25A83.3A0.5A3A
130W1000W6W15W
Total1000W

ADDITIONAL DETAILS

Operating Temperature0° to 50° C
Japanese Capacitors100%

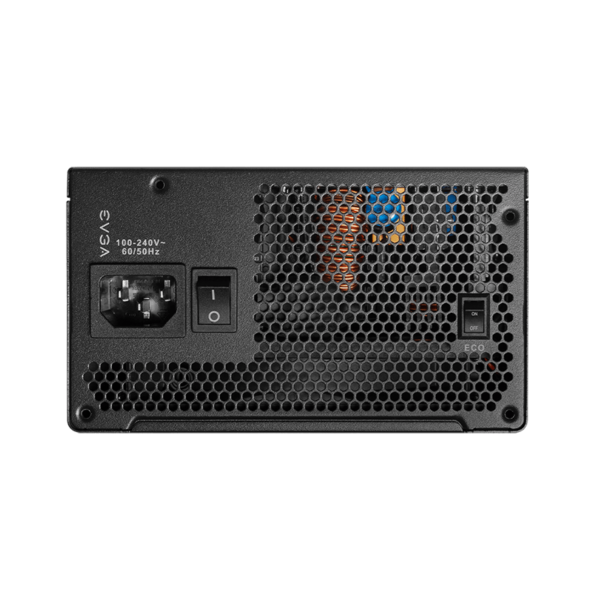

ECO ModeYes
MTBF100,000 Hours
Gross Weight8.80 lbs
Size86mm (H) x 150mm (W) x 150mm (L)
ApprovalsTUV, CB, CE, FCC, RCM, cTUVus, WEEE, RoHS
Compliance with ErP Lot 3 2014 Requirement
Fan Size / Bearing135mm Fluid Dynamic Bearing
UPC843368071370
EAN4250812442161



PRODUCT WARRANTY

This product is covered under EVGA’s 10-year limited warranty which covers parts and labor.

The further warranty extension is available upon registration within 90 days of purchase.

For more details please visit http://www.evga.com/warranty/
