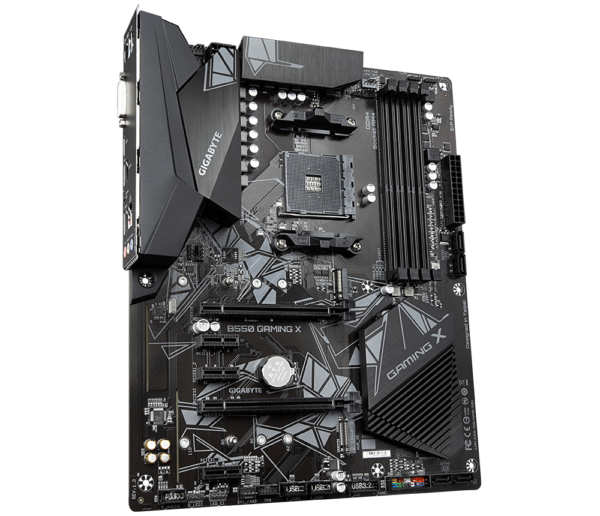

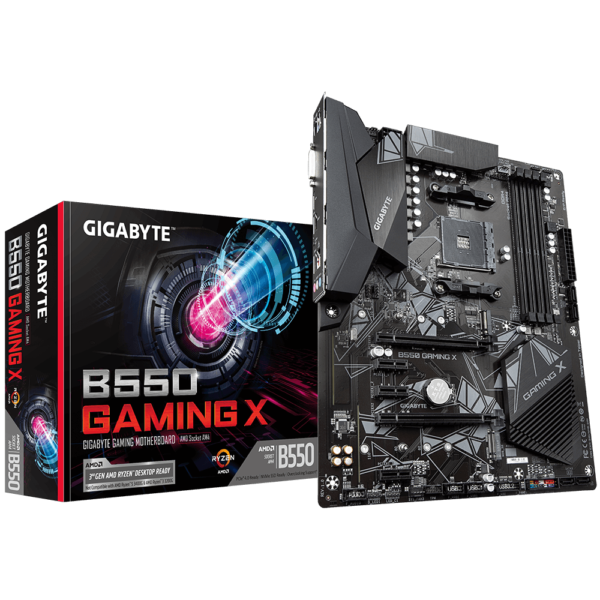

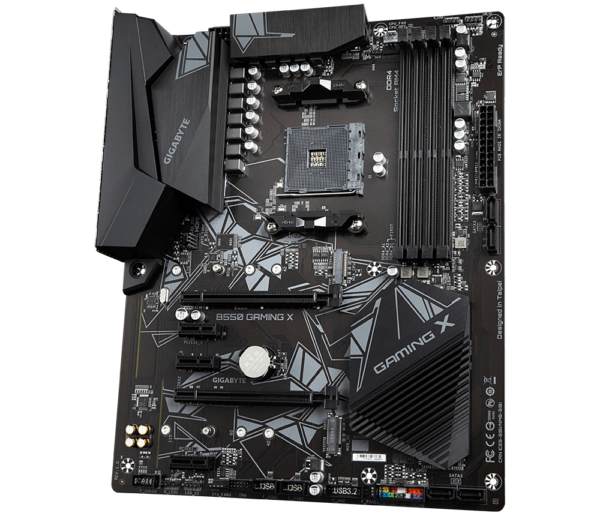

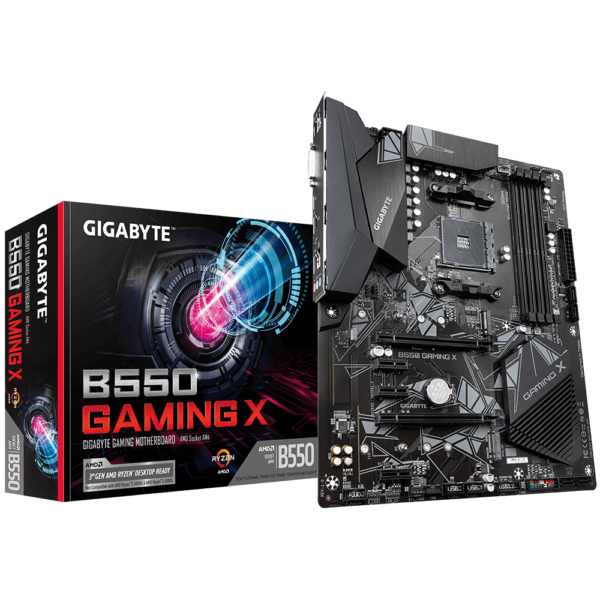

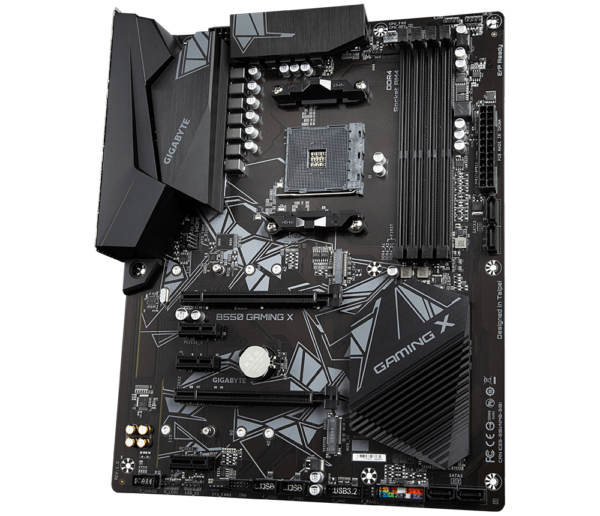

Gigabyte B550 GAMING X (rev. 1.0) Motherboard
Gigabyte B550 GAMING X (rev. 1.0) Motherboard - Image 2
Gigabyte B550 GAMING X (rev. 1.0) Motherboard - Image 3
Gigabyte B550 GAMING X (rev. 1.0) Motherboard - Image 4
Gigabyte B550 GAMING X (rev. 1.0) Motherboard - Image 5
Gigabyte B550 GAMING X (rev. 1.0) Motherboard - Image 6

Gigabyte B550 GAMING X (rev. 1.0) Motherboard

₹10,837 (In. GST)

AMD B550 Gaming Motherboard with Digital VRM Solution, GIGABYTE Gaming LAN with Bandwidth Management, PCIe 4.0/3.0 x4 M.2, RGB FUSION 2.0, Smart Fan 5 ,Q-Flash Plus , Anti-Sulfur Resistors Design



  • Supports AMD Ryzen™ 5000 Series/ Ryzen 5000 G-Series/ 3rd Gen Ryzen™ and 3rd Gen Ryzen™ with Radeon™ Graphics Processors
  • Dual Channel ECC/ Non-ECC Unbuffered DDR4, 4 DIMMs
  • 10+3 Phases Pure Digital VRM Solution with Low RDS(on) MOSFETs
  • Ultra Durable™ PCIe 4.0 Ready x16 Slot
  • Ultra-Fast NVMe PCIe 4.0/3.0 M.2 Slots
  • GIGABYTE Exclusive 8118 Gaming LAN with Bandwidth Management
  • HDMI, DVI-D Ports for Multiple Display
  • Features High Quality Audio Capacitors
  • RGB FUSION 2.0 support Addressable LED & RGB LED Strips
  • Smart Fan 5 Features Multiple Temperature Sensors , Hybrid Fan Headers with FAN STOP
  • Q-Flash Plus Update BIOS without Installing the CPU, Memory and Graphics Card
  • Anti-Sulfur Resistors Design

Out of stock

SKU: NG00866 Category:

Description

Gigabyte B550 GAMING X



SPECIFICATION

  • CPU
    1. AMD Socket AM4, support for: AMD Socket AM4, support for: AMD Ryzen™ 5000 Series/ Ryzen 5000 G-Series/ 3rd Gen Ryzen™ and 3rd Gen Ryzen™ with Radeon™ Graphics Processors

    (Please refer “CPU Support List” for more information.)

  • Chipset
    1. AMD B550
  • Memory
    1. 4 x DDR4 DIMM sockets supporting up to 128 GB (32 GB single DIMM capacity) of system memory
    2. AMD Ryzen™ 5000 series processors/ 3rd Generation AMD Ryzen™ :
      Support for DDR4 4400(O.C.) / 4000(O.C.) / 3866(O.C.) / 3800(O.C.) / 3733(O.C.) / 3600(O.C.) / 3466(O.C.) / 3400(O.C.) / 3333(O.C.) / 3300(O.C.) / 3200 / 2933 / 2667 / 2400 / 2133 MHz memory modules
    3. 3rd Gen AMD Ryzen™ with Radeon™ Graphics processors:
      Support for DDR4 4733(O.C.) / 4600(O.C.) / 4400(O.C.) / 4000(O.C.) / 3600(O.C.) / 3333(O.C.) /3200/2933/2667/2400/2133 MHz memory modules
    4. Dual channel memory architecture
    5. Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules
    6. Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
    7. Support for Extreme Memory Profile (XMP) memory modules

    (Please refer “Memory Support List” for more information.)

  • Onboard Graphics
    Integrated in the 3rd Generation AMD Ryzen™ with Radeon™ Graphics processors:

    1. 1 x DVI-D port, supporting a maximum resolution of 1920×1200@60 Hz
      * The DVI-D port does not support D-Sub connection by adapter.
    2. 1 x HDMI port, supporting a maximum resolution of 4096×2160@60 Hz
      * Support for HDMI 2.1 version, HDCP 2.3, and HDR.

    Maximum shared memory of 16 GB

  • Audio
    1. Realtek® ALC887 codec
    2. High Definition Audio
    3. 2/4/5.1/7.1-channel
      * To configure 7.1-channel audio, you need to open the audio software and select Device advanced settings > Playback Device to change the default setting first. Please visit GIGABYTE’s website for details on configuring the audio software.
  • LAN
    1. Realtek® GbE LAN chip (1000 Mbit/100 Mbit)
  • Expansion Slots
    1 x PCI Express x16 slot (PCIEX16), integrated in the CPU:

    1. 3rd Generation AMD Ryzen™ processors support PCIe 4.0 x16 mode
    2. 3rd Generation AMD Ryzen™ with Radeon™ Graphics processors support PCIe 3.0 x16 mode
      * For optimum performance, if only one PCI Express graphics card is to be installed, be sure to install it in the PCIEX16 slot.

    1 x PCI Express x16 slot (PCIEX2), integrated in the Chipset:

    1. Supporting PCIe 3.0 x2 mode

    3 x PCI Express x1 slots (PCIEX1_1, PCIEX1_2, PCIEX1_3), integrated in the Chipset:

    1. Supporting PCIe 3.0 x1 mode
  • Storage Interface
    1 x M.2 connector (M2A_CPU), integrated in the CPU, supporting Socket 3, M key, type 2242/2260/2280/22110 SSDs:

    1. 3rd Generation AMD Ryzen™ processors support SATA and PCIe 4.0 x4/x2 SSDs
    2. 3rd Generation AMD Ryzen™ with Radeon™ Graphics processors support SATA and PCIe 3.0 x4/x2 SSDs

    1 x M.2 connector (M2B_SB), integrated in the Chipset, supporting Socket 3, M key, type 2242/2260/2280/22110 SSDs:

    1. Supporting SATA and PCIe 3.0 x4/x2 SSDs

    4 x SATA 6Gb/s connectors, integrated in the Chipset:

    1. Support for RAID 0, RAID 1, and RAID 10
  • USB
    Chipset:

    1. 1 x USB 3.2 Gen 2 Type-A port (red) on the back panel
    2. 3 x USB 3.2 Gen 1 ports on the back panel

    Chipset:

    1. 2 x USB 3.2 Gen 1 ports available through the internal USB header
    2. 6 x USB 2.0/1.1 ports (2 ports on the back panel, 4 ports available through the internal USB headers)
  • Internal I/O Connectors
    1. 1 x 24-pin ATX main power connector
    2. 1 x 8-pin ATX 12V power connector
    3. 1 x CPU fan header
    4. 1 x water cooling CPU fan header
    5. 3 x system fan headers
    6. 2 x addressable LED strip headers
    7. 2 x RGB LED strip headers
    8. 1 x CPU cooler LED strip/RGB LED strip header
    9. 2 x M.2 Socket 3 connectors
    10. 4 x SATA 6Gb/s connectors
    11. 1 x front panel header
    12. 1 x front panel audio header
    13. 1 x USB 3.2 Gen 1 header
    14. 2 x USB 2.0/1.1 headers
    15. 1 x Trusted Platform Module (TPM) header (2×6 pin, for the GC-TPM2.0_S module only)
    16. 1 x Clear CMOS jumper

    ＊All fan headers are subject to support AIO_Pump, Pump and high performance fan with the capability of delivering up to 2A/12V @ 24W.

  • Back Panel Connectors
    1. 2 x USB 2.0/1.1 ports
    2. 1 x PS/2 keyboard/mouse port
    3. 1 x DVI-D port
    4. 1 x HDMI port
    5. 3 x USB 3.2 Gen 1 ports
    6. 1 x USB 3.2 Gen 2 Type-A port (red)
    7. 1 x Q-Flash Plus button
    8. 1 x RJ-45 port
    9. 3 x audio jacks
  • I/O Controller
    1. iTE® I/O Controller Chip
  • H/W Monitoring
    1. Voltage detection
    2. Temperature detection
    3. Fan speed detection
    4. Water cooling flow rate detection
    5. Overheating warning
    6. Fan fail warning
    7. Fan speed control
      * Whether the fan speed control function is supported will depend on the cooler you install.
  • BIOS
    1. 1 x 256 Mbit flash
    2. Use of licensed AMI UEFI BIOS
    3. PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
  • Unique Features
    1. Support for APP Center
      * Available applications in APP Center may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications.
      @BIOS
      EasyTune
      Fast Boot
      Game Boost
      ON/OFF Charge
      RGB Fusion
      Smart Backup
      System Information Viewer
    2. Support for Q-Flash Plus
    3. Support for Q-Flash
    4. Support for Xpress Install
  • Bundled Software
    1. Norton® Internet Security (OEM version)
    2. Realtek® 8118 Gaming LAN Bandwidth Control Utility
  • Operating System
    1. Support for Windows 10 64-bit
  • Form Factor
    1. ATX Form Factor; 30.5cm x 24.4cm
  • Remark
    1. Due to different Linux support condition provided by chipset vendors, please download Linux driver from chipset vendors’ website or 3rd party website.
    2. Most hardware/software vendors may no longer offer drivers to support Win9X/ME/2000/XP. If drivers are available from the vendors, we will update them on the GIGABYTE website.
