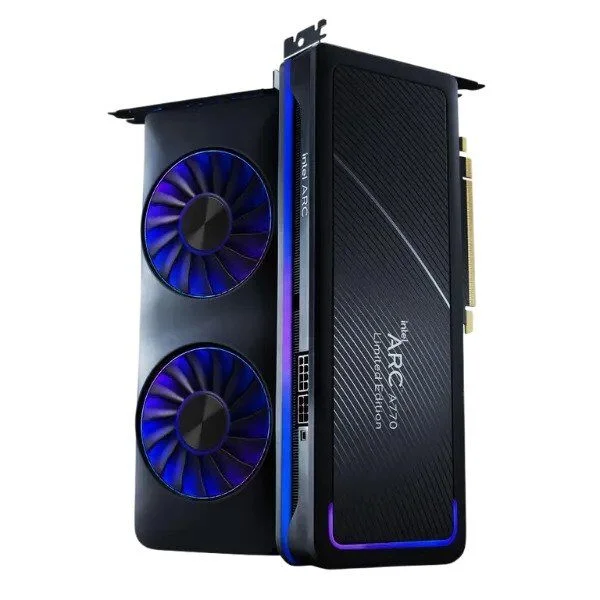

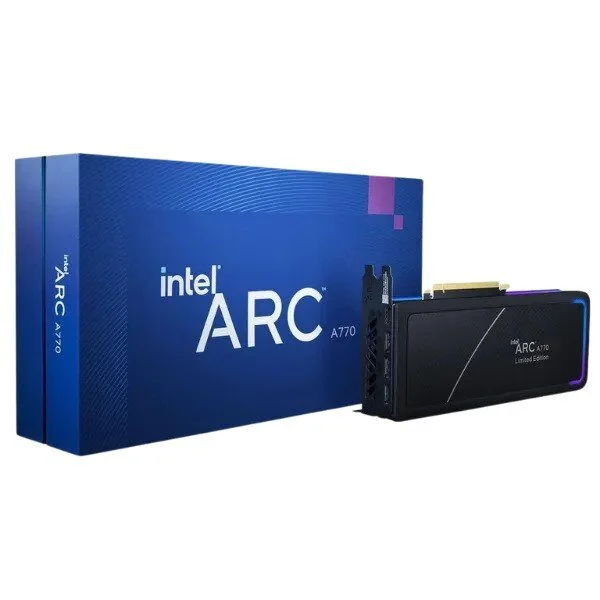

INTEL ARC A770 16GB DDR6 GRAPHICS CARD
INTEL ARC A770 16GB
INTEL ARC A770 16GB
Fully Controllable RGB LEDs
· 15 Blade Dual-axial Fans
· Powerful Xe-cores
· Full-length Backplate
· Vapor Chamber Cooling
Intel Arc A-Series Graphics for Desktops
Introducing the newest entrant in the graphics universe: Intel Arc A-Series graphics. With built-in machine learning, graphics acceleration, and ray tracing hardware, Intel Arc graphics contains the world’s most advanced technologies uniting fluid gaming, the latest in visual technologies, and rich content creation across mobile and desktop form factors.
High-performance gaming has arrived with Intel Arc 7 graphics – crank up your settings and get immersed. Get the latest gaming technologies and the most comprehensive media capabilities to play and create now and into the future.
Specification
| Essentials | |
| Product Collection | Intel® Arc™ A-Series Graphics |
| Model Number | A770 |
| Microarchitecture | Xe HPG |
| Lithography Type | TSMC N6 |
| Vertical Segment | Desktop |
| GPU Specifications | |
| Xe-cores | 32 |
| Render Slices | 8 |
| Ray Tracing Units | 32 |
| Intel® Xe Matrix Extensions (Intel® XMX) Engines | 512 |
| Xe Vector Engines | 512 |
| Graphics Clock | 2100 MHz |
| TBP | 225 W |
| PCI Express Configurations ‡ | Up to PCI Express 4.0 x16 |
| Device ID | 0x5690 |
| Memory Specifications | |
| Memory Size | 16 GB |
| Memory Type | GDDR6 |
| Graphics Memory Interface | 256 bit |
| Graphics Memory Bandwidth | 560 GB/s |
| Graphics Memory Speed | 17.5 Gbps |
| Supported Technologies | |
| Ray Tracing | Yes |
| Variable Rate Shading (VRS) | Yes |
| DirectX* Support | DirectX 12 Ultimate |
| Vulkan* Support | 1.3 |
| OpenGL* Support | 4.6 |
| OpenCL* Support | 3 |
| Multi-Format Codec Engines | 2 |
| Adaptive Sync | Yes |
| I/O Specifications | |
| # of Displays Supported‡ | 4 |
| Graphics Output‡ | eDP* 1.4 | DP 2.0 up to UHBR 10** | HDMI* 2.1 | HDMI* 2.0b |
| Max Resolution (HDMI)‡ | 4096 x 2160@60Hz |
| Max Resolution (DP)‡ | 7680 x 4320@60Hz |
| Features | |
| H.264 Hardware Encode/Decode | Yes |
| H.265 (HEVC) Hardware Encode/Decode | Yes |
| AV1 Encode/Decode | Yes |
| VP9 Bitstream & Decoding | Yes |
| Intel® Deep Link Technologies | |
| Intel® Deep Link Hyper Compute‡ | Yes |
| Intel® Deep Link Hyper Encode‡ | Yes |
| Intel® Deep Link Stream Assist‡ | Yes |
