Description

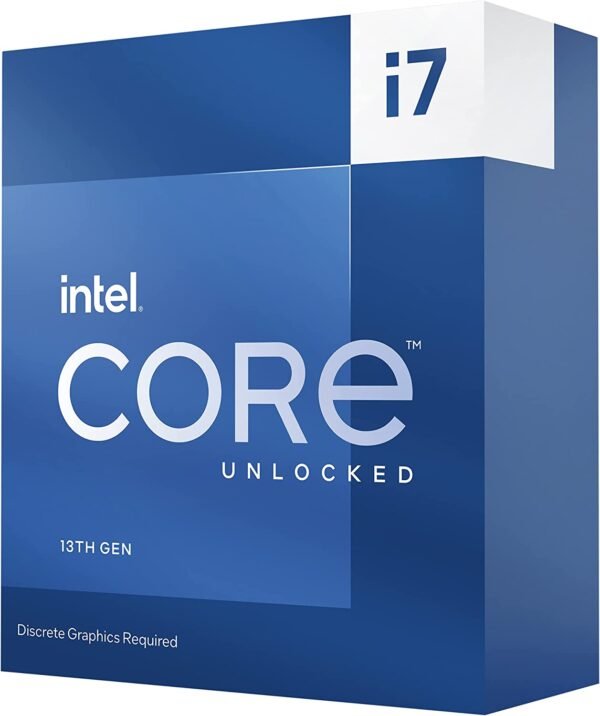

Intel i7 13700KF Processor
| Essentials | |
| Product Collection | 13th Generation Intel® Core™ i7 Processors |
| Code Name | Products formerly Raptor Lake |
| Vertical Segment | Desktop |
| Processor Number | i7-13700KF |
| Lithography | Intel 7 |
| Use Conditions | PC/Client/Tablet |
| CPU Specifications | |
| Total Cores | 16 |
| # of Performance-cores | 8 |
| # of Efficient-cores | 8 |
| Total Threads | 24 |
| Max Turbo Frequency | 5.40 GHz |
| Intel® Turbo Boost Max Technology 3.0 Frequency ‡ | 5.40 GHz |
| Performance-core Max Turbo Frequency | 5.30 GHz |
| Efficient-core Max Turbo Frequency | 4.20 GHz |
| Performance-core Base Frequency | 3.40 GHz |
| Efficient-core Base Frequency | 2.50 GHz |
| Cache | 30 MB Intel® Smart Cache |
| Total L2 Cache | 24 MB |
| Processor Base Power | 125 W |
| Maximum Turbo Power | 253 W |
| Memory Specifications | |
| Max Memory Size (dependent on memory type) | 128 GB |
| Memory Types | Up to DDR5 5600 MT/s Up to DDR4 3200 MT/s |
| Max # of Memory Channels | 2 |
| Max Memory Bandwidth | 89.6 GB/s |
| Expansion Options | |
| Direct Media Interface (DMI) Revision | 4 |
| Max # of DMI Lanes | 8 |
| Scalability | 1S Only |
| PCI Express Revision | 5.0 and 4.0 |
| PCI Express Configurations ‡ | Up to 1×16+4 | 2×8+4 |
| Max # of PCI Express Lanes | 20 |
| Package Specifications | |
| Sockets Supported | FCLGA1700 |
| Max CPU Configuration | 1 |
| TJUNCTION | 100°C |
| Advanced Technologies | |
| Intel® Gaussian & Neural Accelerator | 3 |
| Intel® Thread Director | Yes |
| Intel® Deep Learning Boost (Intel® DL Boost) | Yes |
| Intel® Speed Shift Technology | Yes |
| Intel® Turbo Boost Max Technology 3.0 ‡ | Yes |
| Intel® Turbo Boost Technology ‡ | 2 |
| Intel® Hyper-Threading Technology ‡ | Yes |
| Intel® 64 ‡ | Yes |
| Instruction Set | 64-bit |
| Instruction Set Extensions | Intel® SSE4.1 | Intel® SSE4.2 | Intel® AVX2 |
| Idle States | Yes |
| Enhanced Intel SpeedStep® Technology | Yes |
| Thermal Monitoring Technologies | Yes |
| Intel® Volume Management Device (VMD) | Yes |
| Security & Reliability | |
| Intel® Standard Manageability (ISM) ‡ | Yes |
| Intel® Control-Flow Enforcement Technology | Yes |
| Intel® AES New Instructions | Yes |
| Secure Key | Yes |
| Intel® OS Guard | Yes |
| Execute Disable Bit ‡ | Yes |
| Intel® Boot Guard | Yes |
| Mode-based Execute Control (MBEC) | Yes |
| Intel® Virtualization Technology (VT-x) ‡ | Yes |
| Intel® Virtualization Technology for Directed I/O (VT-d) ‡ | Yes |
| Intel® VT-x with Extended Page Tables (EPT) ‡ | Yes |
Intel i7 13700K Processor
| Essentials | |
| Product Collection | 13th Generation Intel® Core™ i7 Processors |
| Code Name | Products formerly Raptor Lake |
| Vertical Segment | Desktop |
| Processor Number | i7-13700K |
| Use Conditions | PC/Client/Tablet | Workstation |
| CPU Specifications | |
| Total Cores | 16 |
| # of Performance-cores | 8 |
| # of Efficient-cores | 8 |
| Total Threads | 24 |
| Max Turbo Frequency | 5.40 GHz |
| Intel® Turbo Boost Max Technology 3.0 Frequency ‡ | 5.40 GHz |
| Performance-core Max Turbo Frequency | 5.30 GHz |
| Efficient-core Max Turbo Frequency | 4.20 GHz |
| Performance-core Base Frequency | 3.40 GHz |
| Efficient-core Base Frequency | 2.50 GHz |
| Cache | 30 MB Intel® Smart Cache |
| Total L2 Cache | 24 MB |
| Processor Base Power | 125 W |
| Maximum Turbo Power | 253 W |
| Supplemental Information | |
| Embedded Options Available | No |
| Memory Specifications | |
| Max Memory Size (dependent on memory type) | 128 GB |
| Memory Types | Up to DDR5 5600 MT/s Up to DDR4 3200 MT/s |
| Max # of Memory Channels | 2 |
| Max Memory Bandwidth | 89.6 GB/s |
| ECC Memory Supported ‡ | Yes |
| Processor Graphics | |
| Processor Graphics ‡ | Intel® UHD Graphics 770 |
| Graphics Base Frequency | 300 MHz |
| Graphics Max Dynamic Frequency | 1.60 GHz |
| Graphics Output | eDP 1.4b | DP 1.4a | HDMI 2.1 |
| Execution Units | 32 |
| Max Resolution (HDMI)‡ | 4096 x 2160 @ 60Hz |
| Max Resolution (DP)‡ | 7680 x 4320 @ 60Hz |
| Max Resolution (eDP – Integrated Flat Panel)‡ | 5120 x 3200 @ 120Hz |
| DirectX* Support | 12 |
| OpenGL* Support | 4.5 |
| OpenCL* Support | 3 |
| Multi-Format Codec Engines | 2 |
| Intel® Quick Sync Video | Yes |
| Intel® Clear Video HD Technology | Yes |
| # of Displays Supported ‡ | 4 |
| Device ID | 0xA780 |
| Expansion Options | |
| Direct Media Interface (DMI) Revision | 4 |
| Max # of DMI Lanes | 8 |
| Scalability | 1S Only |
| PCI Express Revision | 5.0 and 4.0 |
| PCI Express Configurations ‡ | Up to 1×16+4 | 2×8+4 |
| Max # of PCI Express Lanes | 20 |
| Package Specifications | |
| Sockets Supported | FCLGA1700 |
| Max CPU Configuration | 1 |
| TJUNCTION | 100°C |
| Advanced Technologies | |
| Intel® Gaussian & Neural Accelerator | 3 |
| Intel® Thread Director | Yes |
| Intel® Deep Learning Boost (Intel® DL Boost) | Yes |
| Intel® Speed Shift Technology | Yes |
| Intel® Turbo Boost Max Technology 3.0 ‡ | Yes |
| Intel® Turbo Boost Technology ‡ | 2 |
| Intel® Hyper-Threading Technology ‡ | Yes |
| Intel® 64 ‡ | Yes |
| Instruction Set | 64-bit |
| Instruction Set Extensions | Intel® SSE4.1 | Intel® SSE4.2 | Intel® AVX2 |
| Idle States | Yes |
| Enhanced Intel SpeedStep® Technology | Yes |
| Thermal Monitoring Technologies | Yes |
| Intel® Volume Management Device (VMD) | Yes |
| Security & Reliability | |
| Intel® Standard Manageability (ISM) ‡ | Yes |
| Intel® Control-Flow Enforcement Technology | Yes |
| Intel® AES New Instructions | Yes |
| Secure Key | Yes |
| Intel® OS Guard | Yes |
| Intel® Trusted Execution Technology ‡ | Yes |
| Execute Disable Bit ‡ | Yes |
| Intel® Boot Guard | Yes |
| Mode-based Execute Control (MBEC) | Yes |
| Intel® Virtualization Technology (VT-x) ‡ | Yes |
| Intel® Virtualization Technology for Directed I/O (VT-d) ‡ | Yes |
| Intel® VT-x with Extended Page Tables (EPT) ‡ | Yes |

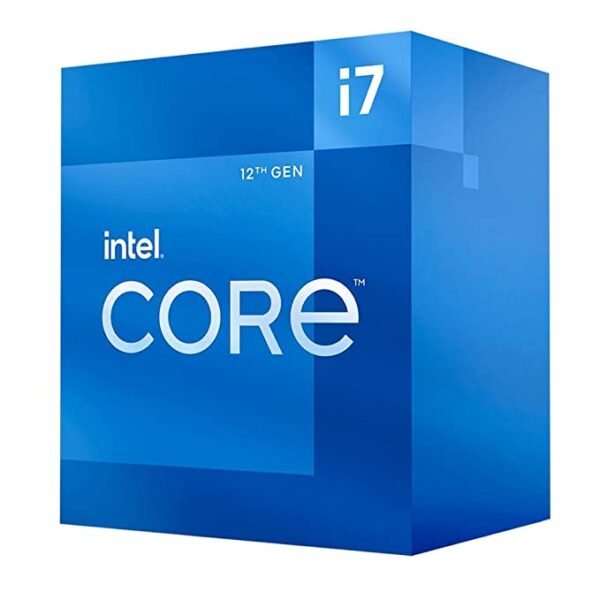

Intel i7 12700 Processor
Intel Core i7-12700 Processor (25M Cache- up to 4.90 GHz)
| Intel Core i7-12700 Processor (25M Cache- up to 4.90 GHz) | |
| Essentials | |
| Product Collection | 12th Generation Intel Core i7 Processors |
| Code Name | Products formerly Alder Lake |
| Vertical Segment | Desktop |
| Processor Number | i7-12700 |
| Lithography | Intel 7 |
| Use Conditions | PC/Client/Tablet | Workstation |
| CPU Specifications | |
| Total Cores | 12 |
| # of Performance-cores | 8 |
| # of Efficient-cores | 4 |
| Total Threads | 20 |
| Max Turbo Frequency | 4.90 GHz |
| Intel® Turbo Boost Max Technology 3.0 Frequency ‡ | 4.90 GHz |
| Performance-core Max Turbo Frequency | 4.80 GHz |
| Efficient-core Max Turbo Frequency | 3.60 GHz |
| Performance-core Base Frequency | 2.10 GHz |
| Efficient-core Base Frequency | 1.60 GHz |
| Cache | 25 MB Intel® Smart Cache |
| Total L2 Cache | 12 MB |
| Processor Base Power | 65 W |
| Maximum Turbo Power | 180 W |
| Memory Specifications | |
| Max Memory Size (dependent on memory type) | 128 GB |
| Memory Types | Up to DDR5 4800 MT/s Up to DDR4 3200 MT/s |
| Max # of Memory Channels | 2 |
| Max Memory Bandwidth | 76.8 GB/s |
| ECC Memory Supported ‡ | Yes |
| Processor Graphics | |
| Processor Graphics ‡ | Intel® UHD Graphics 770 |
| Graphics Base Frequency | 300 MHz |
| Graphics Max Dynamic Frequency | 1.50 GHz |
| Graphics Output | eDP 1.4b | DP 1.4a | HDMI 2.1 |
| Execution Units | 32 |
| Max Resolution (HDMI)‡ | 4096 x 2160 @ 60Hz |
| Max Resolution (DP)‡ | 7680 x 4320 @ 60Hz |
| Max Resolution (eDP – Integrated Flat Panel)‡ | 5120 x 3200 @ 120Hz |
| DirectX* Support | 12 |
| OpenGL* Support | 4.5 |
| OpenCL* Support | 3 |
| Multi-Format Codec Engines | 2 |
| Intel® Quick Sync Video | Yes |
| Intel® Clear Video HD Technology | Yes |
| # of Displays Supported ‡ | 4 |
| Device ID | 0x4680 |
| Expansion Options | |
| Direct Media Interface (DMI) Revision | 4 |
| Max # of DMI Lanes | 8 |
| Scalability | 1S Only |
| PCI Express Revision | 5.0 and 4.0 |
| PCI Express Configurations ‡ | Up to 1×16+4 | 2×8+4 |
| Max # of PCI Express Lanes | 20 |
| Package Specifications | |
| Sockets Supported | FCLGA1700 |
| Max CPU Configuration | 1 |
| Thermal Solution Specification | PCG 2020C |
| TJUNCTION | 100°C |
| Package Size | 45.0 mm x 37.5 mm |
| Advanced Technologies | |
| Intel® Gaussian & Neural Accelerator | 3 |
| Intel® Thread Director | Yes |
| Intel® Deep Learning Boost (Intel® DL Boost) | Yes |
| Intel® Optane™ Memory Supported ‡ | Yes |
| Intel® Speed Shift Technology | Yes |
| Intel® Turbo Boost Max Technology 3.0 ‡ | Yes |
| Intel® Turbo Boost Technology ‡ | 2 |
| Intel® Hyper-Threading Technology ‡ | Yes |
| Intel® 64 ‡ | Yes |
| Instruction Set | 64-bit |
| Instruction Set Extensions | Intel® SSE4.1 | Intel® SSE4.2 | Intel® AVX2 |
| Idle States | Yes |
| Enhanced Intel SpeedStep® Technology | Yes |
| Thermal Monitoring Technologies | Yes |
| Intel® Volume Management Device (VMD) | Yes |
| Security & Reliability | |
| Intel vPro® Eligibility ‡ | Intel vPro® Enterprise | Intel vPro® Essentials |
| Intel® Threat Detection Technology (TDT) | Yes |
| Intel® Active Management Technology (AMT) ‡ | Yes |
| Intel® Standard Manageability (ISM) ‡ | Yes |
| Intel® One-Click Recovery ‡ | Yes |
| Intel® Hardware Shield Eligibility ‡ | Yes |
| Intel® Control-Flow Enforcement Technology | Yes |
| Intel® Total Memory Encryption – Multi Key | Yes |
| Intel® Total Memory Encryption | Yes |
| Intel® AES New Instructions | Yes |
| Secure Key | Yes |
| Intel® OS Guard | Yes |
| Intel® Trusted Execution Technology ‡ | Yes |
| Execute Disable Bit ‡ | Yes |
| Intel® Boot Guard | Yes |
| Mode-based Execute Control (MBEC) | Yes |
| Intel® Stable IT Platform Program (SIPP) | Yes |
| Intel® Virtualization Technology with Redirect Protection (VT-rp) ‡ | Yes |
| Intel® Virtualization Technology (VT-x) ‡ | Yes |
| Intel® Virtualization Technology for Directed I/O (VT-d) ‡ | Yes |
| Intel® VT-x with Extended Page Tables (EPT) ‡ | Yes |

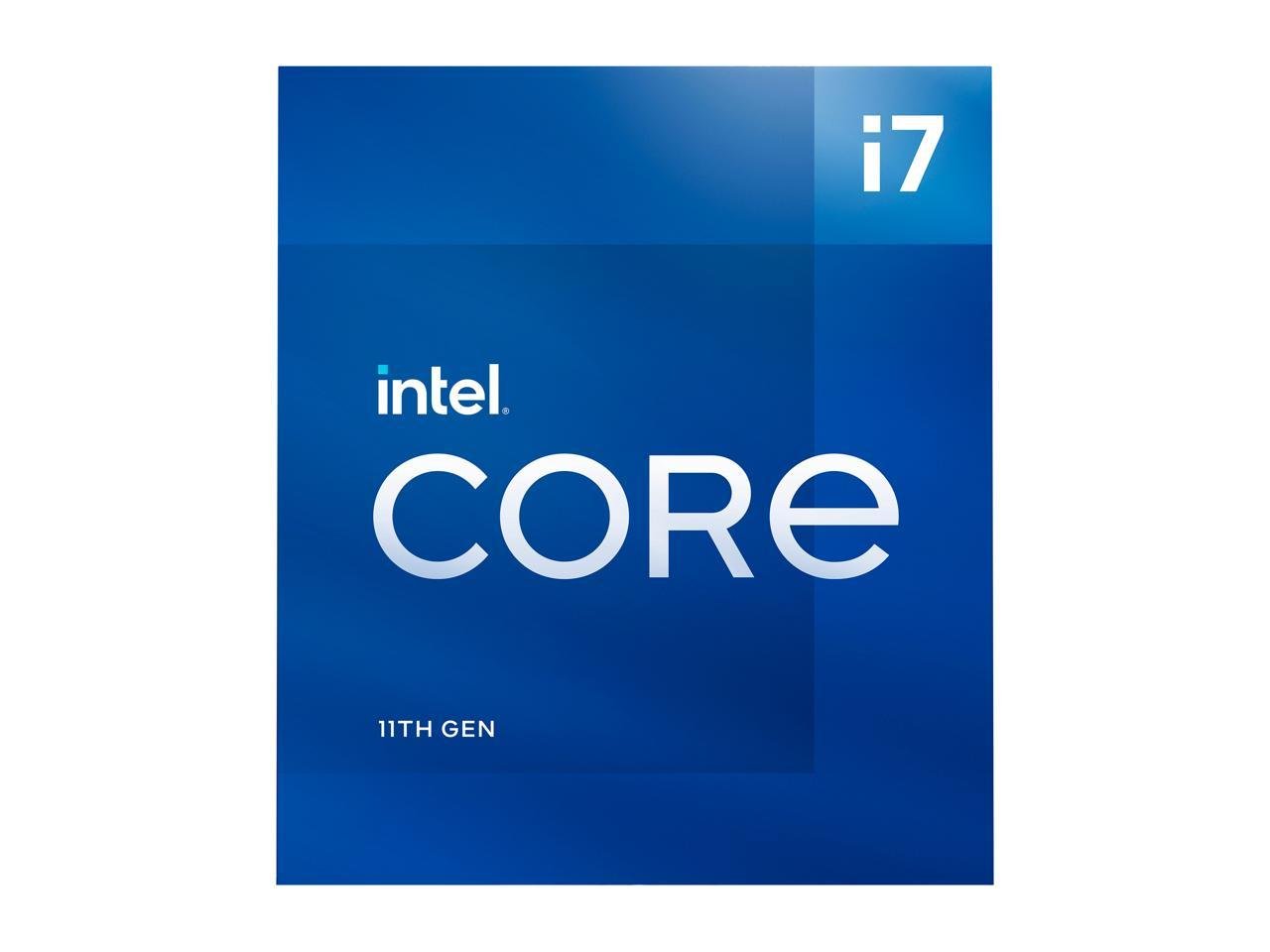

Intel® Core™ i7-11700 Processor
| Product Collection | 11th Generation Intel® Core™ i7 Processors |
| Code Name | Products formerly Rocket Lake |
| Vertical Segment | Desktop |
| Processor Number | i7-11700 |
| CPU Specifications | |
| Total Cores | 8 |
| Total Threads | 16 |
| Max Turbo Frequency | 4.90 GHz |
| Intel® Turbo Boost Max Technology 3.0 Frequency ‡ | 4.90 GHz |
| Intel® Turbo Boost Technology 2.0 Frequency‡ | 4.80 GHz |
| Processor Base Frequency | 2.50 GHz |
| Cache | 16 MB Intel® Smart Cache |
| Bus Speed | 8 GT/s |
| TDP | 65 W |
| Memory Specifications | |
| Max Memory Size (dependent on memory type) | 128 GB |
| Memory Types | DDR4-3200 |
| Max # of Memory Channels | 2 |
| Max Memory Bandwidth | 50 GB/s |
| ECC Memory Supported ‡ | No |
| Processor Graphics | |
| Processor Graphics ‡ | Intel® UHD Graphics 750 |
| Graphics Base Frequency | 350 MHz |
| Graphics Max Dynamic Frequency | 1.30 GHz |
| Graphics Video Max Memory | 64 GB |
| Execution Units | 32 |
| 4K Support | Yes | at 60Hz |
| Max Resolution (HDMI)‡ | 4096×2160@60Hz |
| Max Resolution (DP)‡ | 5120 x 3200 @60Hz |
| Max Resolution (eDP – Integrated Flat Panel)‡ | 5120 x 3200 @60Hz |
| DirectX* Support | 12.1 |
| OpenGL* Support | 4.5 |
| OpenCL* Support | 3 |
| Intel® Quick Sync Video | Yes |
| Intel® InTru™ 3D Technology | Yes |
| Intel® Clear Video HD Technology | Yes |
| Intel® Clear Video Technology | Yes |
| # of Displays Supported ‡ | 3 |
| Device ID | 0x4C8A |
| PCI Express Revision | 4 |
| PCI Express Configurations ‡ | Up to 1×16+1×4 | 2×8+1×4 | 1×8+3×4 |
| Max # of PCI Express Lanes | 20 |
| Package Specifications | |
| Sockets Supported | FCLGA1200 |
| Max CPU Configuration | 1 |
| Thermal Solution Specification | PCG 2019C |
| TJUNCTION | 100°C |
| Package Size | 37.5 mm x 37.5 mm |
| Advanced Technologies | |
| Intel® Gaussian & Neural Accelerator | 2 |
| Intel® Deep Learning Boost (Intel® DL Boost) | Yes |
| Intel® Optane™ Memory Supported ‡ | Yes |
| Intel® Thermal Velocity Boost | No |
| Intel® Turbo Boost Max Technology 3.0 ‡ | Yes |
| Intel® Turbo Boost Technology ‡ | 2 |
| Intel® Hyper-Threading Technology ‡ | Yes |
| Intel® 64 ‡ | Yes |
| Instruction Set | 64-bit |
| Instruction Set Extensions | Intel® SSE4.1 | Intel® SSE4.2 | Intel® AVX2 | Intel® AVX-512 |
| Idle States | Yes |
| Enhanced Intel SpeedStep® Technology | Yes |
| Thermal Monitoring Technologies | Yes |
| Intel® Identity Protection Technology ‡ | Yes |
| Security & Reliability | |
| Intel vPro® Eligibility ‡ | Intel vPro® Platform |
| Intel® AES New Instructions | Yes |
| Secure Key | Yes |
| Intel® Software Guard Extensions (Intel® SGX) | No |
| Intel® OS Guard | Yes |
| Intel® Trusted Execution Technology ‡ | Yes |
| Execute Disable Bit ‡ | Yes |
| Intel® Boot Guard | Yes |
| Intel® Stable IT Platform Program (SIPP) | Yes |
| Intel® Virtualization Technology (VT-x) ‡ | Yes |
| Intel® Virtualization Technology for Directed I/O (VT-d) ‡ | Yes |
| Intel® VT-x with Extended Page Tables (EPT) ‡ | Yes |
Intel® Core™ i7-11700K Processor
16M Cache, up to 5.00 GHz
| Intel® Core™ i7-11700K Processor (16M Cache, up to 5.00 GHz) | |||
| Essentials | |||
| Product Collection | 11th Generation Intel® Core™ i7 Processors | ||
| Code Name | Products formerly Rocket Lake | ||
| Vertical Segment | Desktop | ||
| Processor Number | i7-11700K | ||
| Lithography | 14 nm | ||
| Use Conditions | PC/Client/Tablet | ||
CPU Specifications | |||
| # of Cores | 8 | ||
| # of Threads | 16 | ||
| Processor Base Frequency | 3.60 GHz | ||
| Max Turbo Frequency | 5.00 GHz | ||
| Cache | 16 MB Intel® Smart Cache | ||
| Bus Speed | 8 GT/s | ||
| Intel® Turbo Boost Max Technology 3.0 Frequency ‡ | 5.00 GHz | ||
| Intel® Turbo Boost Technology 2.0 Frequency‡ | 4.90 GHz | ||
| TDP | 125 W | ||
| Configurable TDP-down Frequency | 3.10 GHz | ||
| Configurable TDP-down | 95 W | ||
Memory Specifications | |||
| Max Memory Size (dependent on memory type) | 128 GB | ||
| Memory Types | DDR4-3200 | ||
| Max # of Memory Channels | 2 | ||
| Max Memory Bandwidth | 50 GB/s | ||
| ECC Memory Supported ‡ | No | ||
| Processor Graphics | |||
| Processor Graphics ‡ | Intel® UHD Graphics 750 | ||
| Graphics Base Frequency | 350 MHz | ||
| Graphics Max Dynamic Frequency | 1.30 GHz | ||
| Graphics Video Max Memory | 64 GB | ||
| Execution Units | 32 | ||
| 4K Support | Yes, at 60Hz | ||
| Max Resolution (HDMI)‡ | 4096×2160@60Hz | ||
| Max Resolution (DP)‡ | 5120 x 3200 @60Hz | ||
| Max Resolution (eDP – Integrated Flat Panel)‡ | 5120 x 3200 @60Hz | ||
| DirectX* Support | 12.1 | ||
| OpenGL* Support | 4.5 | ||
| Intel® Quick Sync Video | Yes | ||
| Intel® InTru™ 3D Technology | Yes | ||
| Intel® Clear Video HD Technology | Yes | ||
| Intel® Clear Video Technology | Yes | ||
| # of Displays Supported ‡ | 3 | ||
| Device ID | 0x4C8A | ||
| OpenCL* Support | 3 | ||
| Expansion Options | |||
| Scalability | 1S Only | ||
| PCI Express Revision | 4 | ||
| PCI Express Configurations ‡ | Up to 1×16+1×4, 2×8+1×4, 1×8+3×4 | ||
| Max # of PCI Express Lanes | 20 | ||
| Package Specifications | |||
| Sockets Supported | FCLGA1200 | ||
| Max CPU Configuration | 1 | ||
| Thermal Solution Specification | PCG 2019A | ||
| TJUNCTION | 100°C | ||
| Package Size | 37.5 mm x 37.5 mm | ||
| Advanced Technologies | |||
| Intel® Deep Learning Boost (Intel® DL Boost) | Yes | ||
| Intel® Optane™ Memory Supported ‡ | Yes | ||
| Intel® Thermal Velocity Boost | No | ||
| Intel® Turbo Boost Max Technology 3.0 ‡ | Yes | ||
| Intel® Turbo Boost Technology ‡ | 2 | ||
| Intel vPro® Platform Eligibility ‡ | Yes | ||
| Intel® Hyper-Threading Technology ‡ | Yes | ||
| Intel® Virtualization Technology (VT-x) ‡ | Yes | ||
| Intel® Virtualization Technology for Directed I/O (VT-d) ‡ | Yes | ||
| Intel® VT-x with Extended Page Tables (EPT) ‡ | Yes | ||
| Intel® 64 ‡ | Yes | ||
| Instruction Set | 64-bit | ||
| Instruction Set Extensions | Intel® SSE4.1, Intel® SSE4.2, Intel® AVX2, Intel® AVX-512 | ||
| Idle States | Yes | ||
| Enhanced Intel SpeedStep® Technology | Yes | ||
| Thermal Monitoring Technologies | Yes | ||
| Intel® Identity Protection Technology ‡ | Yes | ||
| Intel® Stable Image Platform Program (SIPP) | Yes | ||
| Intel® Gaussian and Neural Accelerator 2.0 | Yes | ||
| Security & Reliability | |||
| Intel® AES New Instructions | Yes | ||
| Secure Key | Yes | ||
| Intel® Software Guard Extensions (Intel® SGX) | NoAdditional information
Related products
| ||
