MASTERCASE H500M

Cooler Master MASTERCASE H500M Desktop PC Case

INTERCHANGEABLE FRONT PANELS

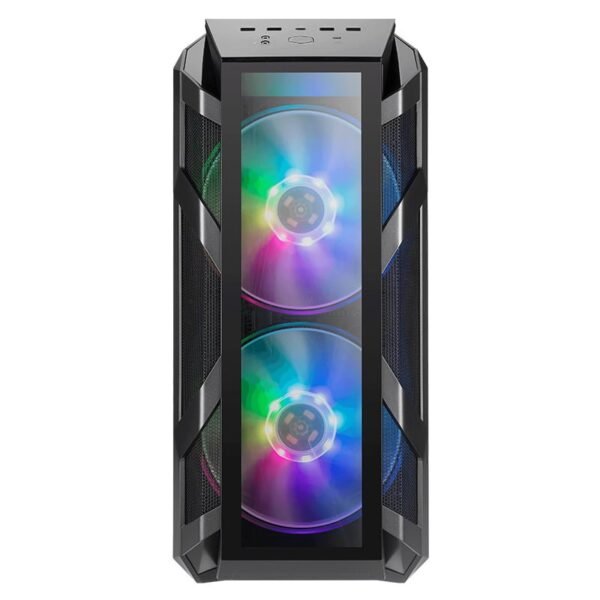

Choose between the mesh front panel for optimized airflow or the glass option for a balance of aesthetics and performance with the included accessory.

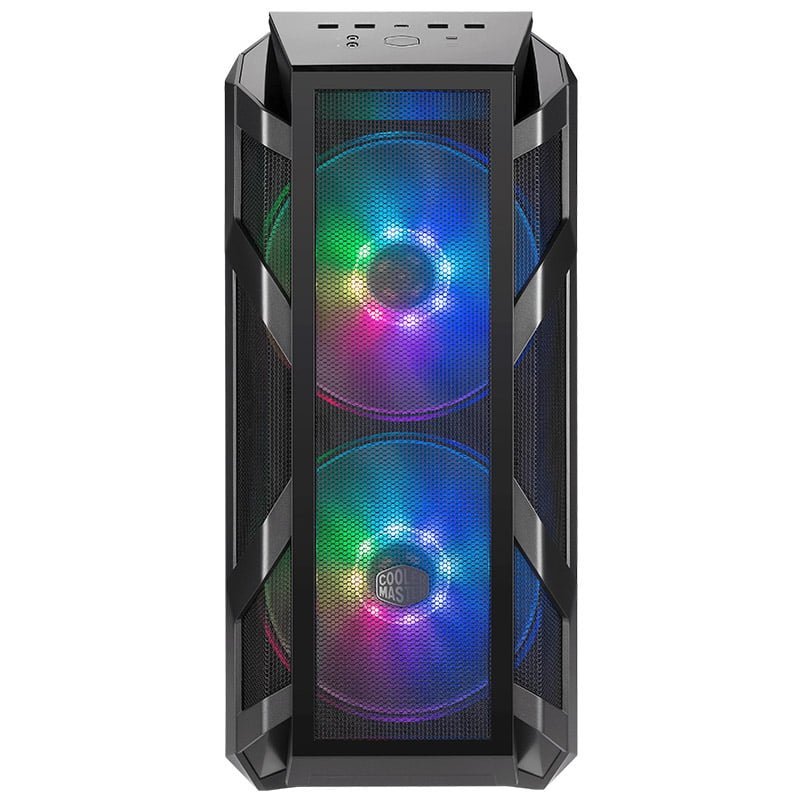

ADDRESSABLE RGB FANS

Masterplus+ compatibleMove air stylishly and quietly with two 200mm Addressable RGB fans controlled by an included Addressable RGB controller.

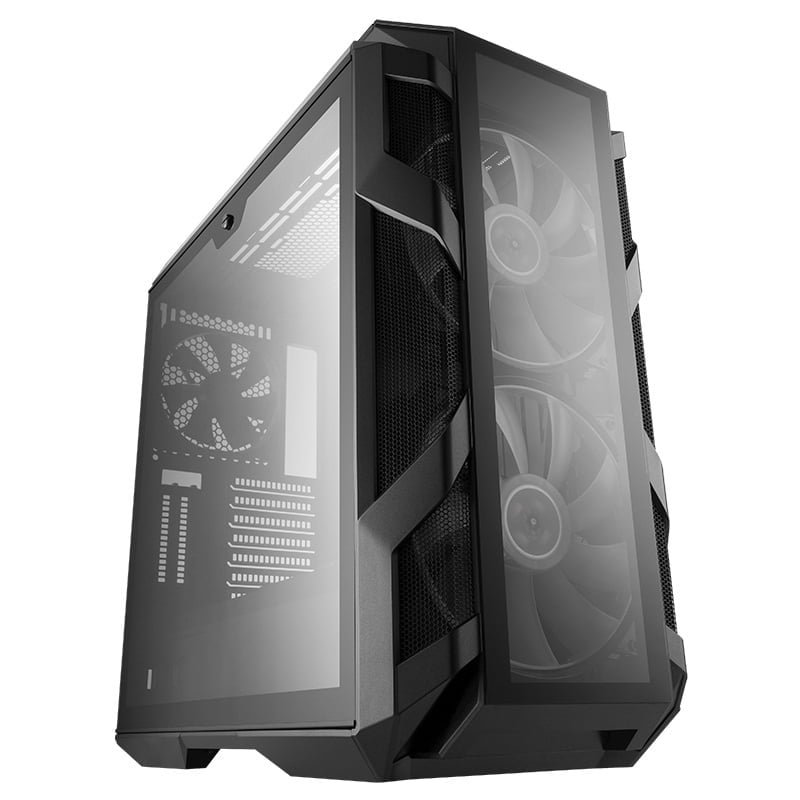

FOUR TEMPERED GLASS PANELS

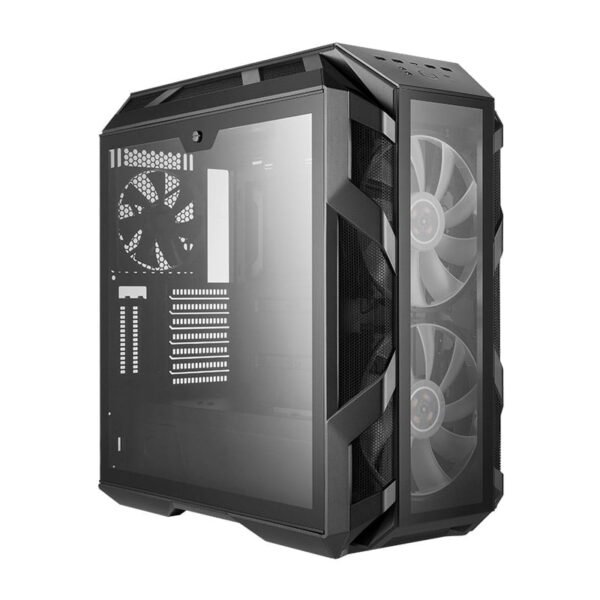

Edge-to-edge glass side panels on both sides, a glass top panel, and a glass front panel offer a clear and comprehensive system view.

GRAPHICS CARD SUPPORT ARM

Relieve the stress of weight and reinforce larger, longer graphics cards with an included adjustable graphics card support arm.

WATERCOOLING SUPPORT

The front panel is compatible with up to 360mm radiators, including support for 200mm sized radiators.

The top bracket supports up to 360mm radiators along with 200mm fans.

A dedicated water pump bracket offers mounting options directly atop the PSU shroud.

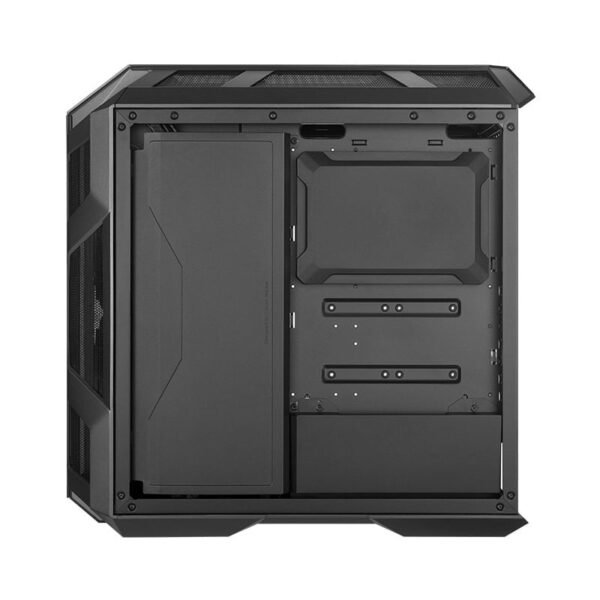

COVERS FOR CLEAN BUILDING

A total of 9 covers take clean building to the next level with a PSU cut out cover that provides the option of showing off your PSU or leaving it out of sight.

(1) Cable Management Cover

(2) CPU Cut Out Cover

(3) PSU Cable Cover

(4) PSU Cut Out Cover

(5) PSU Shroud with SSD Mounting Support

(6) PSU Shroud with Waterpump Bracket

(7) Cable Cover with SSD- and Reservoir Mounting Support

(8) Clearance Cover for 200mm Radiator Support

(9) Radiator Lid to Accommodate Thicker & Longer Radiators

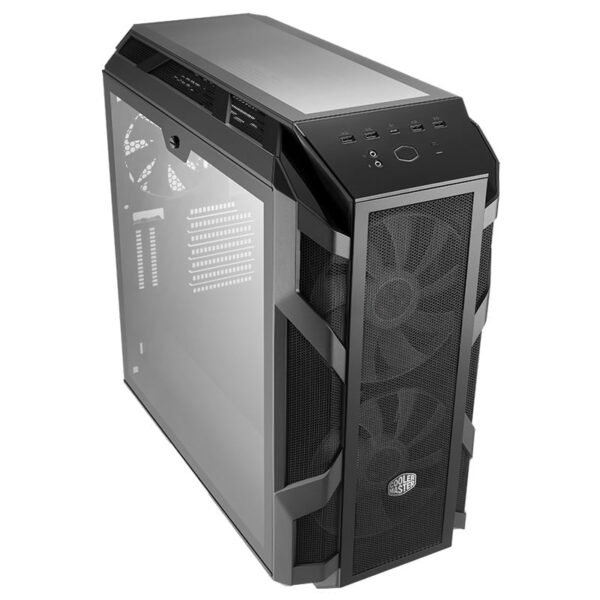

RICH CONNECTIVITY

The I/O panel comes with a USB 3.1 (Gen 2) Type-C port, and four additional USB 3.0 ports. Audio-in and out with support for HD Audio.

The included addressable RGB controller manages the lighting of the system and can be connected to the reset switch.

(1) USB 3.0 Port

(2) USB 3.1 (Gen 2) Type-C Port

(3) Audio In & Out

(4) Reset Switch & Optional Addressable RGB Controller

Specification

MODEL NUMBER	MCM-H500M-IHNN-S00
AVAILABLE COLOR(S)	Iron Grey
MATERIALS – OUTLOOK	Steel Mesh, Glass
MATERIALS – BODY	Steel
MATERIALS – SIDE PANEL	Tempered Glass
DIMENSIONS (L X W X H)	544 x 248 x 546mm / 21.4 x 9.8 x 21.5 inch
MOTHERBOARD SUPPORT	Mini ITX, Micro ATX, ATX, E-ATX

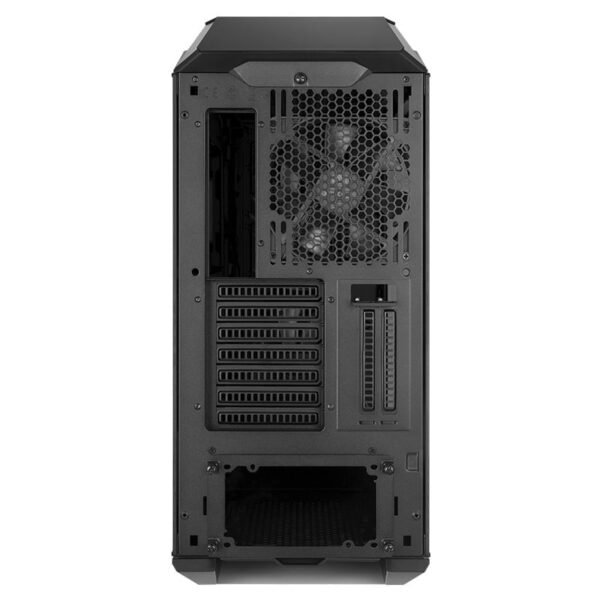

EXPANSION SLOTS	7+2
5.25″ DRIVE BAYS	0
2.5″ / 3.5″ DRIVE BAYS (COMBO)	2
DRIVE BAYS 2.5″ SSD	6
I/O PANEL	1x USB 3.1 Type-C, 4x USB 3.0 Type-A, Audio In & Out (supports HD audio)
PRE-INSTALLED FANS – FRONT	2x 200mm ARGB Fan (Speed: 800RPM / Connector: 3Pin + ARGB 3pin)
PRE-INSTALLED FANS – REAR	1x 140mm fan (Speed: 1200RPM / Connector: 3Pin)
FAN SUPPORT – TOP	3x 120mm, 2x 140/200mm
FAN SUPPORT – FRONT	3x 120/140mm, 2x 200mm Fan
FAN SUPPORT – REAR	1x 120/140mm
RADIATOR SUPPORT – TOP	120mm, 140mm, 240mm, 280mm, 360mm
RADIATOR SUPPORT – FRONT	120mm, 140mm, 240mm, 280mm, 360mm
RADIATOR SUPPORT – REAR	120mm, 140mm
CLEARANCE – CPU COOLER	190mm
CLEARANCE – GFX	412mm
CLEARANCE – PSU	200mm
POWER SUPPLY SUPPORT	Bottom mount, ATX PS2
EAN CODE	4719512072165
UPC CODE	884102044663
SERIES	MasterCase Series
SIZE	Mid Tower
