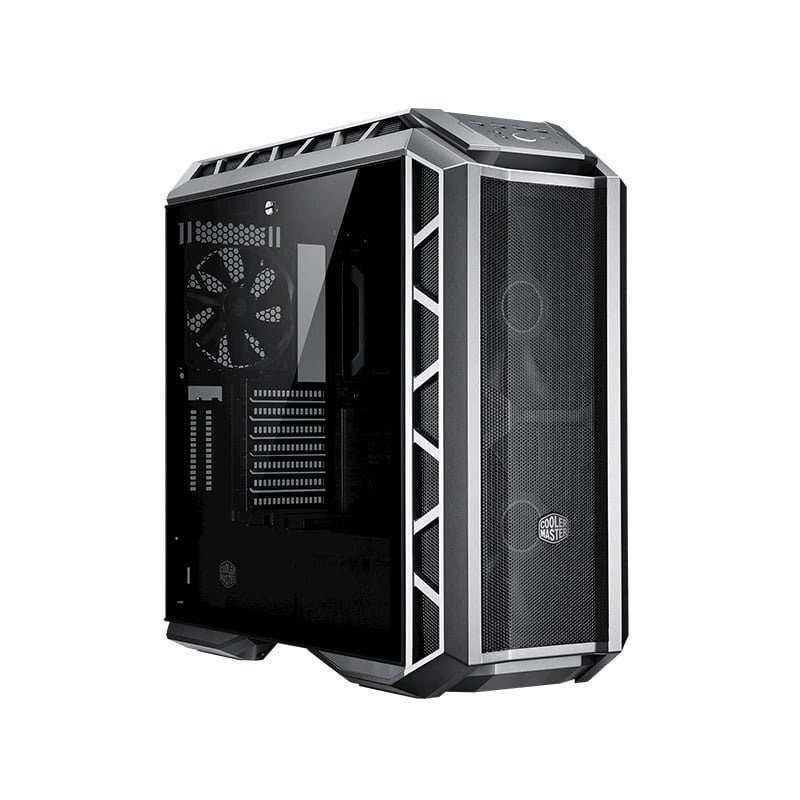

Cooler Master MASTERCASE H500P MESH Desktop PC Case

BUILDER FOCUSED

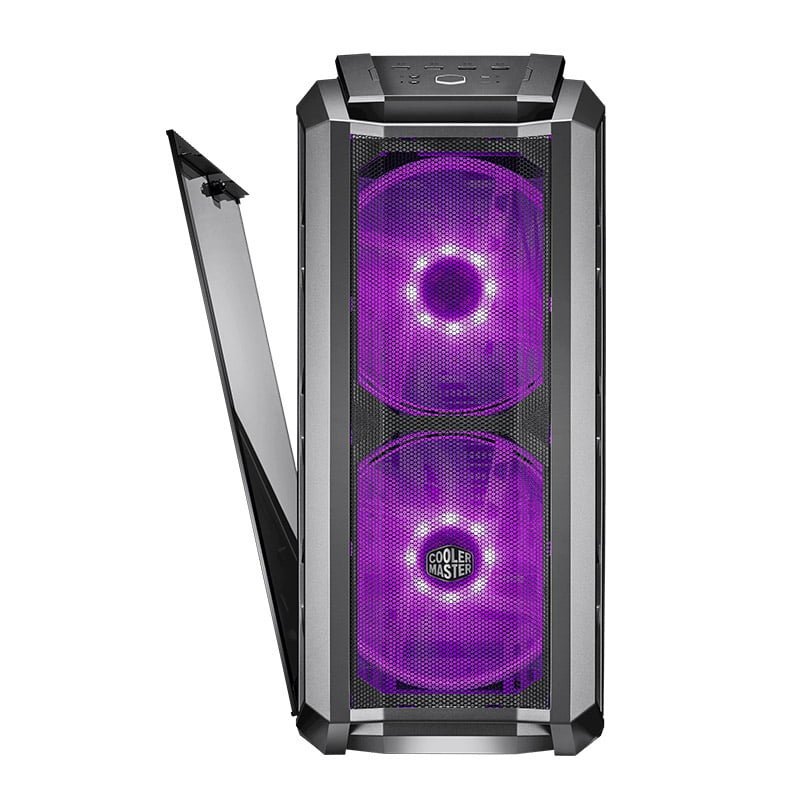

The H500P’s design allows for easy disassembly. All of the panels can be easily taken off, ideal for CaseModders looking to paint their PC.

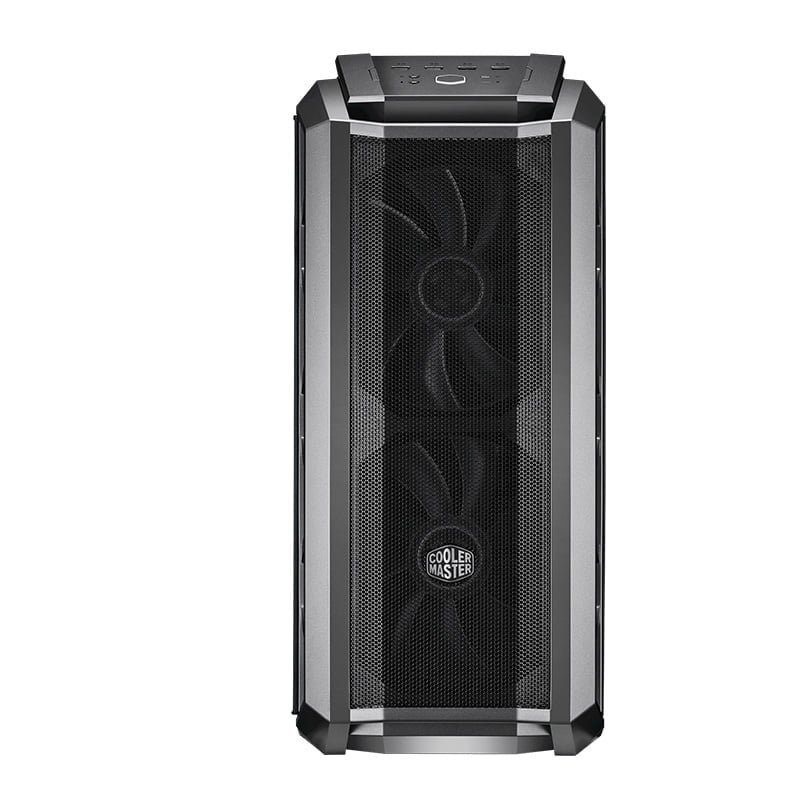

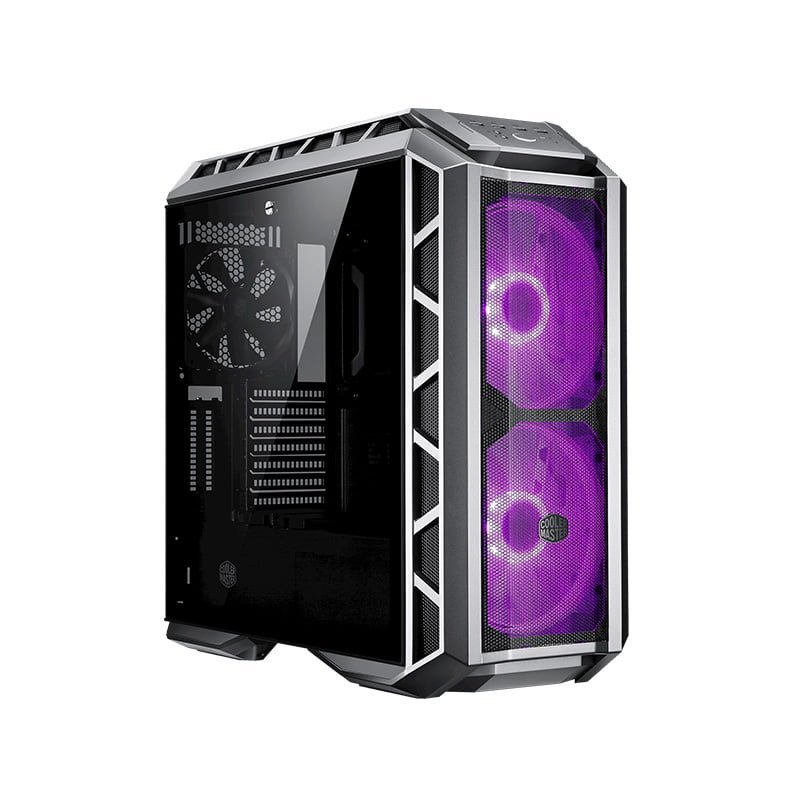

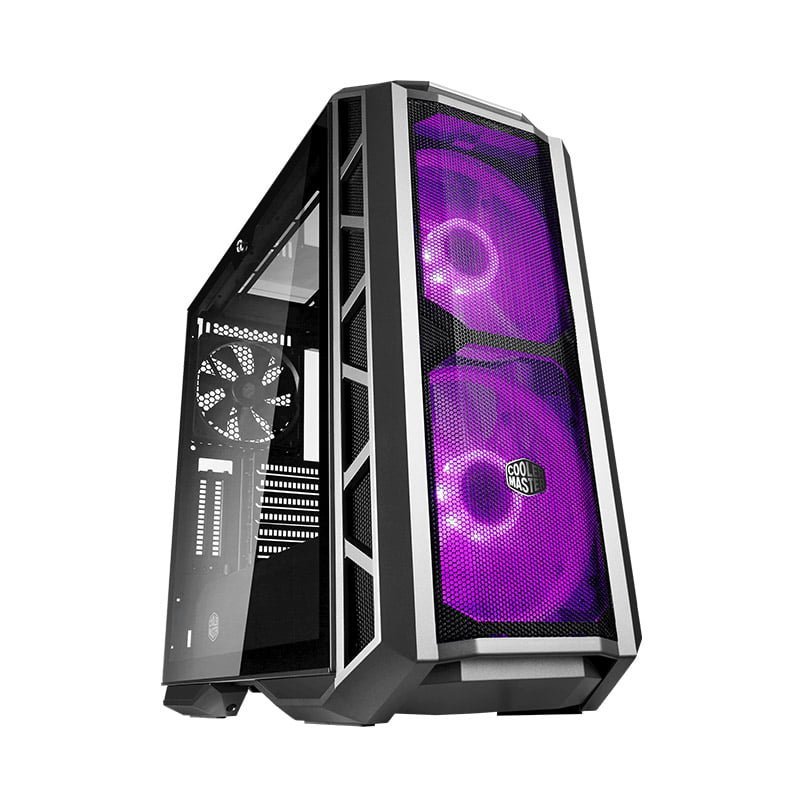

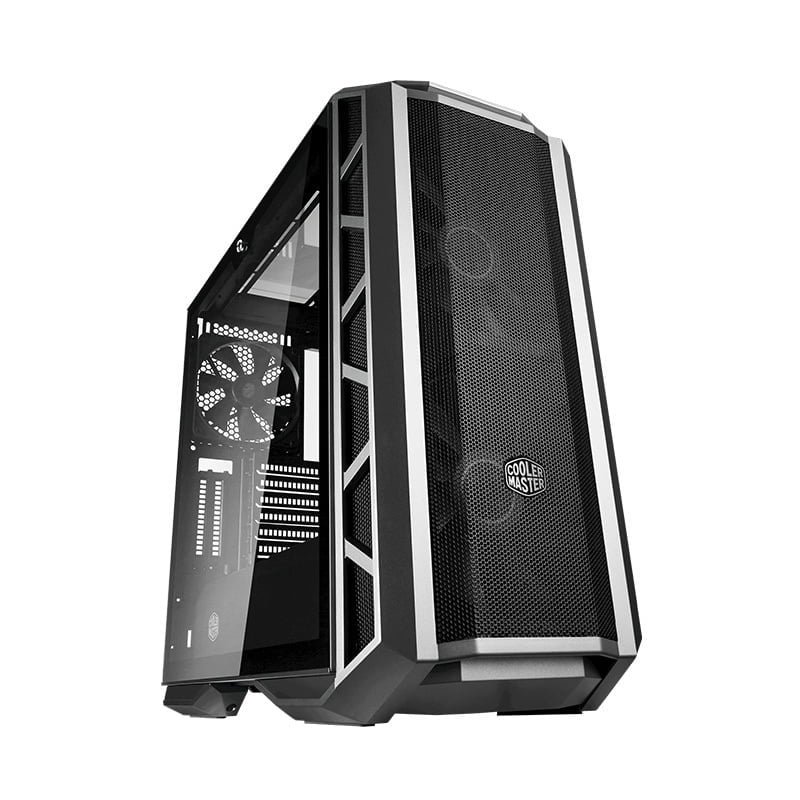

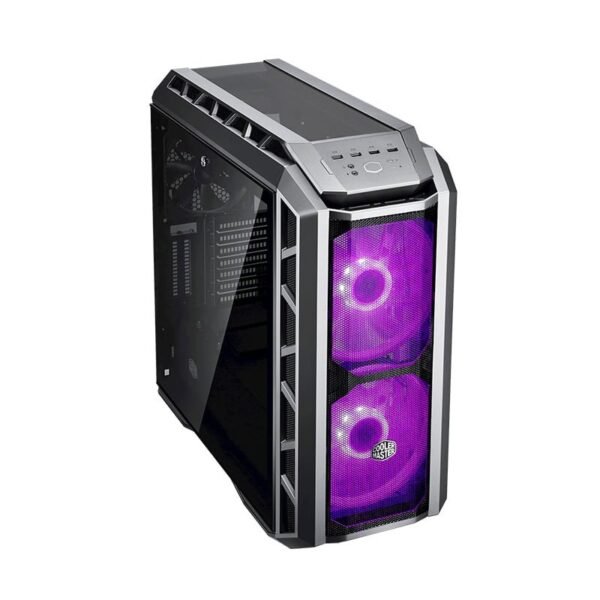

TWO 200MM RGB FANS BEHIND A MESH FRONT PANEL

Optimized airflow is guaranteed with a complete mesh front panel, providing plenty of air intake for the two pre-installed 200mm RGB fans. Use the RGB lighting to create a captivating build in your preferred color theme.

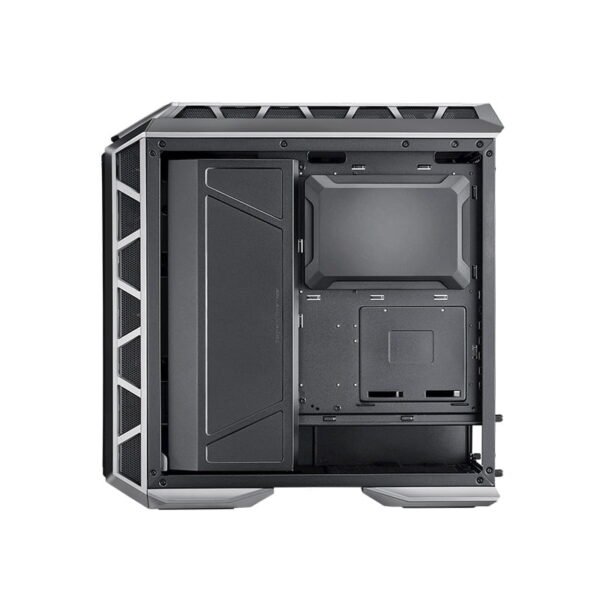

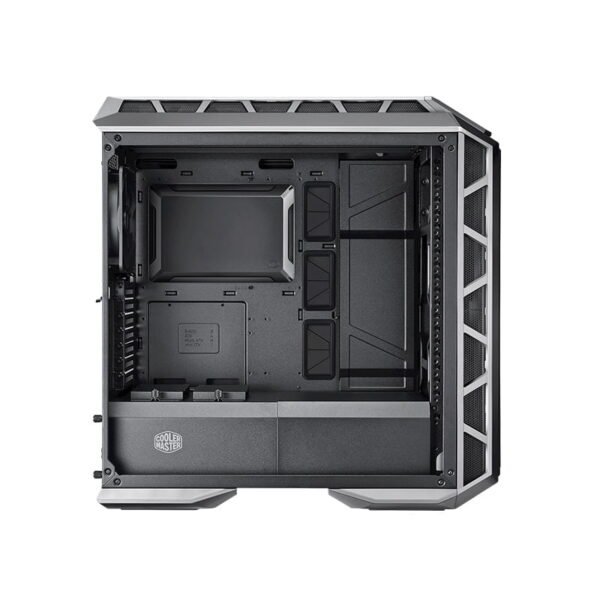

COVERS FOR CLEAN BUILDING

A PSU shroud, the CPU cut out cover and additional cable covers take clean cable management to the next level. Assemble clean builds like a pro!

(1) Cable Management Cover

(2) CPU Cut Out Cover

(3) PSU Shroud

(4) Clean Cable Routing

SHOW OFF YOUR GRAPHICS CARD

Two additional PCI slots at the rear enable you to show off one graphics card in the vertical position.
* Additional Riser Cable needed to use your graphic card vertically.

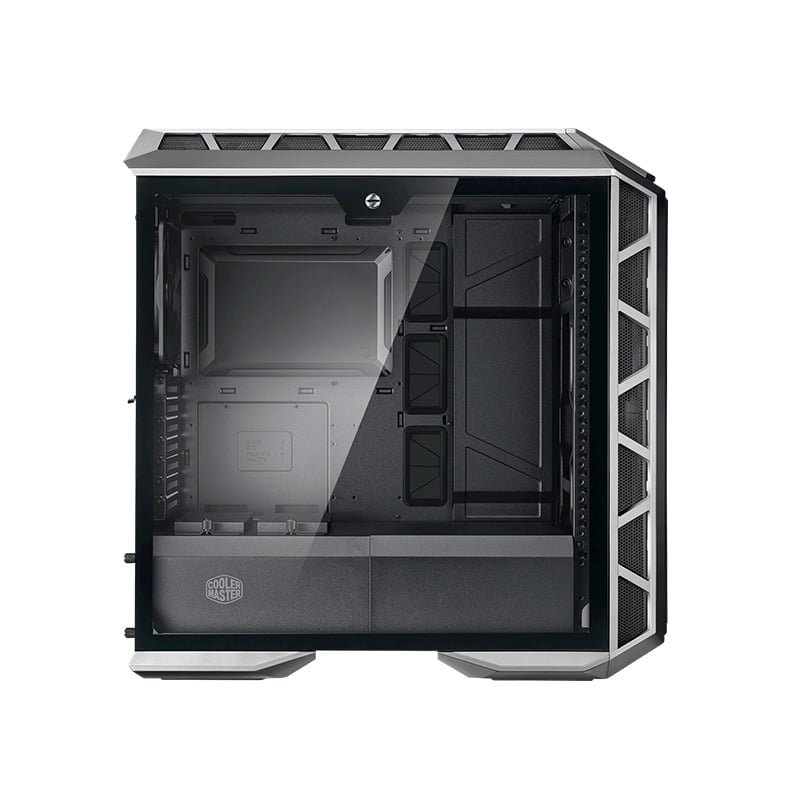

CLEAR VIEW INSIDE

The MasterCase H500P Mesh has a light grey tinted tempered glass side panel and plastic top cover, making it ideal for showcasing your build with (RGB) lighting.

LIQUID COOLING READY

The MasterCase H500P Mesh accommodates up to a 360mm radiator on the top and front.



Specification

MODEL NUMBER	MCM-H500P-MGNN-S10
AVAILABLE COLOR(S)	Gun Metal
MATERIALS – OUTLOOK	Steel Mesh, Plastic
MATERIALS – BODY	Steel
MATERIALS – SIDE PANEL	Tempered Glass, Steel
DIMENSIONS (L X W X H)	544 x 248 x 546mm / 21.4 x 9.8 x 21.5 inch, 544 x 242 x 542mm / 21.4 x 9.5 x 21.3 inch
MOTHERBOARD SUPPORT	Mini ITX, Micro ATX, ATX, E-ATX
POWER SUPPLY SUPPORT	ATX, Bottom mount, ATX PS2
EXPANSION SLOTS	7+2
5.25″ DRIVE BAYS	0
2.5″ / 3.5″ DRIVE BAYS (COMBO)	2
DRIVE BAYS 2.5″ SSD	2
I/O PANEL	2x USB 3.0, 2x USB 2.0, Audio In & Out (supports HD audio)
PRE-INSTALLED FANS – FRONT	2x 200 x 25mm RGB Fan, 800RPM
PRE-INSTALLED FANS – REAR	1x 140 x 25mm fan, 1200RPM
FAN SUPPORT – TOP	3x 120/140mm, 2x 200mm
FAN SUPPORT – FRONT	3x 120/140mm, 2x 200mm Fan
FAN SUPPORT – REAR	1x 120/140mm
LIQUID COOLING SUPPORT – TOP	120mm, 140mm, 240mm, 280mm, 360mm (maximum thickness clearance 55mm)
LIQUID COOLING SUPPORT – FRONT	120mm, 140mm, 240mm, 280mm, 360mm
MAXIMUM COMPATIBILITY – CPU COOLER HEIGHT	190mm / 7.5 inch
CLEARANCE – GFX	412mm/16.2″
EAN CODE	4719512070185
UPC CODE	884102042690
SERIES	MasterCase Series
SIZE	Mid Tower
LEGACY	Cases
