Description
PRO series helps users work smarter by delivering an efficient and productive experience. Featuring stable functionality and high-quality assembly, PRO series motherboards provide not only optimized professional workflows but also less troubleshooting and longevity.
Specification
CPU (MAX SUPPORT) | Support 3rd Gen AMD Ryzen™ Desktop Processors and AMD Ryzen™4000 G-Series Desktop Processors |
SOCKET | AMD Socket AM4 |
CHIPSET | AMD® B550 Chipset |
DDR4 MEMORY | Supports DDR4 1866/ 2133/ 2400/ 2667/ 2800/ 2933/ 3000/ 3066/ 3200 MHz by JEDEC |
Supports DDR4 2667/ 2800 /2933 /3000 /3066 /3200 /3466 /3600/ 3733 /3866 /4000 /4133 /4266 /4400/ 4600+ MHz by A-XMP OC Mode | |
MEMORY CHANNEL | Dual |
DIMM SLOTS | 2 |
MAX MEMORY (GB) | 64 |
PCI-E X16 | 1 |
PCI-E GEN | Gen4 / Gen3 |
PCI-E X1 | 1 |
SATAIII | 4 |
M.2 SLOT | 1 |
RAID | 0/1/10 |
TPM (HEADER) | 1 |

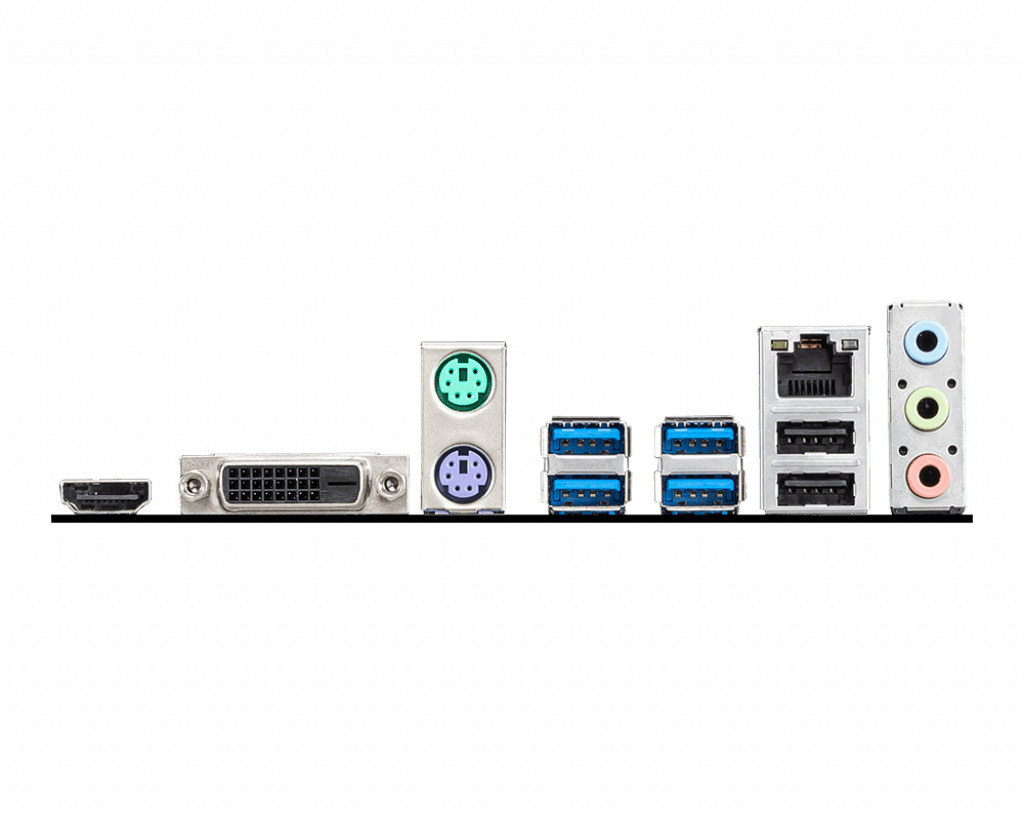

LAN | 1x Realtek® RTL8111H Gigabit LAN |
USB 3.2 PORTS (FRONT) | 2(Gen 1, Type A) |
USB 3.2 PORTS (REAR) | 4(Gen 1, Type A) |
USB 2.0 PORTS (FRONT) | 4 |
USB 2.0 PORTS (REAR) | 2 (Type A) |
SERIAL PORTS(FRONT) | 1 |
AUDIO PORTS (REAR) | Realtek® ALC892/ALC897 Codec |
DVI-D | 1 |
HDMI | 1 |
DIRECTX | 12 |
FORM FACTOR | MATX |
OPERATING SYSTEM | Support for Windows® 10 64-bit |
