Description
MSI H510M-A PRO Intel Motherboard PRO series helps users work smarter by delivering an efficient and productive experience. Featuring stable functionality and high-quality assembly, PRO series motherboards provide not only optimized professional workflows but also less troubleshooting and longevity.
USER FRIENDLY DESIGN
FROZR AI COOLING
Detecting CPU & GPU temperatures and automatically adjusting fan duty of system fans to a proper value by adopting MSI AI ENGINE.
LOW LATENCY GAMING LAN POWERED BY INTEL®
Stay connected with Intel® LAN, optimized for stable internet throughput ideal for championship level online plays.
LIGHTNING GEN 4 PCI-E
MSI lightning Gen 4 PCI-E is the latest and the fastest PCI-E data transfer solution with 64GB/s of transfer bandwidth that has doubled compared to its previous generation. PCIe 4.0 maintains both backward and forward compatibility with older and newer specifications. Optimized by steel armor design, your motherboards can support the weight of heavy graphics cards.

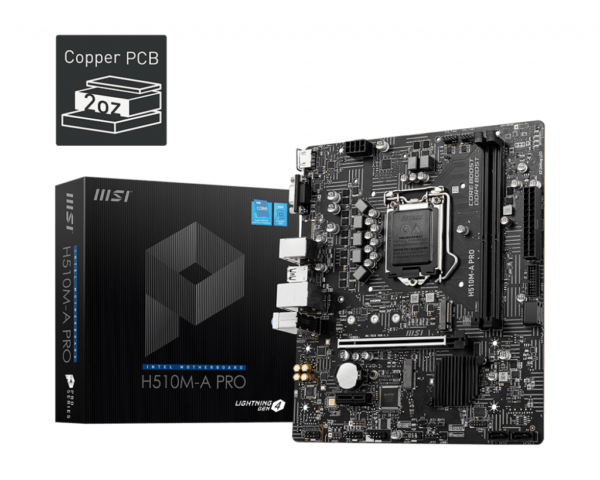

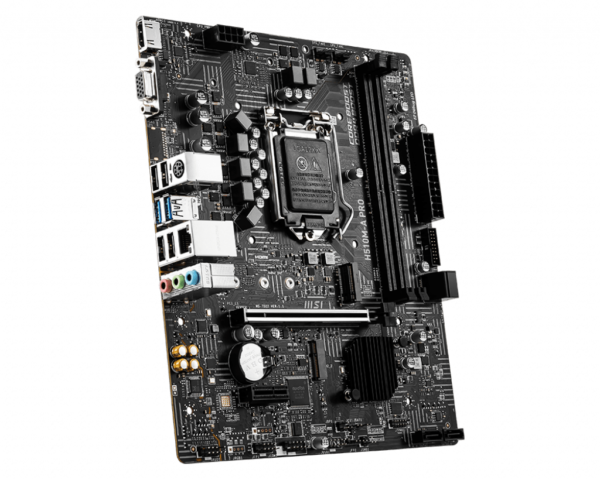

MSI H510M-A PRO Intel Motherboard
SPECIFICATION
PROCESSOR
Supports 10th Gen Intel® Core™ Processors, 11th Gen Intel® Core™ Processors, Pentium® Gold and Celeron® Processors1
- Please go to www.intel.com for more compatibility information.
CHIPSET
Intel® H510 Chipset
MEMORY
- 2x DDR4 memory slots, support up to 64GB1
- Supports 1R 2133/ 2666/ 2933 MHz for 10th Gen Intel® CPU (by JEDEC & POR)
- Supports 1R 2133/ 2666/ 2933/ 3200 MHz for 11th Gen Intel® CPU (by JEDEC & POR)
- Supports Dual-Channel mode
- Supports non-ECC, un-buffered memory
- Supports Intel® Extreme Memory Profile (XMP)
- Please refer to www.msi.com for more information on compatible memory.
EXPANSION SLOT
- 1x PCIe x16 slot (From CPU)
- Support up to PCIe 4.0 for 11th Gen Intel® CPU
- Support up to PCIe 3.0 for 10th Gen Intel® CPU
- 1x PCIe 3.0 x1 slot (From PCH)
- 1x M.2 slot with E key for WiFi module only(M2_2)
ONBOARD GRAPHICS
STORAGE
- 4x SATA 6Gb/s ports (From H510 Chipset)
- 1x M.2 slot (Key M)
- M2_1 slot (From H510 Chipset)
- Supports up to PCIe 3.0 x4
- Supports SATA 6Gb/s1
- Supports 2242/ 2260/ 2280 storage devices
- M2_1 slot (From H510 Chipset)
- SATA4 will be unavailable when installing M.2 SATA SSD in the M2_1 slot.
USB
Intel® H510 Chipset
- 4x USB 3.2 Gen 1 5Gbps ports (2 Type-A ports on the back panel, 2 ports available through the internal USB connector)
- 6x USB 2.0 ports (4 Type-A ports on the back panel(hub- GL850G), 2 ports available through the internal USB 2.0 connector)
AUDIO
Realtek® ALC897 Codec
- 7.1-Channel High Definition Audio
LAN
- 1x Intel® I219V 1Gbps LAN controller
INTERNAL CONNECTORS
- 1x 24-pin ATX main power connector
- 1x 8-pin ATX 12V power connector
- 4x SATA 6Gb/s connectors
- 1x USB 3.2 Gen 1 5Gbps connector (supports additional 2 USB 3.2 Gen 1 5Gbps ports)
- 1x USB 2.0 connector (supports additional 2 USB 2.0 ports)
- 1x 4-pin CPU fan connector
- 1x 4-pin system fan connector
- 1x Front panel audio connector
- 2x System panel connectors
- 1x Serial port connector
- 1x Chassis Intrusion connector
- 1x Clear CMOS jumper
- 1x TPM module connector

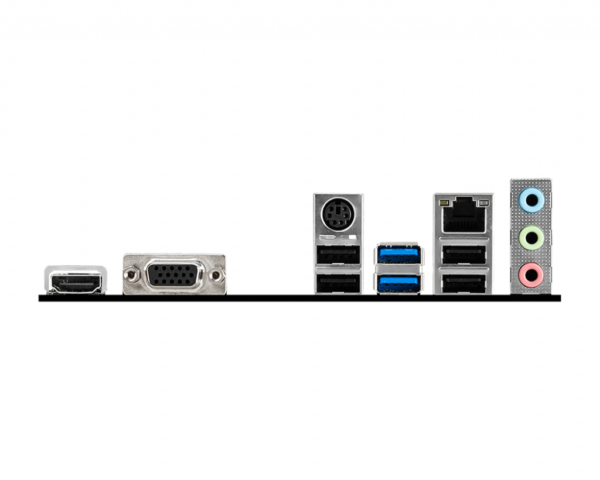

BACK PANEL PORTS
- HDMI
- VGA
- Mouse / Keyboard
- LAN port
- Audio connector
- USB 2.0
- USB 3.2 Gen 1 5Gbps Type-A
- USB 2.0
DIMENSIONS
- mATX Form Factor
- 9.29 x 7.95 in. (23.6 cm x 20.2 cm)
MOUNTING
6 mounting holes
OPERATING SYSTEM
Support for Windows® 10 64-bit
BOX CONTENT
- MSI® does not guarantee the risks or damages caused by changing the cover.
- These pictures are for reference only and may vary without notice.
