Description

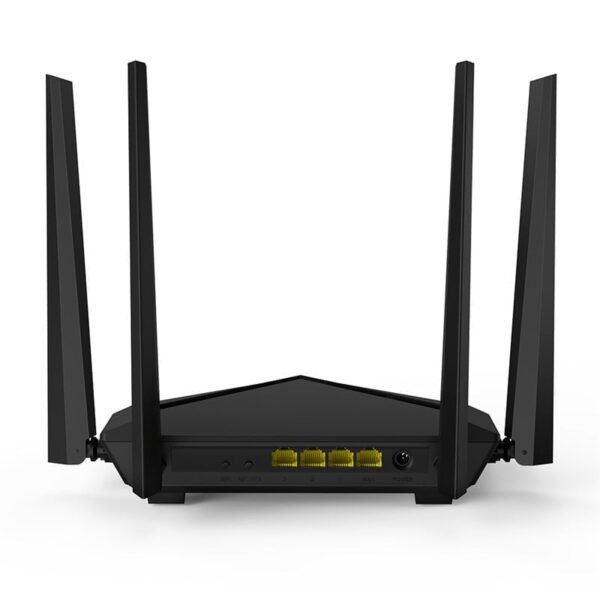

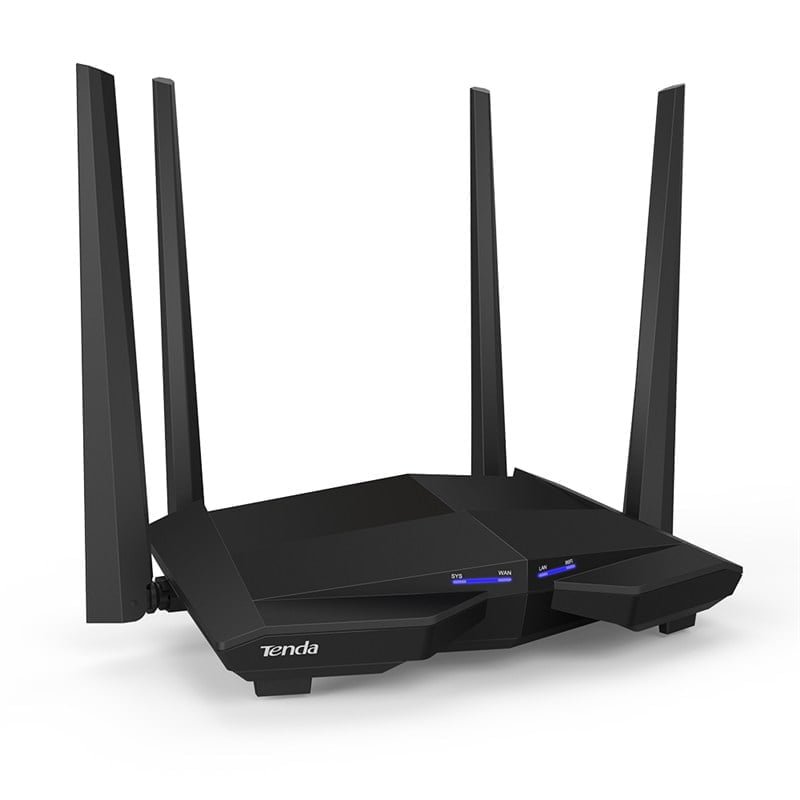

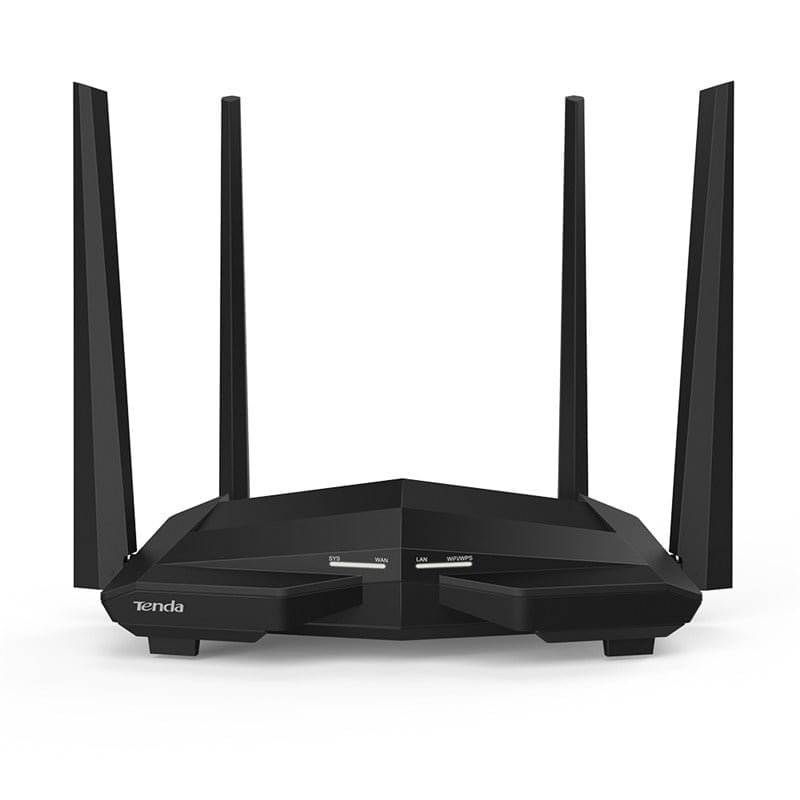

Tenda AC1200 Smart Dual-Band Gigabit WiFi Router
SPECIFICATION
Interface
3*GE LAN Ports
1*GE WAN Port
1*GE WAN Port
Button
1*WiFi On/Off button
1*Reset/WPS button
1*Reset/WPS button
Power Supply
Power Input: 100-240V—50/60Hz
Power Output: DC 12V==2A
Power Output: DC 12V==2A
Dimension
Package Box: 390*198*70mm（L*W*H)
Device: 220*141.5*49mm（L*W*H)
Device: 220*141.5*49mm（L*W*H)
Weight
Gross Weight: 810g
Net Weight: 350g
Net Weight: 350g
Antenna
4*5dBi External Dual Band Antennas
LED
1*WAN、1*LAN、1*Wi-Fi/WPS、1*SYS
Standard & Protocol
Wireless Standards:IEEE 802.11ac/n/a 5GHz
IEEE 802.11n/g/b 2.4GHz
Wired Standards:IEEE 802.3, IEEE 802.3u
IEEE 802.11n/g/b 2.4GHz
Wired Standards:IEEE 802.3, IEEE 802.3u
Frequency
5GHz: Up to 867Mbps
2.4GHz: Up to 300Mbps
2.4GHz: Up to 300Mbps
Transmit Power
CE:
<20dBm （2.4G）
<23dBm （5G）
FCC:<30dBm
<20dBm （2.4G）
<23dBm （5G）
FCC:<30dBm
Wireless Security
WPA-PSK, WPA2-PSK, WPA/WPA2
Wireless Security: Enable/Disable
WPS Fast Encryption
Wireless Security: Enable/Disable
WPS Fast Encryption
WAN Connection Type
Dynamic IP/Static IP/PPPoE
Connection Type Auto Detection
Broadband Account and Password Migration
Connection Type Auto Detection
Broadband Account and Password Migration
Working Mode
Router/AP/Universal Repeater/WISP
Management
Local Management
Remote Management
Tenda APP
Remote Management
Tenda APP
Basic Function
MU-MIMO
SSID Broadcast and Hide
Beamforming
Signal Power Adjustment
SSID Broadcast and Hide
Beamforming
Signal Power Adjustment
Virtual Server
UPnP
DMZ
Port Forwarding
DMZ
Port Forwarding
DHCP
DHCP Server and Client
DHCP Client List
DHCP Address Reservation
DHCP Client List
DHCP Address Reservation
DDNS
DynDns, NO-IP, Oray.com, 3322.org, 88ip
VPN
PPTP Client
PPTP Server
L2TP Client
PPTP Server
L2TP Client
Firewall
Forbid UDP Flood Attack
Forbid TCP Flood Attack
Forbid ICMP Flood Attack
Forbid WAN Ping from Internet
PPTP Pass Through
L2TP Pass Through
IPSec Pass Through
Forbid TCP Flood Attack
Forbid ICMP Flood Attack
Forbid WAN Ping from Internet
PPTP Pass Through
L2TP Pass Through
IPSec Pass Through
Features
Smart Wi-Fi Schedule
Smart Power Saving
Smart LED On/Off
Smart Power Saving
Smart LED On/Off
Other
Bandwidth Control
MAC Address Filter
IP and MAC Address Binding
IPTV
Black/White List
MAC Clone
Static Routing
System Log
Network Time
Backup/Restore Settings
System Upgrade Online
MAC Address Filter
IP and MAC Address Binding
IPTV
Black/White List
MAC Clone
Static Routing
System Log
Network Time
Backup/Restore Settings
System Upgrade Online
Certification
CE, FCC, RoHS, BSMI, NCC, EAC, IC
Default Settings
Default Access Address: tendawifi.com or http://192.168.0.1
Package Content
AC1200 Smart Dual-Band Gigabit WiFi Router
Power Supply
Ethernet Cable
Quick Installation Guide
Power Supply
Ethernet Cable
Quick Installation Guide
System Requirements
Microsoft Windows XP, Vista™ or Windows 7, Windows 8/8.1/11
MAC OS, UNIX or Linux
MAC OS, UNIX or Linux
Environment
Operating Environment:0℃~40℃
Storage Environment:-40℃~70℃
Operating Environment:10%~90% RH non-condensing
Storage Environment:5%~90% RH non-condensing
Storage Environment:-40℃~70℃
Operating Environment:10%~90% RH non-condensing
Storage Environment:5%~90% RH non-condensing
