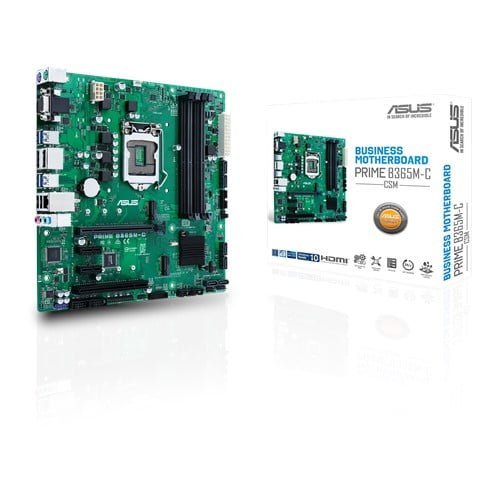

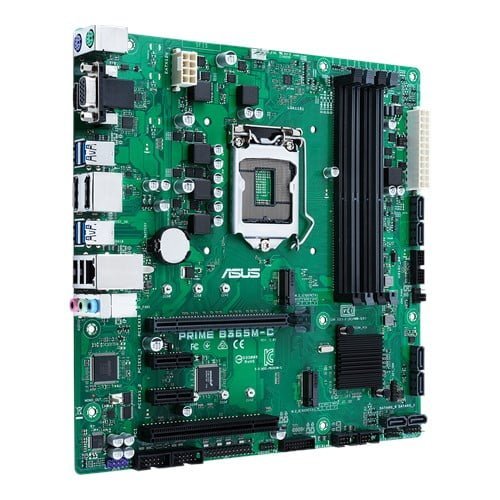

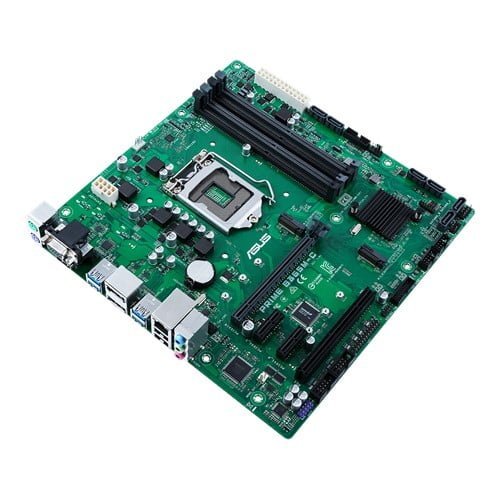

ASUS PRIME B365M-C/CSM

Description

ASUS PRIME B365M-C/CSM

ASUS is the world’s biggest and best-known motherboard brand. Famous for user-focused Designed Thinking, we understand the importance of security, stability and easy manageability for your business. Our latest lineup of business motherboards provide enhanced features to smooth your IT operations, including comprehensive system protection, 24/7 stability and reliability, and an improved management suite for easier customization. Combined with our world-class after-sales service and guaranteed long-term availability to maximize your investment over the product lifecycle, ASUS business motherboards provide a high-quality, TCO-optimized solution for your business computing needs.

Internationally Certified Business Motherboard

SPECIFICATION

• CPU
  Intel® for 8^th Generation Core^™ Core™ i7/Core™ i5/Core™ i3/Pentium®/Celeron® Processors 1 year / 2 years
  Supports Intel® 14 nm CPU
  Supports Intel® Turbo Boost Technology 2.0
  * The Intel® Turbo Boost Technology 2.0 support depends on the CPU types.
  * Refer to www.asus.com for CPU support list
• Chipset
  Intel® B365
• Memory
  4 x DIMM, Max. 64GB, DDR4 2666/2400/2133 MHz Non-ECC, Un-buffered Memory 1 year / 2 years
  Supports Intel® Extreme Memory Profile (XMP)
  * Hyper DIMM support is subject to the physical characteristics of individual CPUs.
  * Refer to www.asus.com for the Memory QVL (Qualified Vendors Lists).
  * The maximum memory frequency supported varies by processor.
  ** DDR4 2666MHz and higher memory modules will run at max. 2666MHz on Intel® 8th Gen. 6-core or higher processors.
• Graphic
  Integrated Graphics Processor- Intel® HD Graphics support 1 year / 2 years
  Multi-VGA output support : HDMI/DisplayPort /D-Sub ports 1 year / 2 years
  – Supports HDMI with max. resolution 4096 x 2160 @ 24 Hz / 2560 x 1600 @ 60 Hz1 year / 2 years
  – Supports D-sub with max. resolution 1920 x 1200 @ 60 Hz
  – Supports DisplayPort with max. resolution 4096 x 2304 @ 60 Hz
  Maximum shared memory of 1024 MB (for iGPU exclusively)
  Supports Intel® InTru™ 3D, Quick Sync Video, Clear Video HD Technology, Insider™
  Supports up to 3 displays simultaneously
• Expansion Slots
  1 x PCIe 3.0/2.0 x16 1 year / 2 years
  2 x PCIe 3.0/2.0 x1 1 year / 2 years
  1 x PCI 1 year / 2 years
• Storage
  Intel® B365 Chipset : 1 year / 2 years
  1 x M.2 Socket 3, with M key, type 2242/2260/2280 storage devices support (both SATA & PCIE mode)1 year / 2 years
  1 x M.2 Socket 3, with M Key, type 2242/2260/2280 storage devices support (x4 PCIE mode)1 year / 2 years
  Support Raid 0, 1, 5
  Intel® B365 Chipset : 1 year / 2 years
  6 x SATA 6Gb/s port(s), 1 year / 2 years
  Support Raid 0, 1, 5, 10
  Intel® Optane™ Memory Ready
• LAN
  Intel® I219V, 1 x Gigabit LAN Controller(s)
• Audio
  Realtek® ALC887 8-Channel High Definition Audio CODEC *¹
  – Supports : Jack-detection, Front Panel Jack-retasking
• USB Ports
  Intel® B365 Chipset : 1 year / 2 years
  8 x USB 3.1 Gen 1 port(s) (4 at back panel, blue, 4 at mid-board)
  Intel® B365 Chipset : 1 year / 2 years
  6 x USB 2.0 port(s) (2 at back panel, black, 4 at mid-board)
• Special Features
  Bespoke Motherboard Design & Business Focused Features :
  – ASUS Self Recovering BIOS: Automatically recover BIOS update once crash happen
  – ASUS Event Log: Record activities of system and provides information in BIOS
  – ASUS Commercial BIOS kit: Speed up BIOS update solutionby partial BIOS design
  – Anti-Moisture: Against moisture and corrosion — prolonging the life of your motherboard
  – 24/7 Reliability: Tested under temperature up to 45°C and humidity up to 80% to ensure handle diverse environment
  Easy Assembly Design:
  – Fixed-position&Color-coded Connectors: Enable easy identification and cable-matching, speeding up the production line
  – Box Headers: USB headers are box style, enabling fast connector installation and preventing pin damage
  Digi+VRM

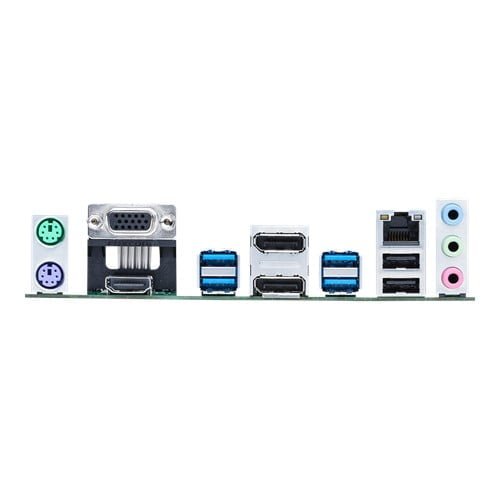

• Back I/O Ports
  1 x PS/2 keyboard (purple)
  1 x PS/2 mouse (green)
  1 x D-Sub
  2 x DisplayPort
  1 x HDMI
  1 x LAN (RJ45) port(s)
  4 x USB 3.1 Gen 1 Type-A 1 year / 2 years
  2 x USB 2.0 1 year / 2 years
  3 x Audio jack(s)
• Internal I/O Ports
  1 x MONO out header *²
  2 x USB 3.1 Gen 1(up to 5Gbps) connector(s) support(s) additional 4 USB 3.1 Gen 1 port(s)
  2 x USB 2.0 connector(s) support(s) additional 4 USB 2.0 port(s)
  1 x M.2 Socket 3 with M key, type 2242/2260/2280 storage devices support (SATA & PCIE 3.0 x 4 mode)
  1 x M.2 Socket 3 with M Key, type 2242/2260/2280 storage devices support (PCIE mode only)
  1 x LPT header
  2 x COM port(s) connector(s)
  6 x SATA 6Gb/s connector(s)
  1 x CPU Fan connector(s) (1 x 4 -pin)
  2 x Chassis Fan connector(s) (2 x 4 -pin)1 year / 2 years
  1 x 24-pin EATX Power connector(s)
  1 x 8-pin ATX 12V Power connector(s)
  1 x Front panel audio connector(s) (AAFP)1 year / 2 years
  1 x Internal speaker connector(s)
  1 x System panel(s)
  1 x Chassis Intrusion connector(s)1 year / 2 years
  1 x 14-1 pin TPM connector
  1 x LPC Debug header

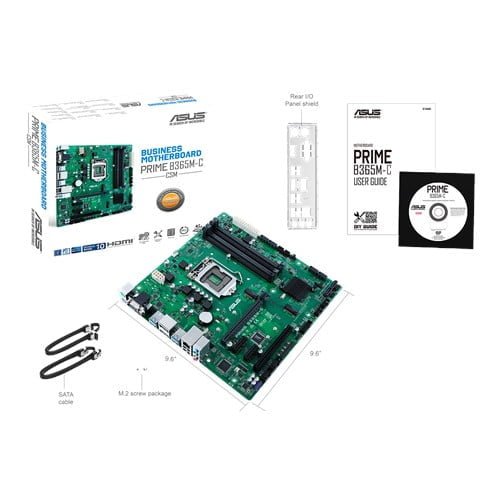

• Accessories
  User’s manual
  I/O Shield
  2 x SATA 6Gb/s cable(s)
  1 x M.2 Screw Package
  1 x Supporting DVD
• BIOS
  128Mb Flash ROM, UEFI AMI BIOS, PnP, SM BIOS 3.1, ACPI 6.1, Multi-language BIOS, ASUS Self-Recovering BIOS, ASUS Event log, ASUS Commercial Kit
• Manageability
  WOL, PXE
• Support Disc
  Watch dog timer, Drivers, ASUS Commercial Kit
• Operating System
  Windows® 10 64-bit
• Form Factor
  uATX Form Factor 1 year / 2 years
  24.4 cm x 24.4 cm (9.6 x 9.6 )
• Note
  *1: Use a chassis with HD audio module in the front panel to support an 8-channel audio output.
  *2: Use with amplified speaker is suggested.
