Description

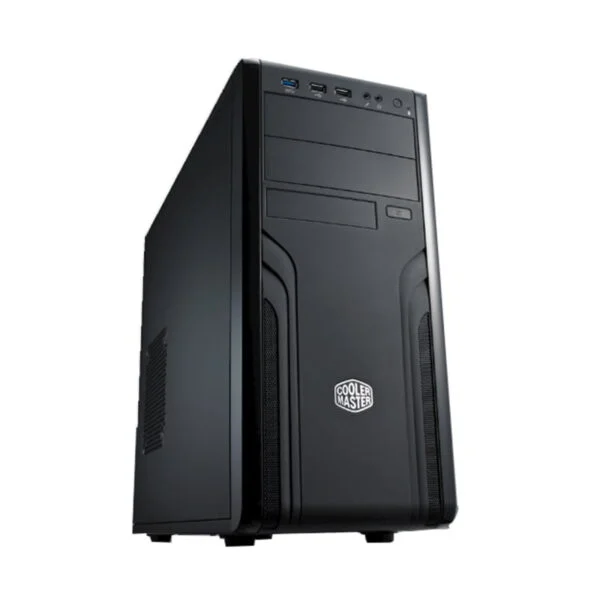

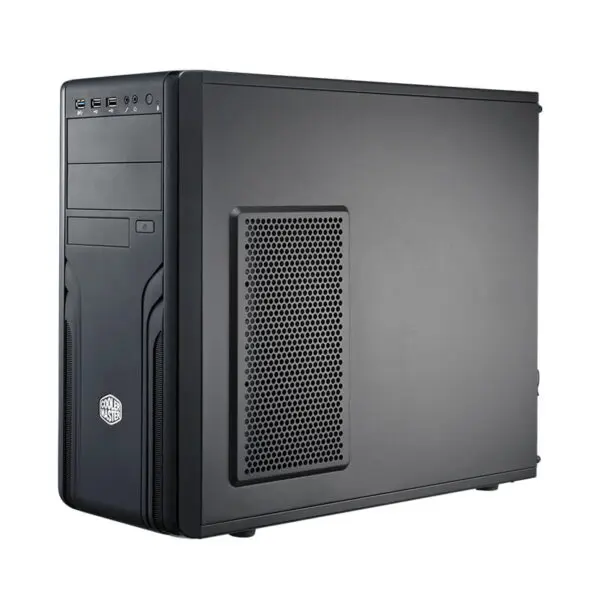

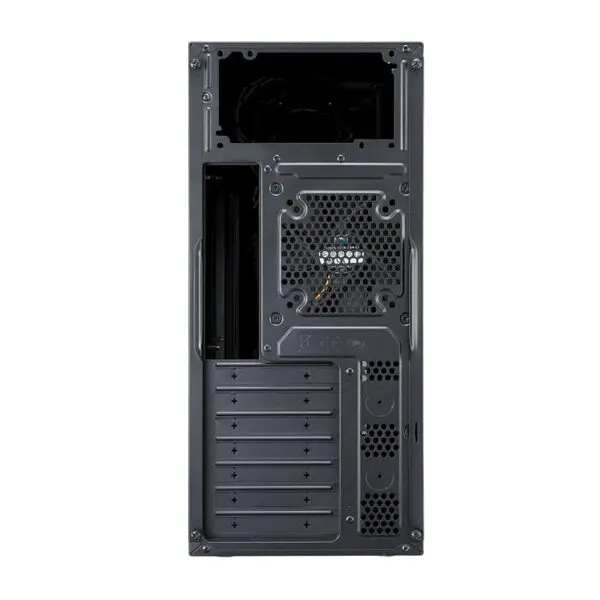

Cooler Master CM FORCE 500 Desktop PC Case

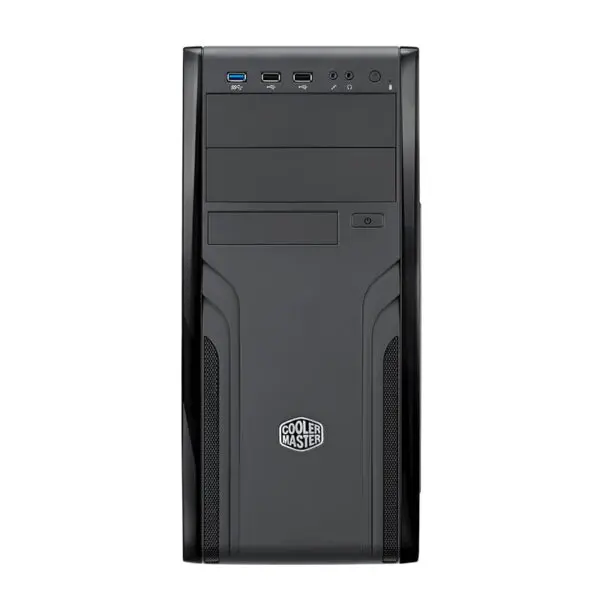

- Classy and simplistic front panel design
- USB 3.0 super speed port (internal)
- Top mounted PSU slot for best PSU compatibility

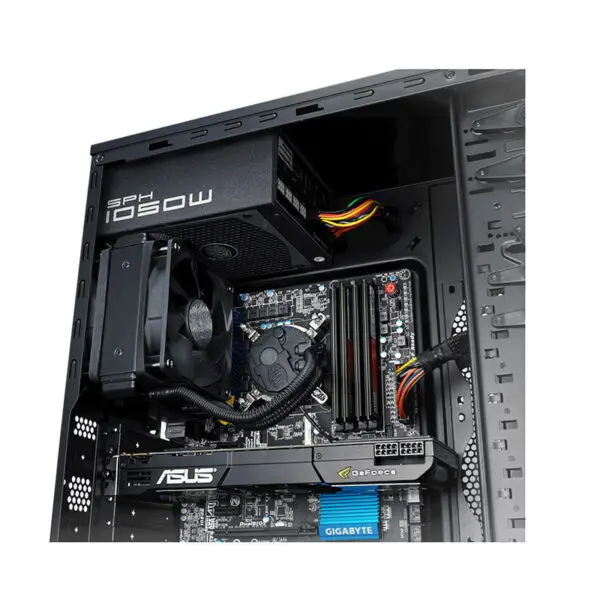

- Large tray cut-out for easy CPU cooler installation
- Supports all High-End VGAs including the HD7990
- Exposed 3.5” Slot for CardReaders
- Tool-free system for ODDs, card reader and HDDs
- VGA cooling vent with 120/140 mm fan support
- HDD cooling vent with 2x120mm fan support
- Supports up to 6 fans in total (1 pre-installed)

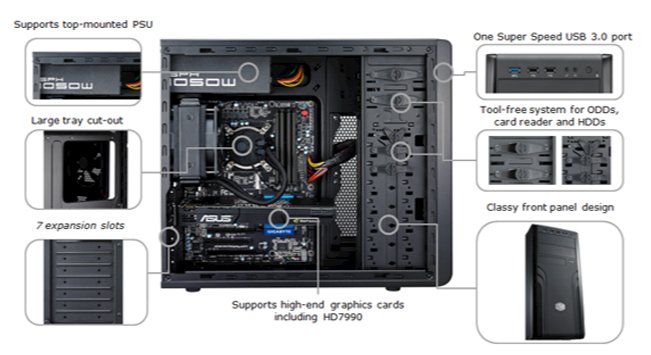

PRODUCT HIGHLIGHTS

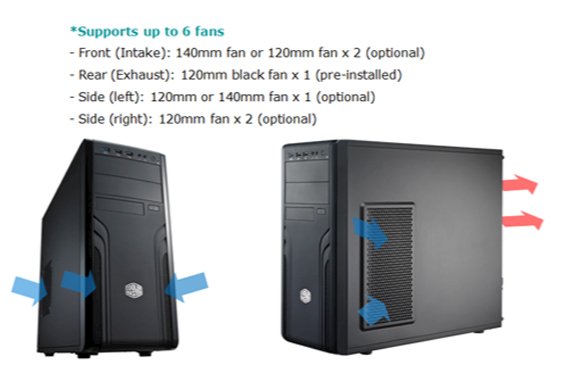

AIRFLOW DIAGRAM
Cooler Master CM FORCE 500 Desktop PC Case
SPECIFICATIONS
| MODEL NUMBER | FOR-500-KKN1 |
| AVAILABLE COLOR(S) | Black |
| MATERIALS | Steel body, Plastic |
| DIMENSIONS (L X W X H) | 190 x 426 x 491.5 mm / 7.5 x 16.8 x 19.4 inch |
| NET WEIGHT | 5.23 kg / 11.51 lbs |
| MOTHERBOARD SUPPORT | Micro ATX, ATX |
| 5.25″ DRIVE BAYS | 2 (exposed) |
| 3.5″ DRIVE BAYS | 8 (1 exposed, 7 hidden) |
| 2.5″ DRIVE BAYS | 1 (hidden) |
| I/O PANEL | 1x USB 3.0, 2x USB 2.0, 1x Mic, Audio In & Out (supports HD audio) |
| EXPANSION SLOTS | 7 |
| FAN SUPPORT – FRONT | 1x 140mm Fan (optional) |
| COOLING SYSTEM – FRONT | 140mm fan x 1 (optional), or 120mm fan x 2 (optional) |
| COOLING SYSTEM – REAR | 120mm black fan x 1 (pre-installed) |
| COOLING SYSTEM – LEFT SIDE | 120/140mm fan x 1 (optional) |
| COOLING SYSTEM – RIGHT SIDE | 120mm fan x 2 (optional) |
| POWER SUPPLY SUPPORT | ATX PS2, EPS 12V (optional) |
| MAXIMUM COMPATIBILITY – VGA CARD LENGTH | 320mm / 12.6 inch (with HDD cage) |
| MAXIMUM COMPATIBILITY – CPU COOLER HEIGHT | 163.9mm / 6.5 inch |
| SERIES | CM Force Series |
| SIZE | Mid Tower |
