Description
Cooler Master CMP 520 ATX PC Case
Cutting Edge Brilliance
CMP 520
CMP 520’s asymmetrical front panel design frames the pre-installed three 120mm ARGB fans as unique centerpieces on the build.
Three 120mm ARGB Fans Included
Mesh Geode Front Panel
Versatile Cooling Options
Full Black Coating & PSU Cover
Breathable Power Supply Shroud

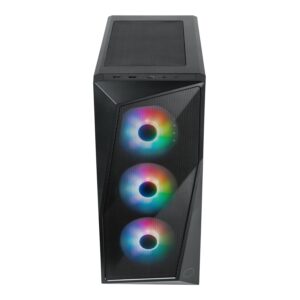

Cooler Master CMP520 ATX PC Case
Let it glow.
Like a geode cradling glistening crystals within, CMP 520’s
asymmetrical front panel design frames the preinstalled three CF120
ARGB fans as unique centerpieces on the build.
Ample mesh provides generous intake for efficient cooling as well as
dust filtration, extending the lifespan of installed components while
allowing them to operate at maximum capacity.
Users may tailor lighting effects and color in depth to match the
theme of their build or gaming environment by simply connecting
the built in ARGB hub to the motherboard.
The perforated power supply shroud accommodates both active and
passively cooled PSUs, while keeping cables neatly tucked away for a
tastefully sleek build.
Three CF120 ARGB Fans Included
Pre-installed with three
CF120 ARGB fans, CMP 520 ensures stunning aesthetics, eye-
catching design, and thermal excellence. Featuring a built in
ARGB hub for streamlined cable management, users can also
connect the hub to the motherboard for advanced lighting
customization.
Mesh Geode Front Panel
Inspired by clean-cut, asymmetrical
crystal formations, the mesh front panel offers generous intake
as well as efficient dust filtration.
Versatile Cooling Options
Support for up to six fans and
front, top, and rear radiator support ensure that performance is
not compromised.
Full Black Coating & PSU Cover
Let your system stand out
with an all-black background and a PSU cover to hide cables.
Breathable Power Supply Shroud – The PSU cover is ventilated
on top of the power supply location, this allows actively cooled
units to be installed either with the fan facing the top or bottom,
also with the possibility of installing passively cooled power
supplies.
Room For Upgrades
Support for up to a 350mm graphics card,
a 161mm CPU cooler, and multiple fans/radiators locations
provides room for upgrades to stay ahead of the game.
Cooler Master CMP 520 ATX PC Case
CMP520 | CMP 520
Specification
| Model Number | CP520-KGNN-S00 |
| Exterior Color | Black |
| Materials – Exterior | Steel, Plastic |
| Materials – Left Side Panel | Tempered Glass |
| Dimensions (L x W x H) | 439 x 204 x 463mm (Incl. Protrusions), 432 x 204 x 448mm (Excl. Protrusions) |
| Volume | 41.34L (Excl. Protrusions) |
| Motherboard Support | Mini-ITX, Micro-ATX, ATX |
| Expansion Slots | 7 |
| 5.25″ Drive Bays | 0 |
| 2.5″ / 3.5″ Drive Bays (Combo) | 2 |
| 2.5″ Drive Bays | 2 |
| I/O Panel – USB Ports | 1x USB 3.2 Gen 1 Type A, 1x USB 2.0 |
| I/O Panel – Audio In / Out | 1x 3.5mm Headset Jack (Audio+Mic) |
| ARGB Controller | ARGB Fans Hub |
| Pre-installed Fans – Top | N/A |
| Pre-installed Fans – Front | 3x CF120 ARGB |
| Pre-installed Fans – Rear | N/A |
| Fan Support – Top | 2x 120mm, 2x 140mm |
| Fan Support – Front | 3x 120mm, 2x 140mm |
| Fan Support – Rear | 1x 120mm |
| Radiator Support – Top | 120 / 240mm* (*RAM height below 35mm) |
| Radiator Support – Front | 120 / 140 / 240 / 280mm |
| Radiator Support – Rear | 120mm |
| Clearance – CPU Cooler | 161mm |
| Clearance – PSU | 160mm |
| Clearance – GFX | 350mm (w/o front fans & radiator) |
| Cable Routing | 18.5mm |
| Dust Filters | Top, Bottom |
| Power Supply Support | Bottom Mount, ATX |
| Warranty | 2 years |
| Size | Mid Tower |
| Series | CMP Series |
| Back Connector Motherboard Support | No |
Similar Product

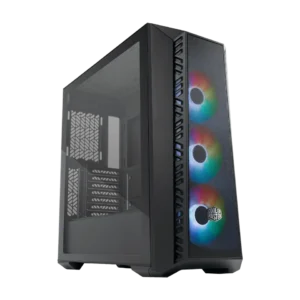

Cooler Master MasterBox 520 Mesh ARGB
