Cooler Master MASTER LIQUID LITE 120 Cooler

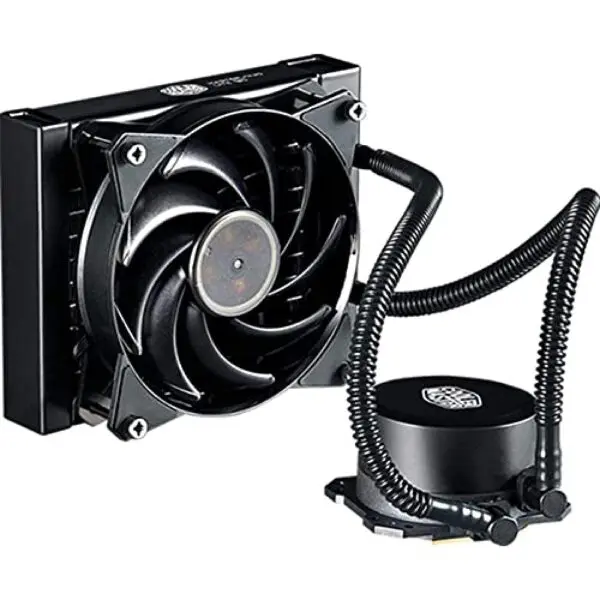

INTRODUCING THE MASTERLIQUID LITE 120
With its kink-resistant tubing and matt-black styling, the MasterLiquid Lite 120 is a Cooler Master original design and attractive entry into liquid cooling. Reliability, performance and quiet operation are ensured by its unique Dual Dissipation Pump and 120mm Air Balance fan design. Whether you’re building new or just upgrading, it’s easy to install on the latest Intel or AMD systems and 120mm radiator fits almost all PC chassis.
DUAL DISSIPATION PUMP
Its unique low-profile dual chamber pump design features a low vibration pump for cool and quiet operation.
EASY AND RELIABLE
An easy install, reliable and low noise all-in-one liquid cooler
for Intel and AMD systems.
AIR BALANCE FAN DESIGN
120mm Air Balance fan’s silent driver IC smoothens fan operation, reducing fan clicks and vibrations.
FITS ALMOST ALL CASES
Fits almost all PC chassis with a 120mm fan mount near the CPU area.
PRODUCT NUMBER | MLW-D12M-A20PW-R1 |
CPU SOCKET | LGA2066, LGA2011-v3, LGA2011, LGA1366, LGA1200, LGA1151, LGA1150, LGA1155, LGA1156, LGA775, AM4, AM3+, AM3, AM2+, AM2, FM2+, FM2, FM1 |
MAIN SYSTEM DIMENSIONS | 62 x 62 x 36.4 mm / 2.4 x 2.4 x 1.4 inch |
MAIN SYSTEM POWER CONNECTOR | 4-Pin |
WATERBLOCK DIMENSIONS | 80.3 x 76 x 42.2 mm / 3.2 x 3.0 x 1.7 inch |
PUMP MTTF | 70,000 Hours |
PUMP NOISE LEVEL | < 8 dBA |
PUMP CONNECTOR | 3-Pin |
PUMP RATED VOLTAGE | 12 VDC |
PUMP LOAD CURRENT | 0.3A |
PUMP POWER CONSUMPTION | 3.96W |
RADIATOR DIMENSIONS | 157 x 119.6 x 27 mm / 6.2 x 4.7 x 1.1 inch |
RADIATOR MATERIAL | Aluminum |
FAN DIMENSIONS (L X W X H) | 120 x 120 x 25 mm / 4.7 x 4.7 x 1 inch |
FAN SPEED | 650-2000 RPM (PWM) ± 10% |
FAN AIRFLOW | 66.7 CFM (Max) |
FAN AIR PRESSURE | 2.34 mmH2O ± 10% |
FAN MTTF | 160,000 Hours |
FAN POWER CONNECTOR | 4-Pin (PWM) |
FAN RATED VOLTAGE | 12VDC |
EAN CODE | 4719512055847 |
UPC CODE | 884102030918 |
SERIES | MasterLiquid Lite |
COOLER TYPE | Liquid Cooler |
RADIATOR SIZE | 120 |
