Description

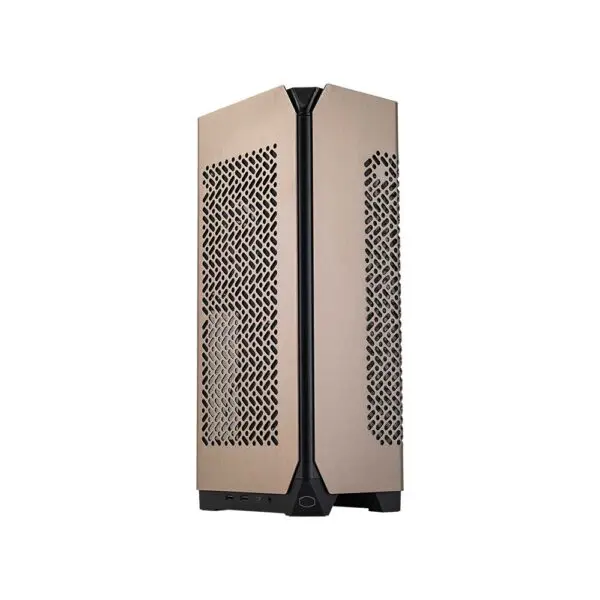

Cooler Master NCORE 100 MAX PC Case
Max Performance, Minimalist Design
NCORE 100 MAX
Cooler Master’s NCORE 100 MAX is the ultimate solution for going big on performance in the minimal amount of desktop space
CUSTOM AIO COOLING
The NCORE 100 Max leverage decades of expertise in thermal solutions and features a custom 120mm AIO Water Cooler supporting the latest Intel and AMD CPUs.
HIGH-END GPU COMPATIBILITY
Includes support for high performance, triple-slot GPUs up to 336mm in length and 140mm in height, with four included 6+2 pin power cables and a vertical mount design.
TAILOR-MADE POWER SOLUTION
Cooler Master’s V SFX Gold 850W ATX 3.0 PSU covers all your power needs and comes with custom length cables.
ULTRA-SMALL FOOTPRINT
The NCORE 100 MAX is super compact, with a footprint about the size of a small booklet.

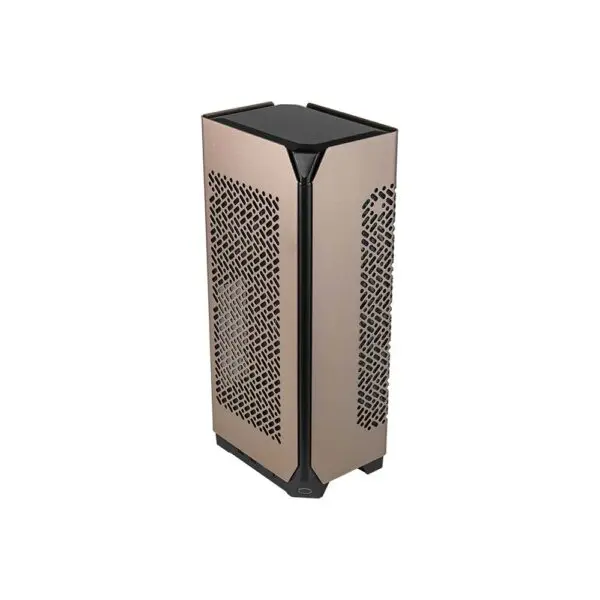

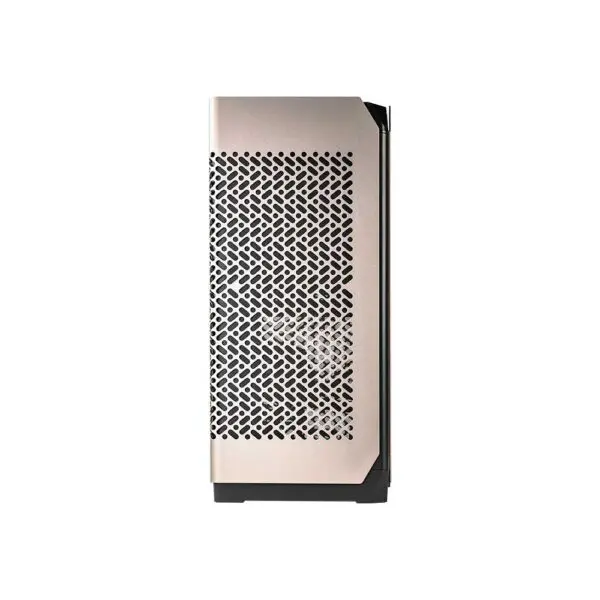

PREMIUM ALUMINUM PANEL
An anodized aluminum shell makes the NCORE 100 MAX stand out as a desktop work of art.
PRE-ROUTED CABLES
Includes custom length, pre-routed cables which have been placed right where you need them and are ready to be connected to your motherboard and GPU.
AIRFLOW
The NCORE 100 MAX layout has been meticulously,designed to offer the most efficient thermal layout.This layout pulls in air from the standing sides of the case, which are its largest surfaces.

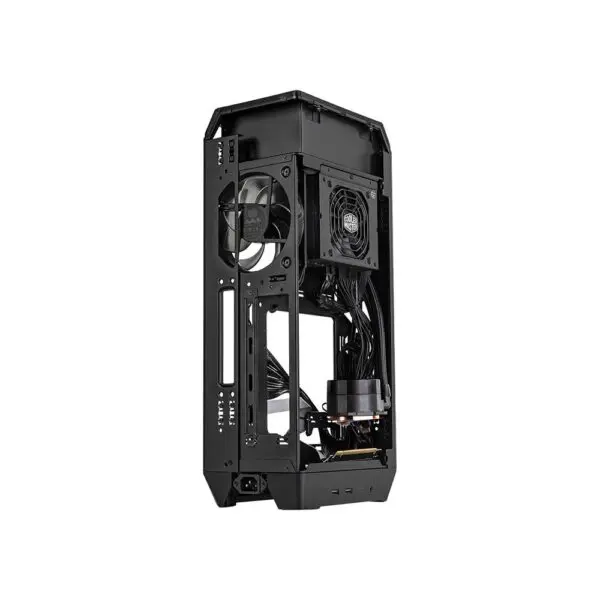

OPEN FRAME DESIGN
Eliminating three surfaces usually included in a standard case to let you approach installation from numerous angles. Even and cable cover features tool-less removal, for the utmost in accessibility.
Innovative Extendable Mechanism
Extendable width from 155mm to 172mm allows for 4 GPU slots and RTX 4090 compatibility or 3 slots for a super-small form factor.
Minimalist Design, Maximalist Power
The NCORE 100 MAX has been designed with a minimalist industrial design that would look right at home in a design studio. The MAX also includes ample ventilation and adjustable space to house enough power to satisfy even the most power-hungry use cases such as gaming and creative works.
Minimum effort, maximum payoff
Small form factor PC are notoriously difficult to install because of the cramped space. Not the NCORE 100 MAX, it is the easiest Compact case on the market to build in just pop in your motherboard and GPU through the open frame design and connect the pre-routed cables.
Build Small. Play Big.
This case is compatible with SFF-Ready Enthusiast GeForce cards, so you can pack high performance into a smaller footprint. Look for SFF-Ready Enthusiast GeForce Cards to get a sure fit and streamline your PC build.
Cooler Master NCORE 100 MAX PC Case
Specification
Model | NCORE 100 MAX |
Color | Bronze |
P/N | NR100-ZNNN85-SL0 |
Materials – Exterior | Steel, Plastic, Aluminum |
Materials – Side Panel | Aluminum |
Dimensions (L x W x H) |
|
Volume | 15.80L (Normal mode), 17.54L (Expansion mode) |
Motherboard Support | ITX |
Expansion Slots | 3x PCIe Slot mounting |
Drive Bays – 2.5″ SSD | 1 |
I/O Panel | 2x USB 3.2 Gen1 Type A, 1x USB 3.2 Gen2 x 2 Type C, 1x Audio Combo (Audio In / Out 3.5mm) |
Included Accessories | 1x 240mm PCIe 4.0 x16 |
Included CPU Cooling Solution | 120mm Radiator with 38mm Thickness x 1 (Custom PWM Fan Max. 2400RPM) |
Included Power Supply Unit | V SFX Gold 850W ATX 3.0 |
Pre-installed Fan(s) – Rear | 120mm SickleFlow PWM Fan x1 (Max. 1800RPM) |
Clearances – CPU Cooler | 48mm |
Clearances – Power Supply | 100mm |
Clearances – RAM | 48mm |
Clearances – Graphics Card | 337mm x 62mm x 180mm (Normal, 3.0 Slot thick), 357mm x 79mm x 180mm (Expansion, 3.9 Slot thick), (Maximum space including GPU power connector) |
Cable Routing – Behind MB Tray | 11mm |
Dust Filters | Side panels |
Power Supply Support | SFX |
Warranty | 2 years (Case), 2 years (Thermal Solution), 10 years (Power Delivery) |
Cooler Master NCORE 100 MAX PC Case
