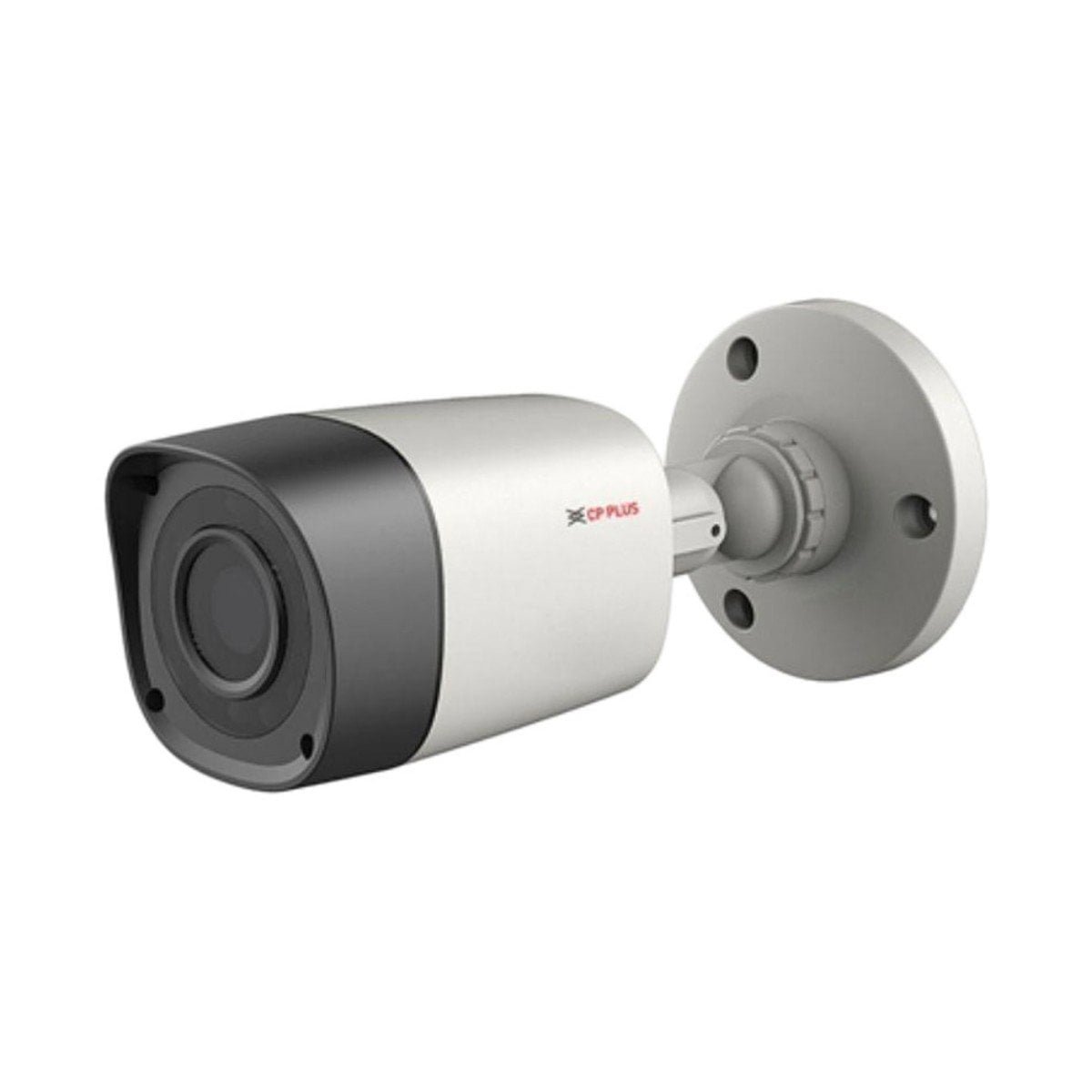

CP Plus CP-Usc-Ta24L2 -l 1080P/2.4MP 3.6mm IR Plastic Bullet Camera

2,550.00 (In. GST)

  • 1/2.7″ 2.4MP PS CMOS Image Sensor
  • Max 25/30fps@ 2.4MP
  • DWDR, Day/Night(ICR), 2D-DNR, AWB, AGC, BLC, HLC
  • 3.6mm fixed lens (2.8mm, 6mm optional)
  • IR Range of 20 Mtrs., IP67
  • OSD Menu, control over coaxial cable, 2D-DNR
  • HD, SD, and Two Others Analog formats output switchable

3 in stock

Description



SPECIFICATION

Image Sensor1/2.7
Minimum Illumination0.02Lux/F1.85, 30IRE, 0Lux IR on
Effective Pixels2.4MP
BodyTypeBullet
Shutter SpeedPAL: 1/25~1/100000s, NTSC: 1/30~1/100000s
White BalanceAuto / Manual
Lens3.6mm (2.8mm, 6mm Optional)
Gain Control (AGC)Auto / Manual
Angle of ViewH: 87.5° (103°, 54.7°)
S/N RatioMore than 65dB
Back Light Comp.BLC / HLC / DWDR
OSDMulti-language
Video Streaming25/30fps@2.4MP, 25/30/50/60fps@720P
Video Output1-channel BNC high definition video output / CVBS video output (Can switch)
ICRAuto (ICR) / Manual
IR RangeIR Range of 20 Mtr.
Operating Temperature-40°C ~ +60°C (-40°F ~ +140°F) / Less than 95% RH
Power Source12V DC ±30%
Power ConsumptionMax 3.3W (12V DC, IR on)
Weatherproof StandardIP67
Dimension154.3mm×69.8mm×69.8mm (6.07
Weight0.15kg
