Description

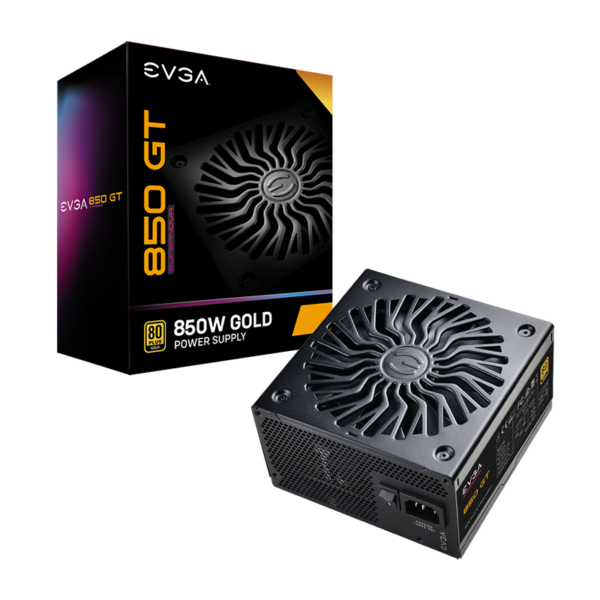

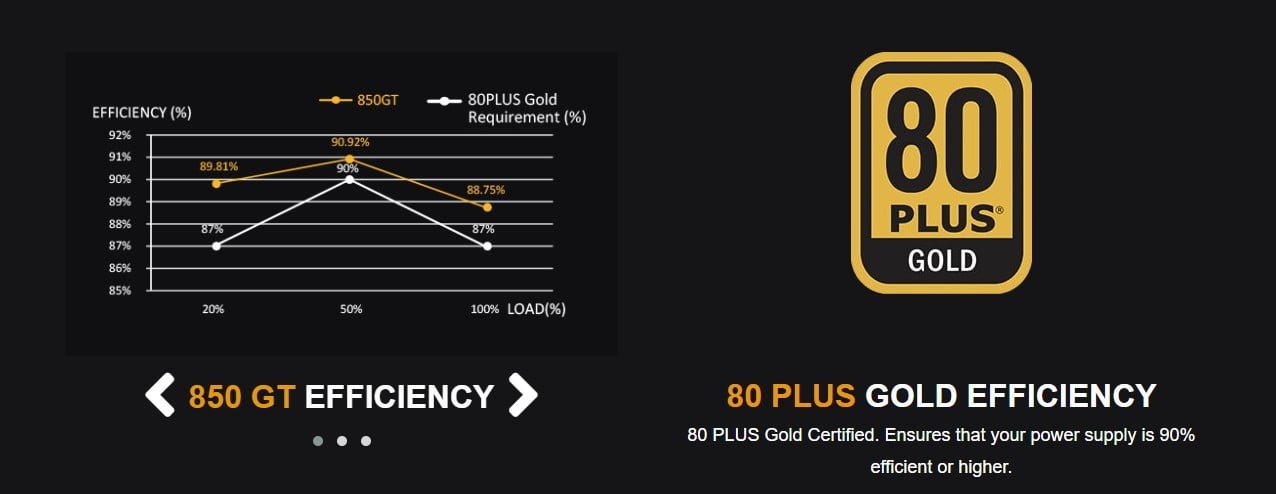

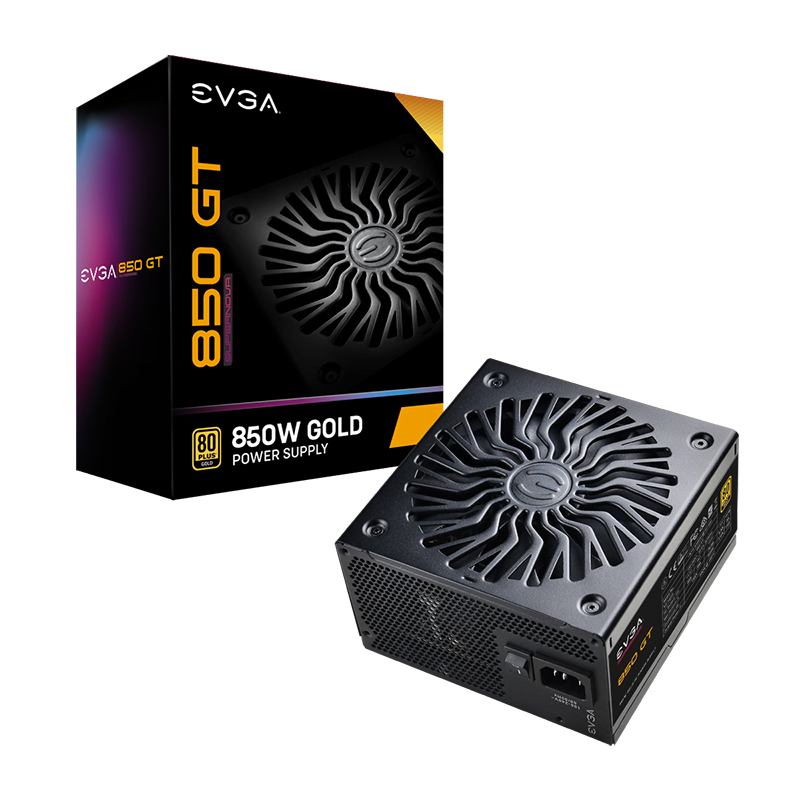

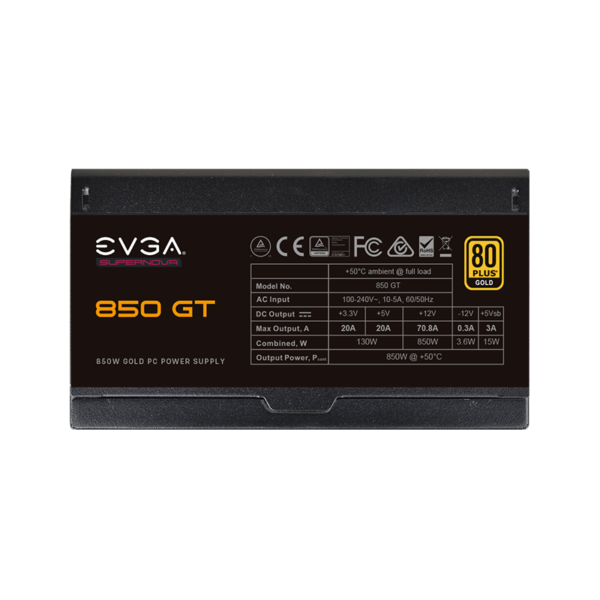

EVGA SuperNOVA 850 GT, 80 Plus Gold 850W, Fully Modular, Auto Eco Mode with FDB Fan, 7 Year Warranty, Includes Power ON Self Tester, Compact 150mm Size, Power Supply 220-GT-0850-Y1
Product Warranty
This product comes with a 7-year limited warranty with registration.
EVGA offers several warranty solutions for our customers to choose from. Please refer to the suffix of the part number and our Warranty Terms for details.
Specification
CABLE LENGTH
| ATX Cable | 1x 600mm (m) |
| EPS Cable | 2x 700mm (m) |
| PCIe Cable | 1x 700mm (m), 3x 700mm, 850mm (m) |
| SATA Cable | 3x 550mm, 650mm, 750mm (m) |
| Four-Pin Peripheral Cable | 1x 550mm, 650mm, 750mm (m) |
| Floppy Adapter | 1x Molex to FDD Adapter |
| AC Power | 1x 1500mm (m) |

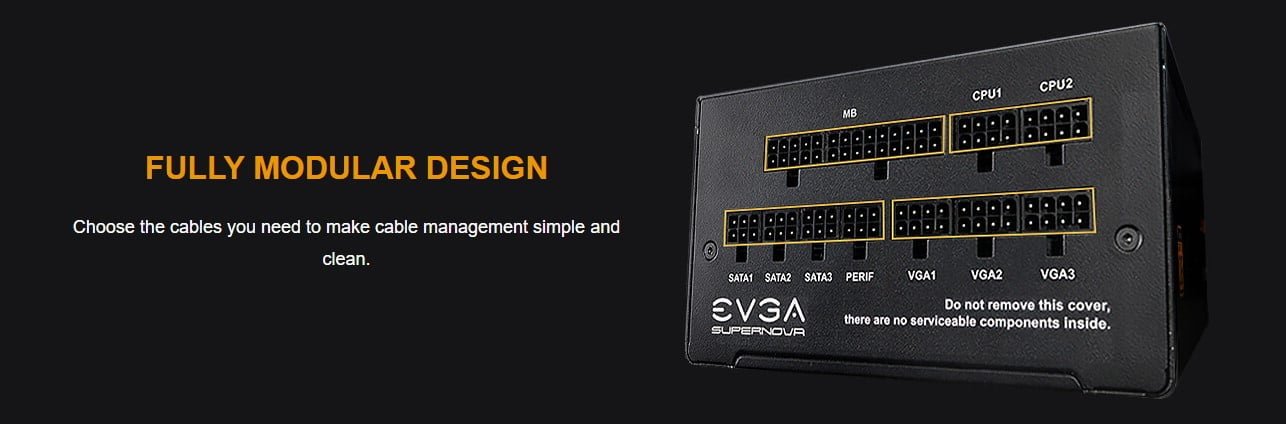

| Modular Cable Type | Full |
| Molex to FDD | 1x |
CONNECTOR QUANTITY
| 24 Pin ATX | 1x |
| EPS (CPU) | 2x 8pin(4+4) |
| PCIe | 7x 8pin(6+2) |
| SATA | 9x |
| Four-Pin Peripheral | 3x |
| Floppy | 1x |
POWER SPECS

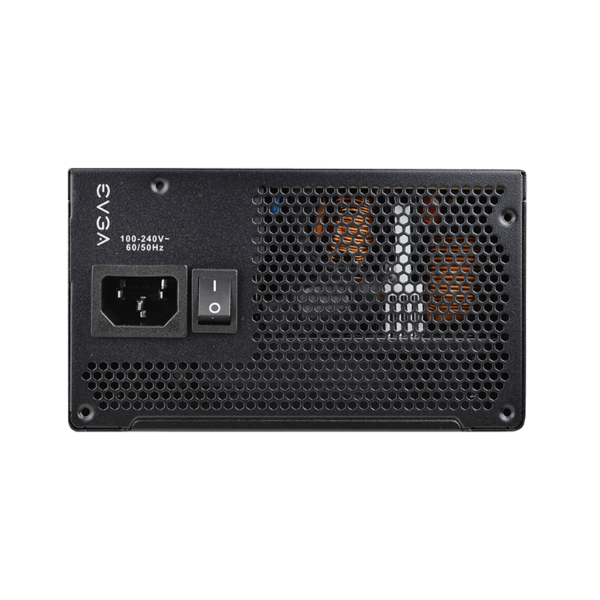

| AC Input | 100-240V~, 10-5A, 60/50Hz | ||||
| Rail | +3.3V | +5V | +12V | +5Vsb | -12V |
| Max Output | 20A | 20A | 70.8A | 3A | 0.3A |
| 130W | 850W | 15W | 3.6W | ||
| Total | 850W | ||||
ADDITIONAL DETAILS
| Operating Temperature | 0° to 50° C |
| Japanese Capacitors | 100% |
| ECO Mode | Auto |
| MTBF | 100,000 Hours |
| Net Weight | 6.20 lbs |

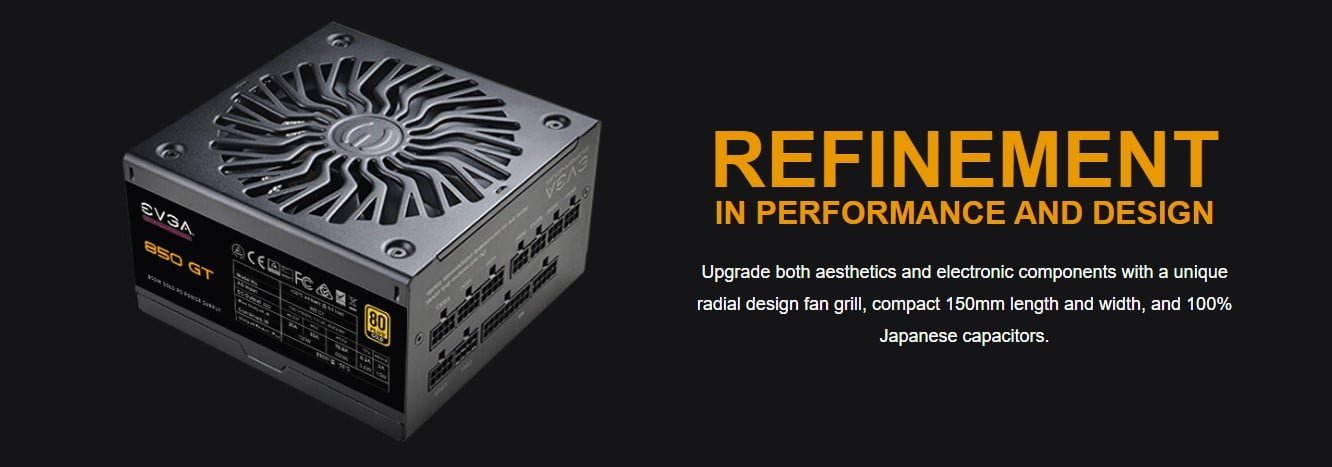

| Size | 86mm (H) x 150mm (W) x 150mm (L) |
| Approvals | TUV, CB, CE, FCC, RCM, cTUVus, BSMI, CCC, WEEE, RoHS Compliance with ErP Lot 3 2014 Requirement |

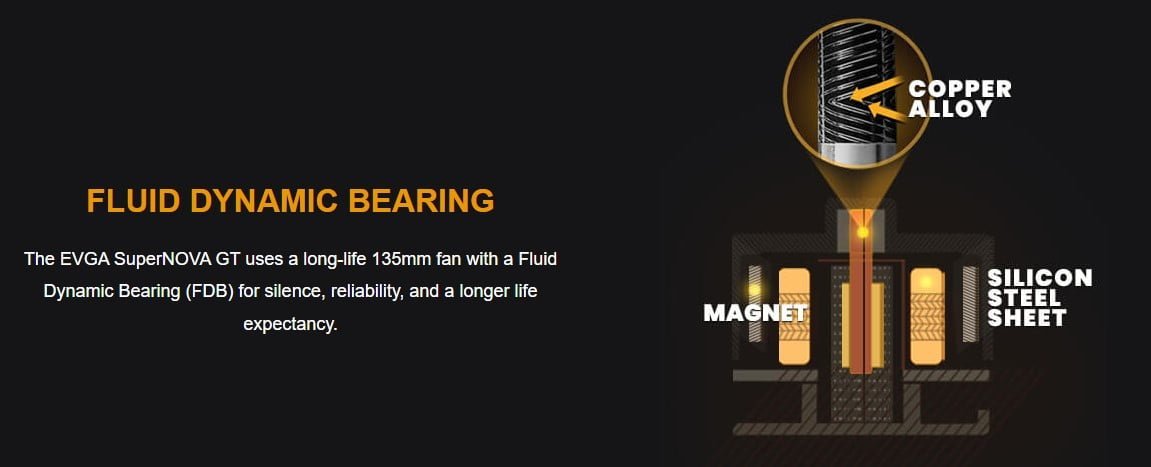

| Fan Size / Bearing | 135mm Fluid Dynamic Bearing |
