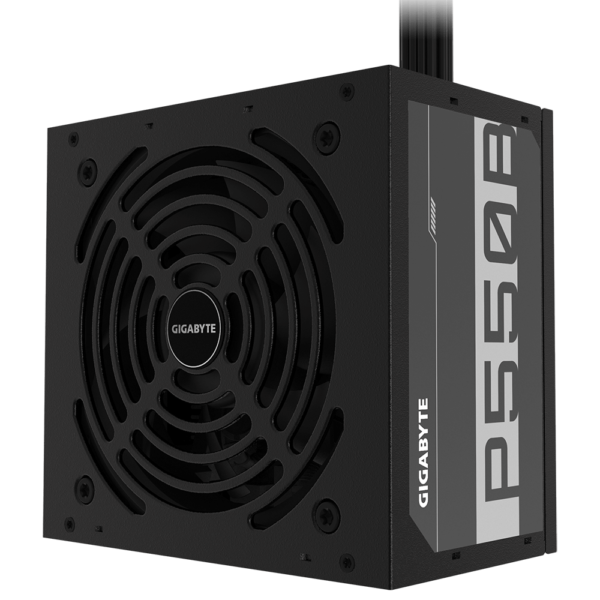

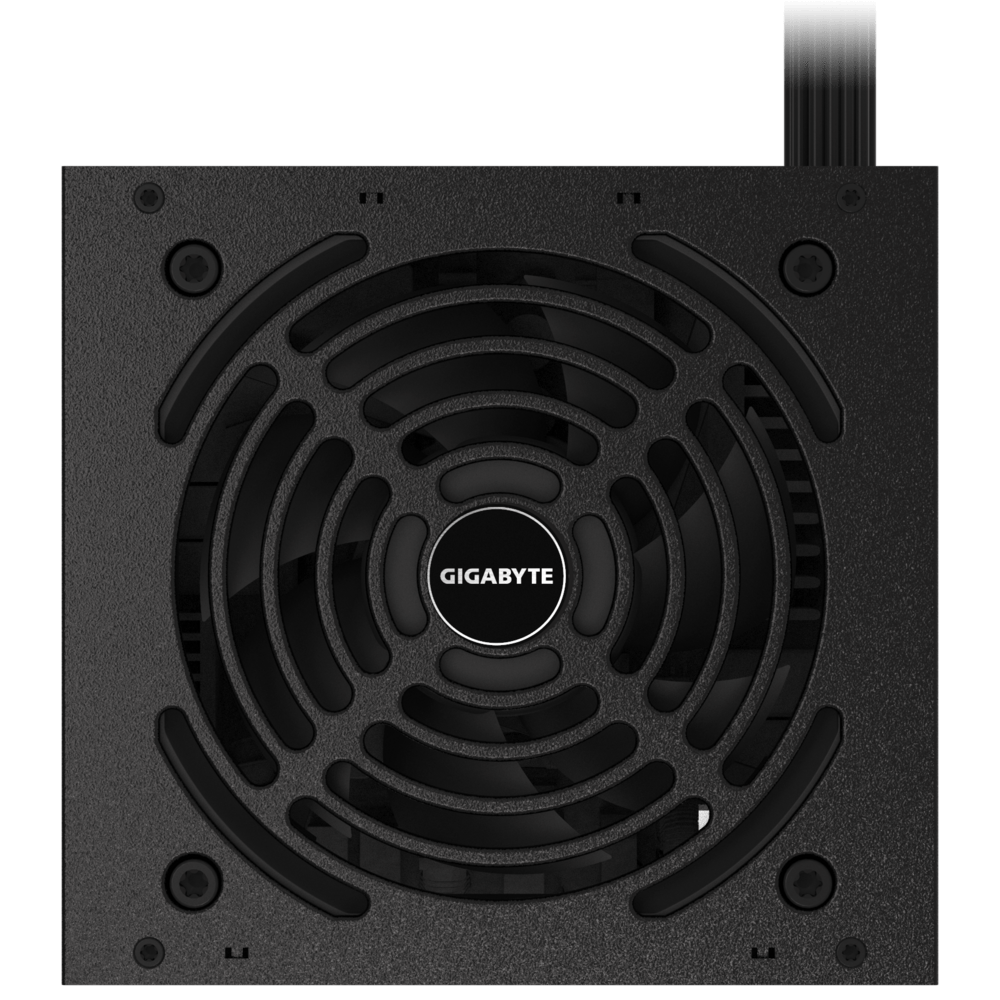

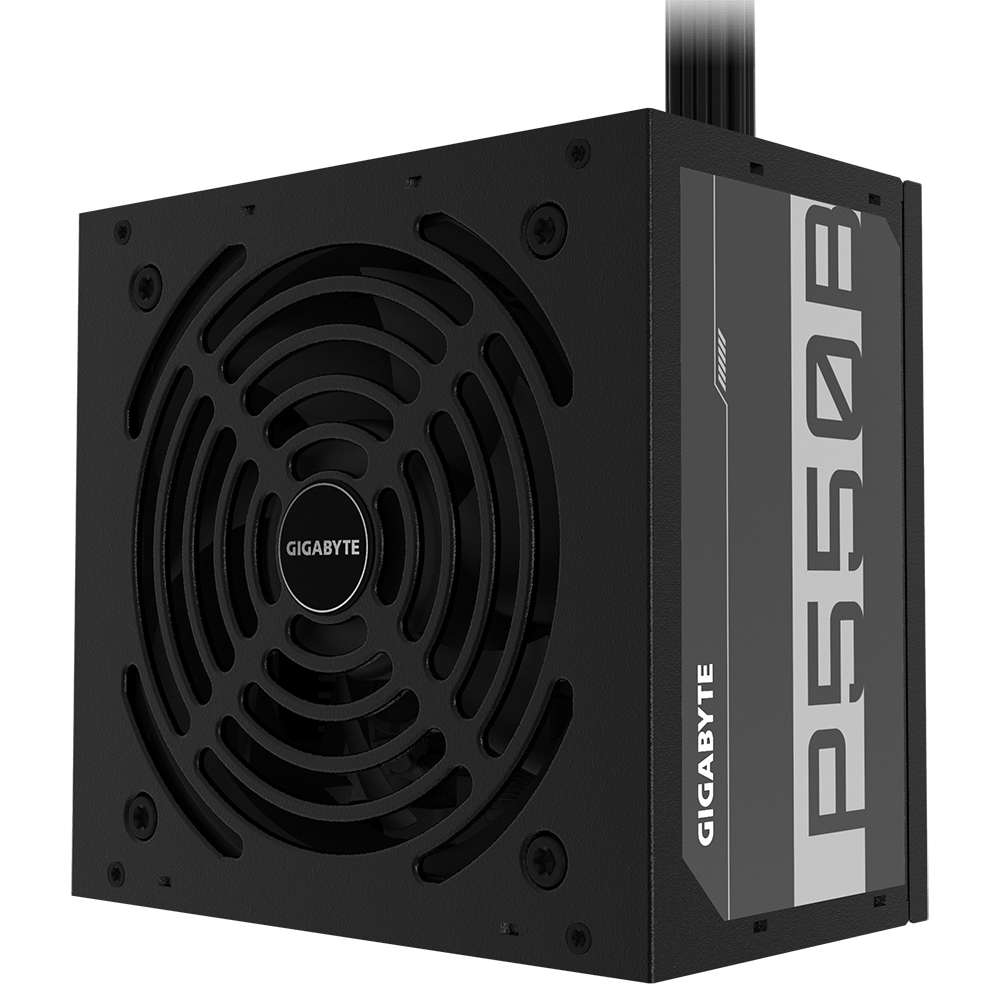

Gigabyte P550B PSU

Original price was: ₹4,500.00.Current price is: ₹3,550.00. (In. GST)

  • 80 PLUS Bronze certified
  • 120mm Silent Hydraulic Bearing (HYB) Fan
  • Reliable flat cable
  • Single +12V rail
  • OVP/OPP/SCP/UVP/OCP/OTP protection
  • 3 years warranty (Adjusted according to different regions)

Out of stock

SKU: NG00872 Categories: ,

Description

gigabyte p550b power supply unit



SPECIFICATION



  • Model
    P550B
  • Type
    Intel Form Factor ATX 12V v2.31
  • PFC
    Active PFC(>0.9 typical)
  • Input Voltage
    100-240 Vac(full range)
  • Input Current
    8-4 A
  • Input Frequency
    60-50 Hz
  • Output Capacity
    550W
  • Dimension
    150 x 140 x 86 mm
  • Fan Type
    120mm Hydraulic Bearing (HYB) Fan
  • 80 PLUS
    Bronze
  • Efficiency
    85% at typical load
  • MTBF
    >100,000 hours
  • Protection
    OVP/OPP/SCP/UVP/OCP/OTP
  • Power Good Signal
    100-500ms
  • Hold Up Time
    >16ms
  • Cable Type
    Flat, All black
  • Connectors
    ATX/MB 20+4 Pin x 1 : 550mm*1
    CPU/EPS 4+4 Pin x 1 : 600mm*1
    PCI-e 6+2 Pin x 2 : 550mm+150mm*1
    SATA x 6 : 500mm+120mm+120mm*2
    4 Pin Peripheral x 3 + 4-Pin floppy x 1 : 500mm+120mm+120mm+120mm*1
