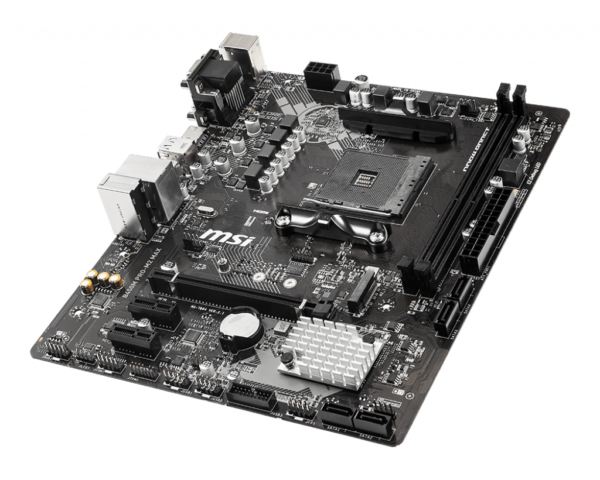

MSI B450M PRO-M2 MAX

PROCESSOR

Supports 1st, 2nd and 3rd Gen AMD Ryzen™/ Ryzen™ with Radeon™ Vega Graphics and 2nd Gen AMD Ryzen™ with Radeon™ Graphics/ Athlon™ with Radeon™ Vega Graphics Desktop Processors for Socket AM4

See supported processors

CHIPSET

AMD^® B450 Chipset

MEMORY

• 2 x DDR4 memory slots, support up to 64GB *ComboPI 1.0.0.3-based and above BIOS are required.
  • Supports DDR4 1866/ 2133/ 2400/ 2667 MHz by JEDEC
  • For AMD Ryzen Gen3 (R5/R7/R9)
    • Supports DDR4 2667/ 2800/ 2933/ 3000/ 3066/ 3200/ 3466/ 3733/ 3866/ 4000/ 4133 MHz by A-XMP OC mode¹
  • For AMD Other CPU
    • Supports DDR4 2667/ 2800/ 2933/ 3000/ 3066/ 3200/ 3466 MHz by A-XMP OC mode
• Dual channel memory architecture
• Supports ECC UDIMM memory (non-ECC mode)
• Support non-ECC UDIMM memory

1. Please refer www.msi.com for more information on compatible memory.

SLOTS

• 1 x PCIe 3.0 x16 slot (PCI_E1)
  • Supports x16 speed with 1st, 2nd and 3rd Gen AMD Ryzen™ processors
  • Supports x8 speed with Ryzen™ with Radeon™ Vega Graphics and 2nd Gen AMD Ryzen™ with Radeon™ Graphics processors
  • Supports x4 speed with AMD^® Athlon™ with Radeon™ Vega Graphics Processors
• 2 x PCIe 2.0 x1 slots

ONBOARD GRAPHICS

• 1 x VGA port, supports a maximum resolution of 2048×1280@60Hz, 1920×1200@60Hz^1,2
• 1 x DVI-D port, supports a maximum resolution of 1920×1200@60Hz^1,2
• 1 x HDMI™ 1.4 port, supports a maximum resolution of 4096×2160@30Hz^1,2

1. Only support when using AMD^® Ryzen™ with Radeon™ Vega Graphics and 2nd Gen AMD Ryzen™ with Radeon™ Graphics/ Athlon™ with Radeon™ Vega Graphics Processorss
2. Maximum shared memory of 2048 MB

STORAGE

AMD^® B450 Chipset

• 4 x SATA 6Gb/s ports
  • Supports RAID 0, RAID1 and RAID 10
• 1 x M.2 slot (Key M)
  • Supports PCIe 3.0 x4 (1st, 2nd and 3rd Gen AMD Ryzen™/ Ryzen™ with Radeon™ Vega Graphics and 2nd Gen AMD Ryzen™ with Radeon™ Graphics) or PCIe 3.0 x2 (AMD^® Athlon™ with Radeon™ Vega Graphics)and SATA 6Gb/s 2242/ 2260 /2280 storage devices

USB

AUDIO

Realtek^® ALC887 Codec

• 7.1-Channel High Definition Audio

LAN

• 1 x Realtek^® 8111H Gigabit LAN controller

INTERNAL CONNECTORS

• 1 x 24-pin ATX main power connector
• 1 x 8-pin ATX 12V power connector
• 4 x SATA 6Gb/s connectors
• 2 x USB 2.0 connectors (supports additional 4 USB 2.0 ports)
• 1 x USB 3.2 Gen1 connector (supports additional 2 USB 3.2 Gen1 ports)
• 1 x 4-pin CPU fan connector
• 1 x 4-pin system fan connector
• 1 x Front panel audio connector
• 2 x Front panel connectors
• 1 x TPM module connector
• 1 x Chassis Intrusion connector
• 1 x Serial port connector
• 1 x LED strip connector
• 1 x Clear CMOS jumper

BACK PANEL PORTS

DIMENSIONS

• 9.6 in. x 8.1 in. (24.4 cm x 20.6 cm)
• m-ATX Form Factor

MOUNTING

9 mounting holes

OPERATING SYSTEM

BOX CONTENT
