MSI GeForce RTX 2060 SUPER GAMING X
TWIN FROZR 7 THERMAL DESIGN
The 7th generation of the famous MSI TWIN FROZR Thermal Design brings the most advanced technology for ultimate cooling performance. It features the new TORX FAN 3.0 combined with groundbreaking aerodynamic feats. This means stable performance and a silent experience are guaranteed thanks to low temperatures.
TRACES OF BRILLIANCE
Underneath all the metal are the multilayered electric highways that make up the Printed Circuit Board. They connect all the vital components and allow them to communicate at lightning speed.
EXPERIENCE
Get the most out of your MSI graphics card in terms of performance and experience almost unlimited customization options with the included software.
SPECIFICATION
| MODEL NAME | GeForce® RTX 2060 SUPER™ GAMING X |
| GRAPHICS PROCESSING UNIT | NVIDIA® GeForce® RTX 2060 SUPER™ |
| INTERFACE | PCI Express x16 3.0 |
| CORES | 2176 Units |
| CORE CLOCKS | Boost: 1695 MHz |
| MEMORY SPEED | 14 Gbps |
| MEMORY | 8GB GDDR6 |
| MEMORY BUS | 256-bit |

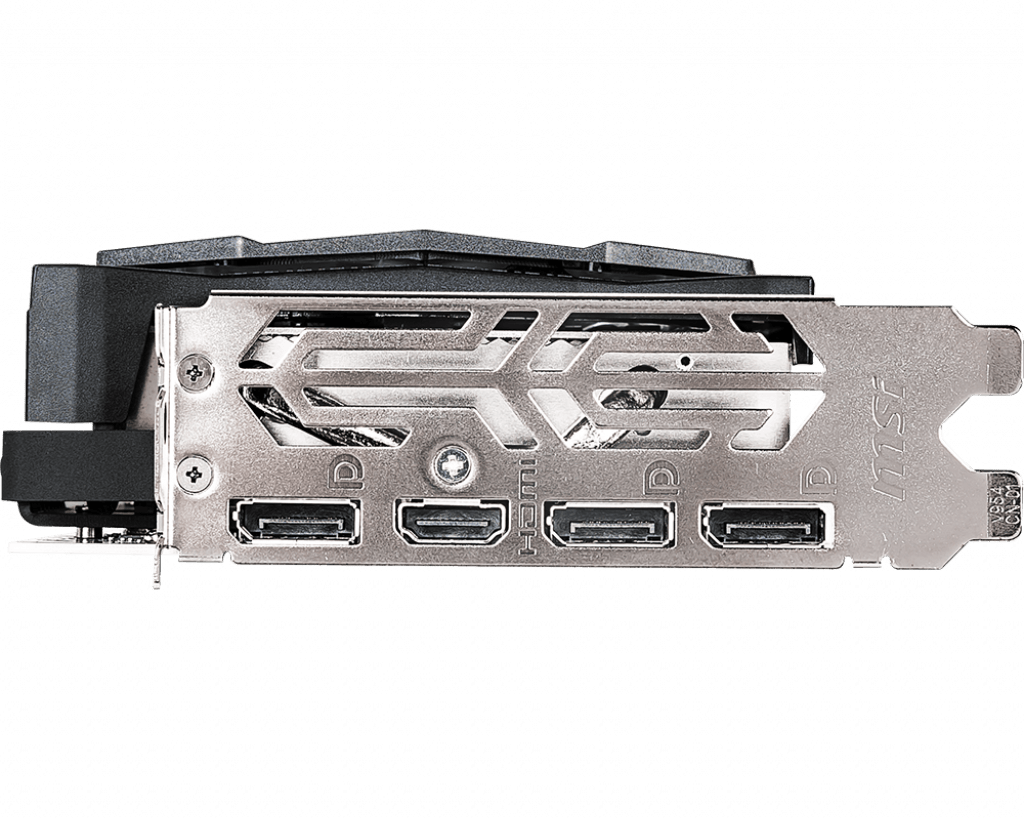

| OUTPUT | DisplayPort x 3 (v1.4) / HDMI 2.0b x 1 |
| HDCP SUPPORT | 2.2 |
| POWER CONSUMPTION | 175 W |
| POWER CONNECTORS | 8-pin x 1 |
| RECOMMENDED PSU | 550 W |
| CARD DIMENSION(MM) | 248 x 128 x 52 mm |
| WEIGHT (CARD / PACKAGE) | 981 g / 1579 g |
| DIRECTX VERSION SUPPORT | 12 API |
| OPENGL VERSION SUPPORT | 4.5 |
| MAXIMUM DISPLAYS | 4 |
| VR READY | Y |
| G-SYNC® TECHNOLOGY | Y |
| ADAPTIVE VERTICAL SYNC | Y |
| DIGITAL MAXIMUM RESOLUTION | 7680×4320 |
