Description

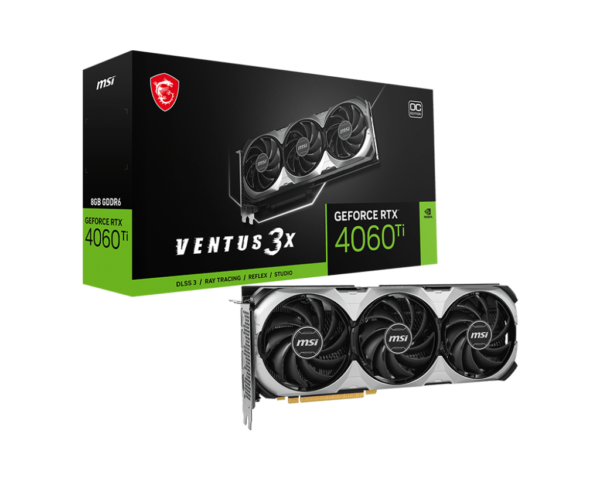

MSI Geforce RTX 4060 Ti Ventus 3x 8Gb GDDR6 OC Edition
MSI Geforce RTX 4060 Ti Ventus 3x 8Gb GDDR6 OC Edition
Specification
MSI Geforce RTX 4060 Ti Ventus 3x 8Gb GDDR6 OC Edition
| MODEL NAME | GeForce RTX™ 4060 Ti VENTUS 3X 8G OC |
| GRAPHICS PROCESSING UNIT | NVIDIA® GeForce RTX™ 4060 Ti |
| INTERFACE | PCI Express® Gen 4 x16 (uses x8) |
| CORE CLOCKS | Extreme Performance: 2580 MHz (MSI Center) |
| Boost: 2565 MHz | |
| CUDA® CORES | 4352 Units |
| MEMORY SPEED | 18 Gbps |
| MEMORY | 8GB GDDR6 |
| MEMORY BUS | 128-bit |
| OUTPUT | DisplayPort x 3 (v1.4a) |
| HDMI™ x 1 (Supports 4K@120Hz HDR and 8K@60Hz HDR and Variable Refresh Rate (VRR) as specified in HDMI™ 2.1a) | |
| HDCP SUPPORT | Y |
| POWER CONSUMPTION | 160 W |
| POWER CONNECTORS | 8-pin x 1 |
| RECOMMENDED PSU | 550 W |
| CARD DIMENSION (MM) | 308 x 120 x 43 mm |
| WEIGHT (CARD / PACKAGE) | 713 g / 1065 g |
| DIRECTX VERSION SUPPORT | 12 Ultimate |
| OPENGL VERSION SUPPORT | 4.6 |
| MAXIMUM DISPLAYS | 4 |
| G-SYNC® TECHNOLOGY | Y |
| DIGITAL MAXIMUM RESOLUTION | 7680 x 4320 |
MSI Geforce RTX 4060 Ti Ventus 3x E 8Gb OC
GeForce RTX™ 4060 Ti VENTUS 3X E 8G OC
WITH DLSS 3
Game, stream, create. The GeForce RTX™ 4060 Ti lets you take on the latest games and apps with the ultra-efficient NVIDIA Ada Lovelace architecture. Experience immersive, AI-accelerated gaming with ray tracing and DLSS 3, and supercharge your creative process and productivity with NVIDIA Studio.
Boost Clock / Memory Speed
- 2565 MHz / 18 Gbps
- 8GB GDDR6
- DisplayPort x 3 (v1.4a)
HDMI™ x 1 (Supports 4K@120Hz HDR, 8K@60Hz HDR, and Variable Refresh Rate as specified in HDMI™ 2.1a)
Triple Fan Thermal Design
- TORX Fan 4.0: A masterpiece of teamwork, fan blades work in pairs to create unprecedented levels of focused air pressure.
- Airflow Control: Don’t sweat it, Airflow Control guides the air to exactly where it needs to be for maximum cooling.
- Core Pipe:Precision-crafted heat pipes ensure max contact to the GPU and spread heat along the full length of the heatsink.
- Zero Frozr:The fans completely stop when temperatures are relatively low, eliminating all noise.

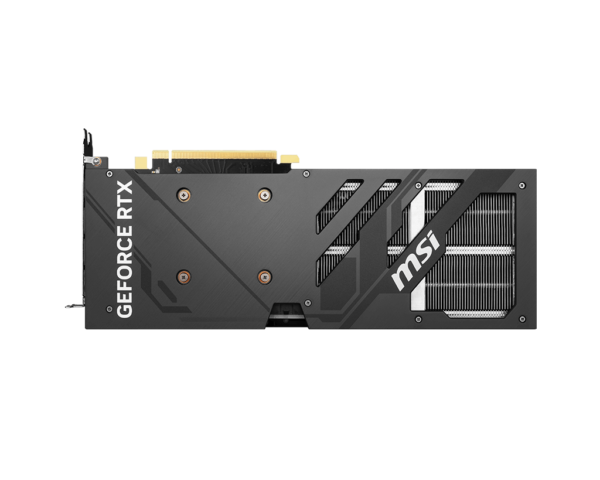

Reinforcing Backplate
- The reinforcing backplate features a flow-through design that provides additional ventilation.
MSI Center
- The exclusive MSI Center software lets you monitor, tweak, and optimize MSI products in real-time.
