The GeForce RTX™ 3070 Ti graphics card is powered by Ampere—NVIDIA’s 2nd gen RTX architecture. Built with enhanced RT Cores and Tensor Cores, new streaming multiprocessors, and superfast G6X memory, it gives you the power you need to rip through the most demanding games.
Core / Memory
- Boost Clock / Memory Speed
- 1800 MHz / 19 Gbps
- 8GB GDDR6X

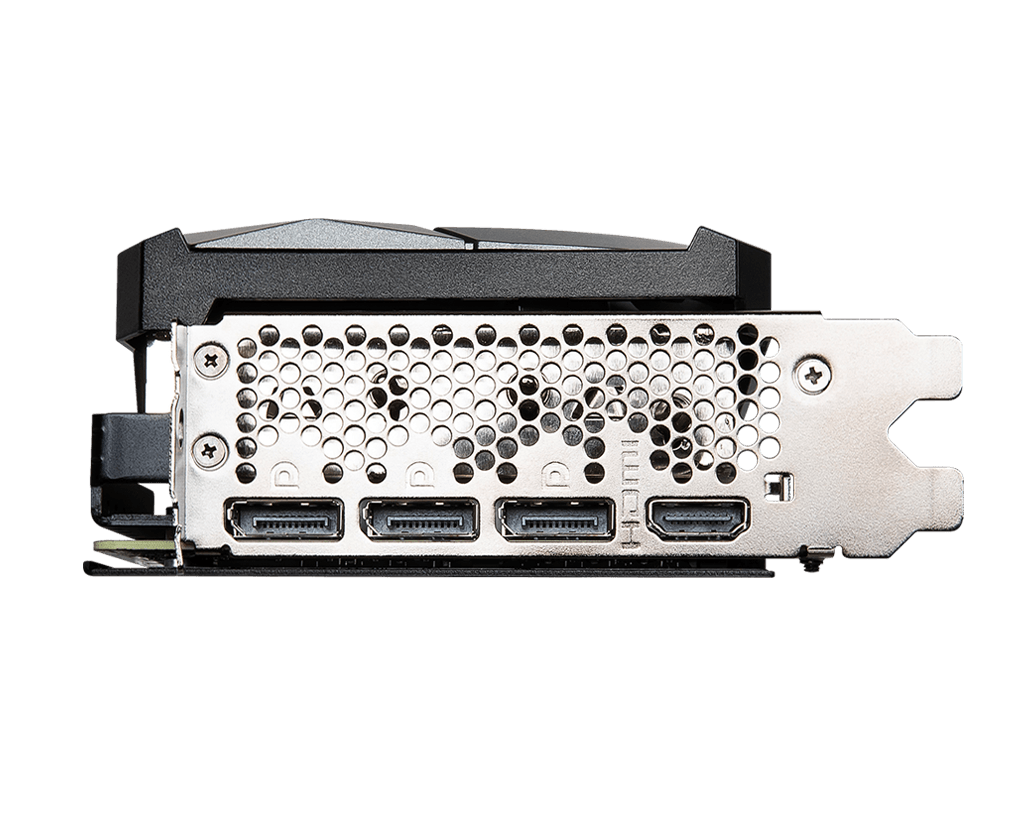

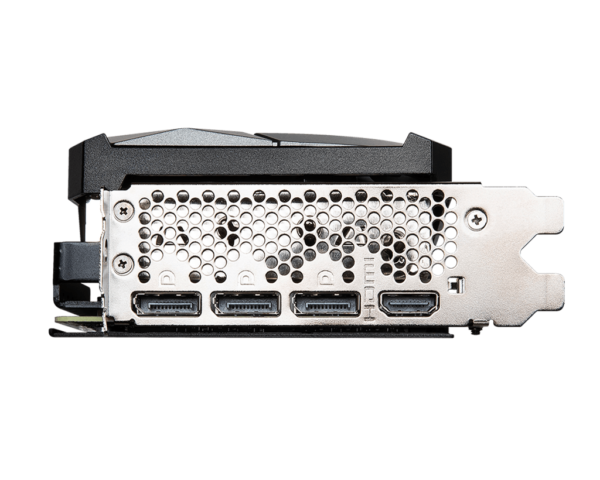

- DisplayPort x 3 (v1.4a)
- HDMI x 1 (Supports 4K@120Hz as specified in HDMI 2.1)

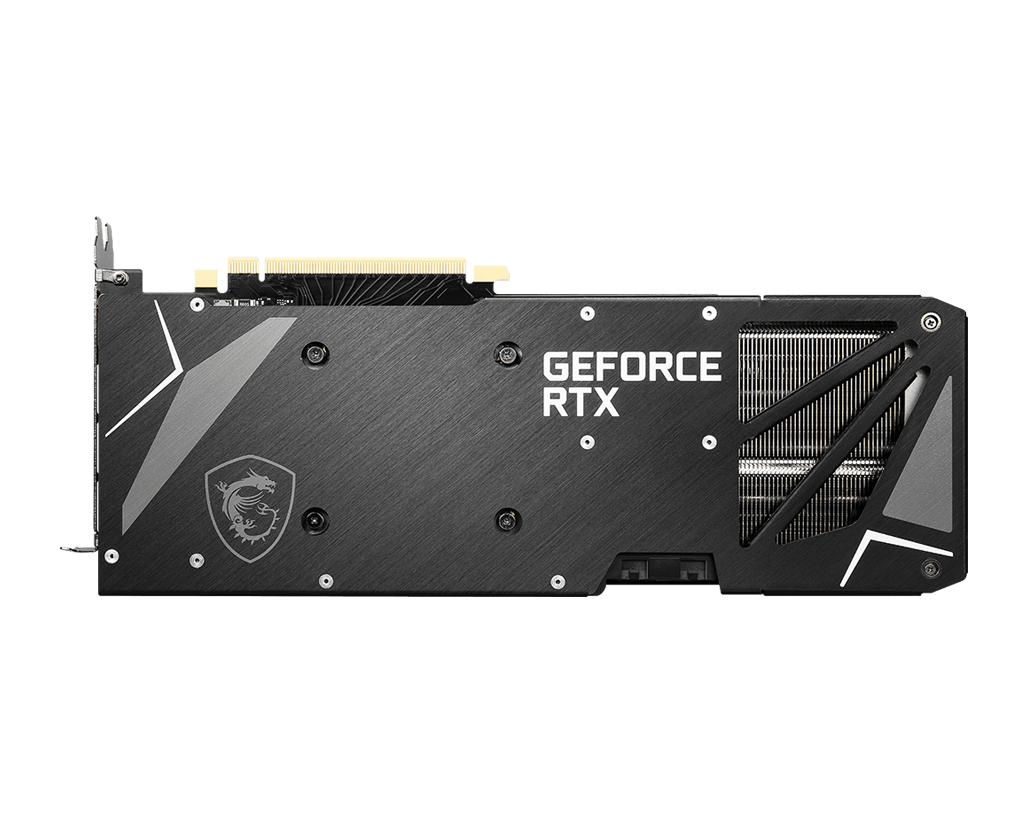

Metal backplate
- Premium metal backplate provides a nice visual finish to the card. It also strengthens the card and thanks to some cleverly place thermal pads even helps to keep the temperature low.
Core Pipe
- Precision-crafted heat pipes ensure max contact to the GPU and spread heat along the full length of the heatsink.

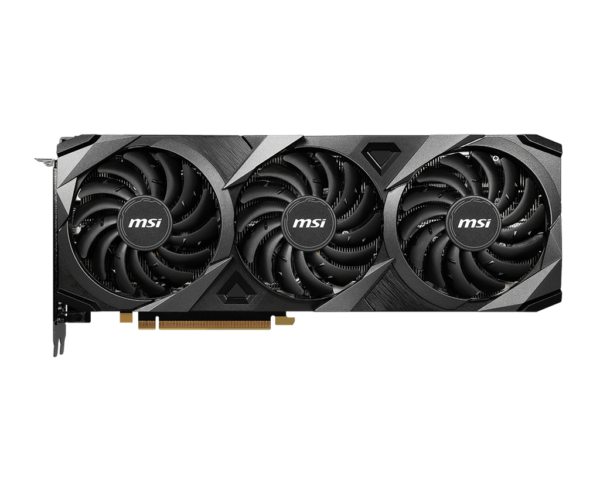

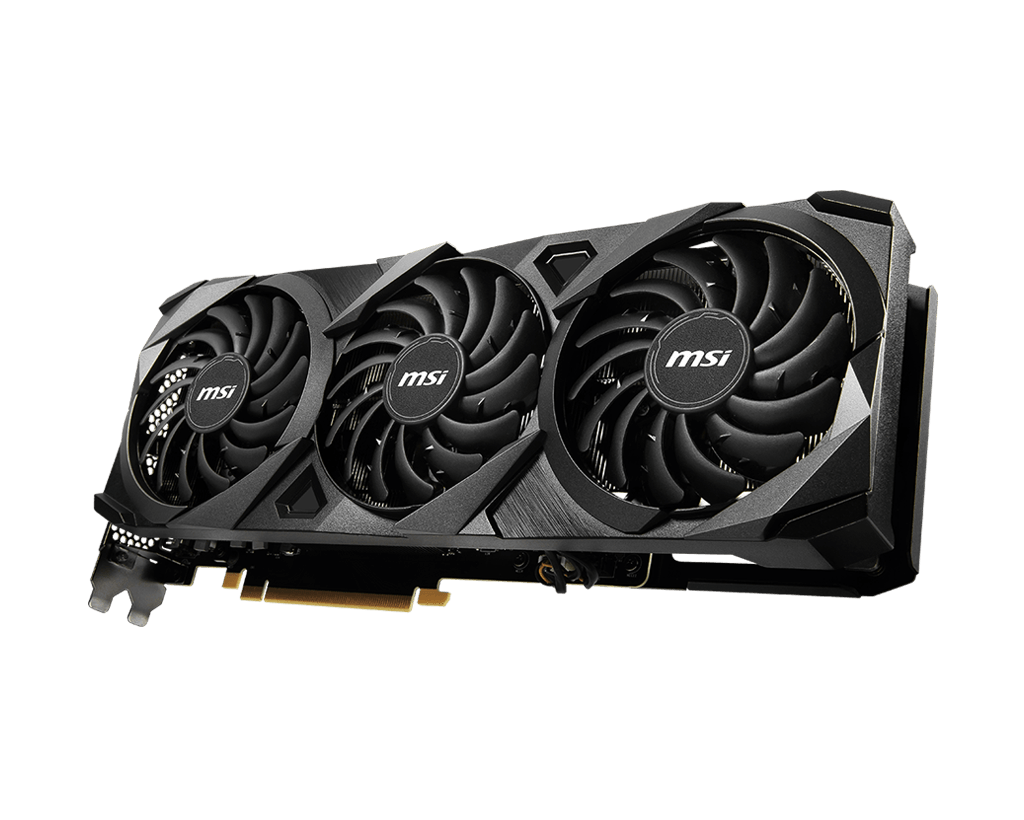

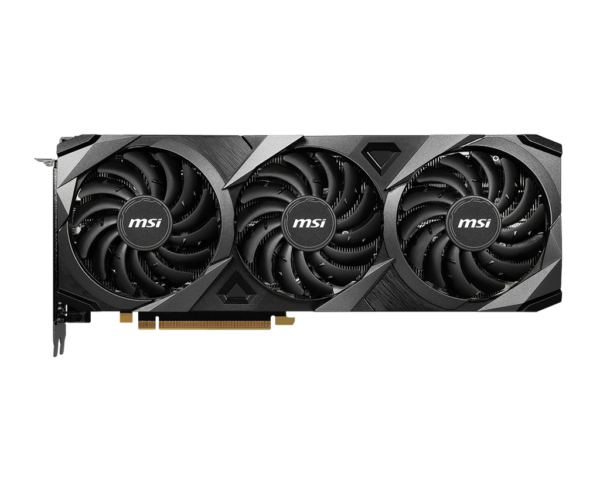

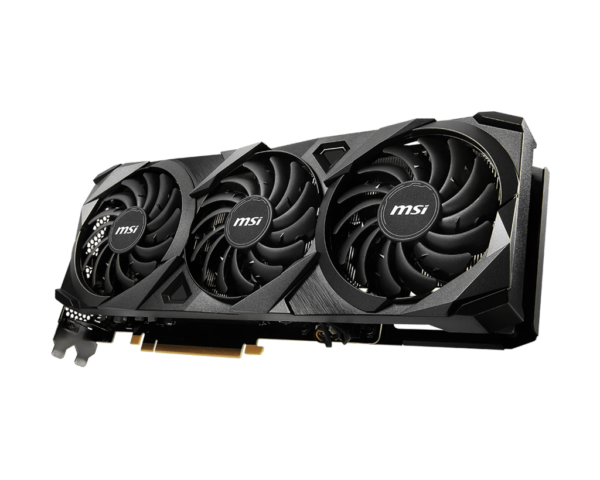

Triple Fan Thermal Design
- TORX Fan 3.0: The award-winning MSI TORX Fan 3.0 design creates high static pressure and pushes the limits of thermal performance.
- Zero Frozr: Calm before the storm, keeping fans still and maintaining silence until cooling is needed.
- Thermal Padding: An abundance of thermal pads use any chance for additional heat transfer directly from the components.
MSI Center
- The exclusive MSI Center software lets you monitor, tweak, and optimize MSI products in real-time.
Specifications

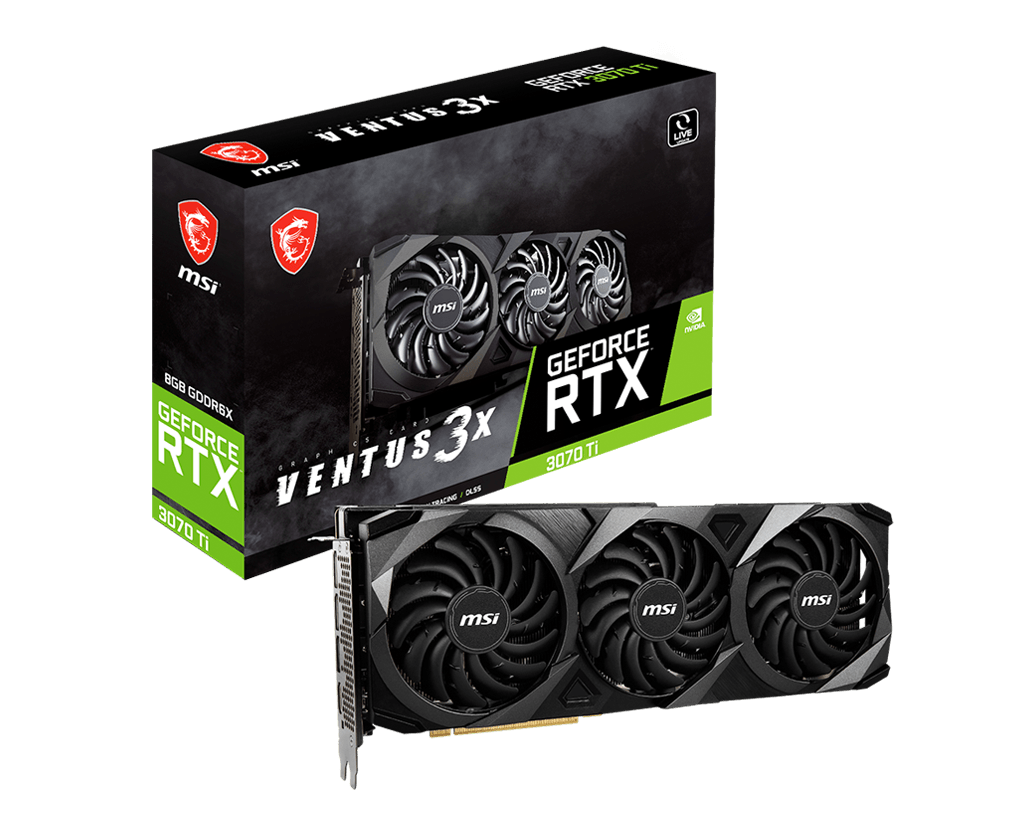

| MODEL NAME | GeForce RTX™ 3070 Ti VENTUS 3X 8G OC |
| GRAPHICS PROCESSING UNIT | NVIDIA® GeForce RTX™ 3070 Ti |
| INTERFACE | PCI Express® Gen 4 |
| CORES | 6144 Units |
| CORE CLOCKS | Boost:1800 MHz |
| MEMORY SPEED | 19 Gbps |
| MEMORY | 8GB GDDR6X |
| MEMORY BUS | 256-bit |
| OUTPUT | DisplayPort x 3 (v1.4a) |
| HDMI x 1 (Supports 4K@120Hz as specified in HDMI 2.1) | |
| HDCP SUPPORT | Y |
| POWER CONSUMPTION | 290 W |
| POWER CONNECTORS | 8-pin x 2 |
| RECOMMENDED PSU | 750W |
| CARD DIMENSION (MM) | 305 x 120 x 57 mm |
| WEIGHT (CARD / PACKAGE) | 1160g / 1735g |
| DIRECTX VERSION SUPPORT | 12 API |
| OPENGL VERSION SUPPORT | 4.6 |
| MULTI-GPU TECHNOLOGY | Y |
| MAXIMUM DISPLAYS | 4 |
| VR READY | Y |
| G-SYNC® TECHNOLOGY | Y |
| ADAPTIVE VERTICAL SYNC | Y |
| DIGITAL MAXIMUM RESOLUTION | 7680 x 4320 |
