Description

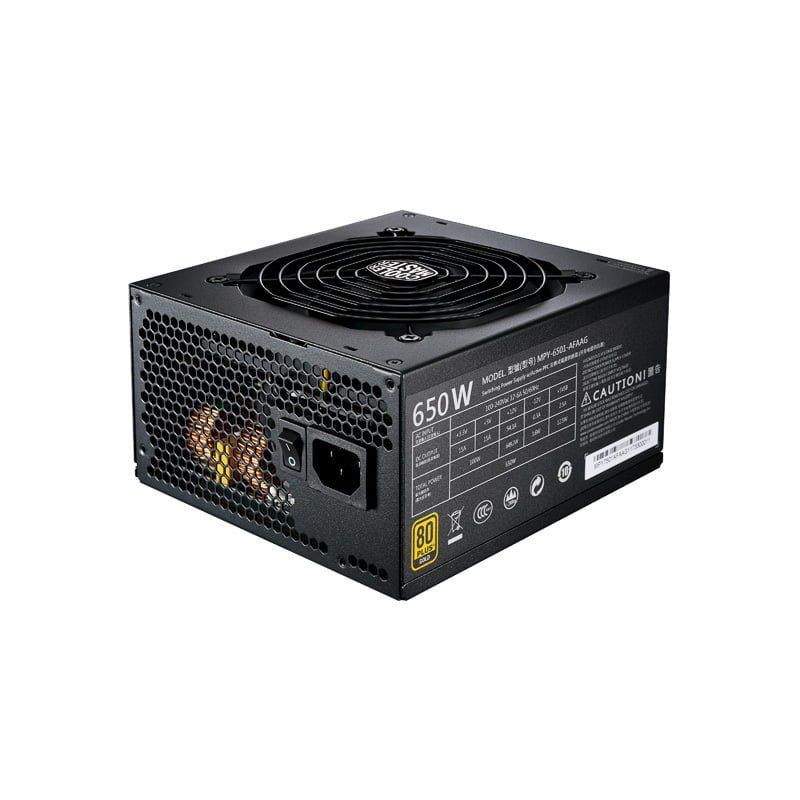

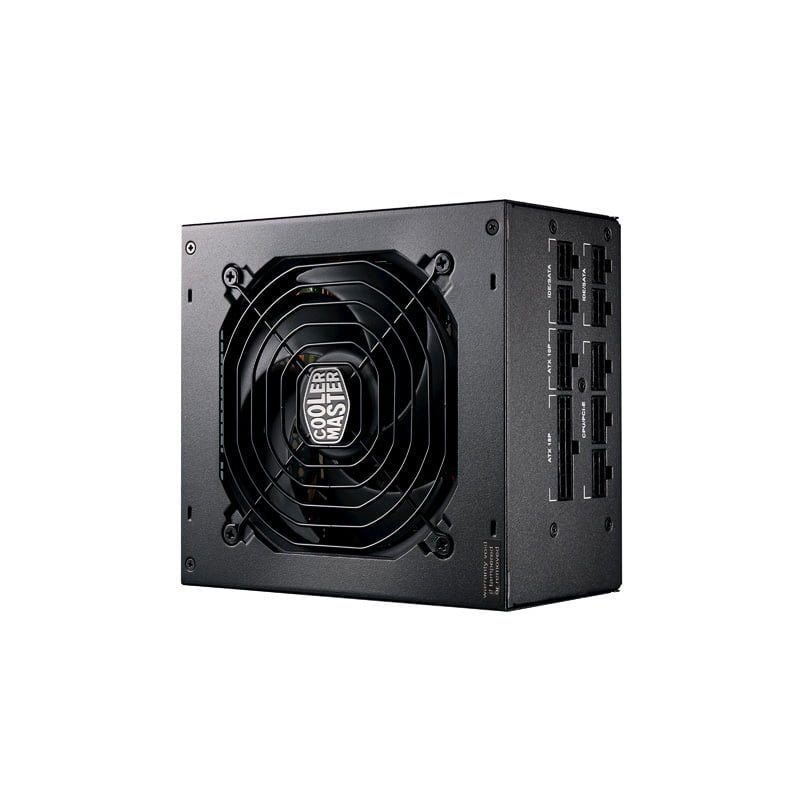

Cooler Master MWE GOLD 650 FULL MODULAR PSU
MWE GOLD 650 FULLY MODULAR
Behold the 80 Plus Gold rated, fully modular MWE Gold. This power supply unit delivers consistent 90% efficiency, low temperatures, and quiet operation. High quality, heat resistant components have been used to achieve gold level performance at temperatures up to 45°C. The Silencio fan and exclusive LDB bearing provides nearly silent cooling at no loss to system performance and a longer lifespan. Flat cables improve airflow by reducing cable bulk and a single +12V line ensures all components are fed the same stable output regardless of which cable you use. Be bold, power with gold.
80 PLUS GOLD CERTIFIED
This certification guarantees a typical efficiency of 90% under normal operating conditions.

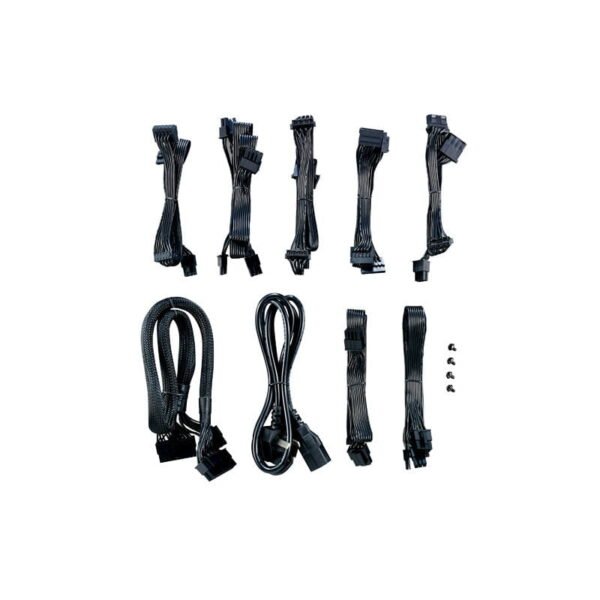

FULLY MODULAR CABLES
Fully customizable cabling reduces clutter, increases airflow,
and improves overall thermal performance.
ADVANCED CIRCUITRY
The MWE Gold’s full-bridge design coupled with LLC, Synchronous, and DC to DC topology technologies offers reliable and stable voltage outputs.
5 YEAR WARRANTY
This unit comes with a standard limited manufacturing warranty of 5 years from the date of purchase.

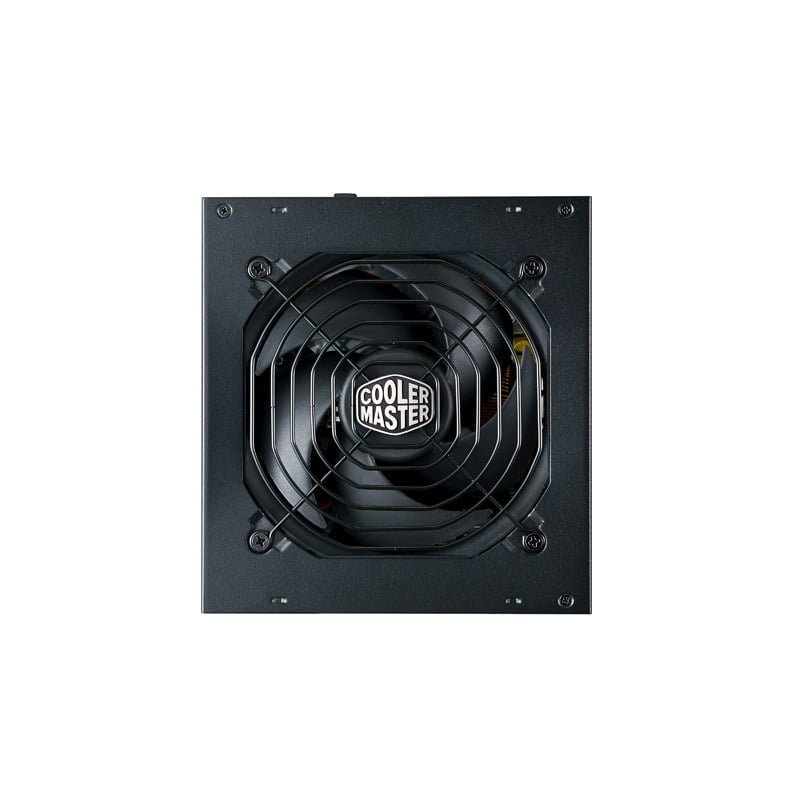

SEALED LDB FAN BEARING
The sealed LDB bearing has been combined with Silencio fan technology for quiet cooling with a longer lifespan.
SPECIFICATION
PRODUCT NAME | MWE Gold 650 Full Modular |
80 PLUS | Gold |
MODEL | MPY-6501-AFAAG |
ATX VERSION | ATX 12V V2.31 |
PFC | Active PFC |
INPUT VOLTAGE | 100-240V |
INPUT CURRENT | 12-6A |
INPUT FREQUENCY | 50/60Hz |
DIMENSIONS (L X W X H) | 160 x 150 x 86 mm |
FAN SIZE | 120mm |
FAN BEARING | LDB |
POWER GOOD SIGNAL | 100-500ms |
HOLD UP TIME | >14ms at 100% load |
EFFICIENCY | 90% Typically |
ERP 2014 LOT 3 | Yes |
MTBF | >100,000 Hours |
OPERATING TEMPERATURE | 0-45°C |
PROTECTIONS | OVP, OPP, UVP, SCP, OTP, OCP |
REGULATORY | CCC, CE, TUV-SUD, RCM, EAC, cTUVus, FCC, BSMI, KC, CB |
MB 24-PIN CONNECTORS | 1 |
CPU 12V 4+4 PIN CONNECTORS | 1 |
CPU 12V 8 PIN CONNECTORS | 1 (for updated models) |
SATA CONNECTORS | 8 |
PERIPHERAL 4-PIN CONNECTORS | 6 |
FDD CABLE 4-PIN CONNECTORS | 1 |
PCI-E 6+2 PIN CONNECTORS | 4 |
MODULAR | Full Modular |
WATTAGE | 500 to 750W |
SERIE | MWE Gold Series |
