Description
Core/Memory
- Boost Clock / Game Clock* / Base Clock / Memory Speed
Up to 1560 MHz / Up to 1375 MHz / 1130 MHz / Up to 14 Gbps - 6GB GDDR6

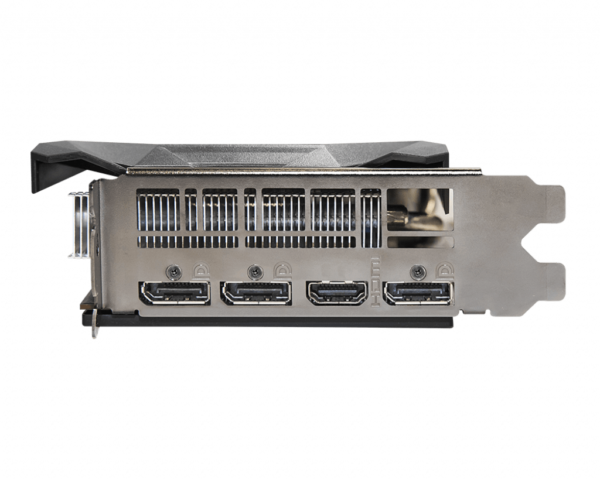

- DisplayPort x 3 / HDMI x 1

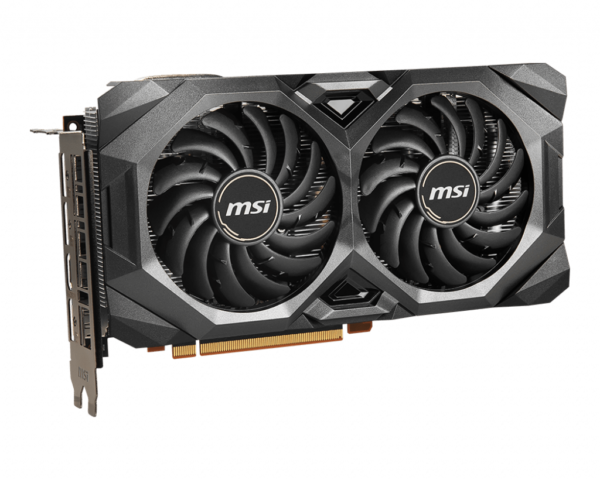

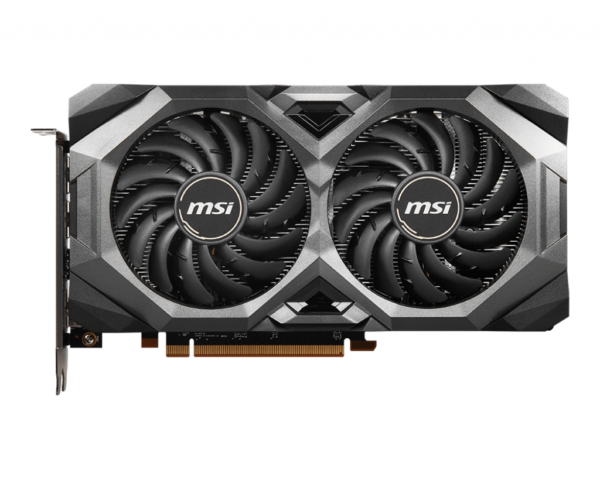

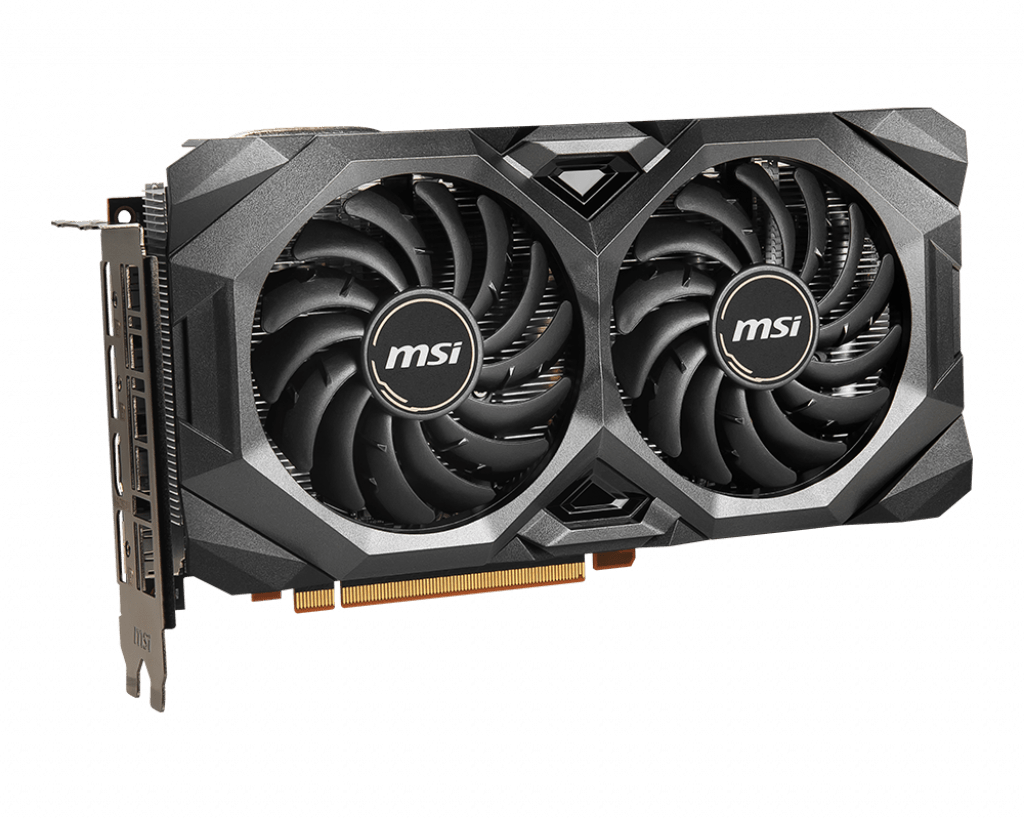

TORX Fan 3.0
- Dispersion fan blade: Steep curved blade accelerating the airflow
- Traditional fan blade: Provides steady airflow to massive heat sink below
Afterburner Overclocking Utility
- Kombustor: The latest DirectX versions benchmark supporting.
- Predator: In-game video recording.
AMD Radeon FreeSync™
- Synchronizes the display refresh to your Radeon RX Series GPU for the fast, smooth gaming.
* ‘Game Clock’ is the expected GPU clock when running typical gaming applications, set to typical TGP (Total Graphics Power). Actual individual game clock results may vary.
- Due to a recent vBIOS update, you could upgrade your RX 5600 XT using MSI’s LIVE UPDATE Software to upgrade memory speed to 14Gbps.
Please follow these step-by-step instructions or contact MSI support if you run into any issues.

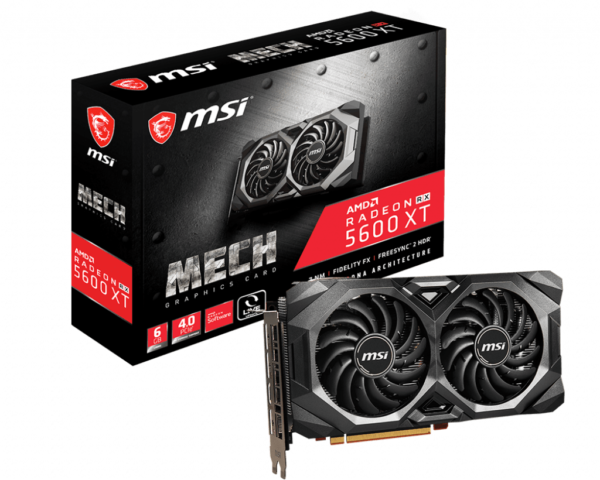

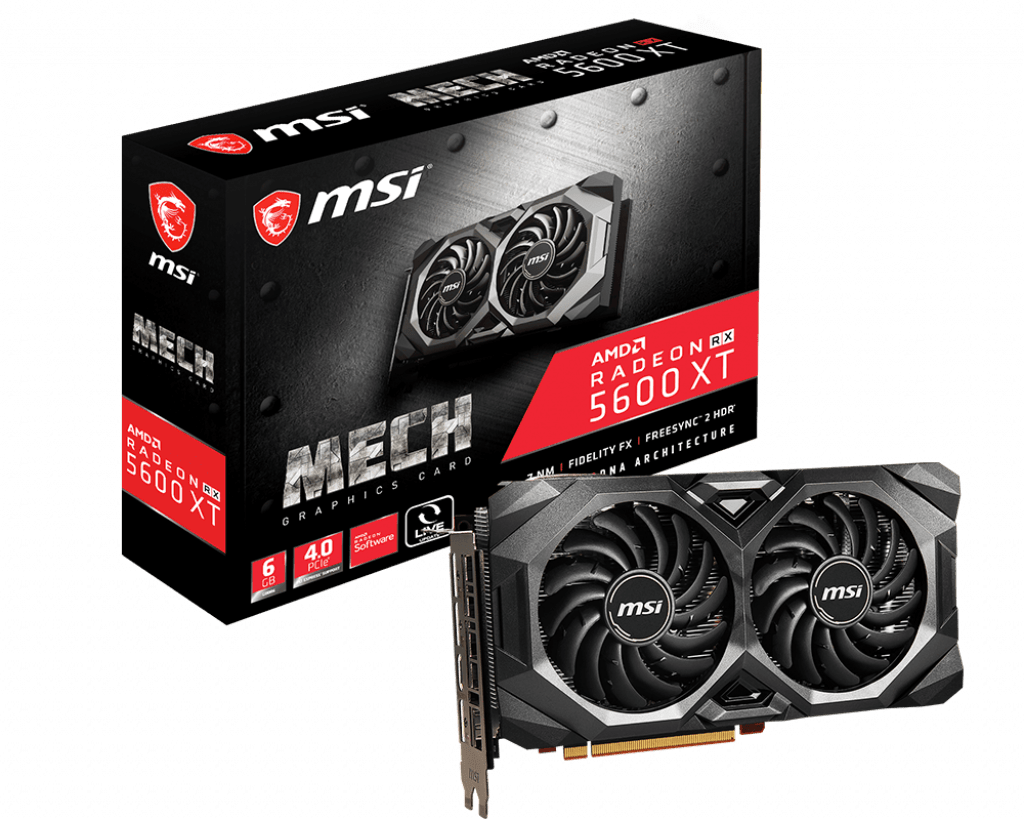

| MODEL NAME | Radeon RX 5600 XT MECH |
| GRAPHICS PROCESSING UNIT | Radeon™ RX 5600 XT |
| INTERFACE | PCI Express 4.0 |
| CORES | 2304 Units |
| CORE CLOCKS | Boost: Up to 1560 MHz Game: Up to 1375 MHz Base: 1130 MHz (Game Clock is the expected GPU clock when running typical gaming applications, set to typical TGP (Total Graphics Power). Actual individual game clock results may vary.) |
| MEMORY SPEED | Up to 14 Gbps |
| MEMORY | 6GB GDDR6 |
| MEMORY BUS | 192-bit |
| OUTPUT | DisplayPort x 3 (v1.4) / HDMI 2.0b x 1 |
| HDCP SUPPORT | Y |
| POWER CONSUMPTION | 150W(This data is not fixed, it may differ by core clocks.) |
| POWER CONNECTORS | 8-pin x 1 |
| RECOMMENDED PSU | 450 W |
| CARD DIMENSION(MM) | 231 x 127 x 46 mm |
| WEIGHT (CARD / PACKAGE) | 790g / 1232g |
| DIRECTX VERSION SUPPORT | 12 |
| OPENGL VERSION SUPPORT | 4.6 |
| MULTI-GPU TECHNOLOGY | Y |
| MAXIMUM DISPLAYS | 4 |
| VR READY | Y |
| DIGITAL MAXIMUM RESOLUTION | 7680x4320Z |
