Core/Memory
- Boost Clock / Game Clock* / Base Clock / Memory Speed
Up to 1925 MHz / Up to 1815 MHz / 1670 MHz /14Gbps - 8GB GDDR6
- DisplayPort x 3 / HDMI x 1
TORX Fan 3.0
- Dispersion fan blade: Steep curved blade accelerating the airflow
- Traditional fan blade: Provides steady airflow to massive heat sink below
Afterburner Overclocking Utility
- Kombustor: The latest DirectX versions benchmark supporting.
- Predator: In-game video recording.
AMD Radeon FreeSync™
- Synchronizes the display refresh to your Radeon RX Series GPU for the fast, smooth gaming.
* ‘Game Clock’ is the expected GPU clock when running typical gaming applications, set to typical TGP (Total Graphics Power). Actual individual game clock results may vary.

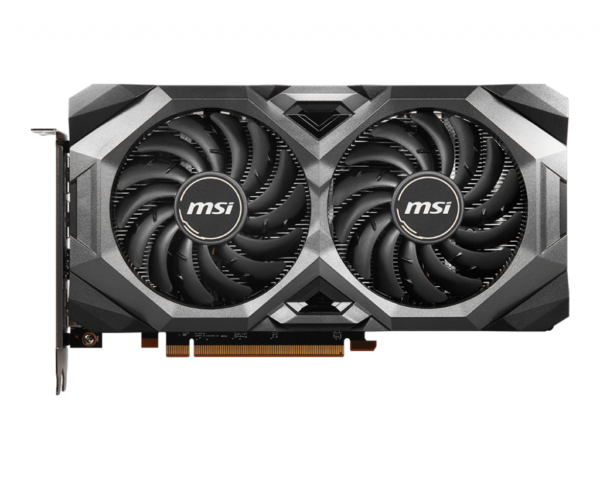

| MODEL NAME | Radeon RX 5700 XT MECH OC |
| GRAPHICS PROCESSING UNIT | Radeon™ RX 5700 XT |
| INTERFACE | PCI Express 4.0 |
| CORES | 2560 Units |
| CORE CLOCKS | Boost: Up to 1925 MHzGame: Up to 1815 MHzBase: 1670 MHz(Game Clock is the expected GPU clock when running typical gaming applications, set to typical TGP (Total Graphics Power). Actual individual game clock results may vary.) |
| MEMORY SPEED | 14Gbps |
| MEMORY | 8GB GDDR6 |
| MEMORY BUS | 256-bit |
| OUTPUT | DisplayPort x 3 (v1.4) / HDMI 2.0b x 1 |
| HDCP SUPPORT | Y |
| POWER CONSUMPTION | 225 W |
| POWER CONNECTORS | 8-pin x 1+ 6-pin x 1 |
| RECOMMENDED PSU | 750 W |
| CARD DIMENSION(MM) | 232 x 126 x 46 mm |
| WEIGHT (CARD / PACKAGE) | 794g / 1237g |
| DIRECTX VERSION SUPPORT | 12 |
| OPENGL VERSION SUPPORT | 4.6 |
| MULTI-GPU TECHNOLOGY | Y (Bridgeless)(DX12) |
| MAXIMUM DISPLAYS | 4 |
| VR READY | Y |
| DIGITAL MAXIMUM RESOLUTION | 7680×4320 |
