SilverStone ST50F-ESB 500W SMPS

₹2,700 (In. GST)

+ Free Shipping

￭ High efficiency with 80 PLUS Bronze certification

￭ 24/7 continuous power output with 40℃ operating temperature

￭ Class-leading single +12V rail

￭ Multiple protection circuitry

￭ Silent running 120mm fan with 18dBA

￭ PCI-E connectors support

￭ Active PFC

￭ Dual EPS 8pin with multiple PCI-E 8 / 6pin connectors support (V2.2)

Out of stock

Guaranteed Safe Checkout

SilverStone ST50F-ESB 500W SMPS

SPECIFICATIONS



Model No.
SST-ST50F-ESB
Max. DC Output
500W
Power density
277W per liter
Load Range
Output
 +3.3V +5V +12V +5VSB -12V
Max.(Amps)
 18A 16A 38A 2.5A 0.3A
Peak (Amps)
 / / / / /
Min.(Amps)
 0.1A 0.2A 0.5A 0A 0A
Range (%)
 ±5% ±5% ±5% ±5% ±10%
Line Reg.(%)
 ±1% ±1% ±1% ±1% ±1%
Ripple(mVp-p)
 50mV 50mV 120mV 50mV 120mV
Color
Black（Lead-Free Paint）
Combined +3.3V & +5V
110W
Combined +12V
456W
Input Voltage
90 ~ 264 Vrms
Input Frequency Range
47Hz ~ 63Hz
PFC
Active PFC（PF>0.9 at Full Load）
Efficiency
82%~85% at 20%~100% loading
MTBF
100,000 hours
Operating temperature
0°C ~ 40°C
Protection
Over current protection
Over power protection
Over voltage protection
Short circuit protection
Over temperature protection
Connectors
V2.1
1 x 24 / 20-Pin motherboard connector（500mm）
1 x 8 / 4-Pin EPS / ATX 12V connector（750mm）
1 x 8 / 6-Pin PCIE connector（500mm）
1 x 6-Pin PCIE connector（500mm / 150mm）
6 x SATA connector（”500mm / 150mm / 150mm” x 2）
3 x 4-Pin Peripheral connector （500mm / 150mm / 150mm）
1 x 4-Pin Floppy connector（500mm / 150mm / 150mm / 150mm）V2.2
1 x 24 / 20-Pin motherboard connector（500mm）
*2 x 8 / 4-Pin EPS / ATX 12V connector（”750mm” x 2）
1 x 8 / 6-Pin PCIE connector（500mm）
1 x 6-Pin PCIE connector（500mm / 150mm）
6 x SATA connector（”500mm / 150mm / 150mm” x 2）
3 x 4-Pin Peripheral connector （500mm / 150mm / 150mm）
1 x 4-Pin Floppy connector（500mm / 150mm / 150mm / 150mm）
Cooling System

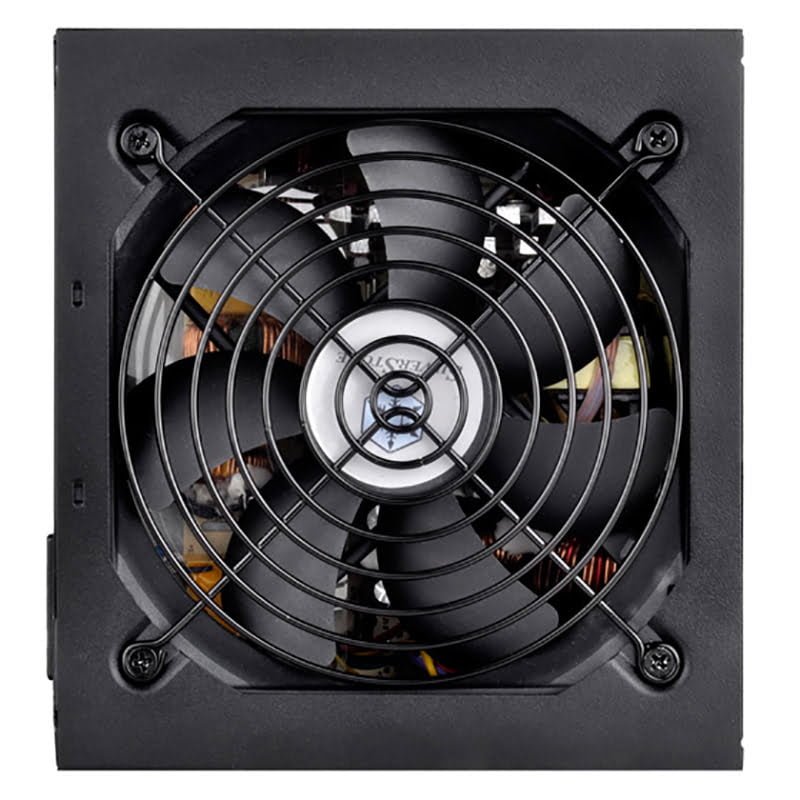

Single 120mm silent fan
Form factor
Noise Level
18 dBA minimum
Dimension
150 mm (W) x 86 mm (H) x 140 mm (D)
5.91″ (W) x 3.39″ (H) x 5.51″ (D)
Weight
1.99kg
Certification
80 PLUS Bronze
Other
GPU Support list
Compatible with ATX12V v2.4
